Circuit structure: Fully symmetric differential X-AMP circuit.

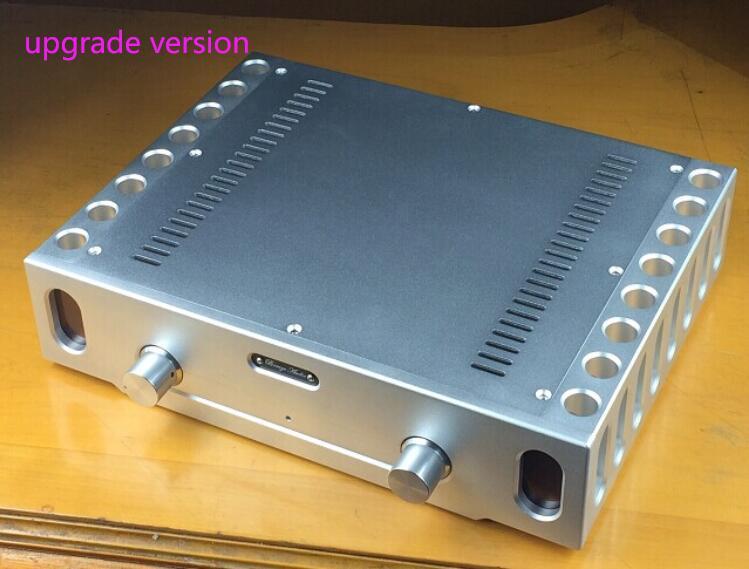

upgraded version uses a more high-end chassis
Parameters:
Frequency range: 10HZ-40KHZ(+/-3DB)
Signal to noise ratio:103DB
Rated power:120W*2 8Ω150W*2 4Ω
Impedance range:4-8Ω
Harmonic distortion: less than 0 001% 1KHZ.1W

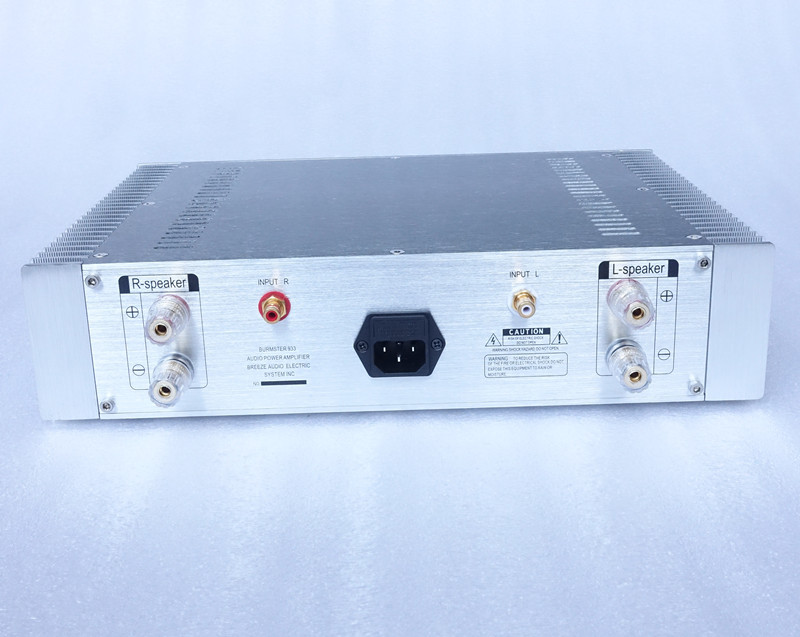

Input port: RCA Lotus terminal / XLR balanced socket
Size: 360*268*80mm.
Weight: 8.3kg.
Features:
1. Very low output impedance and high damping factor, with perfect low frequency control even though the output power is only 120W.

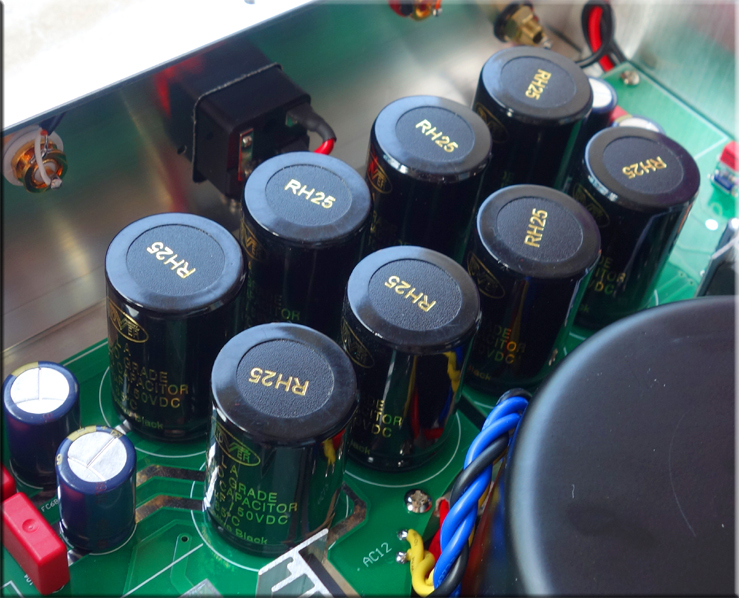

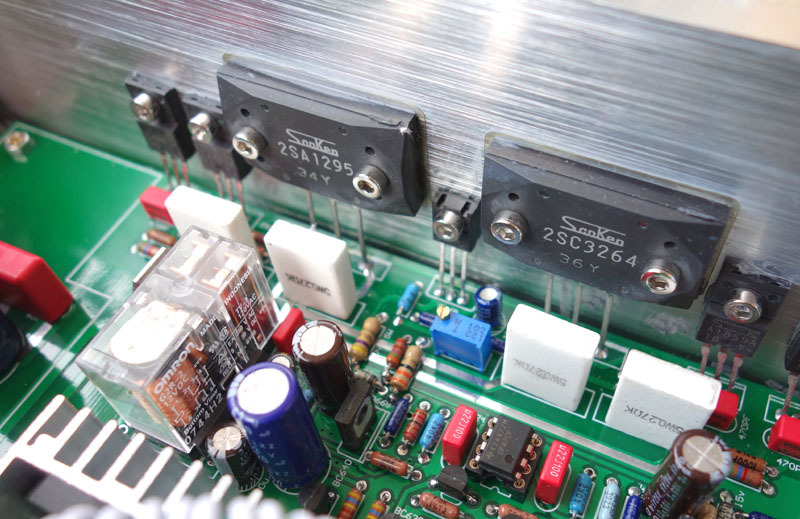

2. The output transistor is the original SANKEN transistor 2SA1295 and 2SC3264, and the main filter capacitor is up to 80000UF, ensuring powerful dynamics and abundant energy.

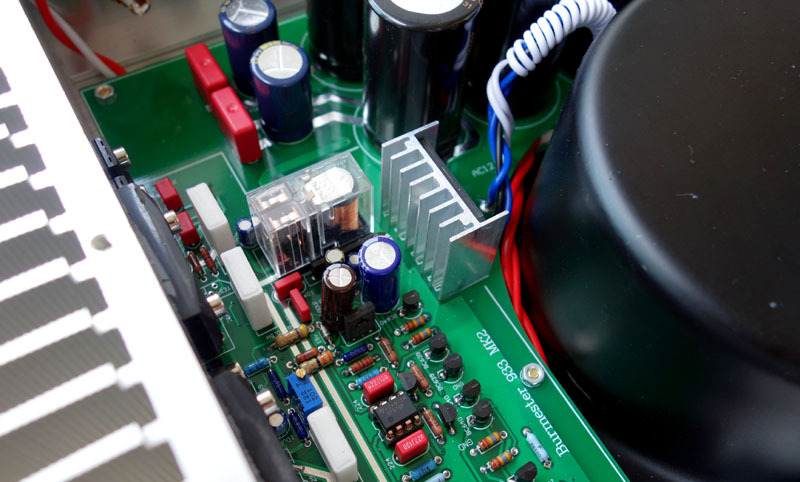

3. Potentiometer is Japanese precision ALPS27, no breakpoint all-copper a-core transformer, omron relay protection.

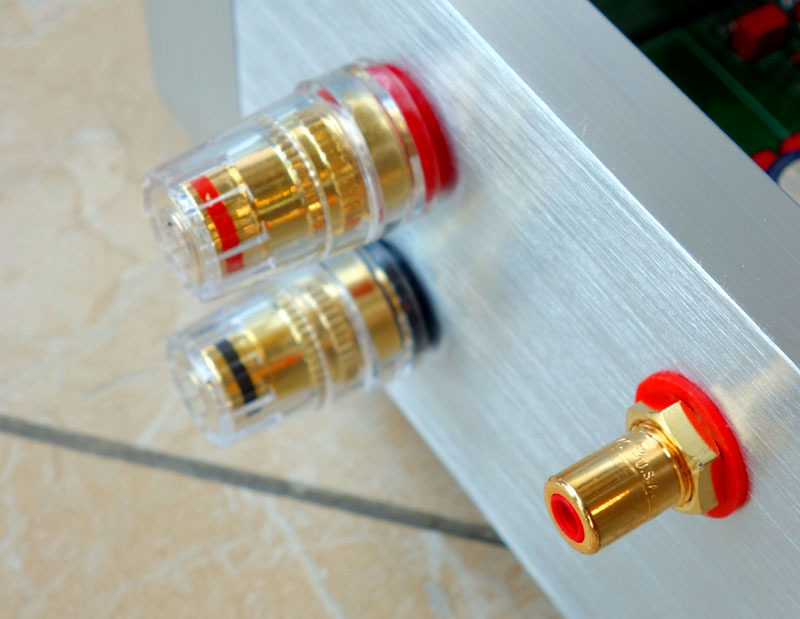

4. The input end is CMC of the United States, and the output end is pure copper terminal.
