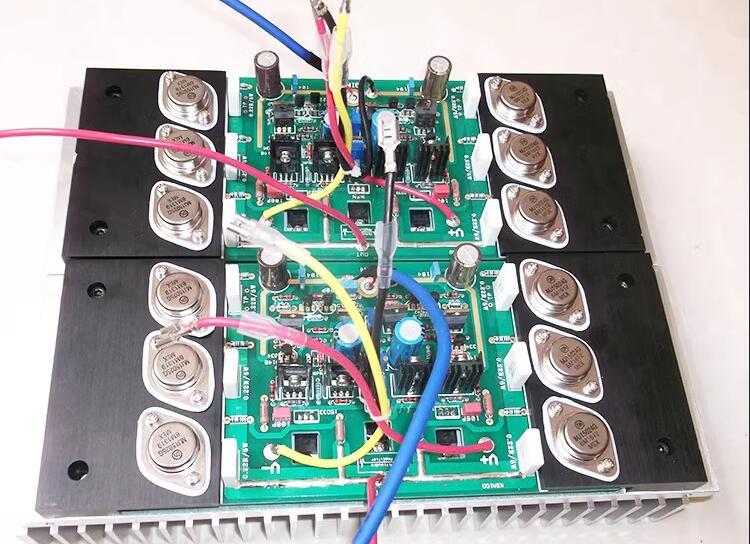

Product details:Fully symmetrical push-pull circuit, Toshiba precision paired 2SA970 \ 2SC2240 to form complementary differential amplification, reducing noise,IRF9160/IRF960 forms a second-order differential amplifier, while LM334 acts as a constant current transistor to improve common mode rejection ratio and reduce distortion.Toshiba C5171/A1930 paired transistors paired with Hitachi 669 transistors form a bias stable circuit with fully balanced and symmetrical voltage levels.MJE15032/MJE15033 is paired with transistors to drive MJ15024/15025 as the output, resulting in a strong driving force for the power amplifier,The voice is warm and delicate, full of spirituality.
The design of complete separation of left and right channels improves the signal-to-noise ratio of the amplifier.

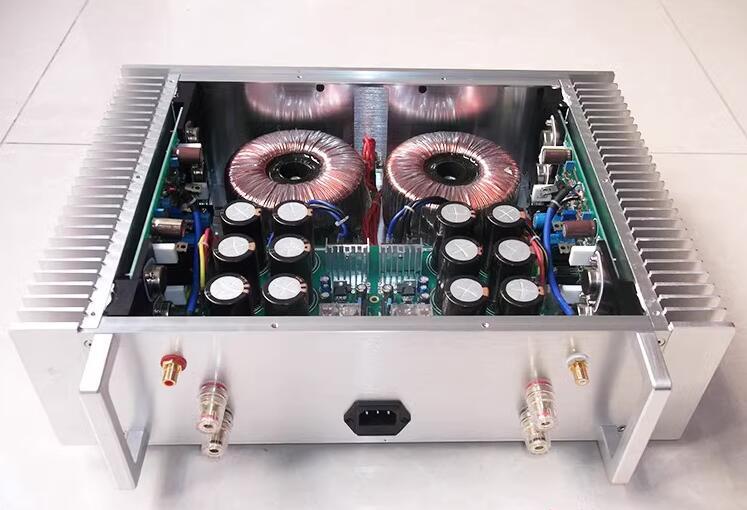

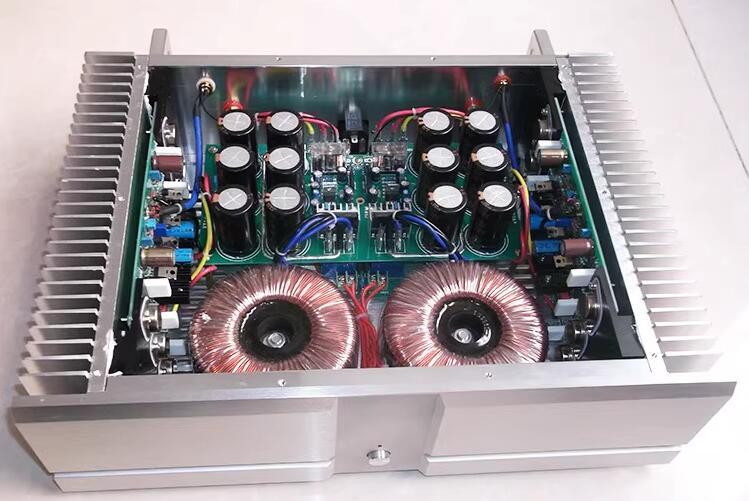

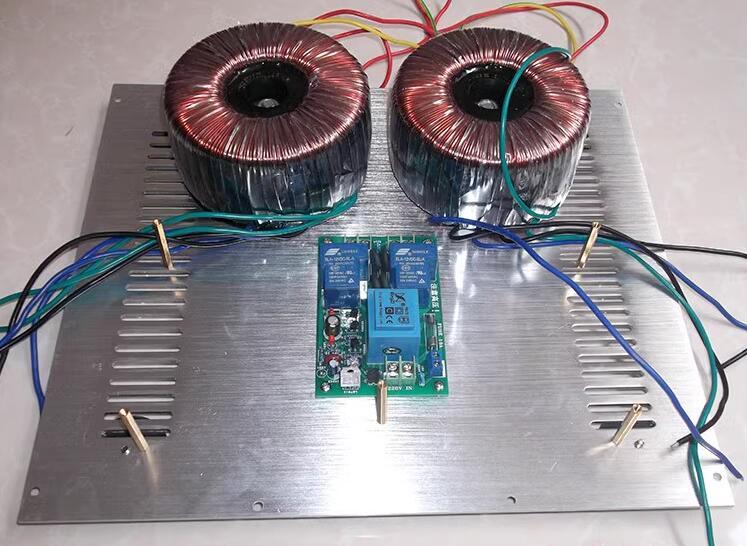

Two 400W pure copper ring transformers without break points. Sufficient power and strong power.
With input soft start, effectively preventing the impact of power on/off.

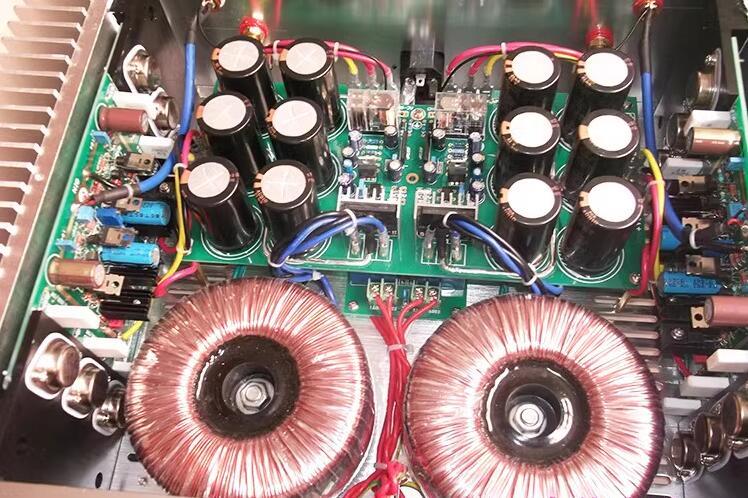

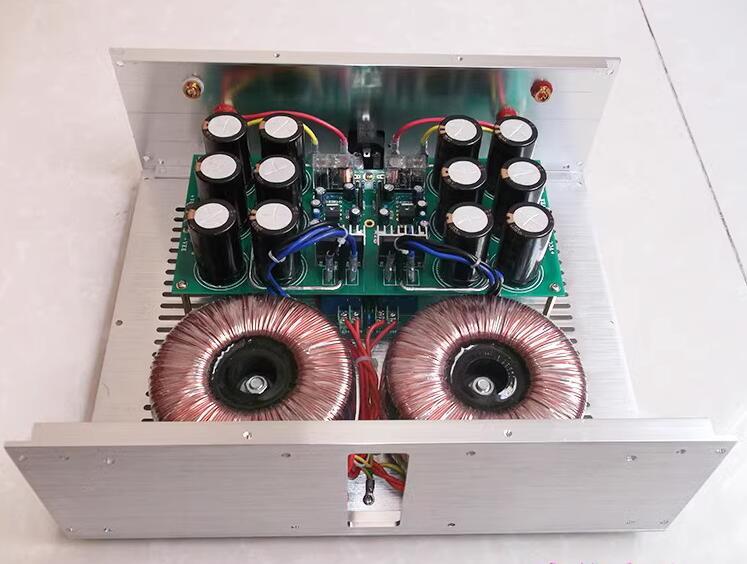

The Japanese Sanken 50A rectifier bridge, paired with 60000 uF ELNA filtering capacitors per channel, provides pure and abundant power for the power amplifier.

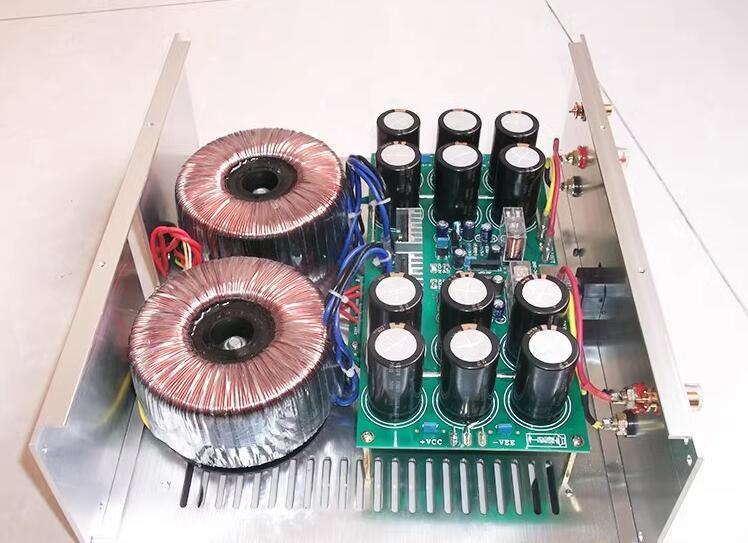

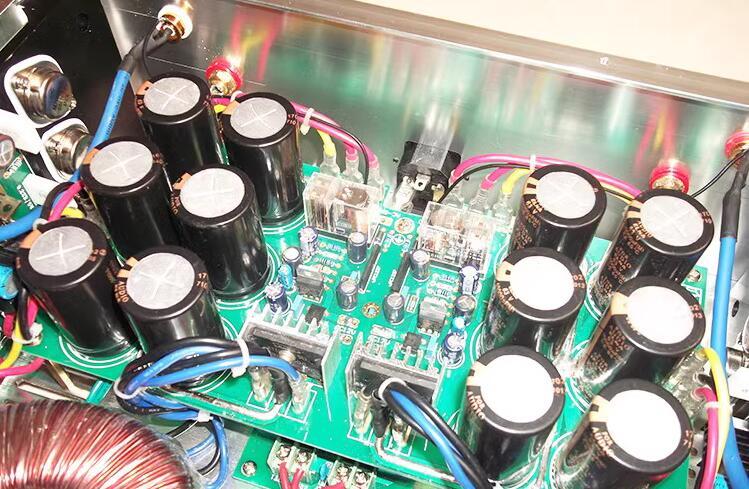

The integrated design of the speaker protection board and power board is simple and beautiful, easy to install, and provides amplifier separation and signal-to-noise ratio.

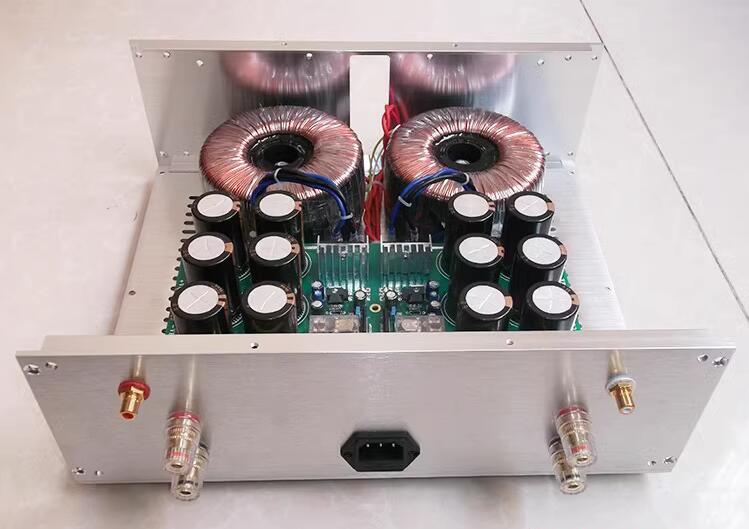

Pure copper crystal terminal and American CMC RCA, made of genuine materials

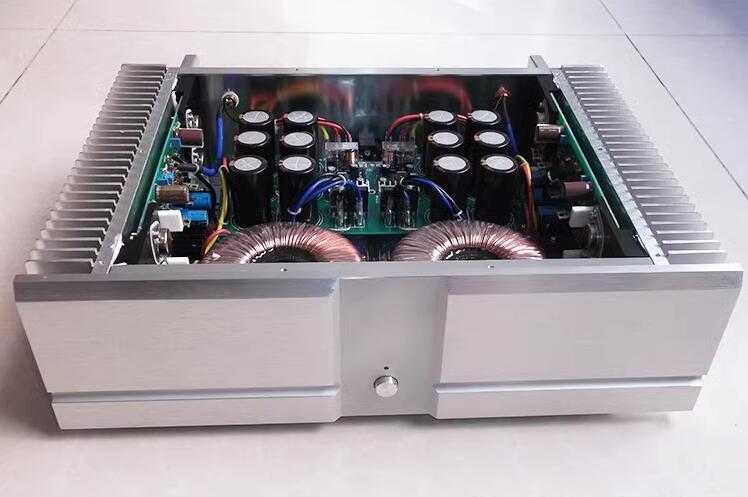

Parameters:Size: 430 * 120 * 312mm
Weight: 19kg
Output power: 150W * 2 8 ohms 230W * 2 4 ohms
Frequency response: 20Hz-20KHz
Total harmonic distortion: 0.05%
Signal to noise ratio: 110dB
Input voltage: AC110V/220V
List：
KSA100MKII amplifier x 1
