Reference KRELL KSA5 Headphone Amplifier Class A Full DC 8W Amplifier Stereo HiFi Sound Amp

KRELL KSA5 Class A Headphone Amplifier

Peak season promotion

5.0 (1 Reviews)

6 Sold

~~$186.00~~ $171.12

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (4)

1/1

Description

Feature：

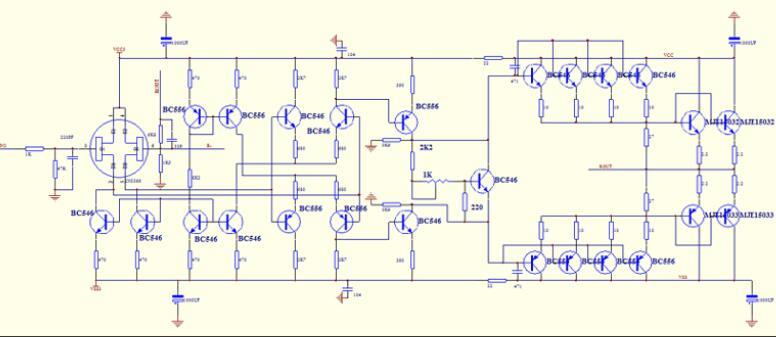

The whole machine refers to the KRELL ksa5 headphone amplifier circuit, which should be the most powerful amplifier circuit at present. The lowest low frequency can be extended to 5HZ, and the driving force can not only drive the K701 class headphones, but even drive the 3-4 inch small speaker. The circuit architecture USES 2N5566 as the single differential input, two-stage mirror current, one sound channel USES two pairs of ON MJE15034 15035 as the output, class A high current state. No matter how hard it is to push the headphones, they will be fine.

Product parameter：

Frequency range: 5hz-40khz (+/ -3db).
SNR: 102dB.
Rated power: 1000mW 32ohm, 250mW 300ohm, 5W 4ohm.
Impedance range: headphones 16-600 ohms, audio 4-8 ohms.
Harmonic distortion: <0.0067% 1KHZ.
Input terminal: RCA.
Power voltage: AC110V 220V 50/60hz.
Size: 320 * 70 * 240 mm.
Net weight: 3.9 KG.
