Details:

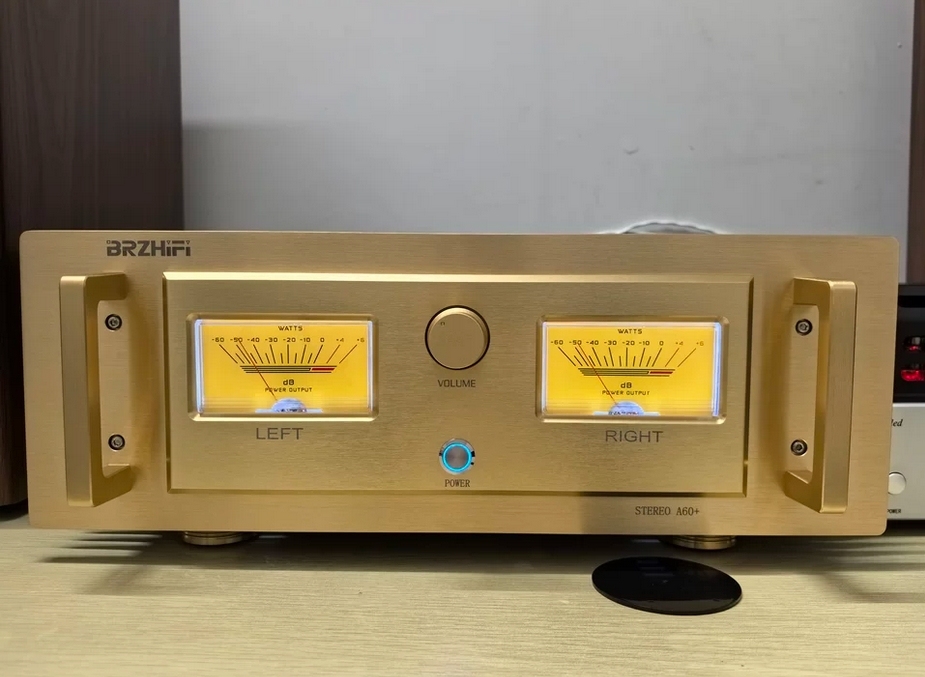

Sound quality: 20W pure class A, voice, instrument texture, low frequency bounce, air sense is very nice. Generally, class A will be distorted after 20W, but the A60 will automatically extend to the 200W class AB drive speakers to keep them in good condition.

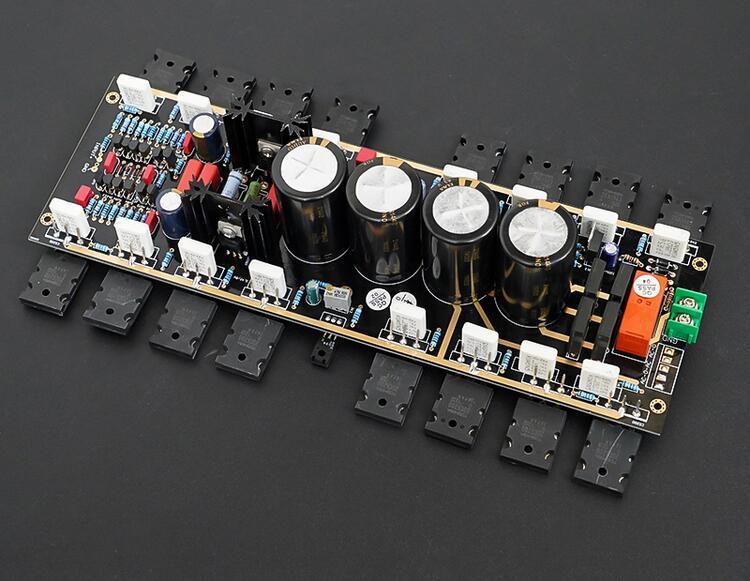

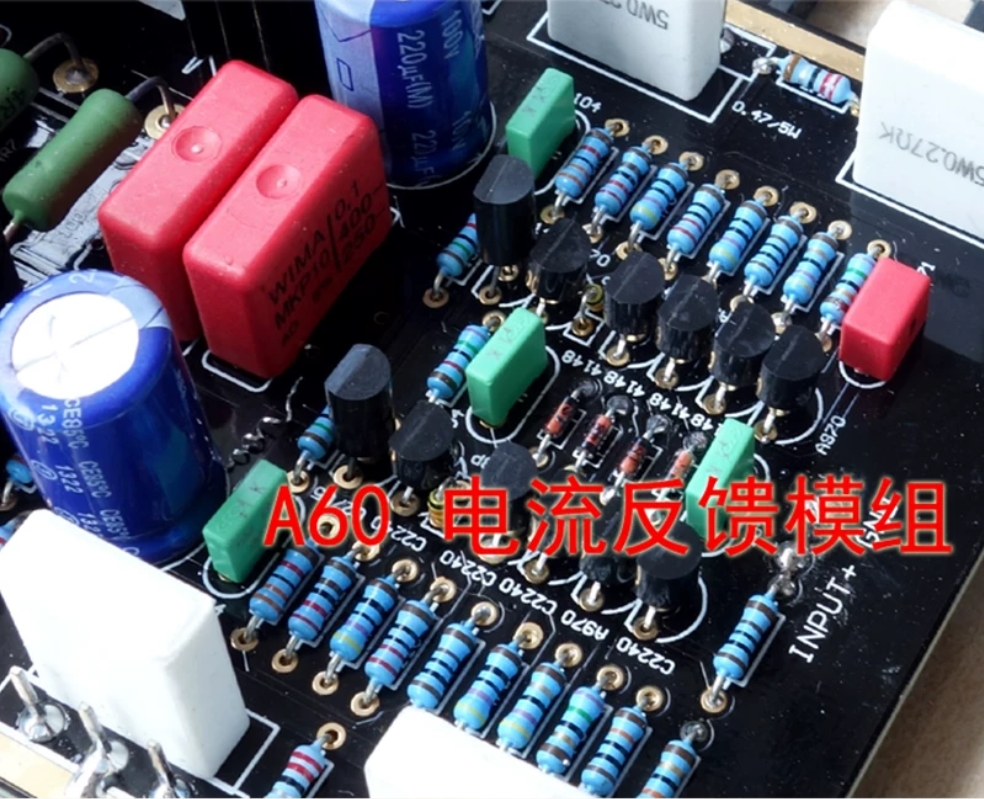

Technical highlights: the input circuit is fully symmetrical architecture, current feedback, the main characteristics of this circuit from the input stage to the output pole using complementary push-pull circuit, can easily get hundreds of volts per microsecond conversion rate, capacitive load driving ability is quite good. The output uses 16 pairs of power tube outputs in parallel, very high driving force and very low output impedance to easily drive 2-8 ohm speakers.

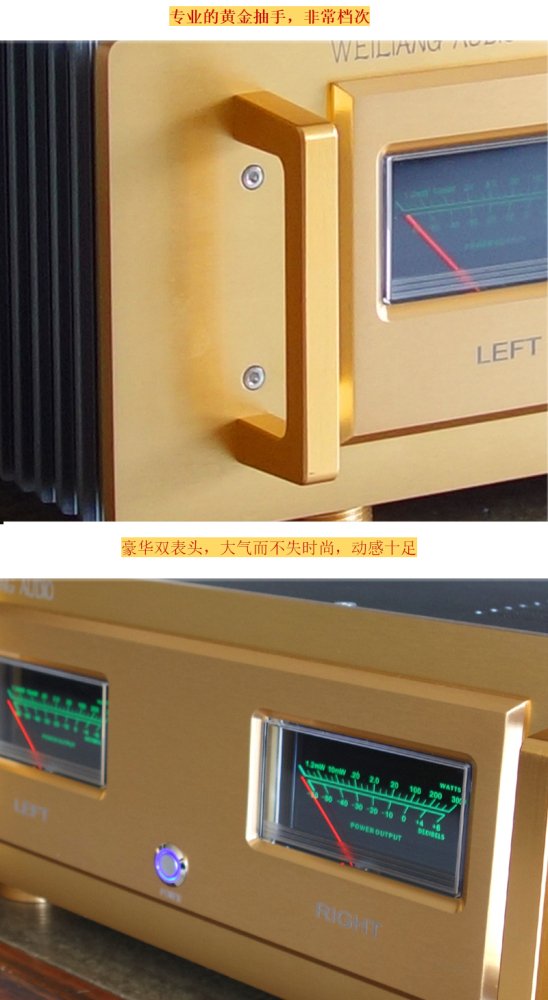

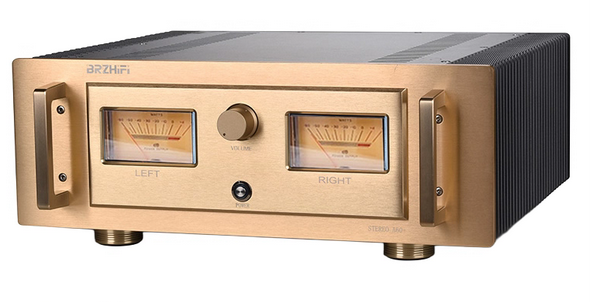

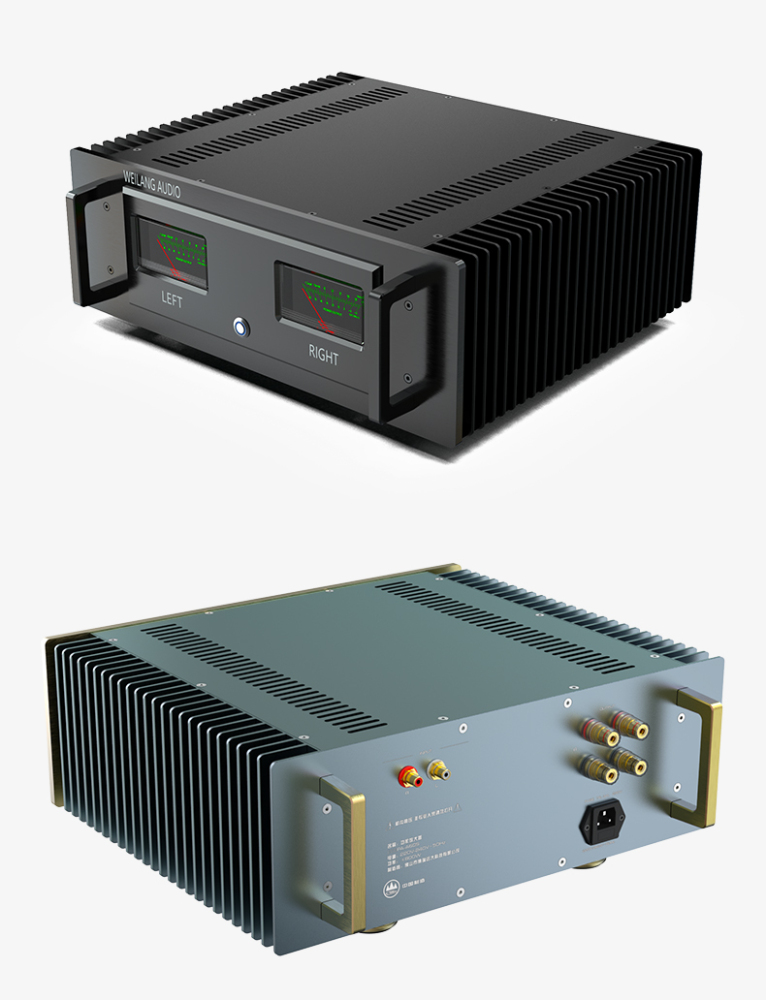

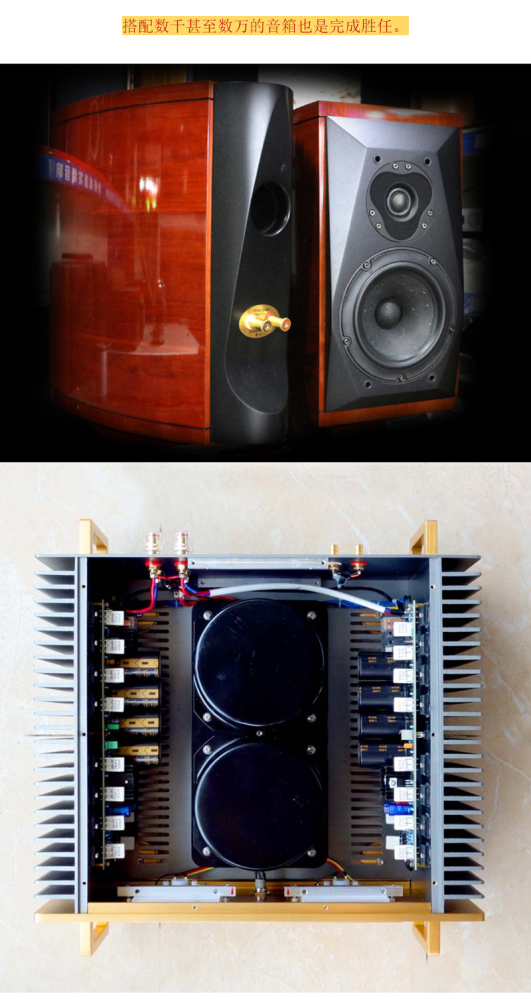

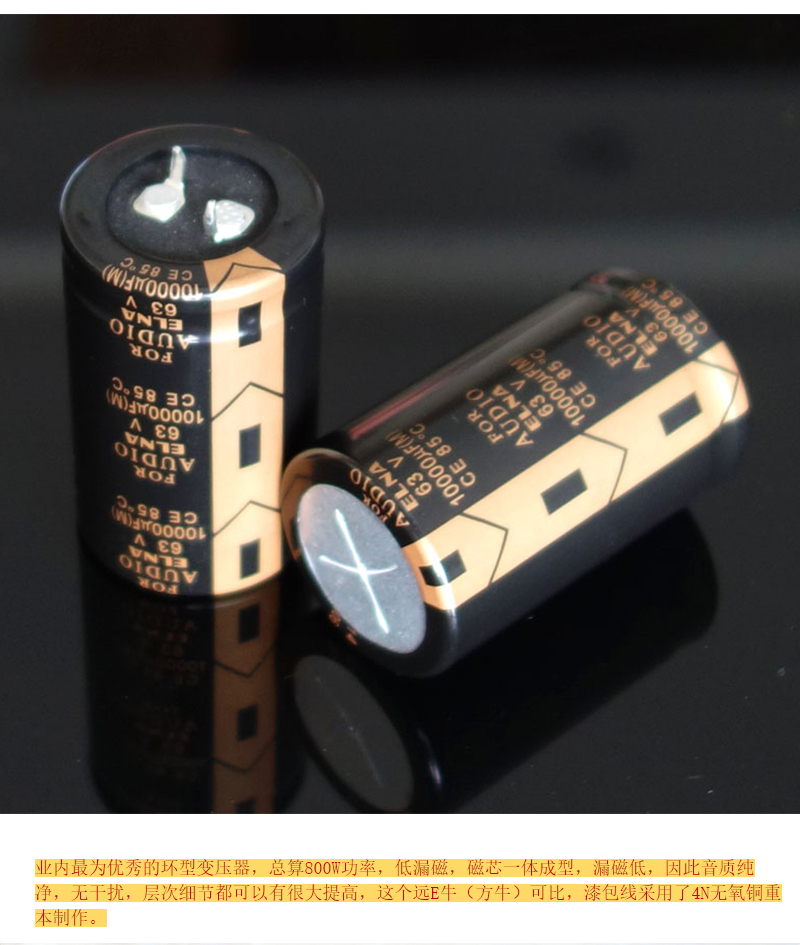

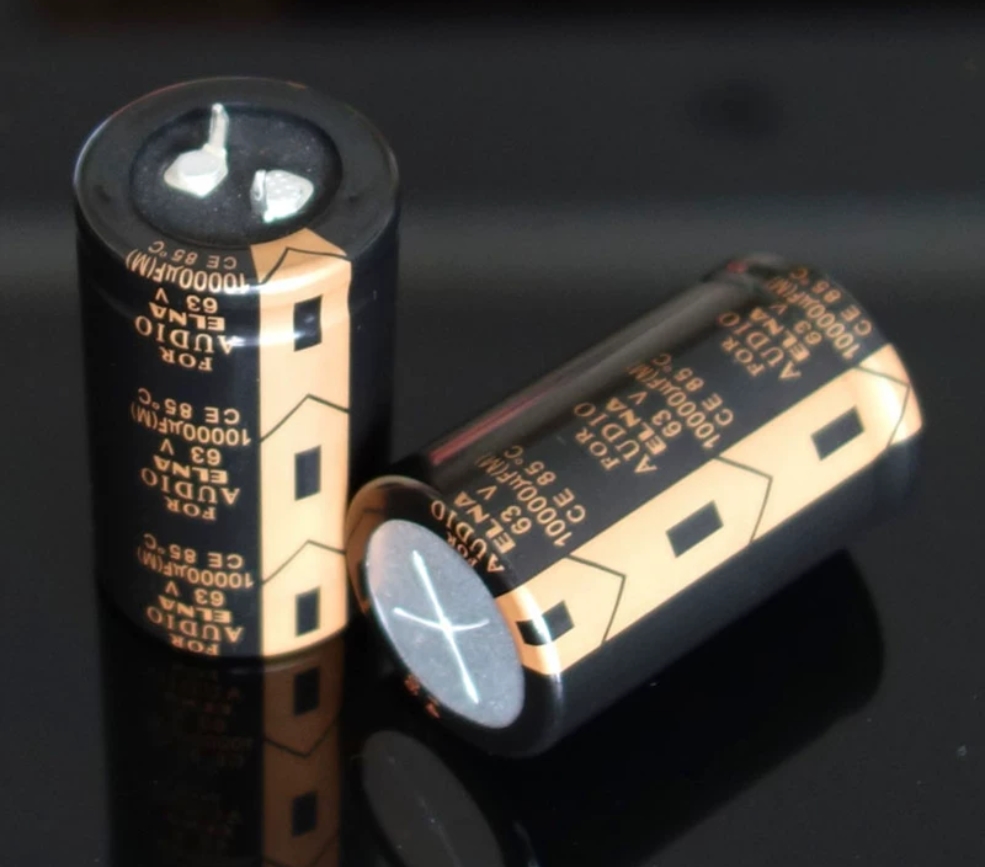

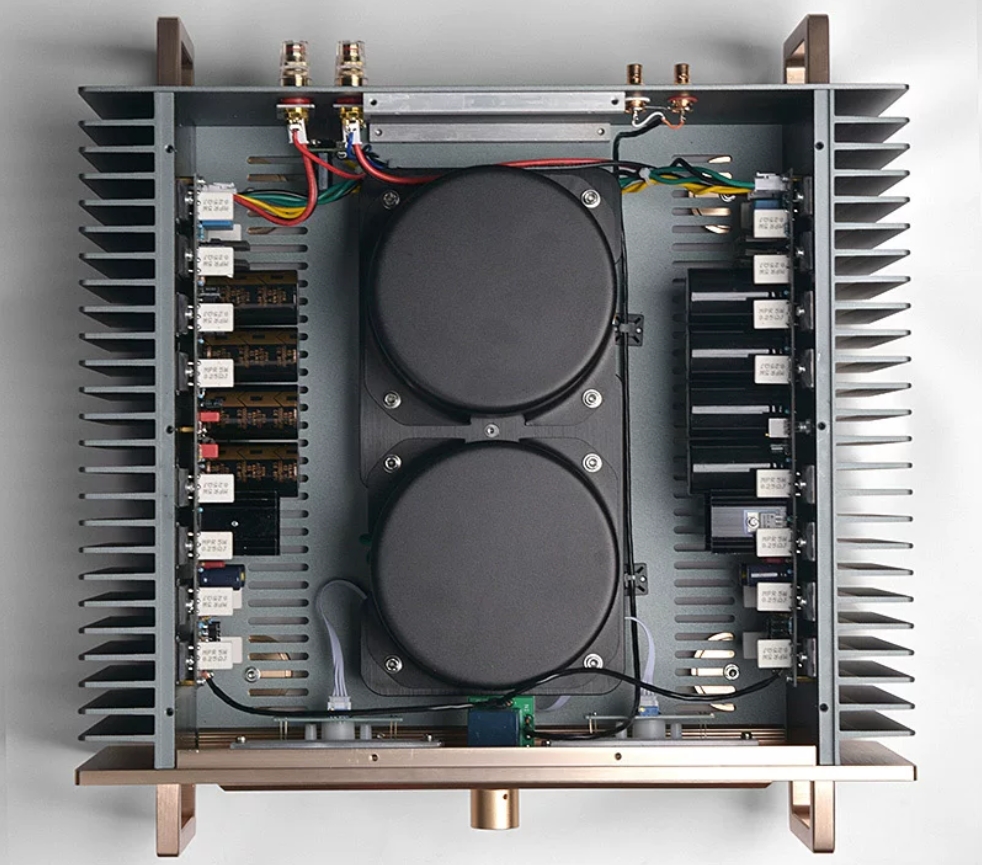

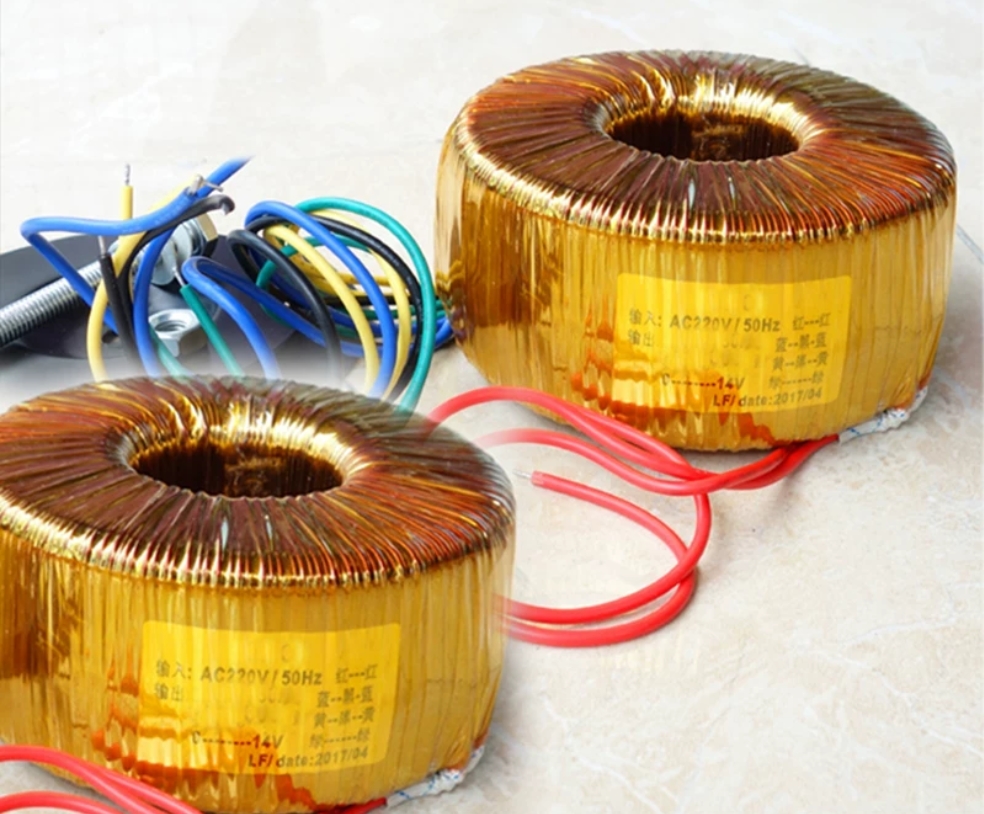

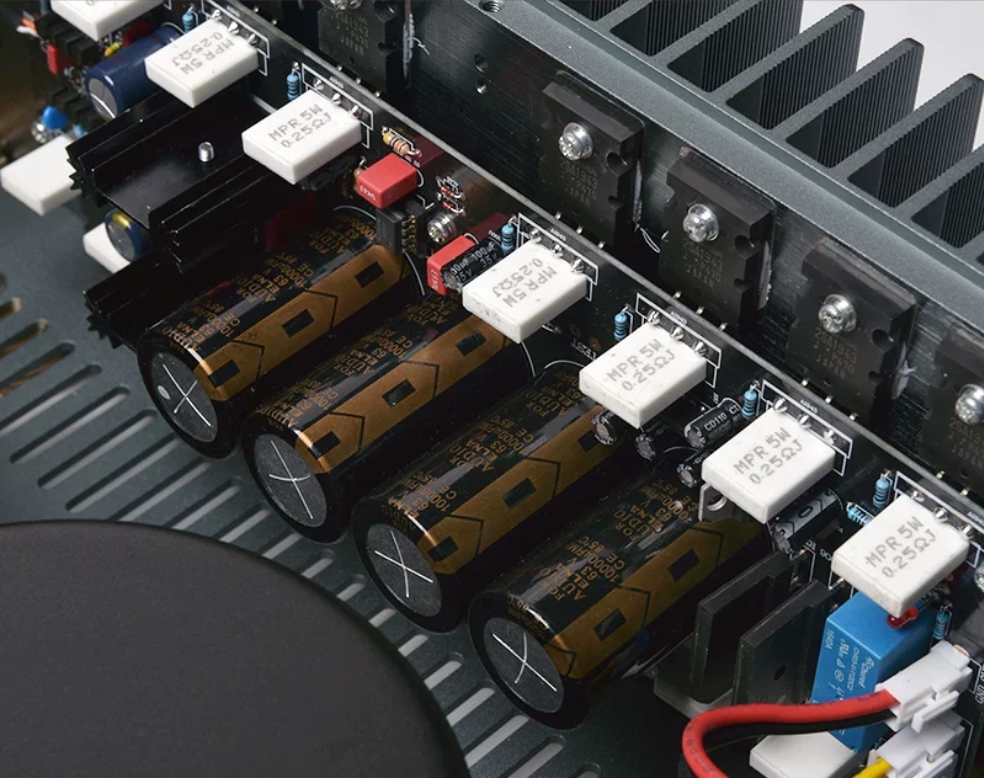

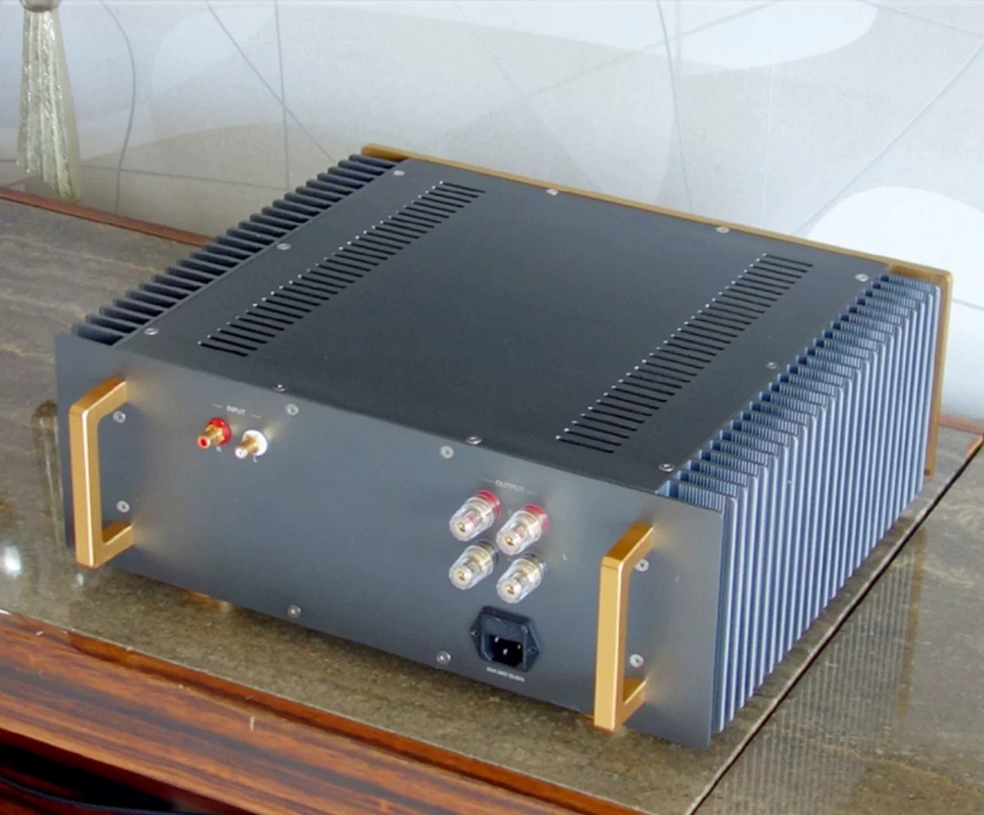

Material: Regardless of the cost, it weighs 10KG aluminum alloy chassis, with luxury watch head drive, up to 16 pairs of Toshiba original 2SC5200 2SA1943, ELNA AUDIO filter capacitor with filtering capacity of 80000UF, and total power of dual transformers of 800W. The input chip is famous 2SC2240 A970, the driver level is 15032 15033, the resistance is philips non-inductive resistance, and the input terminal adopts 24K gold-plated CMC.
Input voltage: 110V or 220V.
Output power: Class A: 20W*2 or Class AB: 200W*2.
Frequency response: 10HZ - 40 KHZ.
Distortion: 0.001%.
Load range: 2-8 ohms.
Size: 430*359*150mm.
Weight: 21.5kg.
