Product details:
Adopting high-speed dual rectifiers with high current capacity, providing ample energy.
Huge power to drive the most demanding loads.

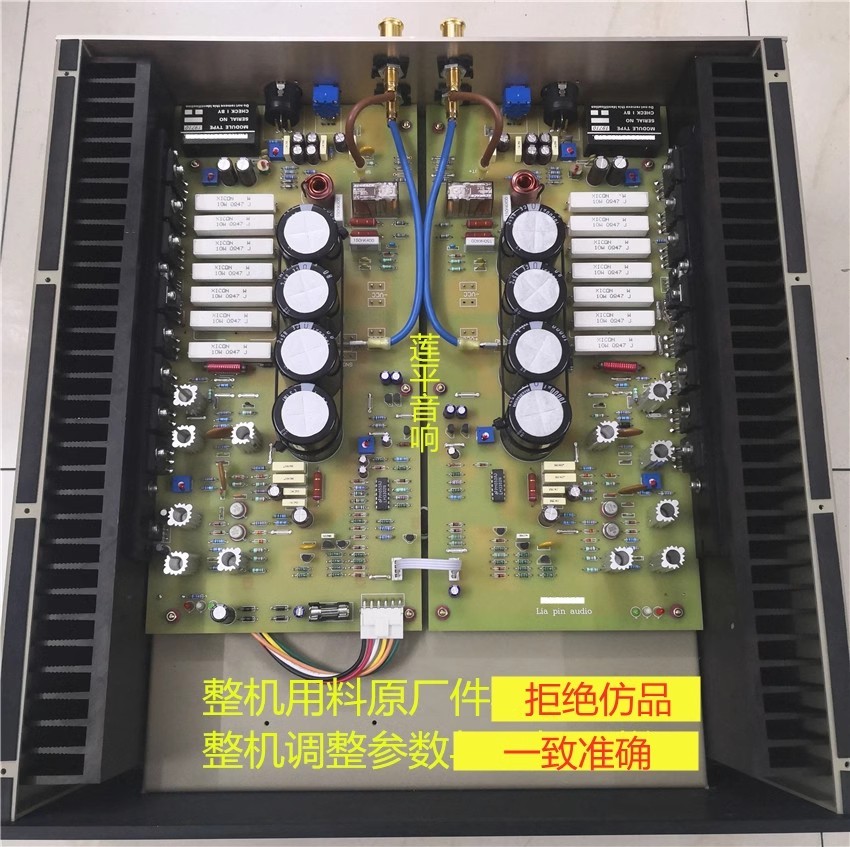

Using special curve tracing analysis and manually selected semiconductors to construct discrete circuits.
Sensors automatically identify balanced and pseudo balanced signal sources for connection standards.
Multiple protection systems effectively protect amplifiers and speakers
No signal compression.
Strong driving ability, able to drive the vast majority of audio systems on the market.
The proprietary enhancement level circuit ensures extremely low distortion.
Acoustic isolation of mechanical resonance, low impedance power infinite rendering, and highly reliable components further enhance product life.
The internal transformer is completely isolated from the audio circuit, and special shielding technology effectively reduces electromagnetic interference
Parameters:
Output power: 260WRMS 8 ohms/520Wpeak 8 ohms, 500WRMS 4 ohms/1000Wpeak 4 ohms, 800WRMS 2 ohms/1600Wpeak 2 ohms
Maximum output voltage: 140Vpp
Maximum output current: Infinite repetitive peak output current
Distortion: 0.005% (bandwidth 1HZ~60KH.)
Load impedance: designed specifically for systems below 1 ohm to above 10000 ohms
Signal to noise ratio: minimum unweighted better than -100 dB (20 Hz -20 kHz)
Input sensitivity: 1.6V RMS (full output)
Input impedance: 40 kohm
Size: 45CM wide * 22CM high * 45CM deep
Weight: about 32.5kg (including packaging)

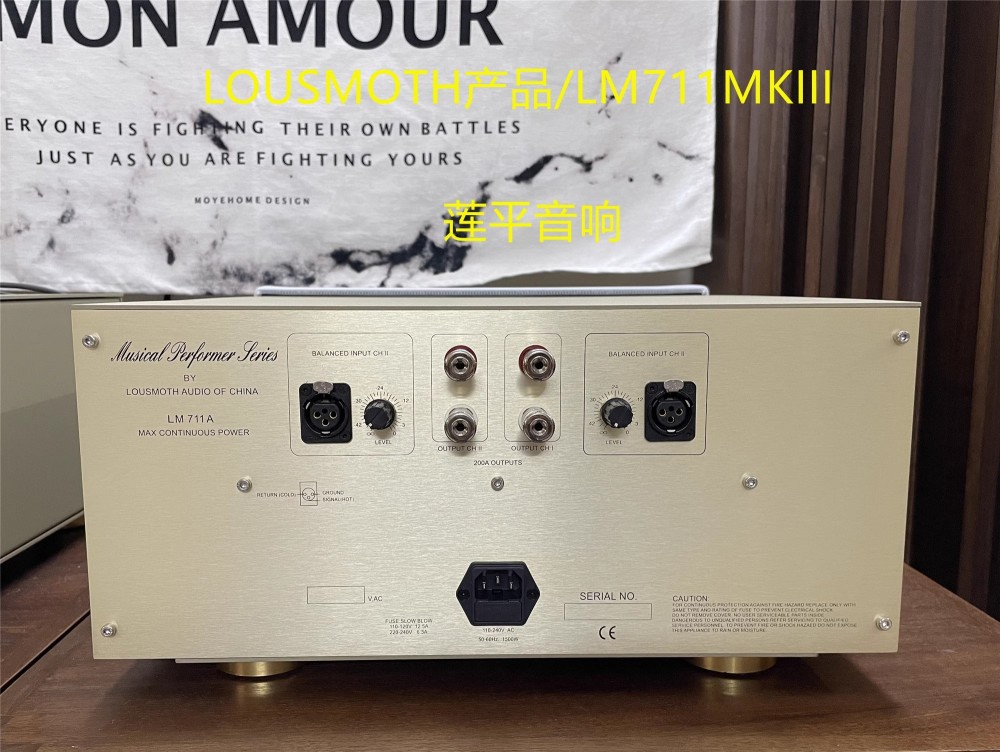

The balanced input is connected according to the European standard as 1 ground, 3 positive, and 2 negative.
