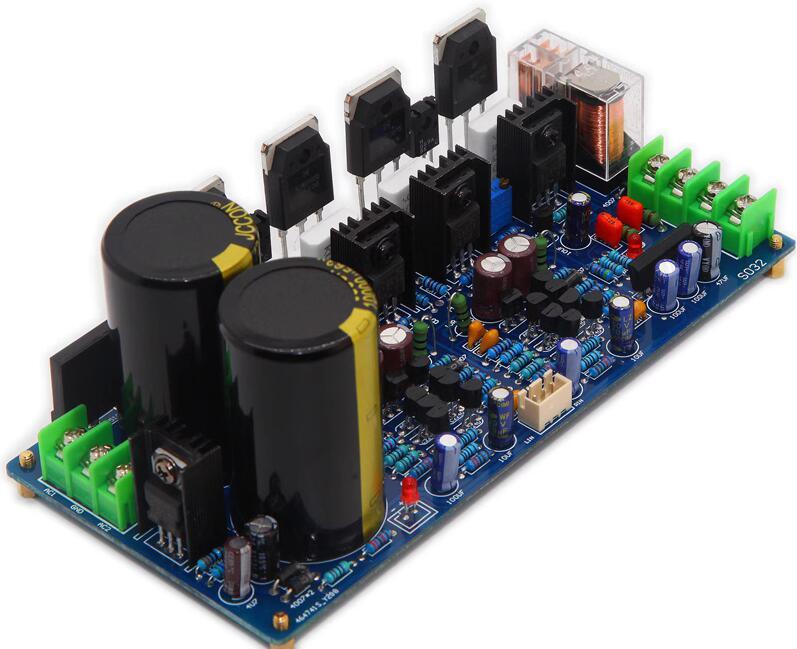

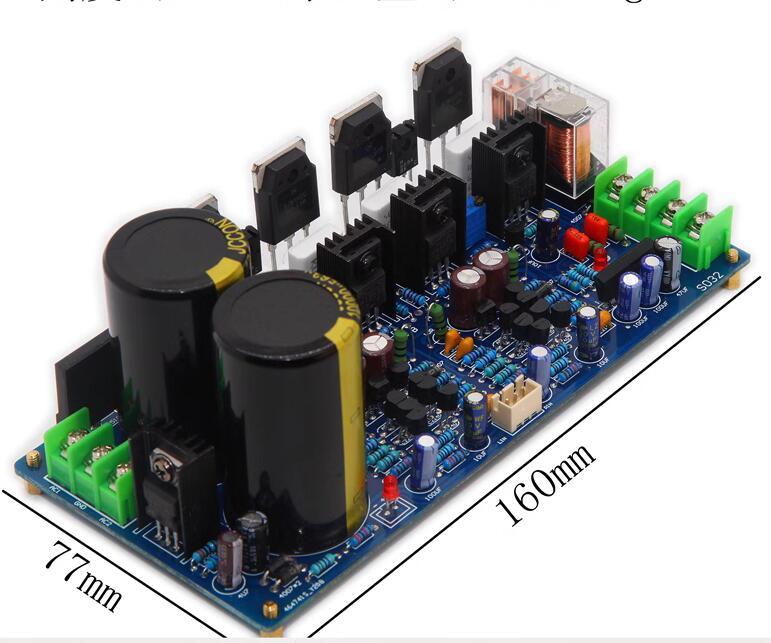

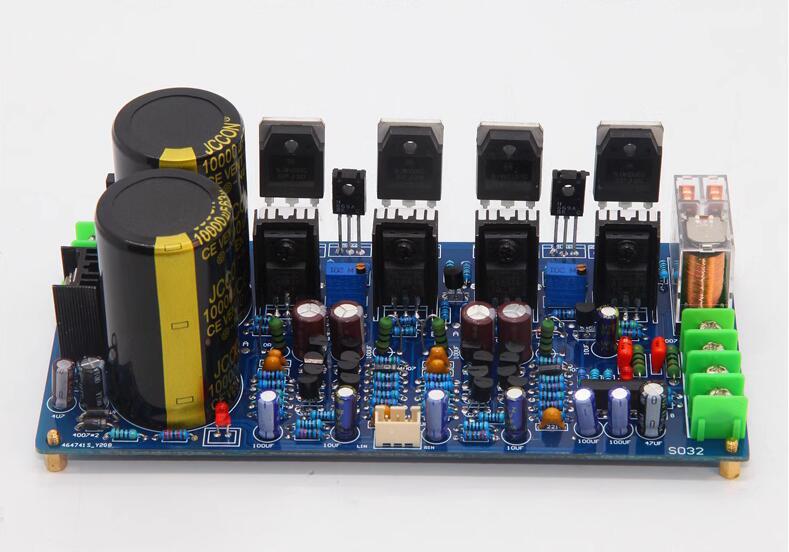

Product details:The static current can be adjusted on the board, default to Class A and Class B. If it needs to be adjusted to Class A, it needs to be replaced with a large heat sink.When adjusting to Class AB, a 1kg or more radiator is required. When adjusting to Class A, a 2kg or more radiator is required.Two 63V 10000Uf filtering capacitors.25A high current rectifier bridge, stable and reliable performance, providing pure and stable power supply for power amplifiers.1237 and Omron relays form a protection circuit to effectively protect your equipment.Precision matching of fully discrete components, fully symmetrical design, delicate sound, and rich details.ON original paired transistor, strong thrust.
Parameters:
Output power: 150W + 150W 4-8 Ω
Impedance: input 50K output: 4-8 Ω
SNR: 110dB distortion: 00.001%
Frequency response: 10hz-30khz
Input voltage: AC 30v-0-30v, three wire transformer, power above 100W
List：S032 amplifier board x 1
