Feature:

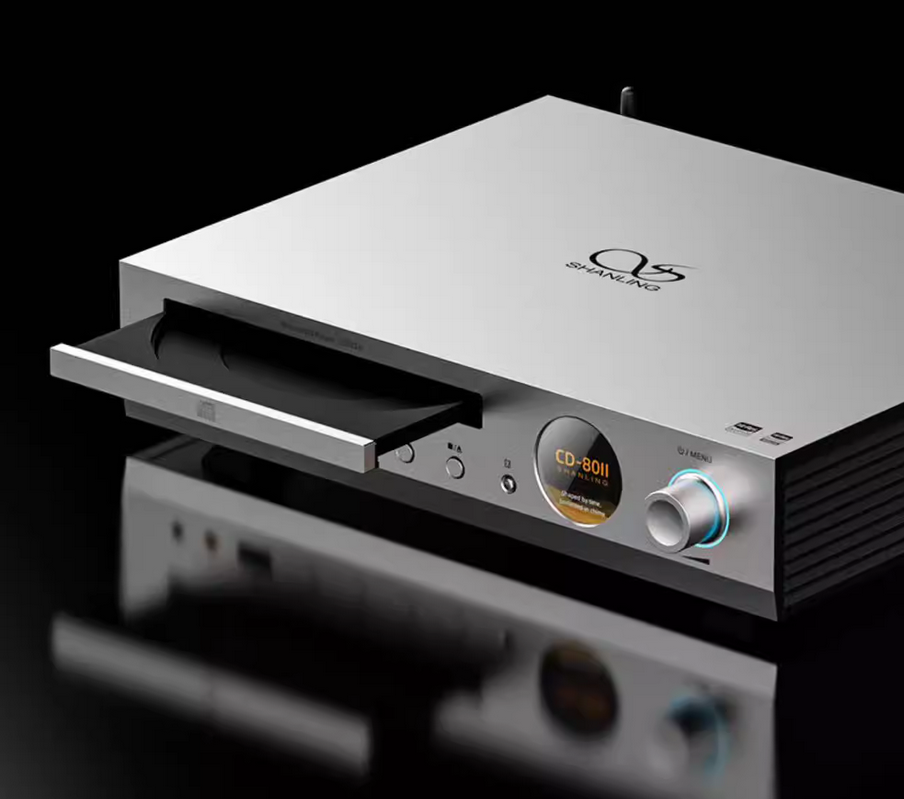

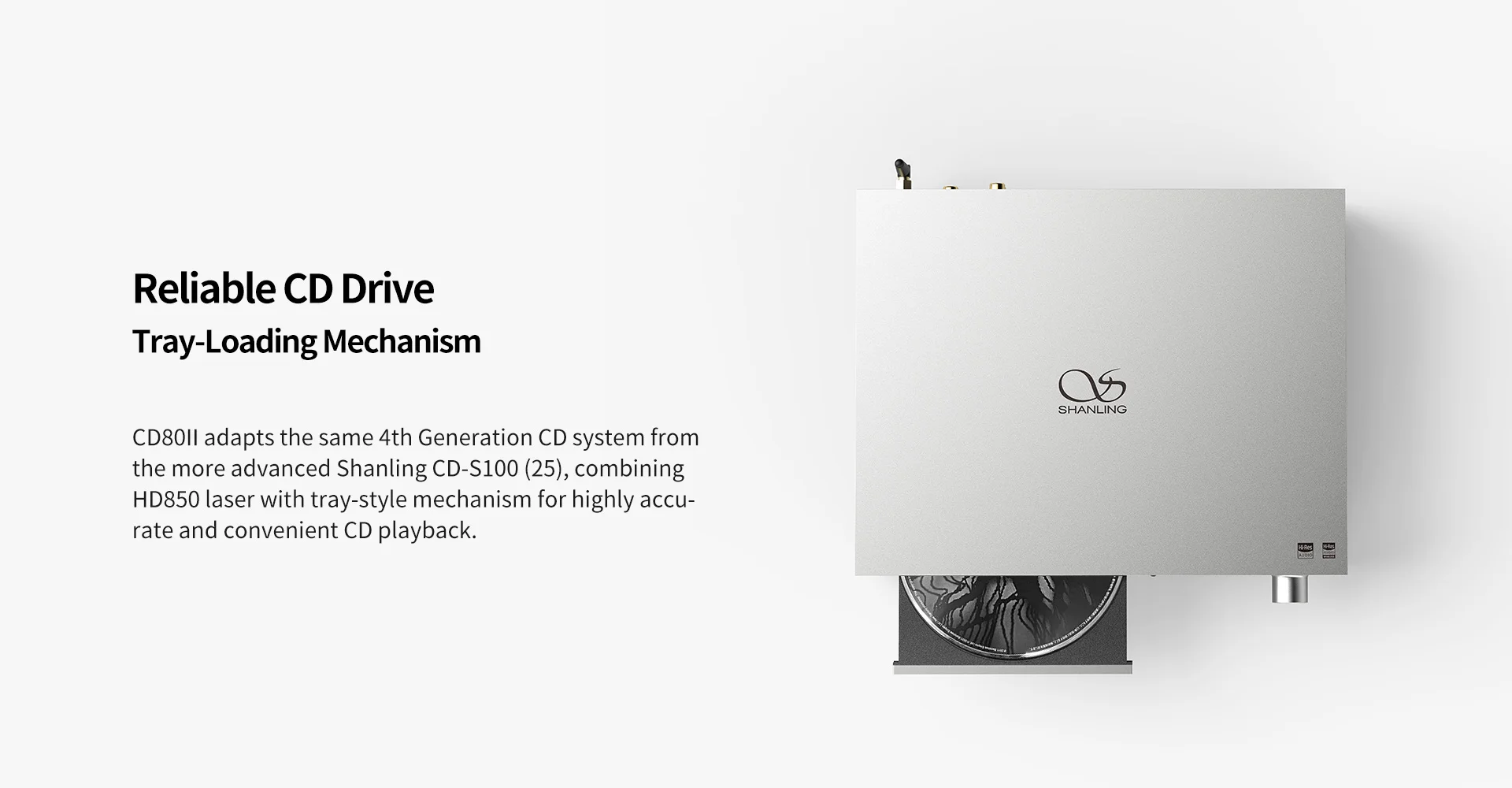

1. Classic combination of golden configuration, fourth-generation CD dedicated servo system + high-performance HD850 movement
CD801 uses the same fourth-generation CD dedicated servo system as CD-S100(25): with high-performance HD850 movement, CD80I reads signals stably and reliably, eliminating signal loss. Every second of stability is the supreme protection for the music experience.

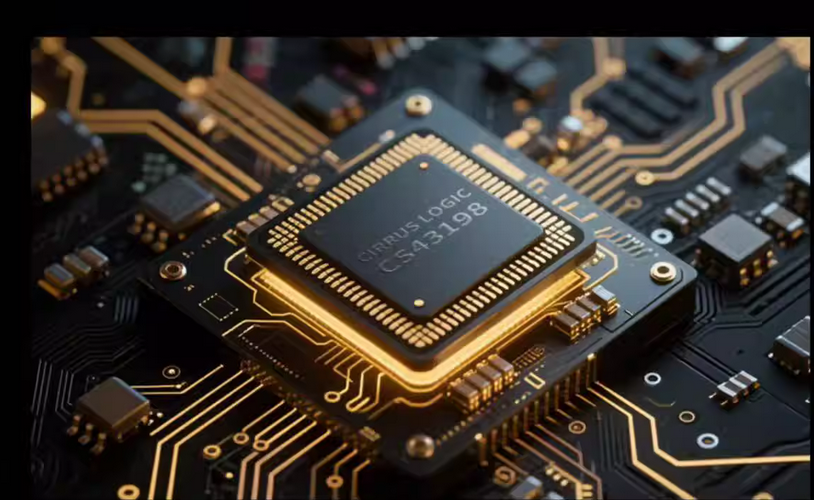

2. CS43198 high-performance DAC chip deep decoding, every detail is clear
CD80II selects CIRRUSLOGICCS43198 high-performance DAC conversion chip, with stronger decoding capability, supporting audio specifications up to 384kHz/32bit, DSD256, and with the 37 years of Shanling tuning skills, it delivers more vibrant sound to the ears of listeners.
3. Dual SGM8262-2 amplifier chips are pure and powerful, and the presentation is intoxicating
CD80II is equipped with two SGM8262-2 independent amplifier chips with a new circuit, which reduces distortion while making CD80I have higher output current and stronger dynamic range. The output power is up to 850mW@32Q, which can easily drive high-impedance headphones.
4. Panasonic FC filter capacitors tune the sound source to purify and refine the pure sound
CD80I selects Panasonic FC filter capacitors to tune the sound, so that every milliampere of current becomes the nutrient of music, bringing a clear layer and rich details of the sound quality performance.

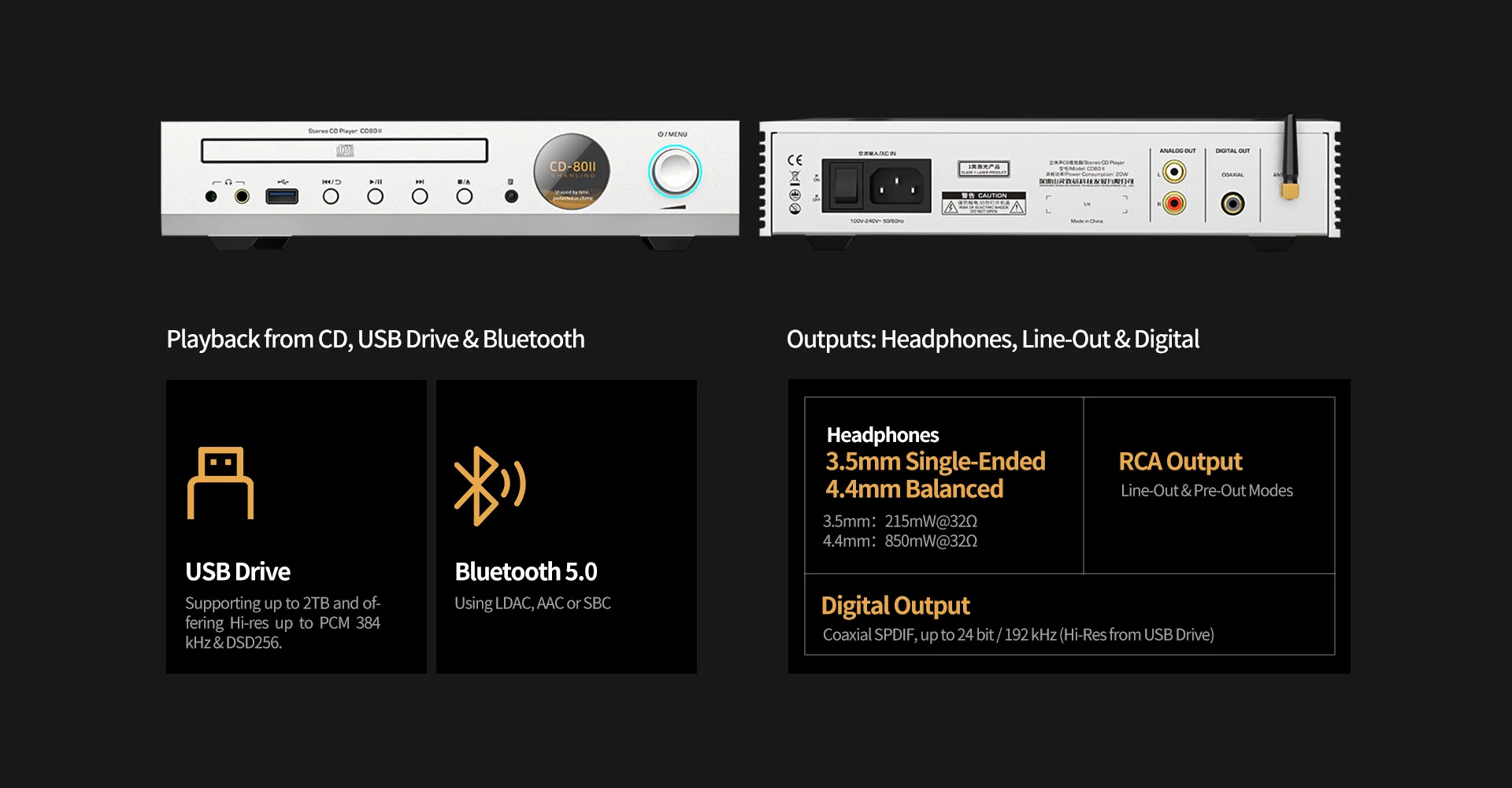

5. Input method: CD, U disk, Bluetooth 5.0

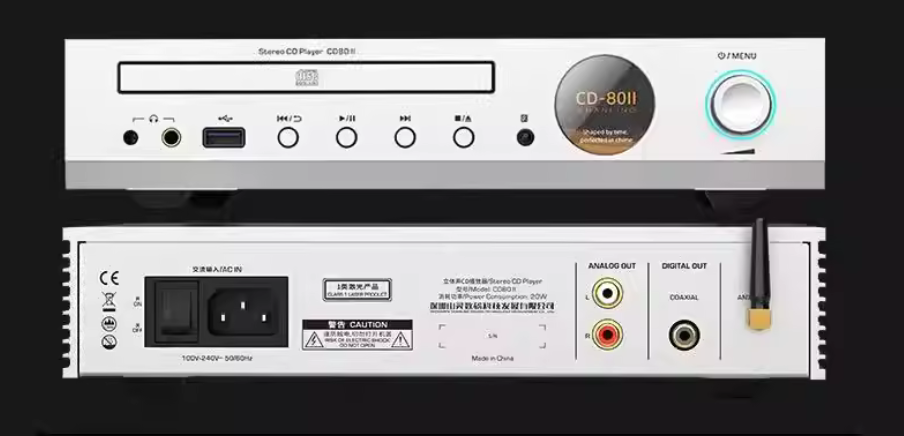

6. Output method: RCA, 3.5mm/4.4mm headphones, coaxial

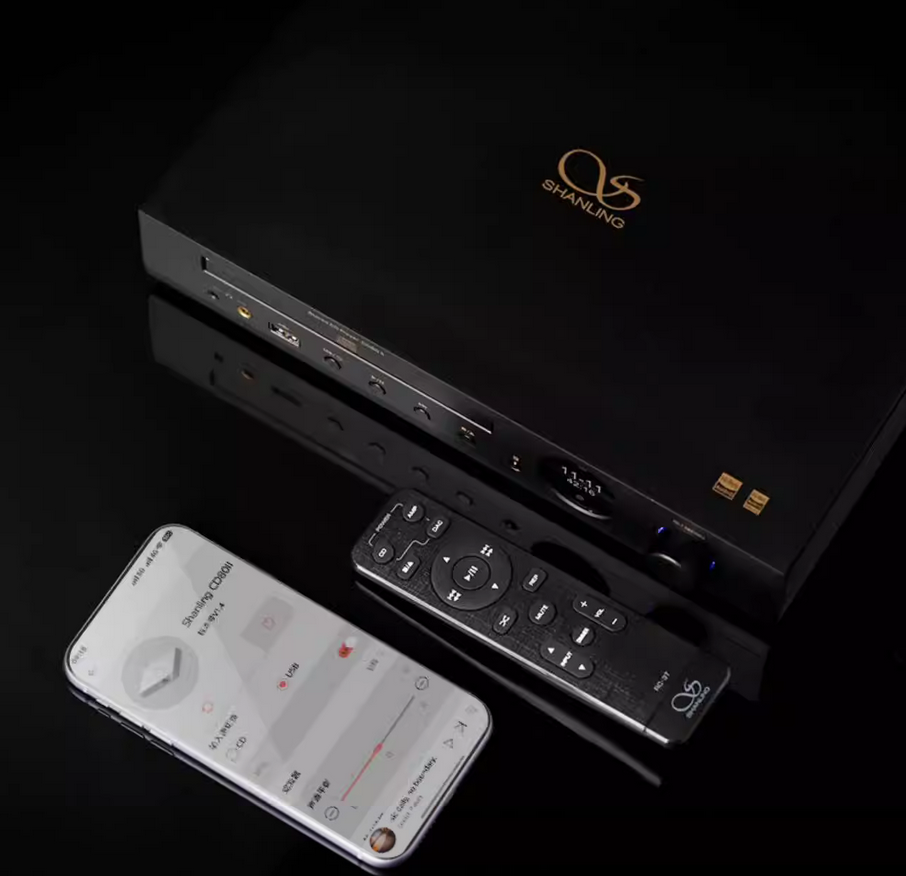

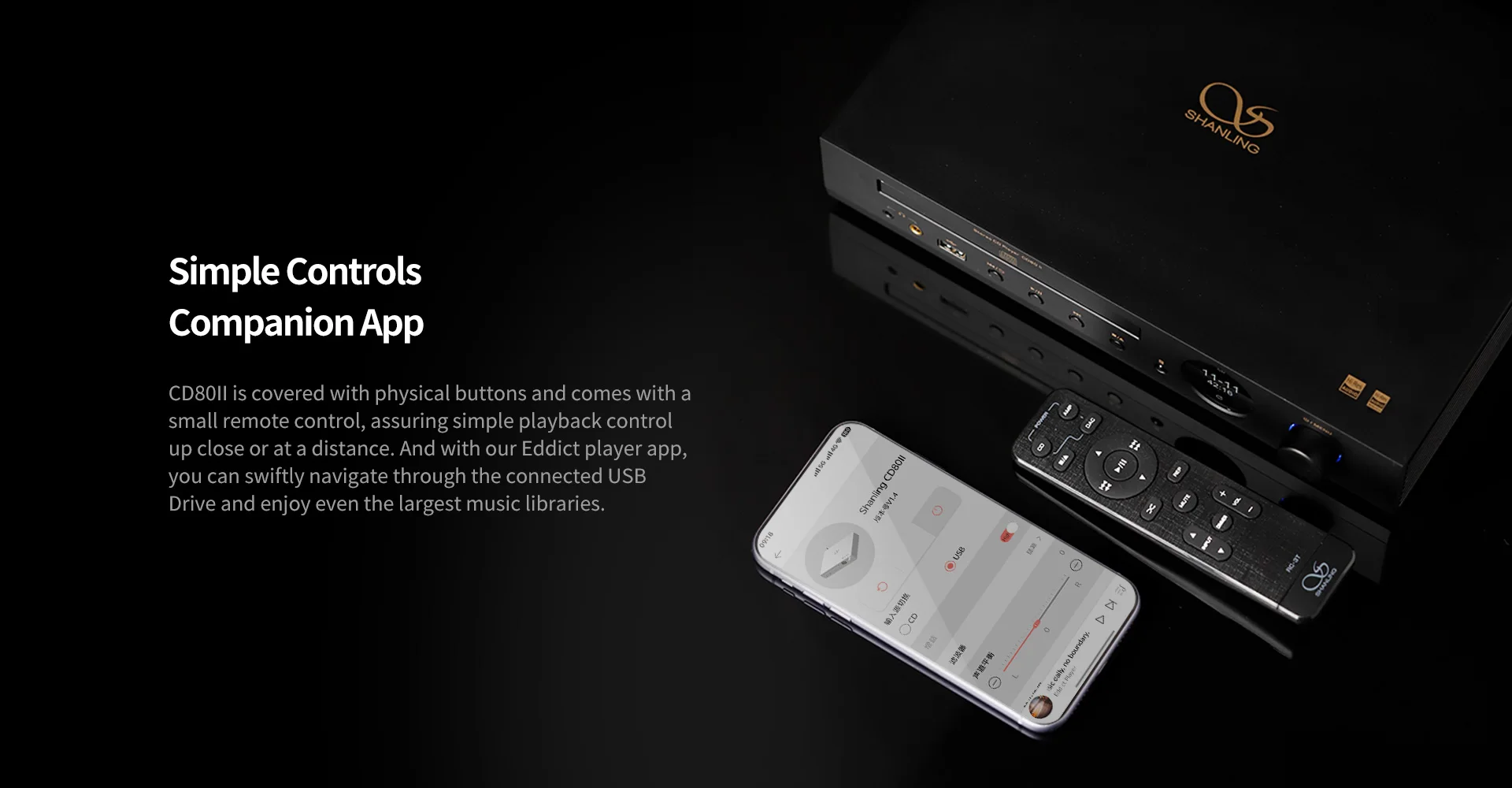

7. Button + knob control, remote control control supports mobile phone APP control
CD80I uses physical buttons and knobs to control, which can realize song switching, play/pause, volume control and other operations. At the same time, in addition to remote control, CD801 can also be remotely controlled through Eddict Player APP, which supports file browsing and playback control, and realizes a more convenient control method.
Eddict Player APP operation requires Bluetooth connection.

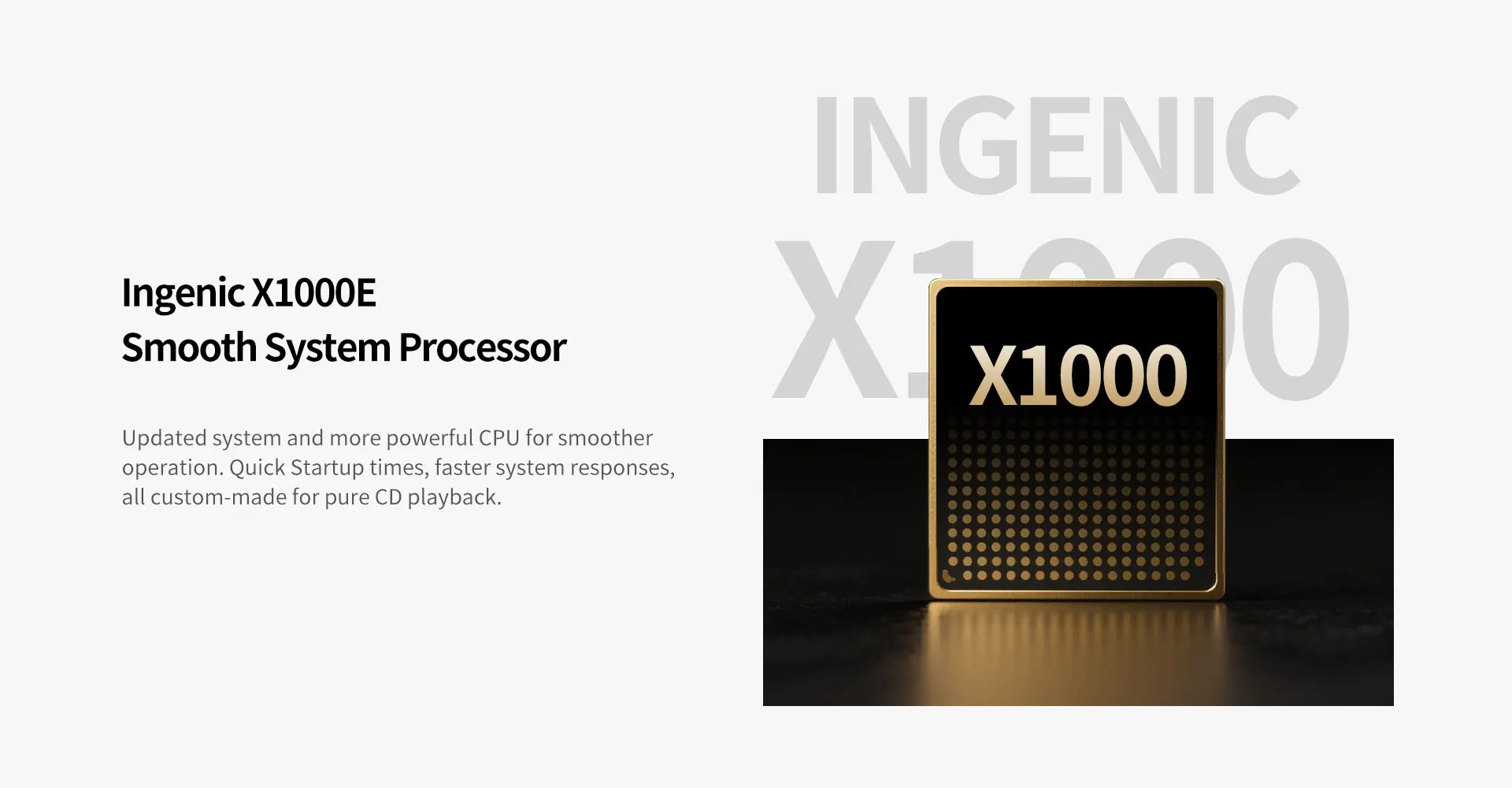

8. Ingenic X1000E processor enjoys smooth and silky operation experience
CD80I is equipped with Ingenic X1000E main control chip, which greatly improves computing power and fully optimizes power consumption design to achieve low latency startup and smooth and silky operation.
9. Dual Hi-Res audio certification
CD80I1 has obtained the "Hi-Res Audio (High Resolution Audio) certification of the Japan Audio Association, and also supports "Hi-Res Wireless Audio" wireless high-resolution certification.
Wired or wireless, both have good sound quality.

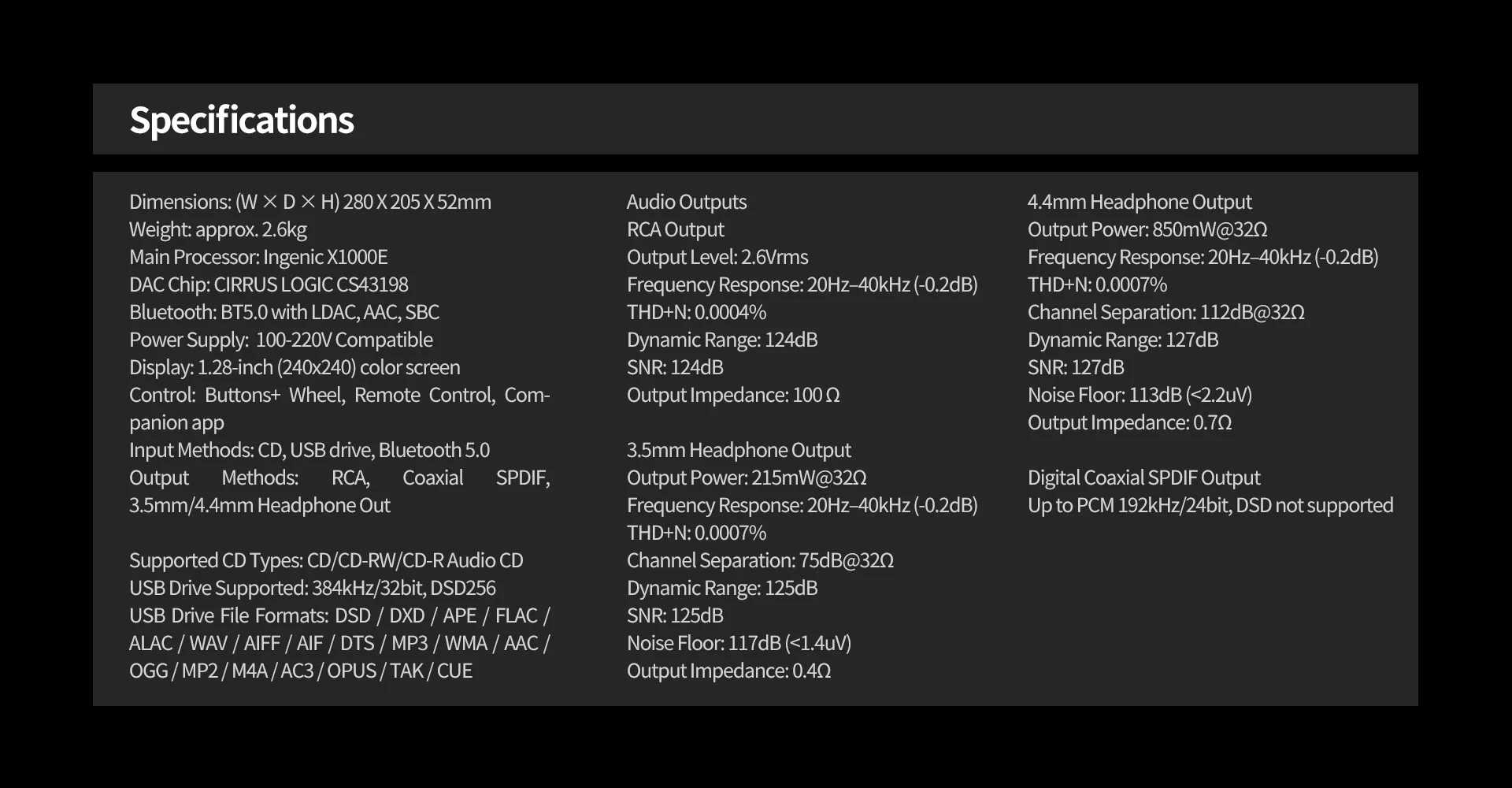

General parameters:
Volume: (width x depth x height) 280X205X52mm
Net weight: about 2.6kg
Master control: Ingenic X1000E
Decoding chip: CIRRUSLOGICCS43198
Bluetooth: BT5.0
Power supply: 20W power module

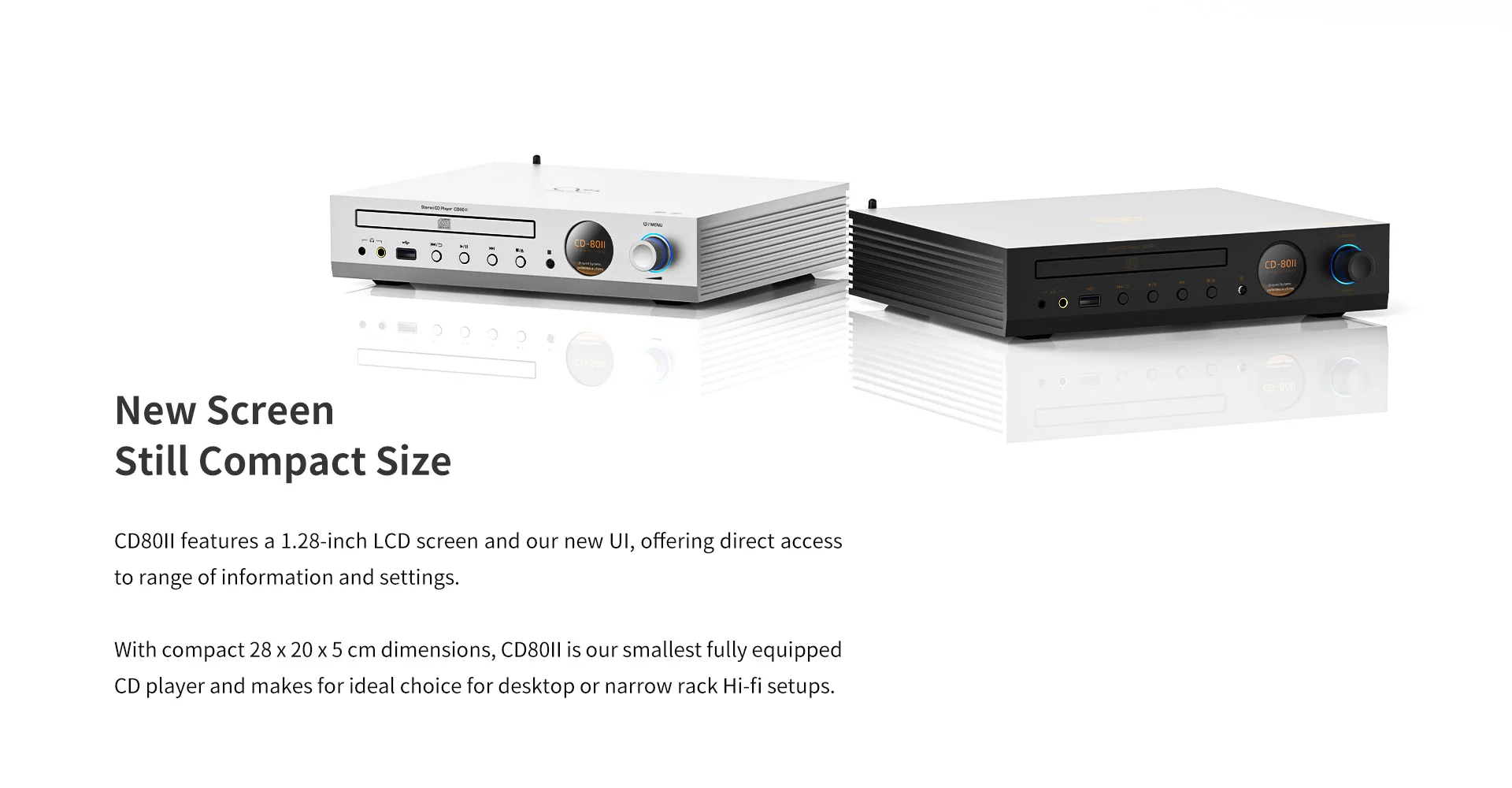

Display mode: 1.28-inch (240x240) high-definition color screen
Control mode: APP+remote control+button, knob
Gain: high and low gears
Input method: CD, USB flash drive, Bluetooth 5.0
Output method: RCA, coaxial, 3.5mm/4.4mm earphone
Supported disc types: CD/CD-RW/CD-R
USB flash drive support specifications: 384kHz/32bit, DSD256, MOA4X
USB flash drive playback format: DSD/DXD/APE/FLAC/ALAC/WAV/AIFF/AIFDTS/MP3/WMA/AAC/OGG/MP2/M4A/AC3/OPUS/TAK CUE
Technical parameters
RCA output
Output level: 2.6Vrms
Frequency response: 20Hz-40kHz (-0.2dB)
THD+N: 0.0004%
Dynamic range: 124dB
Signal-to-noise ratio: 124dB
Output impedance: less than 100Ω
3.5mm headphone output
Output power: 215mW@32Ω
Frequency response: 20Hz-40kHz (-0.2dB)
THD+N: 0.0007%
Separation: 75dB@32Ω
Dynamic range :125dB
Signal-to-noise ratio: 125dB
Noise floor: 117dB (<1.4uV)
Output impedance: less than 0.4Q
4.4mm headphone output
Output power: 850mW@32Ω
Frequency response: 20Hz-40kHz (-0.2dB)
THD+N: 0.0007%
Separation: 112dB@32Ω
Dynamic range: 127dB
Signal-to-noise ratio: 127dB
Noise floor: 113dB (<2.2uV)
Output impedance: less than 0.7Ω
Coaxial output:
PCM192kHz/24bit, does not support DOP
