Z11 silicon steel imports 6p3p, el84el34 single-ended tube amp output transformer professional custom transformer
Fever tube amp with the latest ideas carefully designed for the majority of tube amp enthusiasts to create new products for an affordable, high non-oriented silicon core is cold rolled and annealed(0.35EI) Dedicated audio chip, package of high quality oxygen-free copper enameled wire, each insulated with pure pulp insulating paper, the output of cattle production defying cumbersome, adoption3Clip2 or 5 clamps 4Method, hierarchical segmentation, group group pad of paper, meticulous, careful wound round the clock dipping, high-temperature baking, the transformer has good insulation and moisture resistant, transparent sound, sounds sweet warm alcohol solution clarity power pole good, nice shape.Shao is widely preferred bold.
Parameters:
Power: 8-10W (20Hz)
Frequency Response: 20Hz-40KHz, -3dB

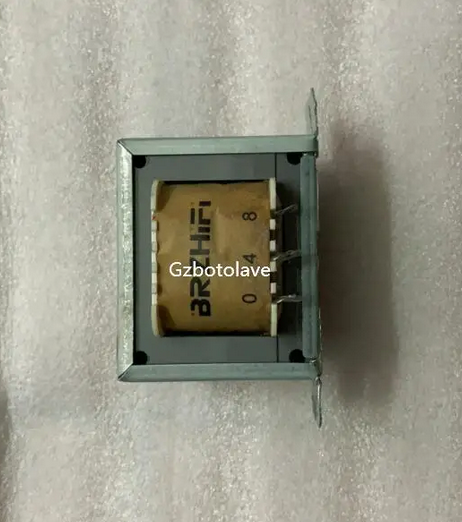

Secondary: 0-8, or 0-4-8
Core Dimensions: EI66 stack thickness 35mm,

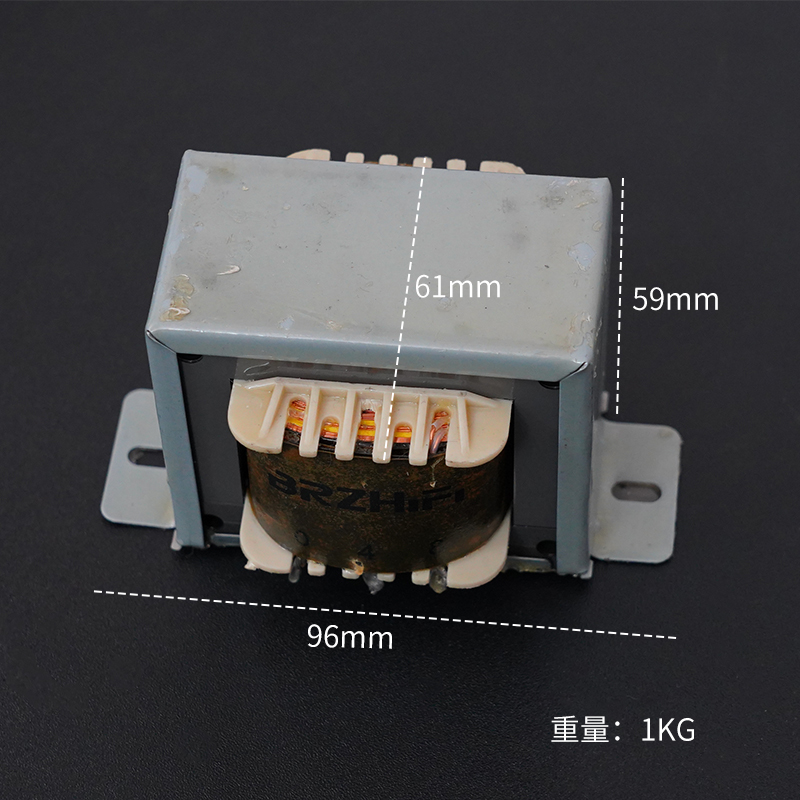

Dimensions: Length 68MM + 30MM two fixing screws bit width: 65MM 60MM high
Material: imported from Japan z11 chip

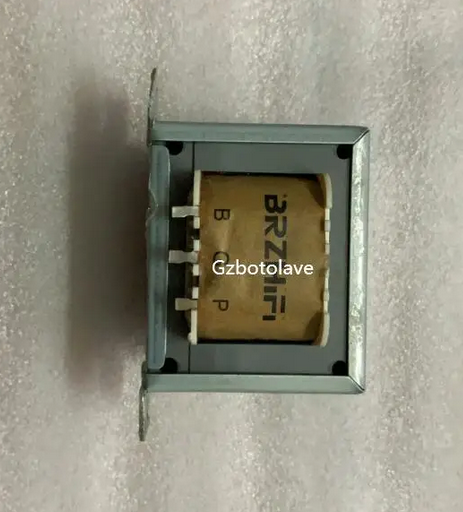

Primary copper resistance: 408 (B-P),
Inductance: 25H
The maximum allowed over primary DC: 100mA
Dimensions: Length 68MM + 30MM two fixing screws bit width: 65MM 60MM high
Applicable6P14 (el34, el84,6p3p)
Z11 silicon steel imported from Japan, super-linear plus five yuan a
STAGED 3 + 2 around the law!
