New SU4A PCM5120 Digital Audio Decoder DAC Input USB Coaxial Optical Support 24Bit/192KHz DC12V Power Adapter
circuit output voltage :2V
Headset impedance :32-600 ohms
Signal to noise ratio: 110 db
Frequency response: 20 hz - 30 KHZ
Distortion: - 93 db
Power supply range: DC 12V
Interface 5.5/2.5 mm

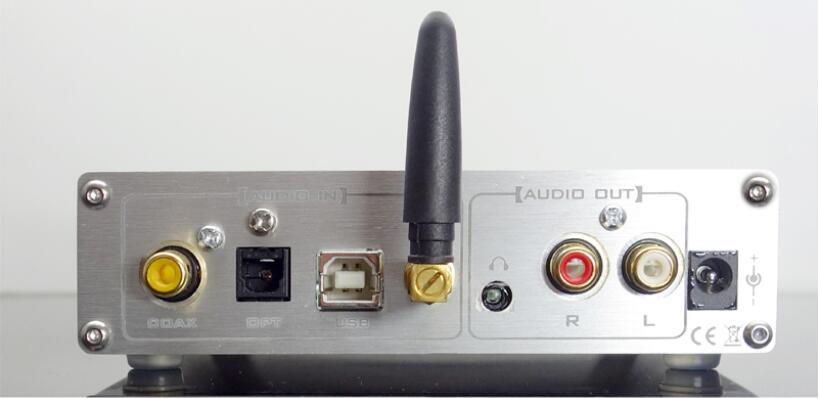

Output interface :3.5 headphone interface RCA output terminal input
Interface: Bluetooth, USB, coaxial, optical fiber
Coaxial, fiber support format :PCM 192K-24bit

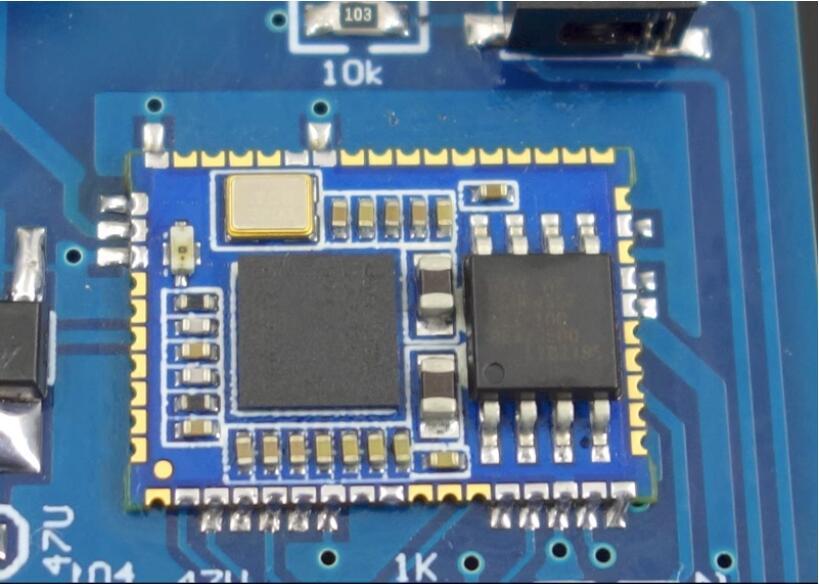

Bluetooth support protocol :APTX APTX-HD ACC, etc
Coaxial fiber optic receiver chip: WM8805

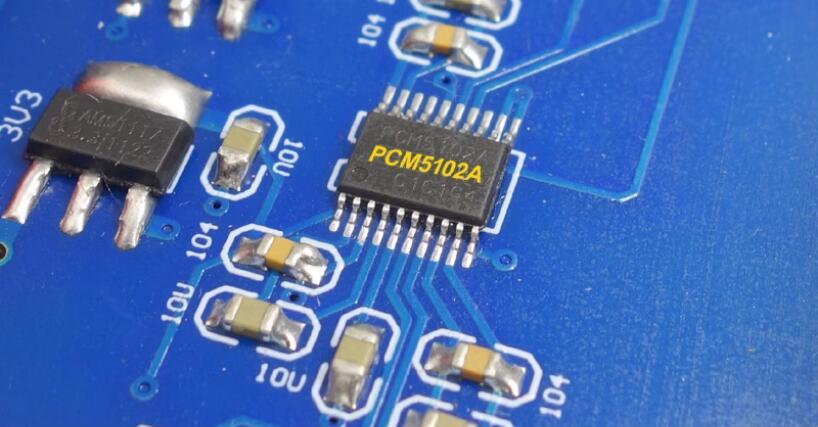

Decoding chip: TL PCM5102

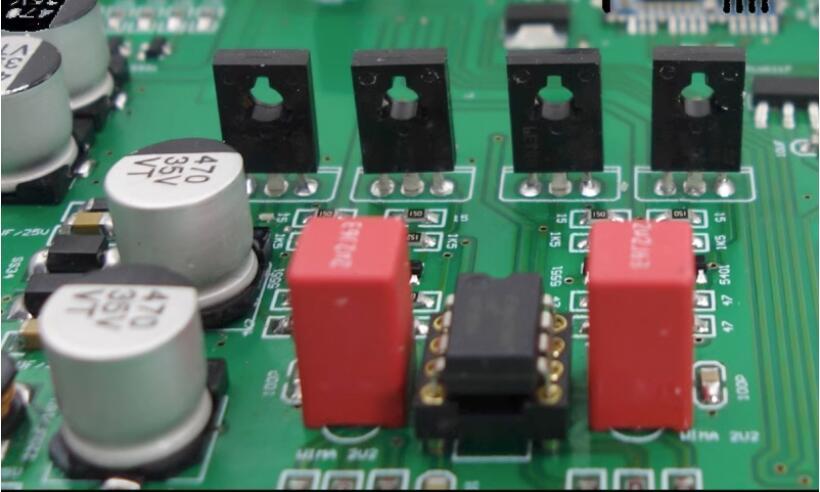

Op-Amp Chip: TL TLO72
Dimensions:133*36*141
Note:

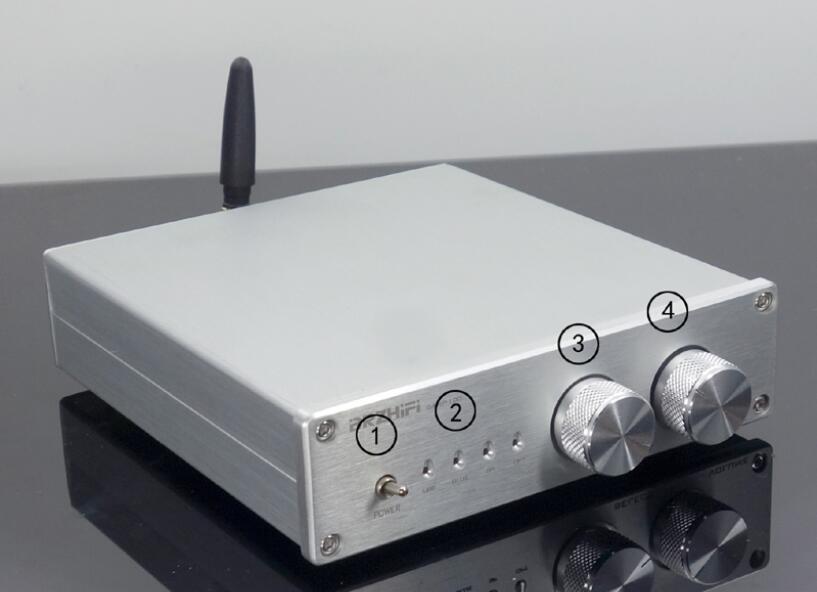

1. The volume knob on the panel only works on the headphone output. Line output without volume control!
2. When using USB to connect to the computer, the Bluetooth switch of the mobile phone must be disconnected. Otherwise, the USB sound card cannot be detected.
