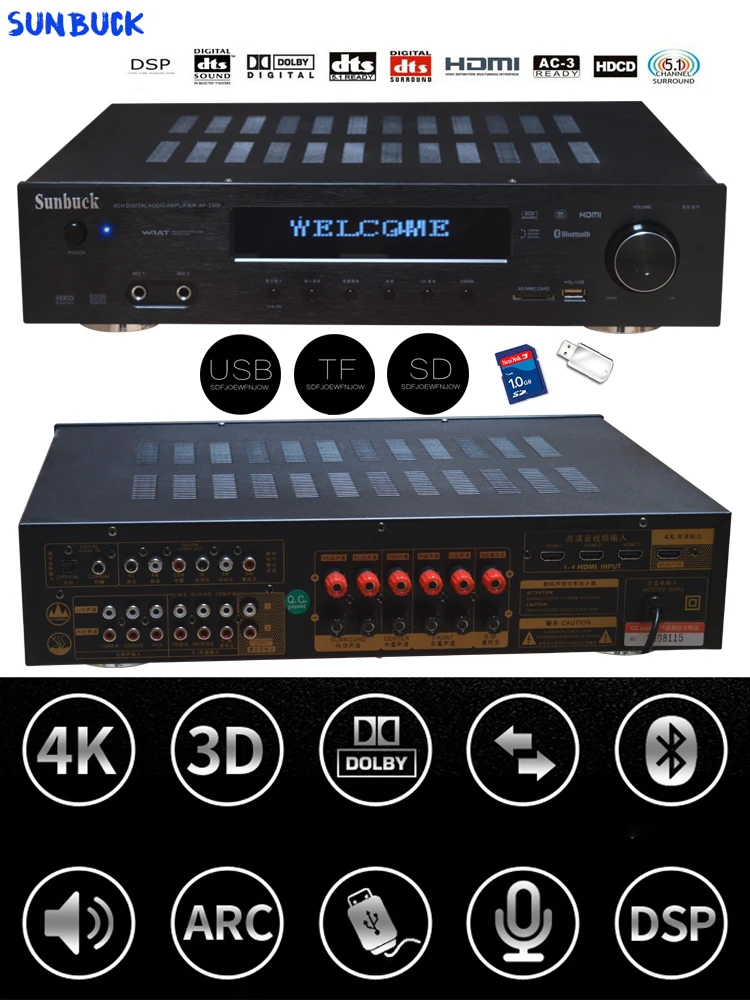

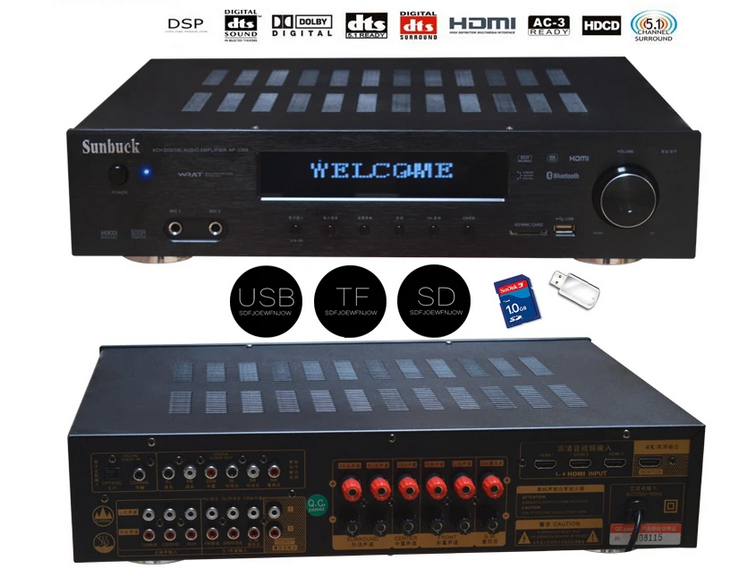

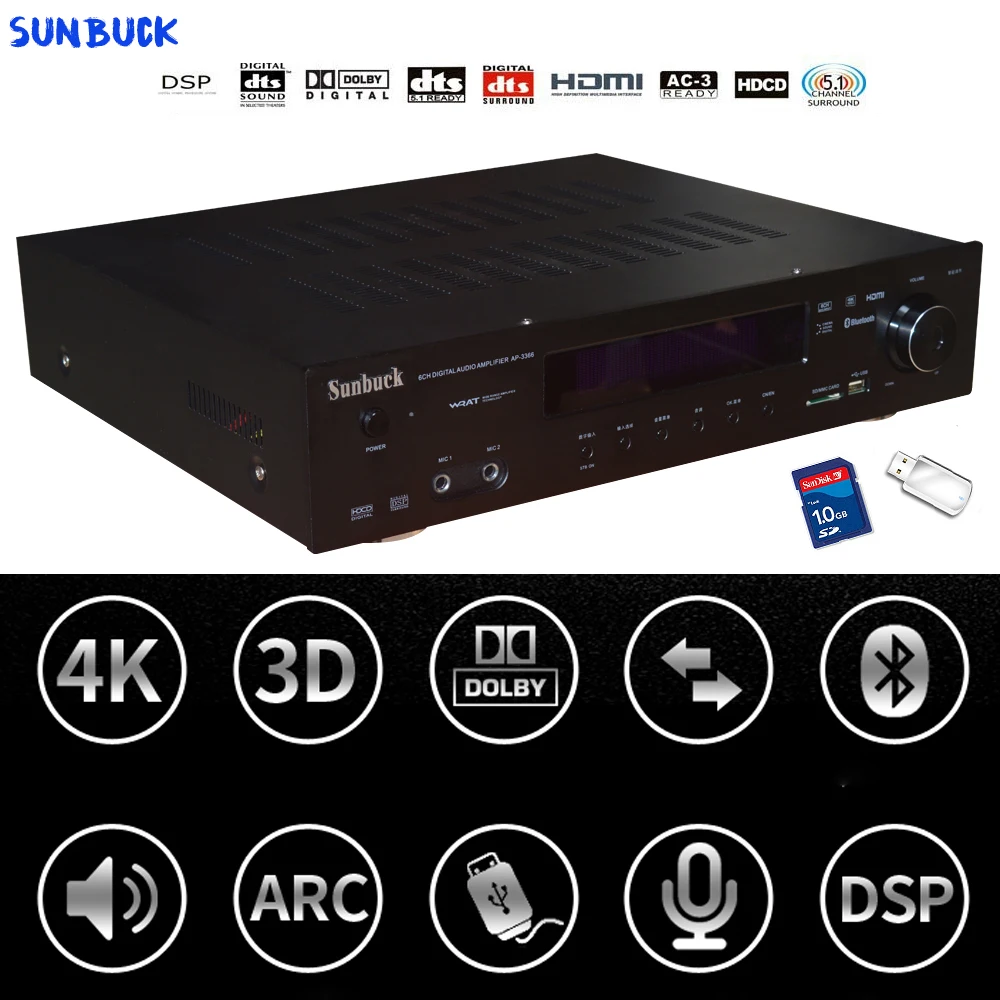

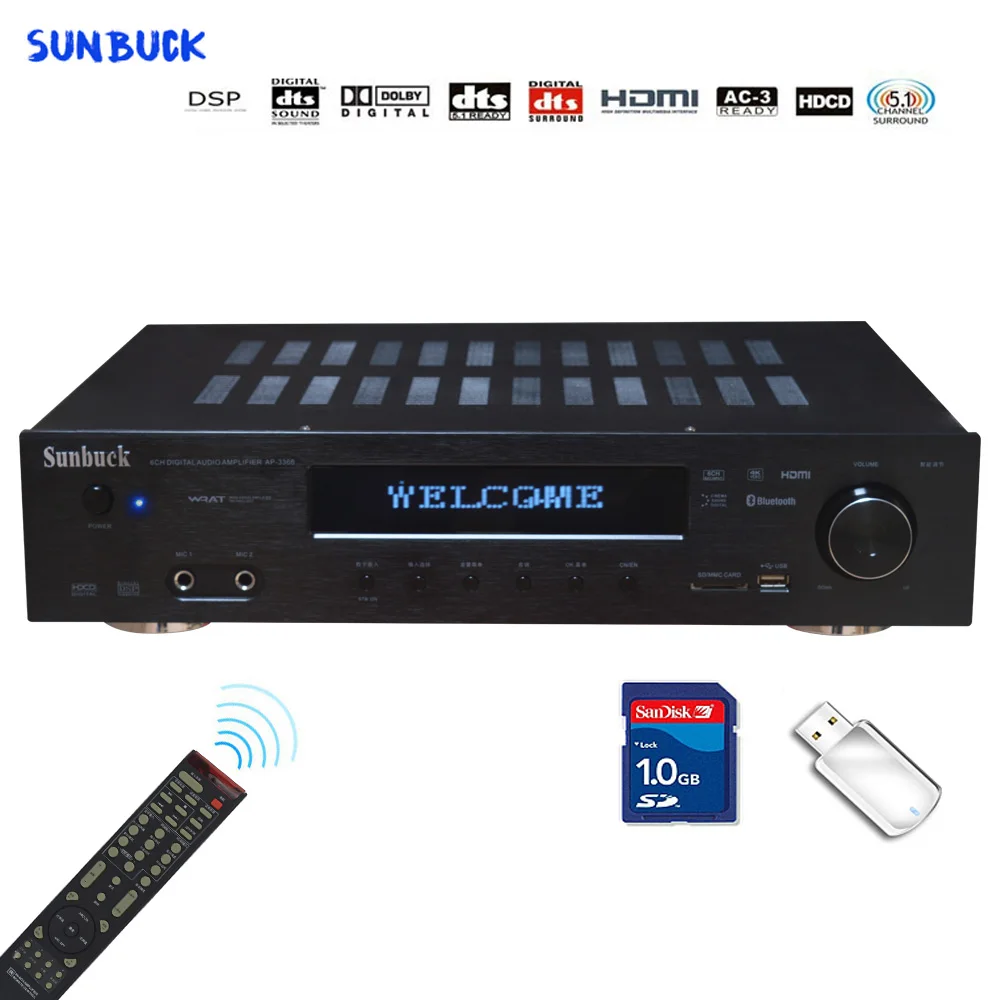

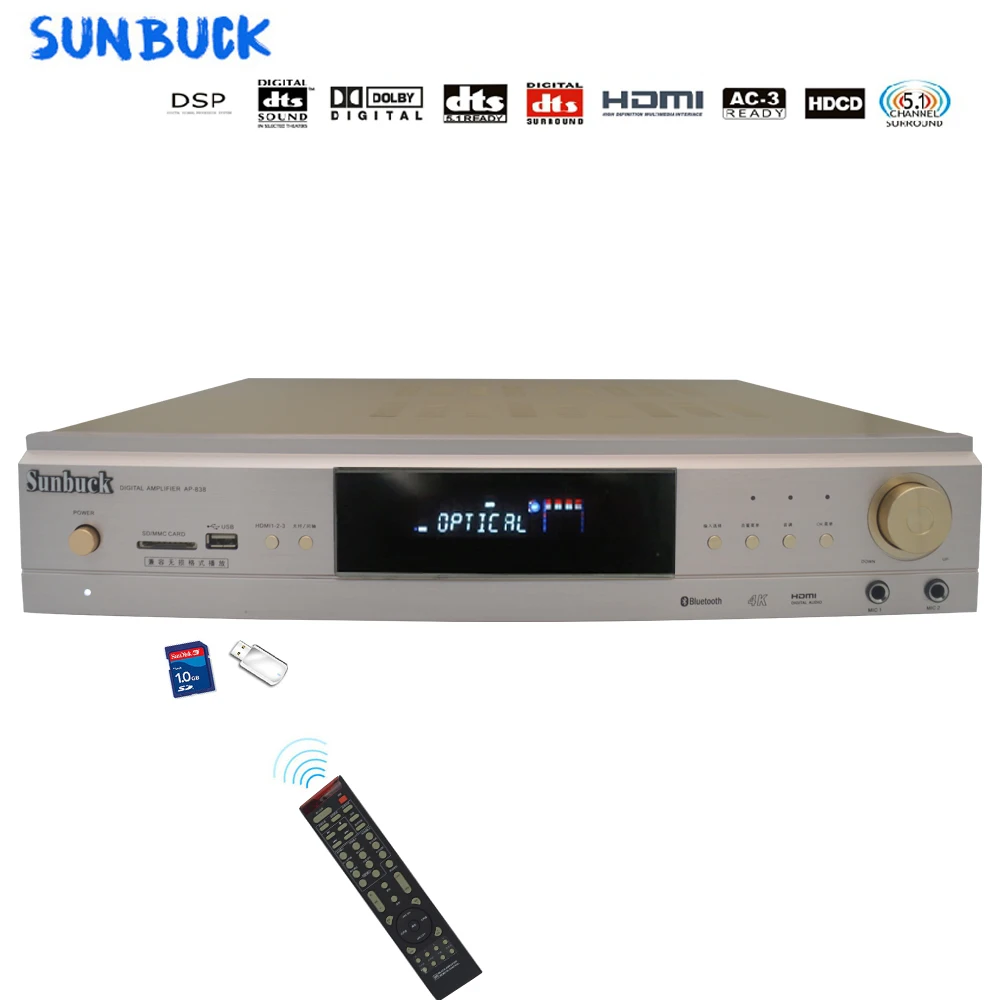

Type: Dolby DTS decoding home theater 5.1 power amplifier audio
Optical fiber coaxial input, HDMI three in and one out
Front power: 100W×2 (8Ω)
Mid-range power: 100W×1 (8Ω)
Rear power: 100W×2 (8Ω)
Subwoofer power: 100W×1 (8Ω)
Harmonic distortion: <0.5% (1kHz 10W)
Signal to noise ratio: >78dB
Resolution: >40dB
Input level: <350mV
Frequency response: 20Hz-20KHz (±2dB)
Treble adjustment: ±14dB (10KHz)
Bass adjustment: ±14dB (10KHz)
Power consumption: 300W
Size: 300*210*100mm
Weight: 8.5KG
Amplifier type: AV amplifier
Whether to support APP: No
HDMI HD input, 1080P and 4K HD video
Bluetooth losslessplayback
AC-3 dual decoding

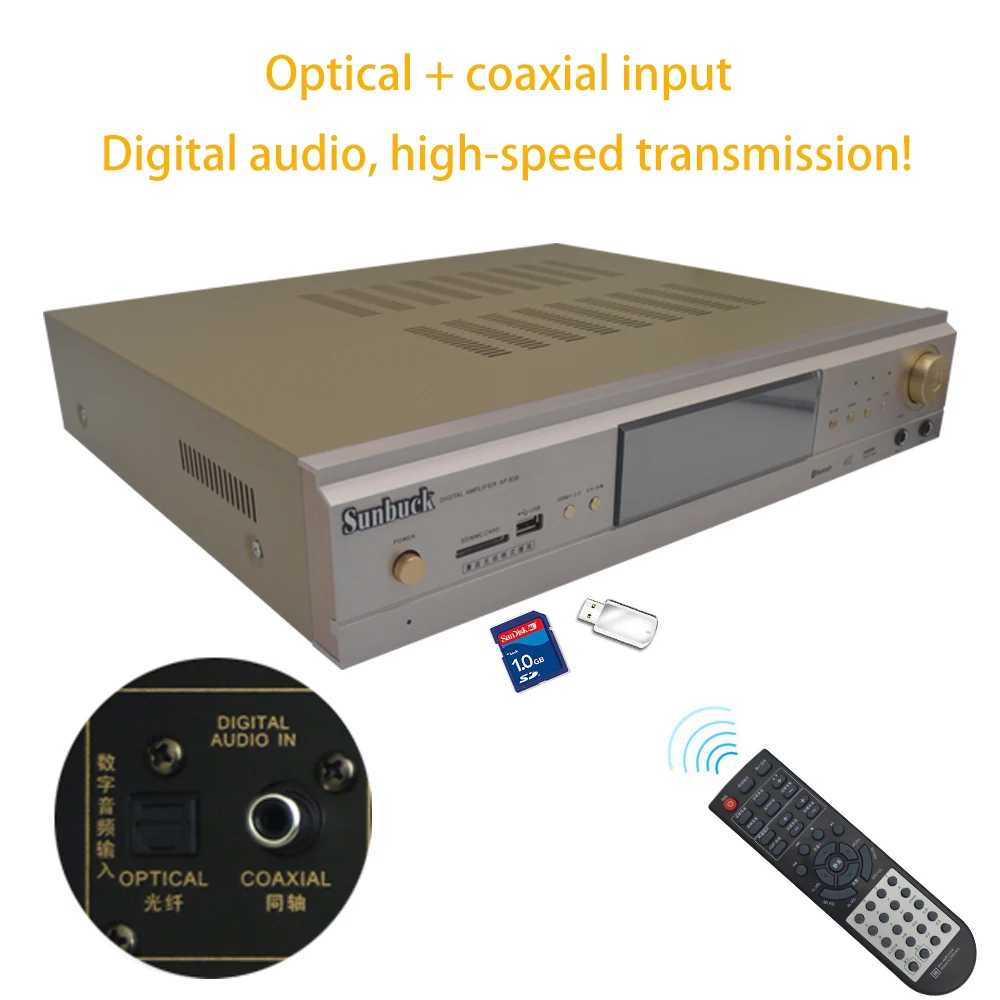

Optical input
Active / passive subwoofer

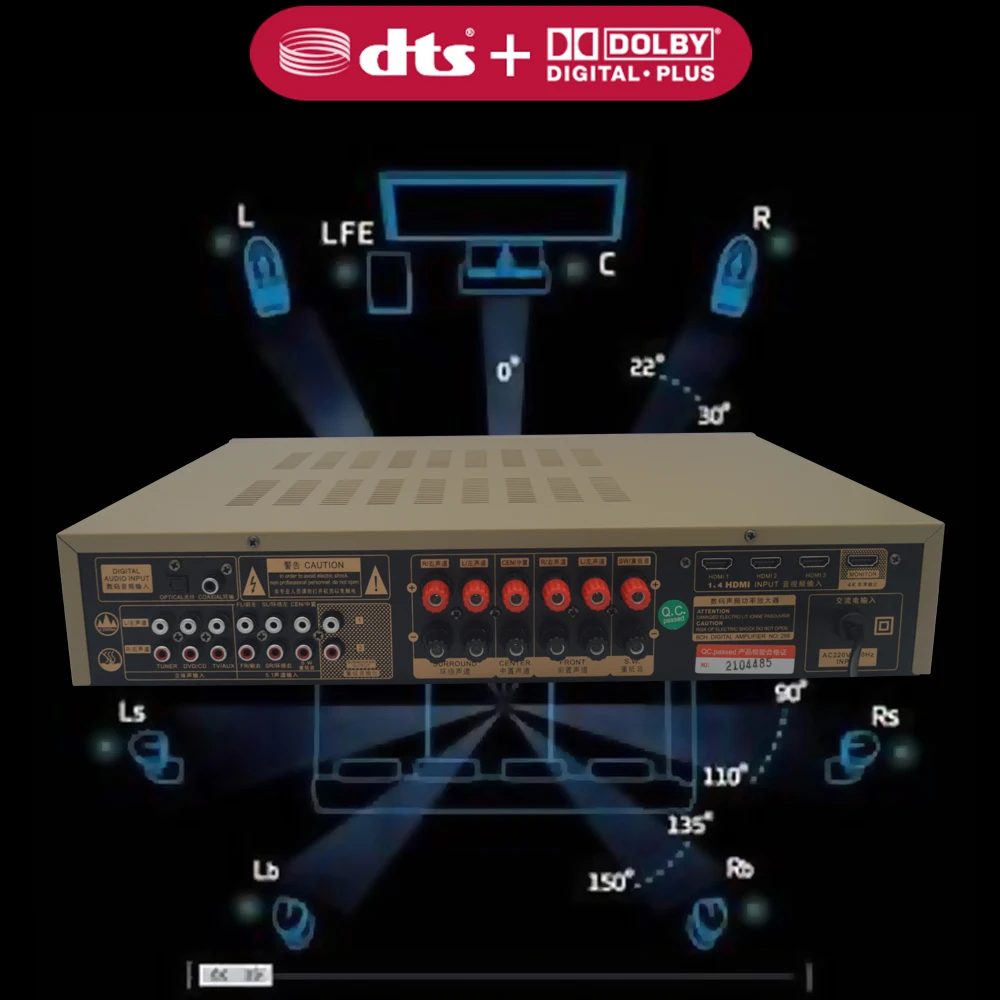

Independence 5.1
USB SD
Coaxial input
DTS decoding

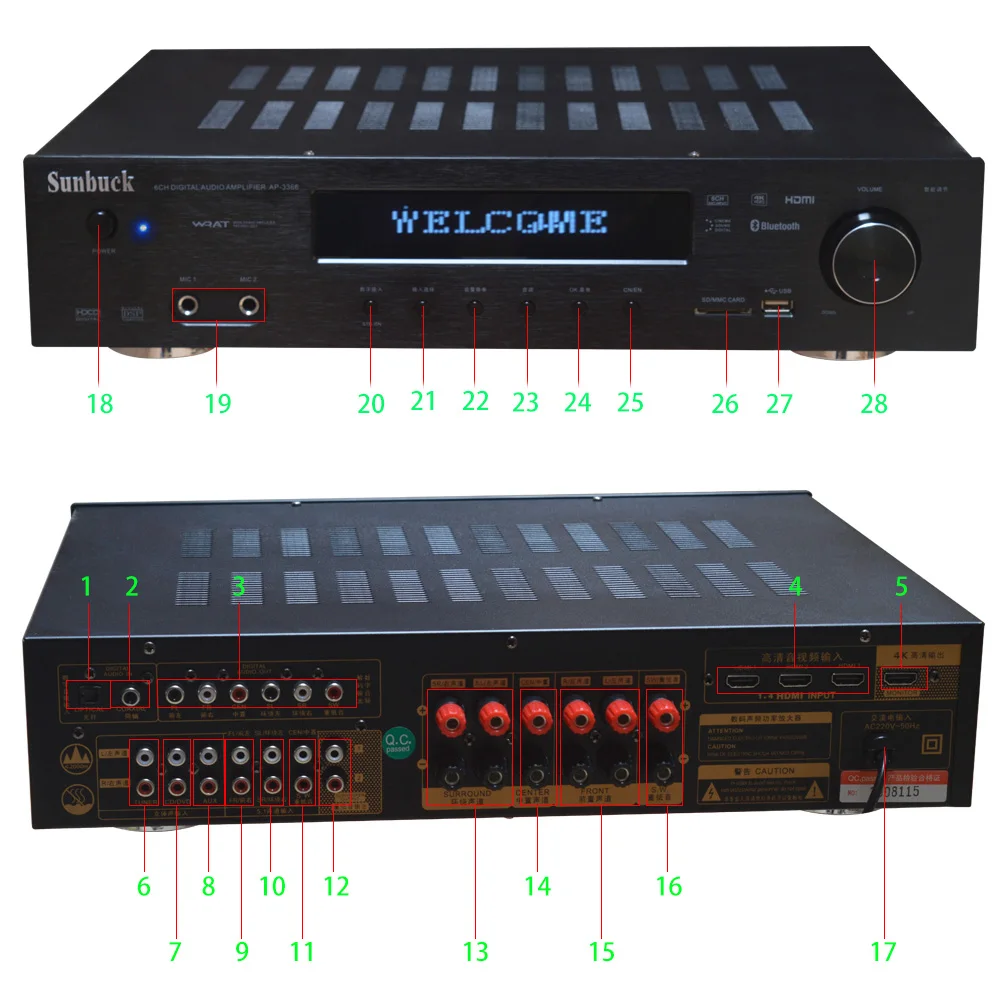

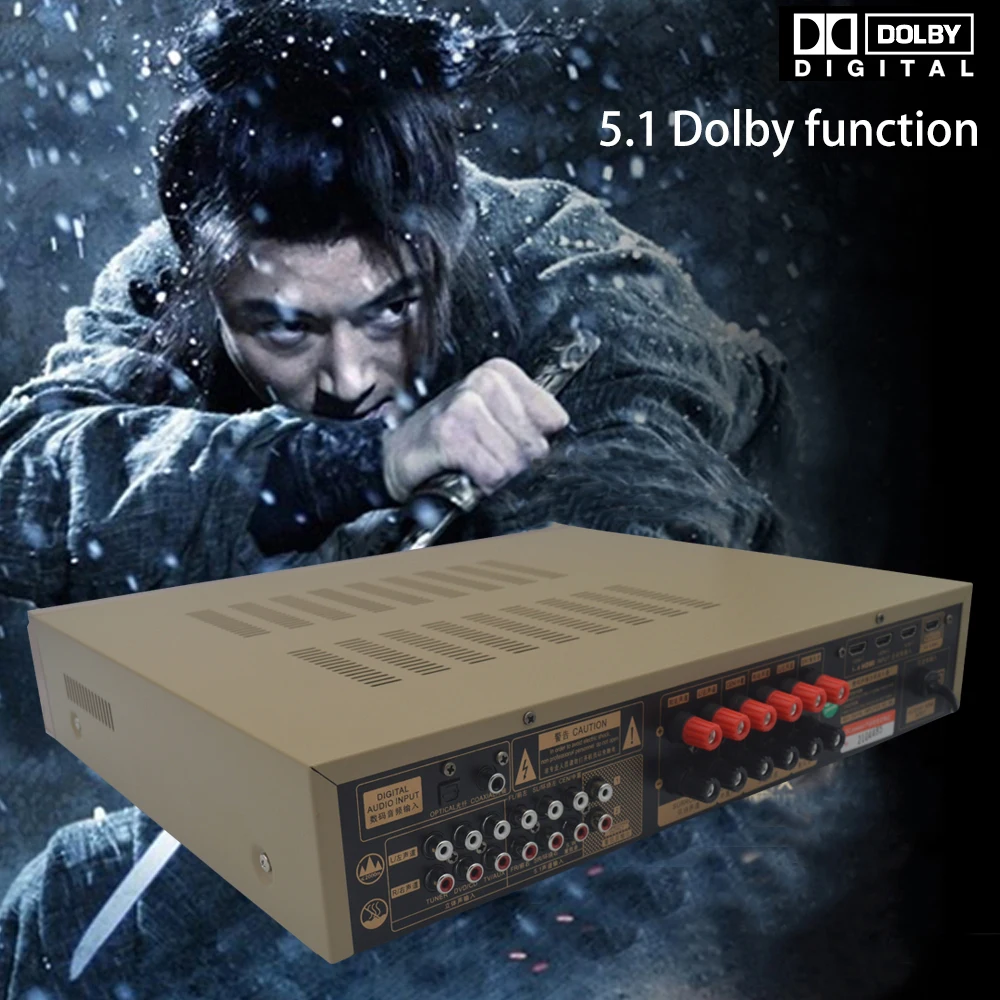

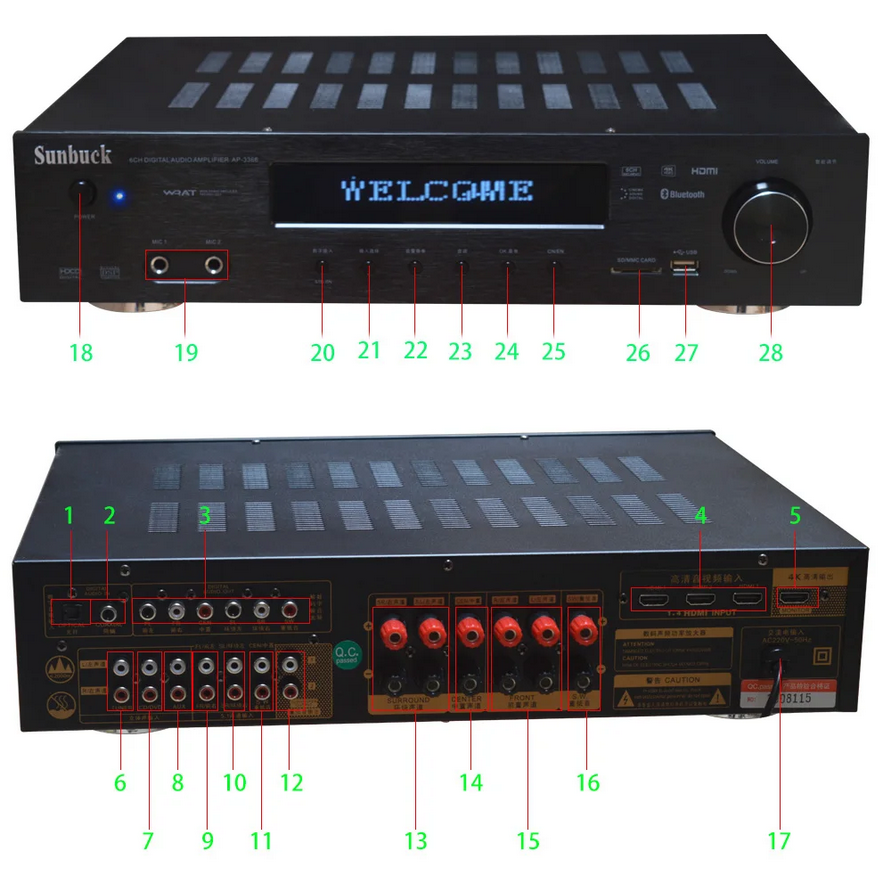

1:Optical digital audio input2:Coaxial digital audio input3:TDS 5.1 signal output4:HDMI signal input5:HDMI signal output6:Stereo radio channel7:Stereo DVD channel8:Stereo AUX channel9:5.1 main channel input10:5.1 surround channel input11:5.1 center / subwoofer input12:Active subwoofer output13:Surround speaker output14:Center speaker output15:Main speaker output16:Passive subwoofer output17:power cable18:switch19:Microphone jack20:Digital signal selection21:Analog signal selection22:Volume menu23:Treble and bass adjustment24:Confirm function selection25:Chinese and English display options26:SD card27:USB card28:Master volume adjustment

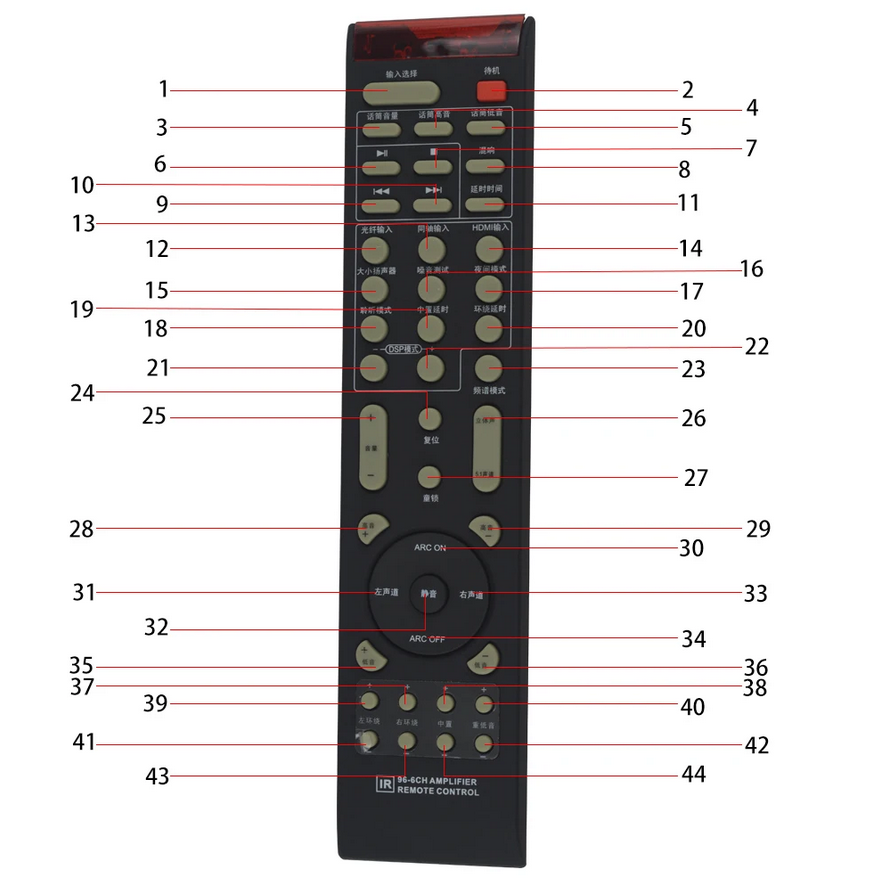

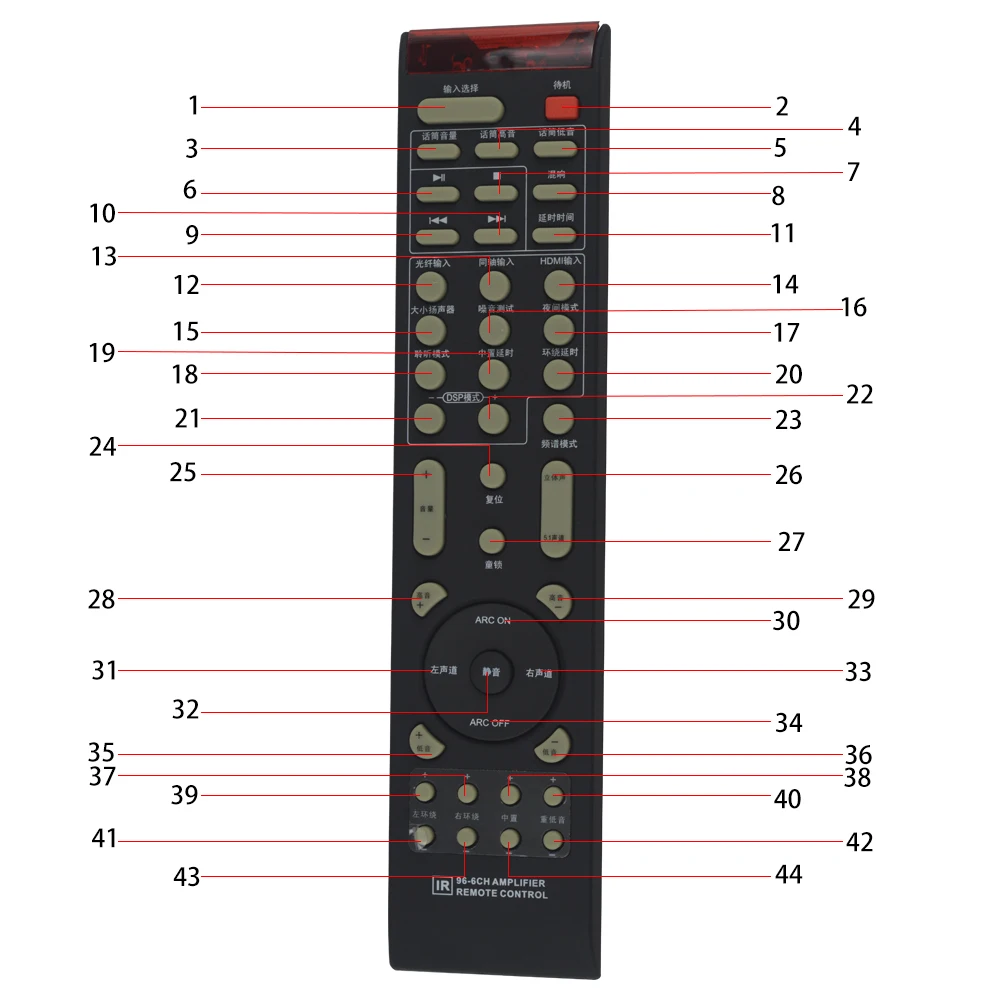

1:Input selection2:Standby3:Microphone volume4:Microphone tweeter5:Microphone bass6:Play7:Pause8:Reverb9:previous song10:Next song11:Delay time12:Optical input13:Coaxial input14:HDMI input15:Large and small speakers16:Noise test17:Night mode18:Listening mode19:Center delay20:Surround delay21:DSP mode -22:DSP mode +23:Channel mode24:Reset25:Volume +/-26:Stereo/5.1 channel27:Child lock28:Treble volume +29:Treble volume -30:ARC ON31:Left channel32:Mute33:Right channel34:ARC OFF35:Bass volume +36:Bass volume -37:Left surround volume +38:Right surround volume +39:Center volume +40:Subwoofer volume +41:Left surround volume -42:Right surround volume -43:Center volume -44:Subwoofer volume -
