Product Details: 1 Pair of three Ken King C2922A1216 per channel, 17A output capacity per channel
500w Nippon Steel core transformer
4 Piece ELNA FOR AUDIO 63v10000uF for audio
Class A B design, power tube 300mA high static current

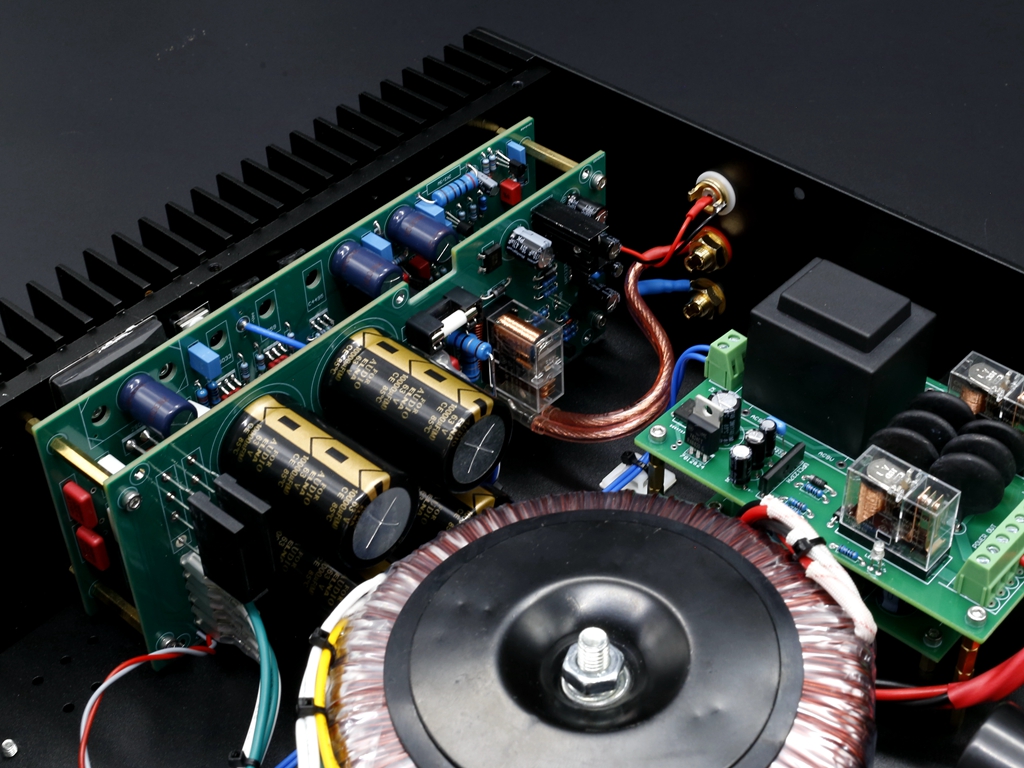

The left and right channels are completely independent, and the amplifier board, power board, and protection board are completely separated from each other
CNC machine tools CNC machining all aluminum chassis
Soft boot
Perfect horn protection
Specifications: Input sensitivity: 1.13Vrms
Input impedance: 33K ohms
Damping coefficient: 300
Output power: 120w/ 8ohm, 150W/ 4Ohm RMS power, full power long-term stable output
Static power consumption: 80w
Weight: about 12kg
Machine size: 430*330*100mm
AP aided design and test parameters with 6 euro load test data
Output Valid value: 30.68Vrms
Channel gain: 28.44dB 26.7x
SNR: 122.6dB
Dynamic range: 122.7dB
THD distortion: 0.000598%
THD+N distortion: 0.0020%
Frequency response bandwidth: ±0.057dB
Package List: 1 × T3 Pure Post Power Amplifier
Without Power Cable
