TDA7293 Fully balanced 150W*2 high power stereo amplifier board/amplifier kit Better than BTL connection

Name: TDA7293 Fully balanced 150W*2 high power stereo amplifier board/amplifier kit Better than BTL connection
Brand: BRZ-hifi-audio
SKU: TDA7293
Price: 55.2 USD
Availability: InStock

Sale

5.0 (3 Reviews)

5 Sold

~~$60.00~~ $55.20

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (2)

1/1

Description

Product Details:

This amplifier board has distortion, high signal-to-noise ratio, good resolution, warm and elastic sound, and strong infectivity.

1.6mm thick PCB, FR-4 board, double-sided gold plating process Good passability of large and small currents.

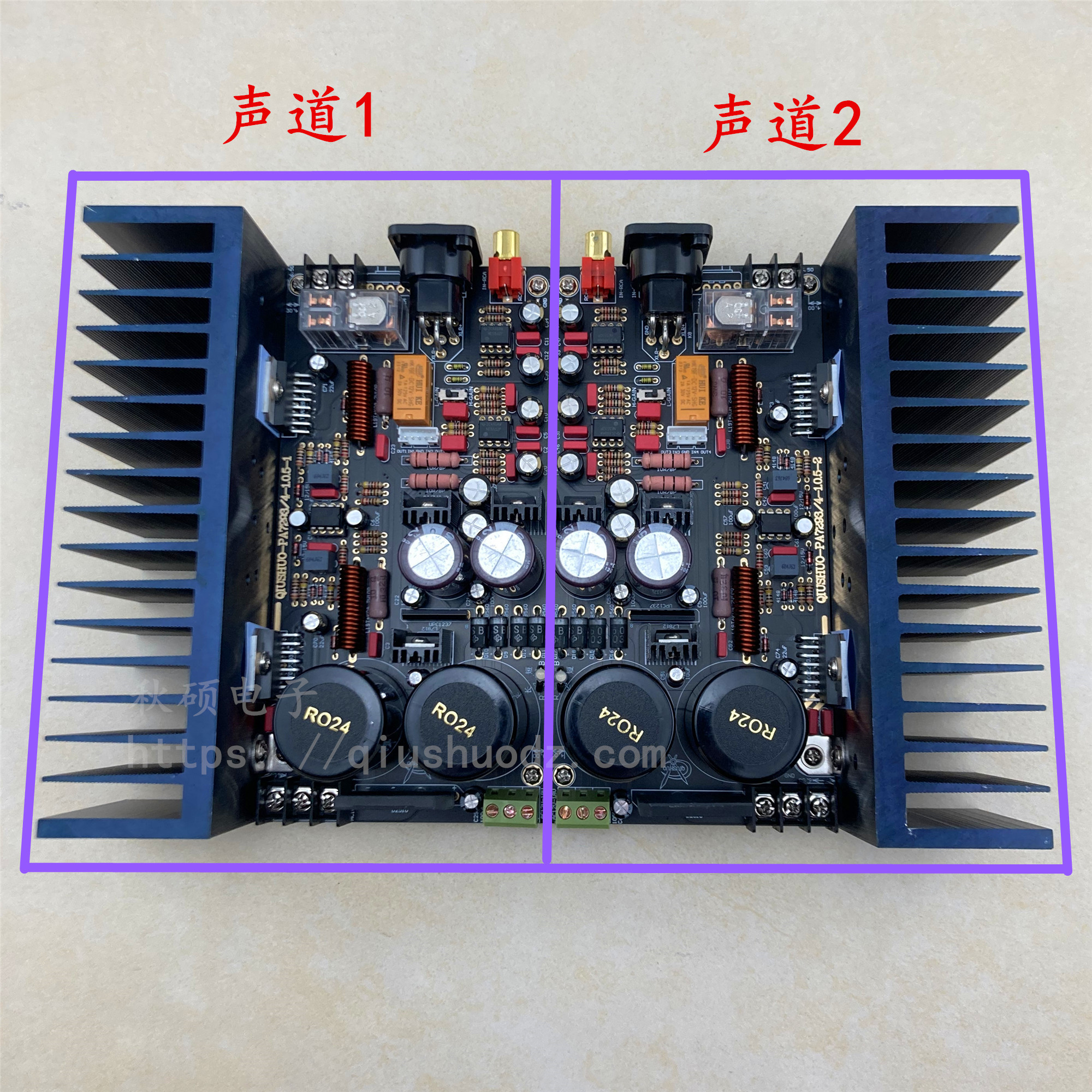

Symmetrical design of left and right channels

Pure DC amplification structure, deep diving at low frequencies, rapid response at high frequencies.

UPC1237 paired with Omron relay effectively protects your audio equipment.

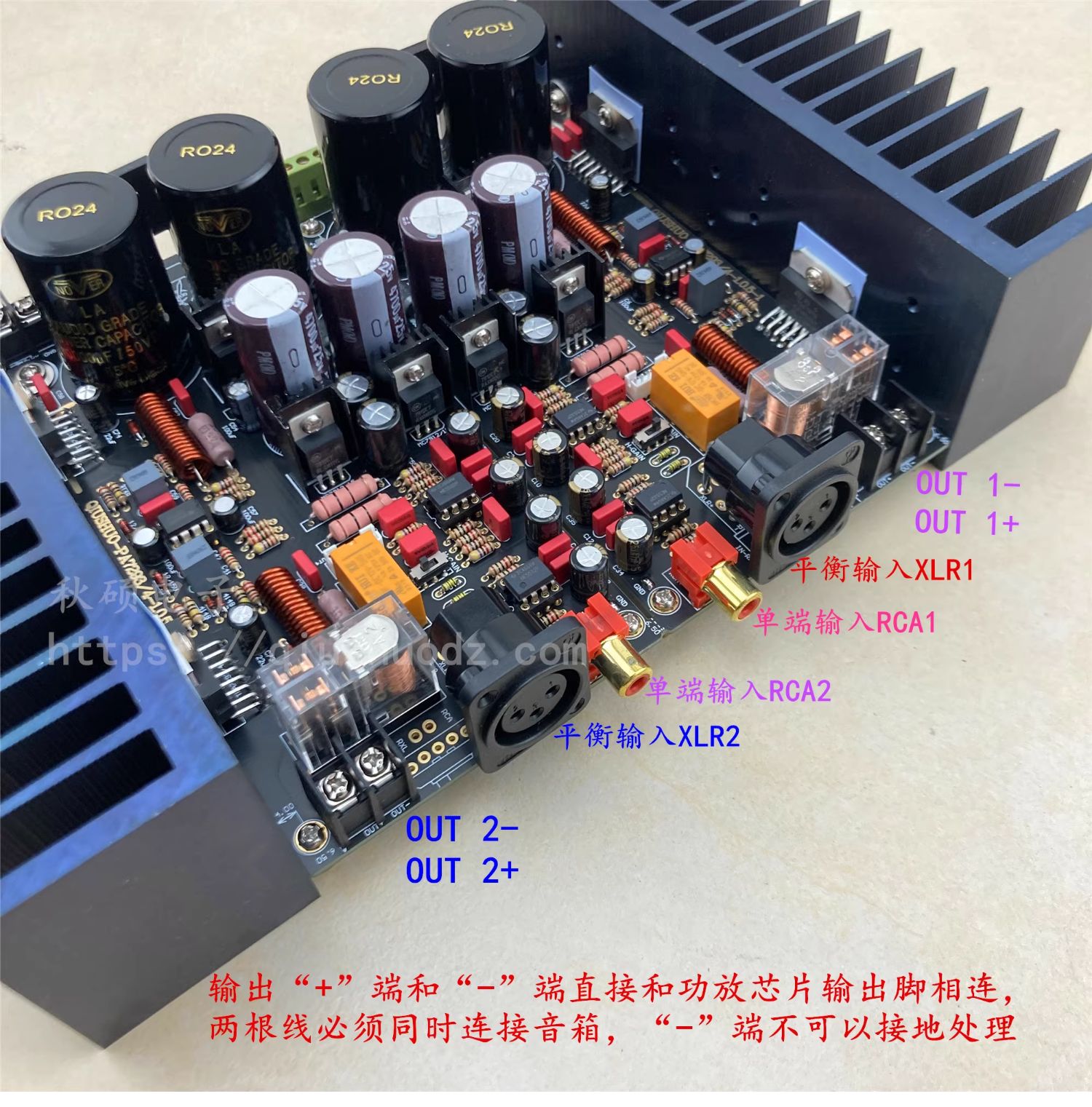

Can switch between XLR and RCA inputs.

718 military standard resistor.

Specifications:

Input impedance: 20K Ω/RCA 50K Ω/XLR

Output power: 150W * 2

Output impedance: 8 Ω

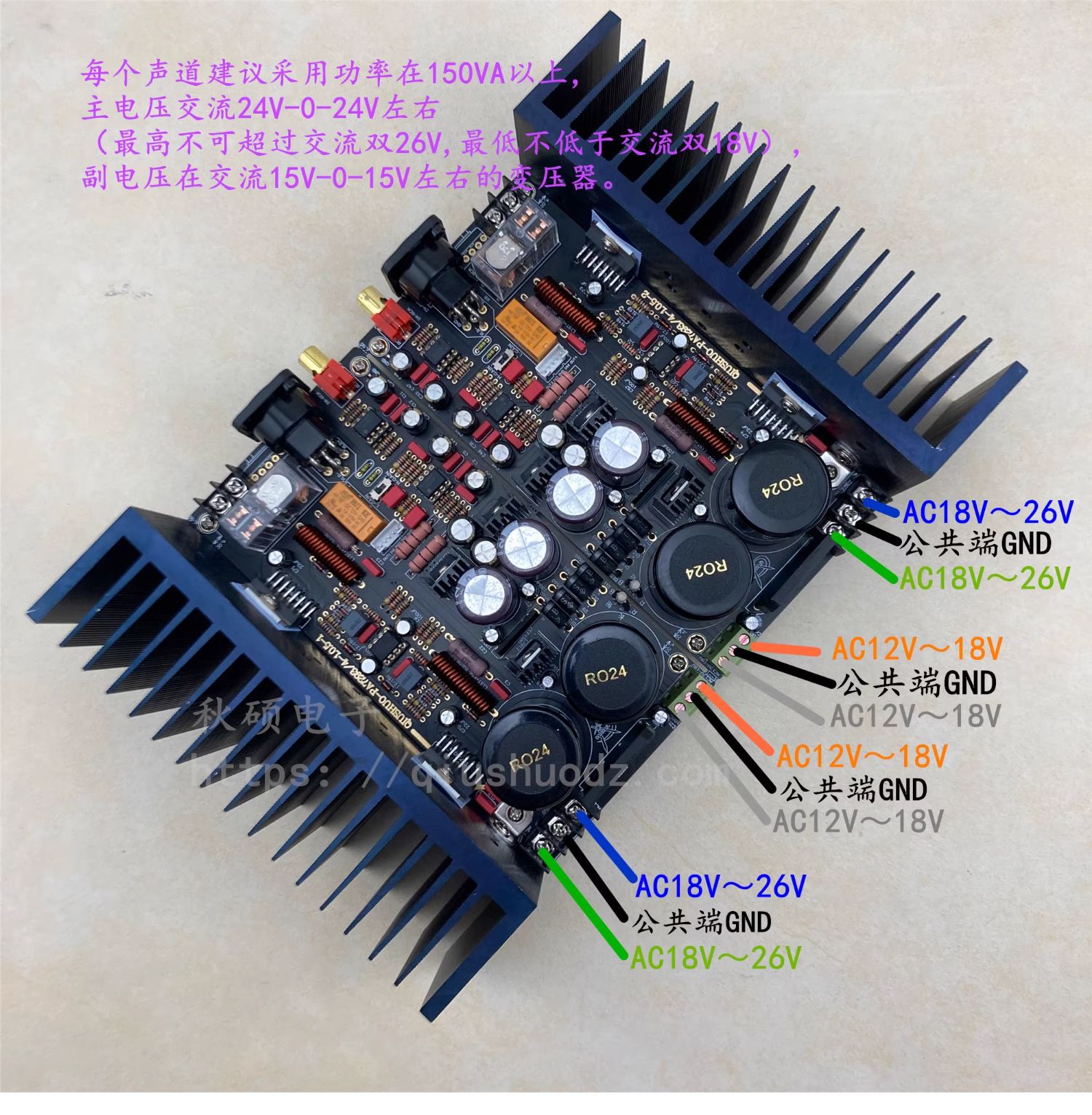

Input voltage: Recommended AC24V-0-24V. AC15V-0-15V

PCB size: 170 * 83mm

Amplifier board with heat sink size: 170 * 128 * 61mm

Package List:

1 pair × TDA7293 amplifier board/kit
