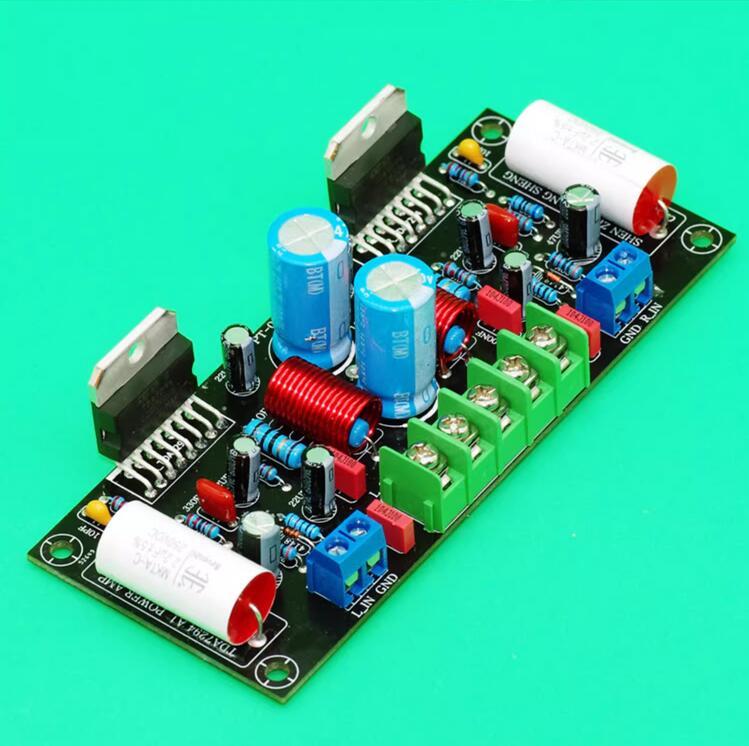

Dual channel TDA7294 amplification design, symmetrical design of left and right channels, one point grounding, no current sound, no noise, dual output of 100W, with some improvements made to the circuit.

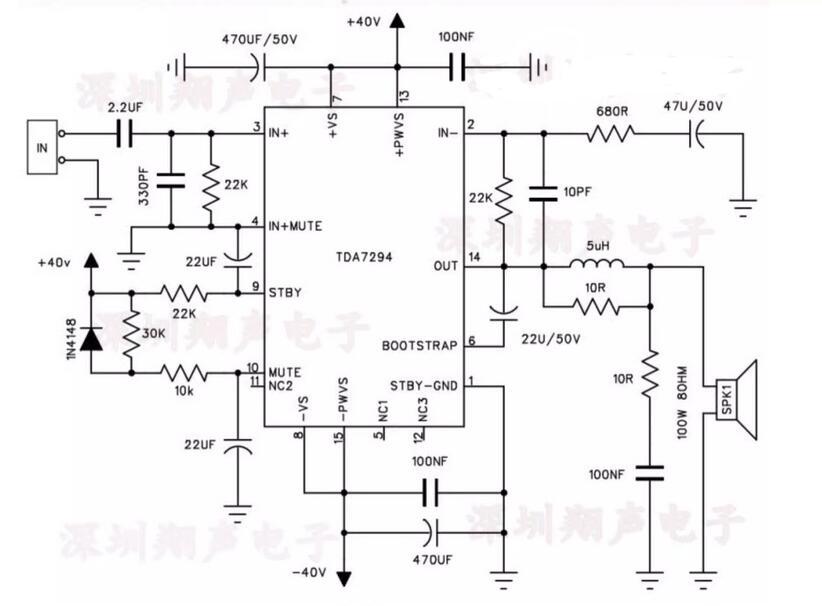

1.The input port is connected in parallel with a 330P small capacitor. This method has two advantages: first, it can form a low-pass with R1, filter out some unnecessary residual Super high frequency, make the sound smoother, and also reduce the burden of the amplifier. The second is to eliminate circuit self-excitation.
2.A 10PF capacitor is connected in parallel to the feedback resistor, making the sound more transparent.
3.Use Bell networks and output inductors to prevent high-frequency self-excitation and compensate for the output.
The above modifications, compared to many circuits, with a good power supply, can basically achieve over 99% performance of 7294. The voltage feedback is negative, and the performance is stable. Replacing different feedback capacitors can modulate different tones, suitable for grinding machines.

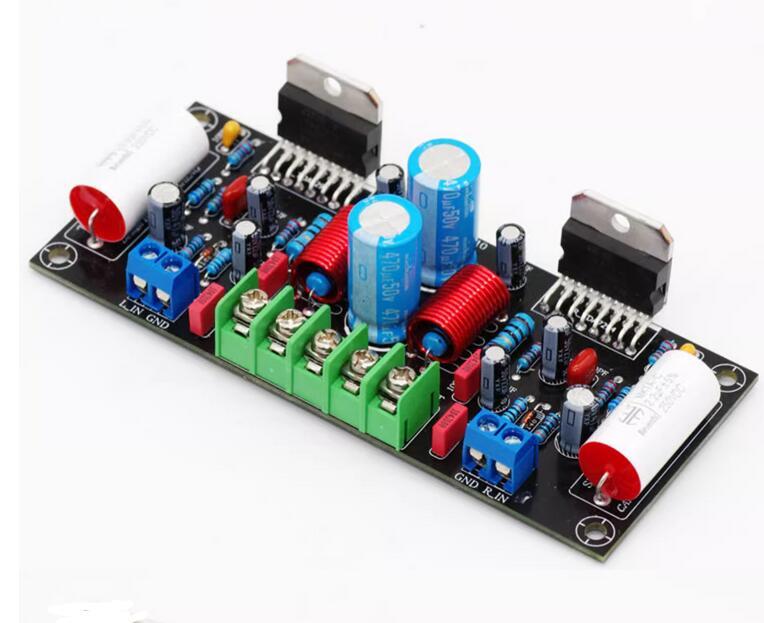

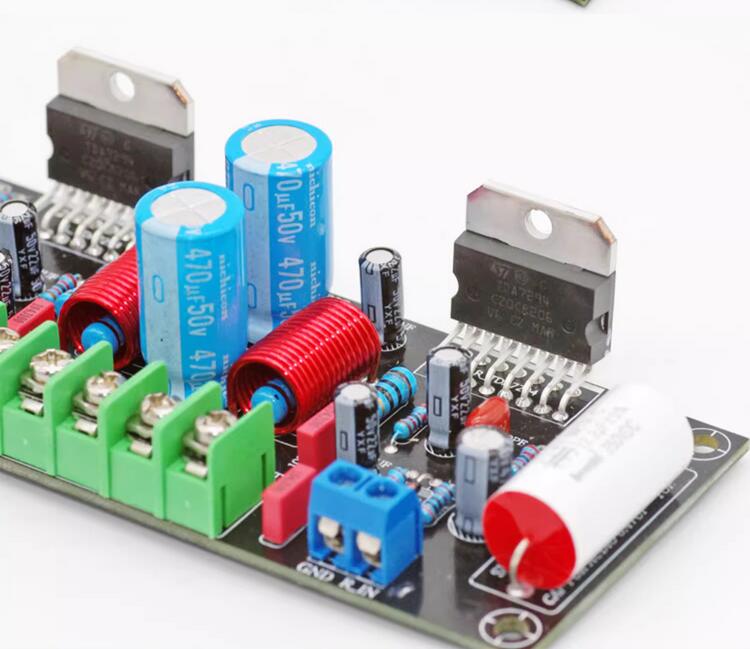

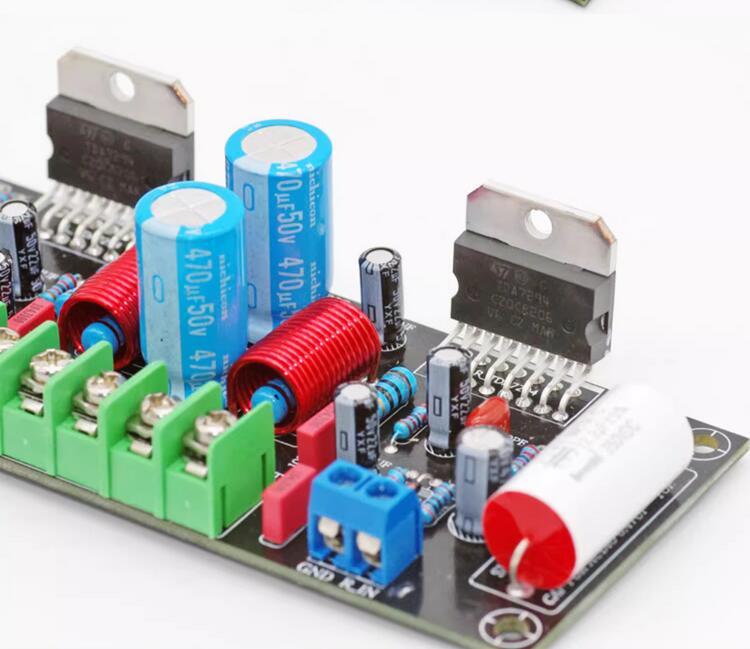

Features:1.Adopting high-quality power amplifier chip, model: TDA7294
2.The product adopts high-quality materials and has a long service life
3.The product is loose and needs to be assembled by oneself, making it very suitable for DIY enthusiasts

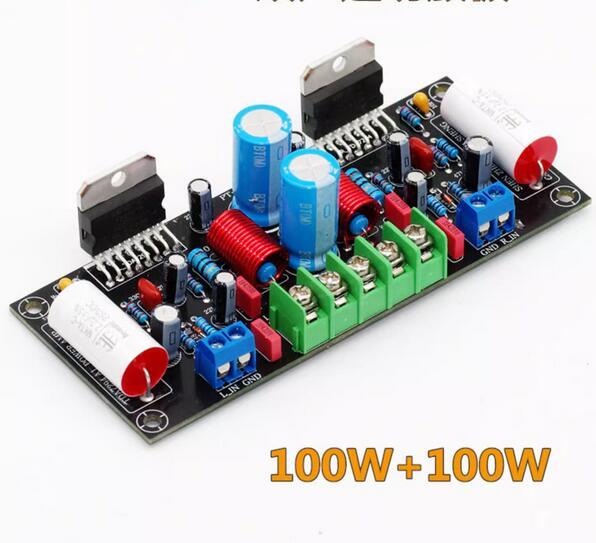

4.This is a high fidelity dual channel amplifier board
5.200W power product with very stable performance
Parameters:1. Audio signal input: dual channel audio signal input;
2. Audio output: dual channel 100W+100W audio output;
3. Circuit principle: 2-way TDA7294 amplification output;
4. Working voltage: DC 24-40V
5. Input impedance: 22K OHM Output impedance: 4-8OHM

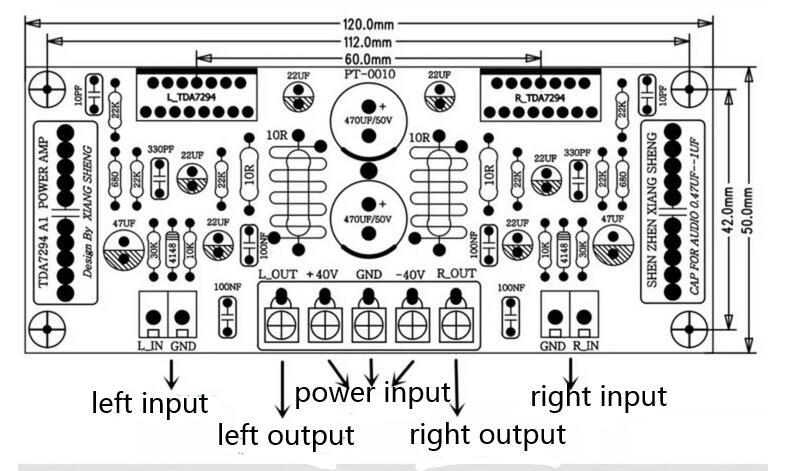

6. PCB specification: FR4 50X120X1.6MM
List:TDA7294 amplifier board x 1
