Product Details:
Low voltage DC components are often present in the power grid, which can increase the internal resistance of AC100V-240V high-voltage AC power sources over the medium range of transmission lines Due to the high magnetic flux and low internal resistance of transformers, this DC component will generate a relatively large bias magnetic flux in the transformer core, making the transformer core more prone to magnetic saturation and resulting in transformer hum This isolation board can effectively filter out interference from the power grid Greatly provides sound quality and improves image quality.
Composed of six rectifier bridges with a current of 15A.
ustomized thickened and widened copper foil for circuit boards to ensure greater safety and reduce internal resistance.Improve the ability to pass high currents.
Reasonable CC series capacitors can more effectively filter DC power from neutral and live wires.
Has strong suppression ability for power grid interference signals above 40KHz.
Parameters:

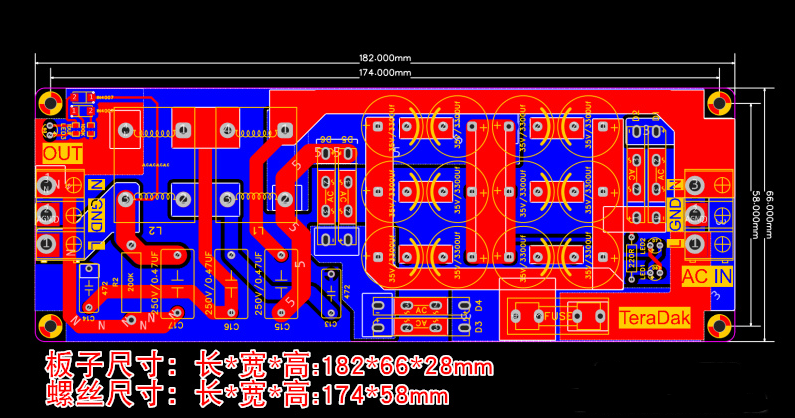

Board size: Length * Width * Height: 182 * 66 * 28mm
Screw hole size: length * width * height: 174 * 58mm
Input voltage: 100VAC-260VAC L, N, GND
Output voltage: 100VAC-260VAC L, N, GND
PCB material and process: 1.6mm, glass fiber double-sided board, black oil double-sided tin plating
Applicable rated power: within 2000W
Package list:
1 × DC isolation board
