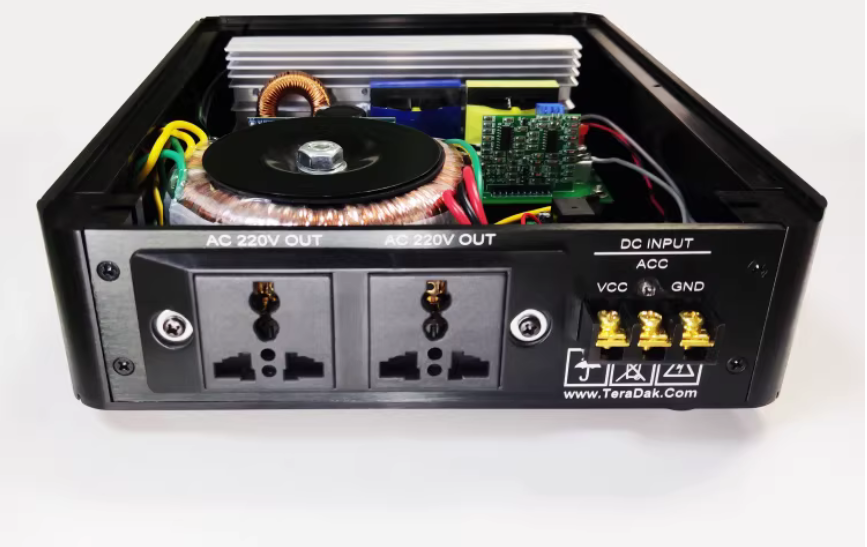

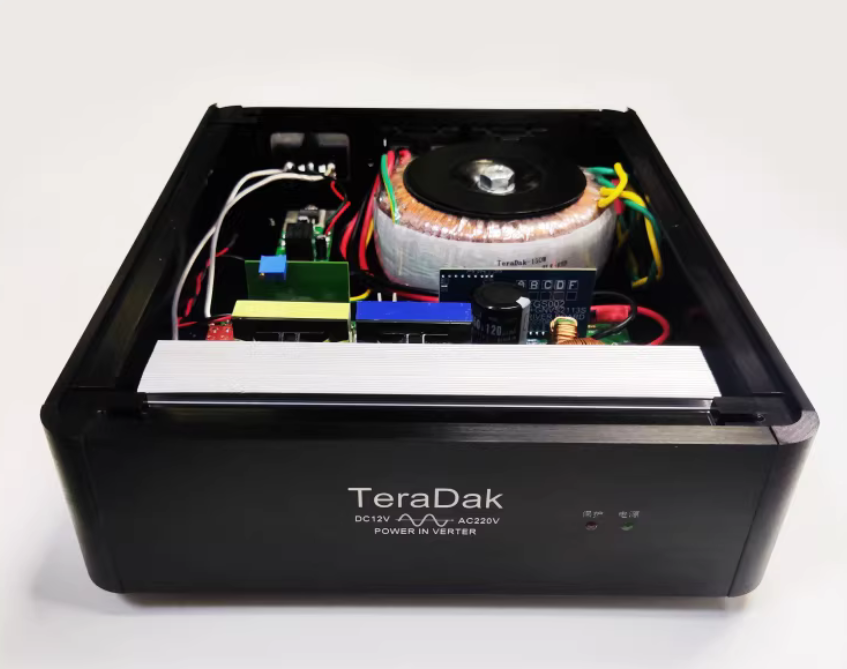

TeraDak pure sine wave 12V to 220V/110V inverter isolated regenerative power supply Audio FiHi power supply

Name: TeraDak pure sine wave 12V to 220V/110V inverter isolated regenerative power supply Audio FiHi power supply
Brand: BRZ-hifi-audio
Price: 159 USD
Availability: InStock

5.0 (1 Reviews)

3 Sold

$159.00

GET $2.00 OFF ON ORDERS OVER $40.00

Get it

L18J8W12

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

input voltage:

DC10.5V-14V
output voltage:

AC110V*2

AC220V*2
power:

150W

500W no isolation transformer

1000W no isolation transformer

Quantity:

Add to Favorites (6)

1/1

Description

TeraDak pure sine wave 12V to 220V/110V inverter isolated regenerative power supply Audio FiHi power supply

Product Parameters:
Input voltage DC10.5-14V
Output voltage: AC 110V, 220V
Output power: 150W-500W-1000W (optional)
Output waveform: Pure sine wave inverter circuit converts 12v to 220v
Output frequency: 50Hz
Output power: within 150W for resistive load and 150W for capacitive load

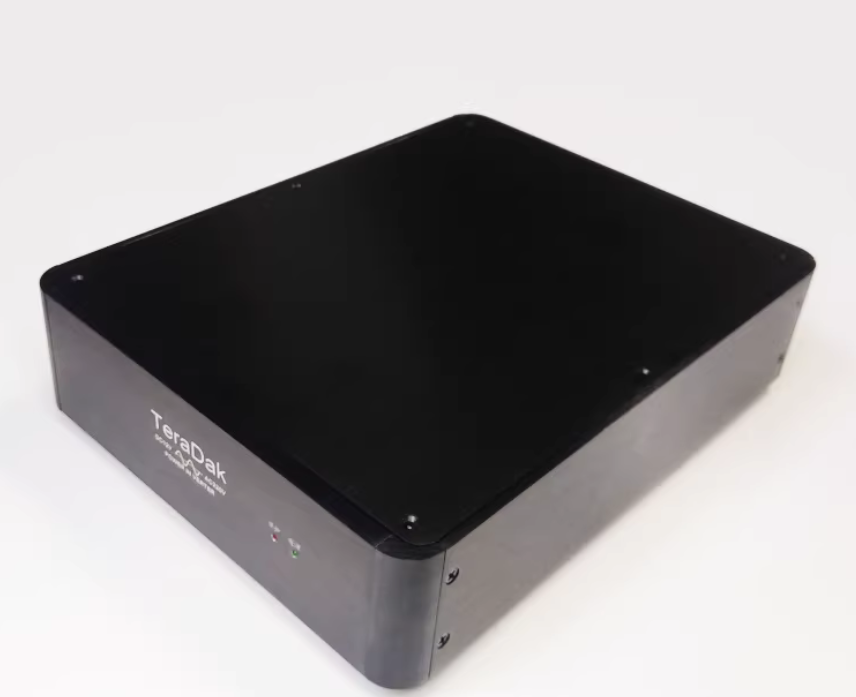

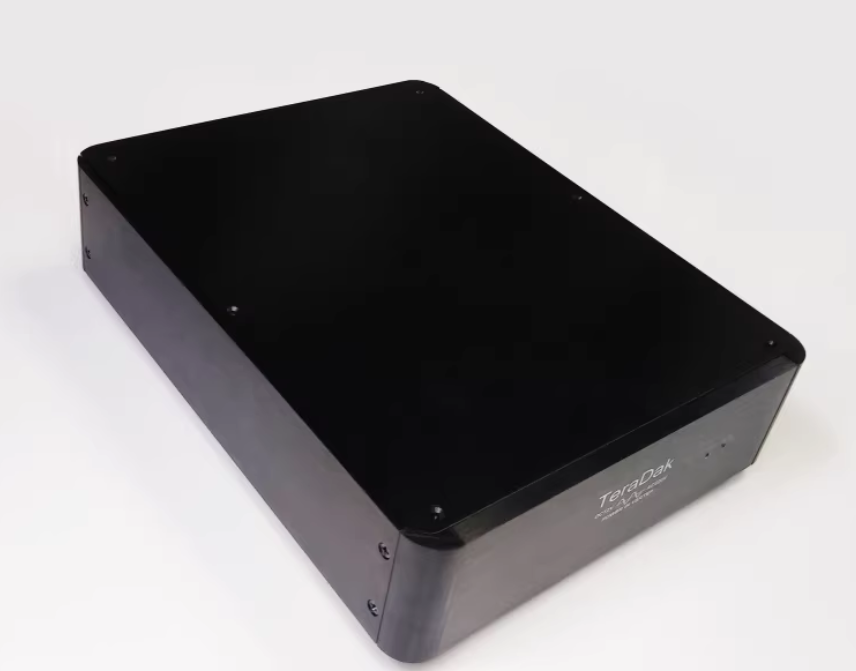

Power size: 150W width 211.5X height 60X depth 272mm
Weight: 4.25KG (weight varies depending on power)

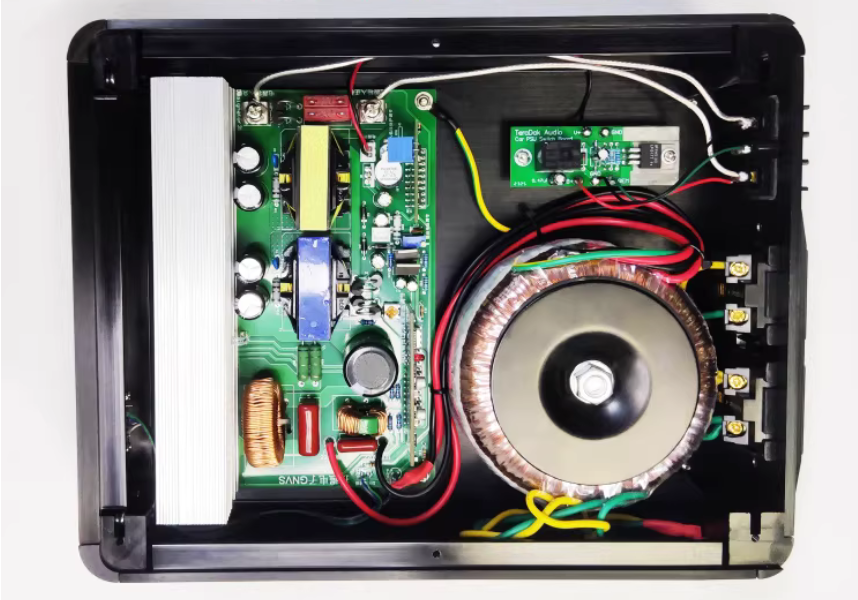

Isolation transformer: The main transformer is made of high-purity copper wire wound with genuine materials and has 8 power tubes in the front stage.
Protection function: Short circuit protection, overload protection, high temperature protection, low voltage protection, overvoltage protection
Special Note:
1: 500W (including 500W) and above do not include isolated transformer, but AC voltage processing circuits will be installed to optimize AC voltage. Please be aware!

Notes:
1. The positive and negative inputs of 12v are strictly prohibited from being connected in reverse, and the output terminal is strictly prohibited from being connected to the mains power. Please use it in a ventilated and dry area
2. Using imported ST high-power field-effect transistors, the ST power transistor has been tested for stability over a long period of time.
3. Standard configuration: Two 40A medium fuses. If accidentally connected to the positive and negative terminals and the fuse burns out, it can be replaced by oneself
Precautions for testing pure sine wave 12V to 220V inverter isolated power supply:

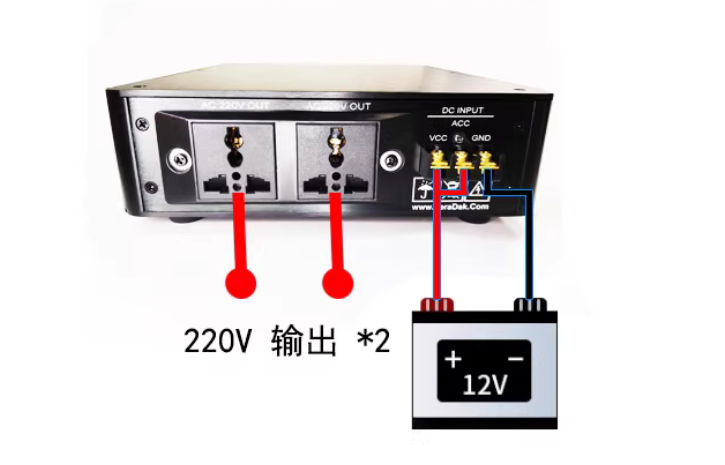

1. A pure sine wave 12V to 220V inverter isolated power supply can only be connected to a 12V battery for testing. Do not connect other voltages exceeding 16V as it will damage the power supply.
2. The input positive and negative poles must be carefully checked, and a standard of 1.5 square copper wire or more is required. The length of the 1.5 square wire is not recommended to exceed 1 meter, otherwise it will affect performance. Battery configuration: 10AH with 100W, 20AH with 200W, and so on.
3. A pure sine wave 12V to 220V inverter isolated power supply has a DC high voltage of about 350V. Non professionals are strictly prohibited from disassembling, inspecting, and repairing it.
4. Pure sine wave 12V to 220V inverter isolated power supply without charging function. It is strictly prohibited to connect the output line to mains power, otherwise the consequences will be borne by oneself.
5. Although the pure sine wave 12V to 220V inverter isolation power supply comes with short-circuit overload protection function, electronic products still cannot be 100% guaranteed. If there is a high-power electrical inverter board protection and alarm, the electrical device must be disconnected in a short time to prevent damage to the circuit board.
6. Inductive loads (such as transformers and motors) and capacitive loads (such as PFC free switching power supplies, resistive capacitive voltage reducing LED lamps, or PFC free lamps, etc.) can both reduce the carrying power of the power supply, because the starting power of the motor is generally about 3-8 times the normal starting power. For example, this power supply can only carry a 100W refrigerator, and LED lamps can carry about 150W. Circuits without PFC with rectifier circuits can cause waveform clipping in sine waves, where only the peak is utilized, resulting in a decrease in load capacity.
7. The pure sine wave 12V to 220V inverter isolated power supply has certain fluctuations in the on load and off load voltages, and the input voltage will also have certain changes in the output, which is a normal phenomenon.
8. Supports 12V to 220V inverter function, which can be used for devices that require 220V power supply. However, the high internal resistance results in insufficient starting current, making it impossible to drive high-power devices with transformers above 150W, and therefore cannot be used in power amplifiers.
