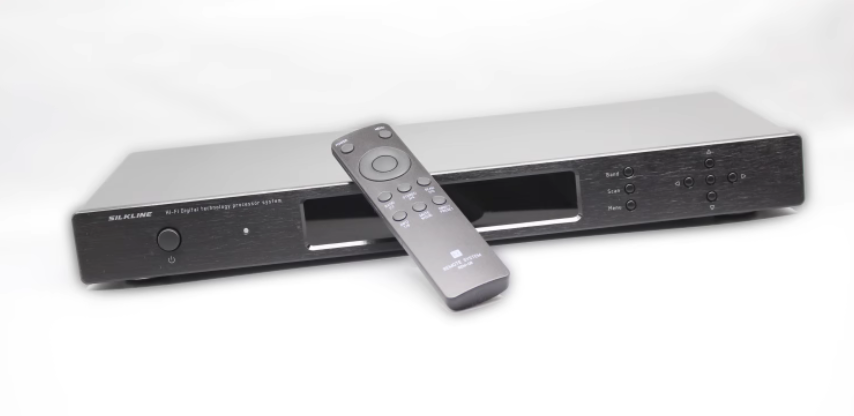

ToneMax T8 FM/DAB/DAB+ OLD display HIFI FM radio Digital Tuner Global Version 76-108MHz Hifi Tuner with Optical Output

Name: ToneMax T8 FM/DAB/DAB+ OLD display HIFI FM radio Digital Tuner Global Version 76-108MHz Hifi Tuner with Optical Output
Brand: BRZ-hifi-audio
Price: 201.48 USD
Availability: InStock

Flash Sale

5.0 (1 Reviews)

4 Sold

~~$219.00~~ $201.48

-8%

GET $2.00 OFF ON ORDERS OVER $40.00

Get it

L18J8W12

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (6)

1/1

Description

Upgrades:
- Upgrade 50 radio frequencies for FM and DAB to save

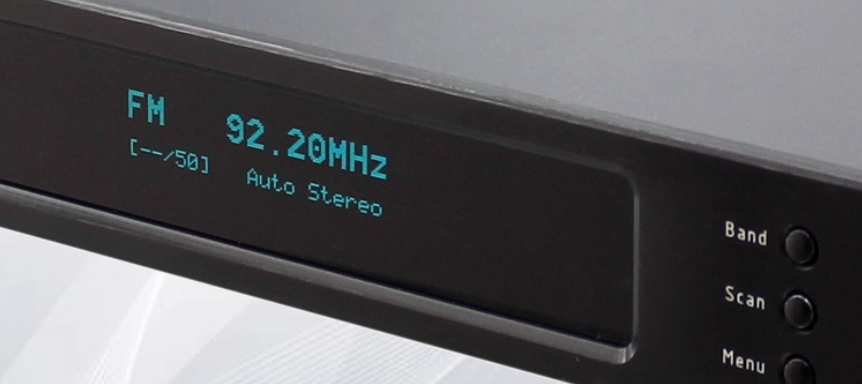

- LCD screen upgraded to OLED

Description:
New Design | T8
- FM/DAB/DAB+ 3-band high-fidelity digital tuner uses imported high-quality digital tuner, superior to the anti-interference ability and receiving sensitivity of analog receiver.
- Excellent FM reception algorithm with high selectivity and high signal-to-noise ratio to provide stable and highly analog audio output.
- The new third-generation broadcasting, digital broadcasting (AM generation, FM II), DAB provides CD-quality sound, with the characteristics of noise-free and stable sound.

Highly Sensitive Receiving Tuner

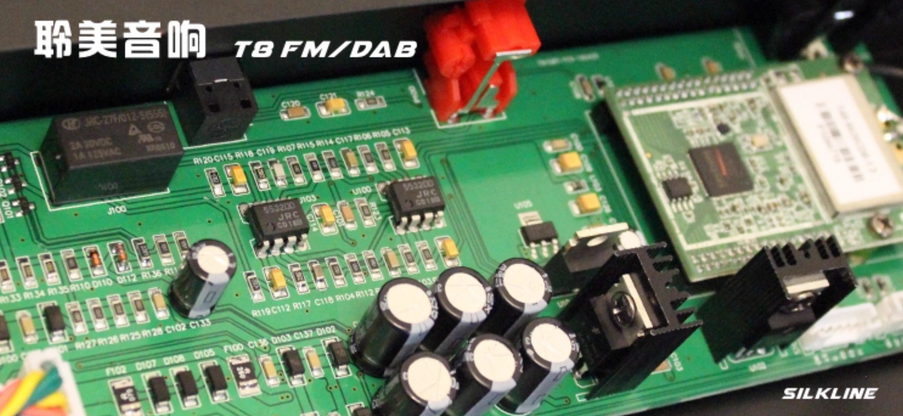

- New receive front-ends and OSCEN baseband groups.
- It adopts a new generation of receiving front-end chip, which has the RF input processing capability that can accommodate video-level bandwidth, will not lose any possible weak radio wave signals, has high receiving sensitivity, no mechanical aging, no frequency offset, and good parameter characteristics. Advanced digital reception algorithms provide excellent performance for capturing weak radio signals with receive sensitivity of -107 dBm (1uV, typical) in the FM band. The signal analysis and processing OSCEN baseband group, using a professional high-speed DSP chipset, is about 38% faster than the previous generation of integrated DSP core products, and the comprehensive processing power of data analysis is increased by 33%. The acquisition, analysis and processing of input waveforms tend to be more real-time, which is reflected in the frequency selectivity, noise limit signal-to-noise ratio and anti-interference ability compared with the previous generation of products.
- Over Sample upscaling technology.
- Provides 16Bit 48KHz PCM audio output.
- For the digital output in the FM band, the T8 has a built-in audio SRC upscaling algorithm for audio interpolation, and the digital output is increased to 48KHz sampling rate through the Over Sample algorithm. The SRC upscaling algorithm does not perform additional processing such as correction, compensation or modification of the original audio waveform, but only respects the straight audio frequency response curve and interpolates the density of the signal. The benefits brought by this are, on the one hand, the improvement of the clarity of the sound and the sound quality more delicate; On the other hand, the use of external DACs is beneficial to push the conversion noise out of the audible range of the audio, reduce the noise, and improve the signal-to-noise ratio.

Excellent Musical Performance
- Machine synchronization provides RCA analog audio and optical digital signal output, the output signal is not modified, listen to the original output.
- RCA analog output pure relay control switch design, non-transistor soft silence, output stage no resistive or capacitive load superposition that affects sound quality.
- Support external DAC digital-to-analog converter, through the external higher performance of the audiophile sharp, restore more transparent sound, so that the sound performance is improved to the extreme.

FM High-fidelity Output
- The analog output buffer uses two Japanese famous factory op amps, and the sound quality is more mellow, with a strong analog flavor.

DAB/DAB+ Has New Support for the 5A-13F Band
- The new VI fourth-generation receiver high-frequency head, added support for DAB+ technical specifications, and new support for AAC format.

RDS Decoding Function and DAB Data Broadcasting
- Support FM PTY, PS, Text data broadcasting, DAB broadcast sets, assemblies, RATE and many other data broadcasts.

Optical Digital Direct Output
- FM audio SRC upscaling algorithm boosted to PCM 48KHz output, better than the 44.1KHz standard of traditional CDs.

Up to 384Kbps Digital Audio
- The DAB audio reception algorithm was upgraded to 384Kbps, surpassing the highest MP3 format and on par with CD audio quality standards.

Secondary Frequency Conversion
- From 10.7MHz IF secondary conversion to 2.048MHz, image interference is more effectively suppressed, and the reception sensitivity in the frequency band is more uniform.

Product Functions:
- Basic specification: FM/DAB/DAB+ system
- Receiving type: digital high-speed DSP
- Station storage: FM 30 stations and DAB 30 stations
- Data function: RDS PTY, PS, Text, Data Rate, Ensemble, Service and Programe name

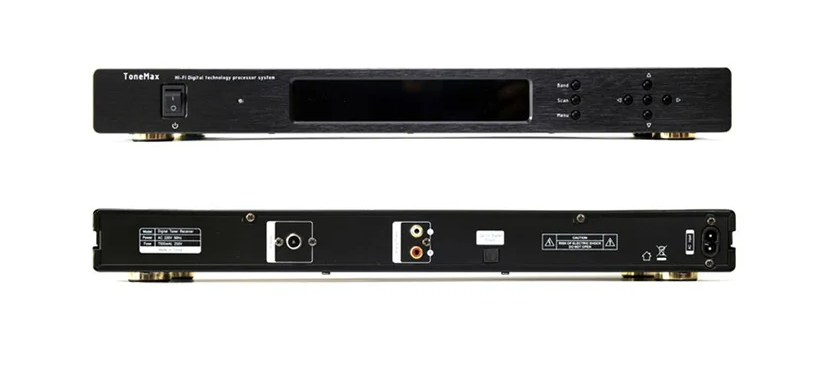

- Audio output: analog stereo + digital optical output

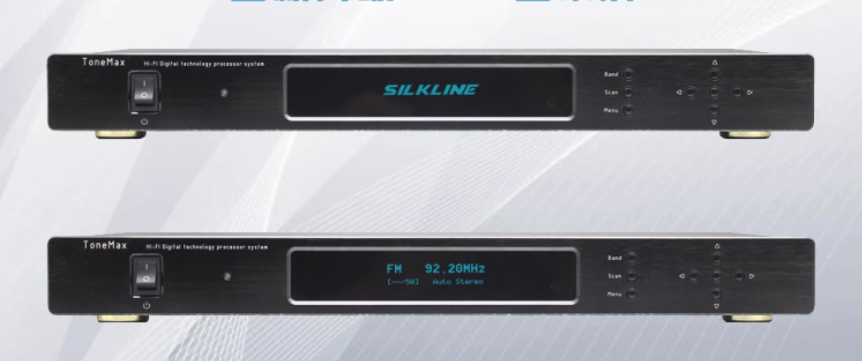

- Display: full dot matrix double line in English
- Remote control function: full function remote control, support frequency direct input

Product Parameters:
- FM receiving frequency range: 76-108 (MHz)
- DAB receiving frequency range: 174.5-240.0 (MHz)
- Rated output level: 500mV
- Digital output sampling rate: FM: 48KHz; DAB: 32-96KHz
- Receiving sensitivity: -107dBm (FM), -100dBm (DAB)
- Signal-to-noise ratio: ≥50dB (FM); ≥72dB (DAB)
- Harmonic distortion: ≤0.03% (FM); ≤0.03% (DAB)
- Size: 430 x 44 x 200mm/16.9 x 1.7 x 7.9"

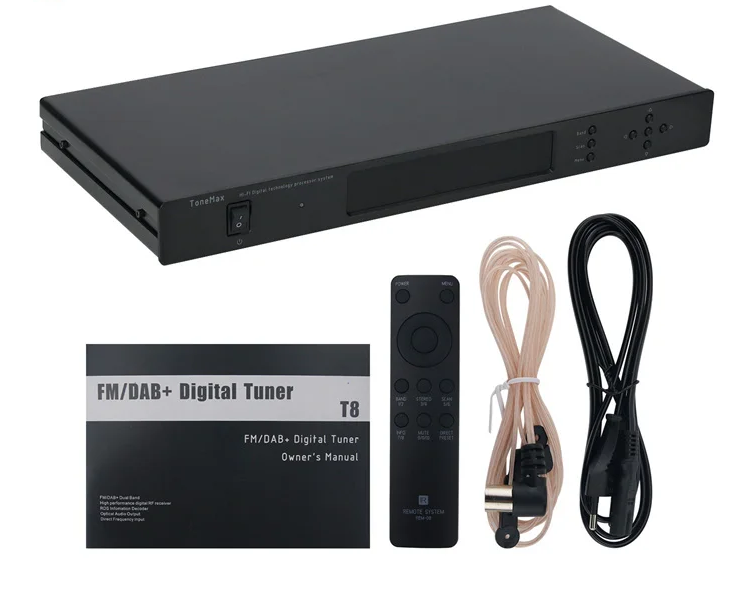

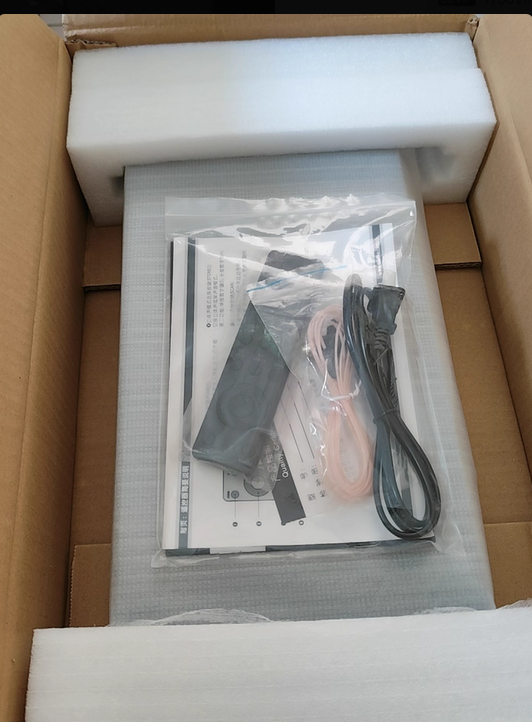

Package Included:
- 1 x Main unit
- 1 x Product quality certificate
- 1 x Instructions
- 1 x Antenna
- 1 x Power cable
- 1 x Remote control
