Product Details
Refer to Burmester956 circuit

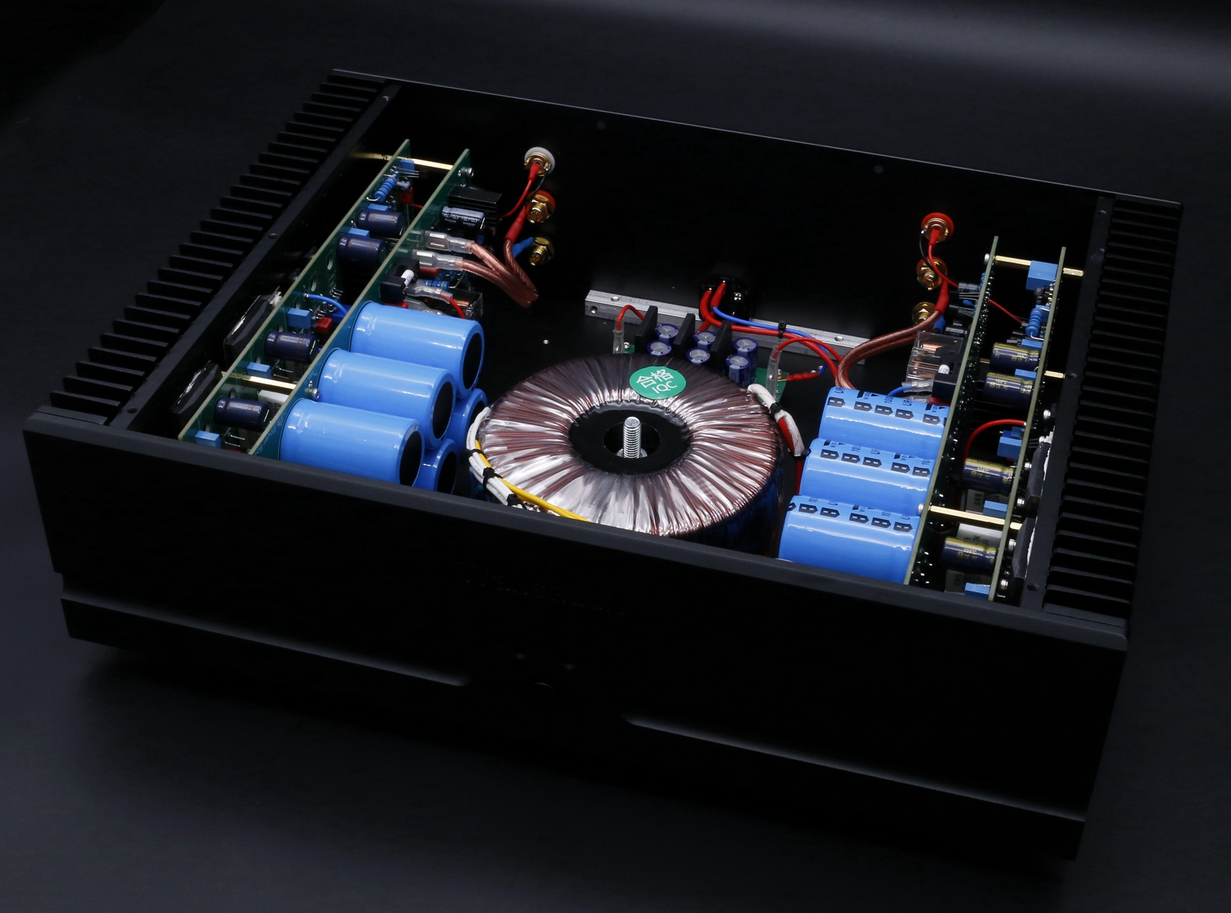

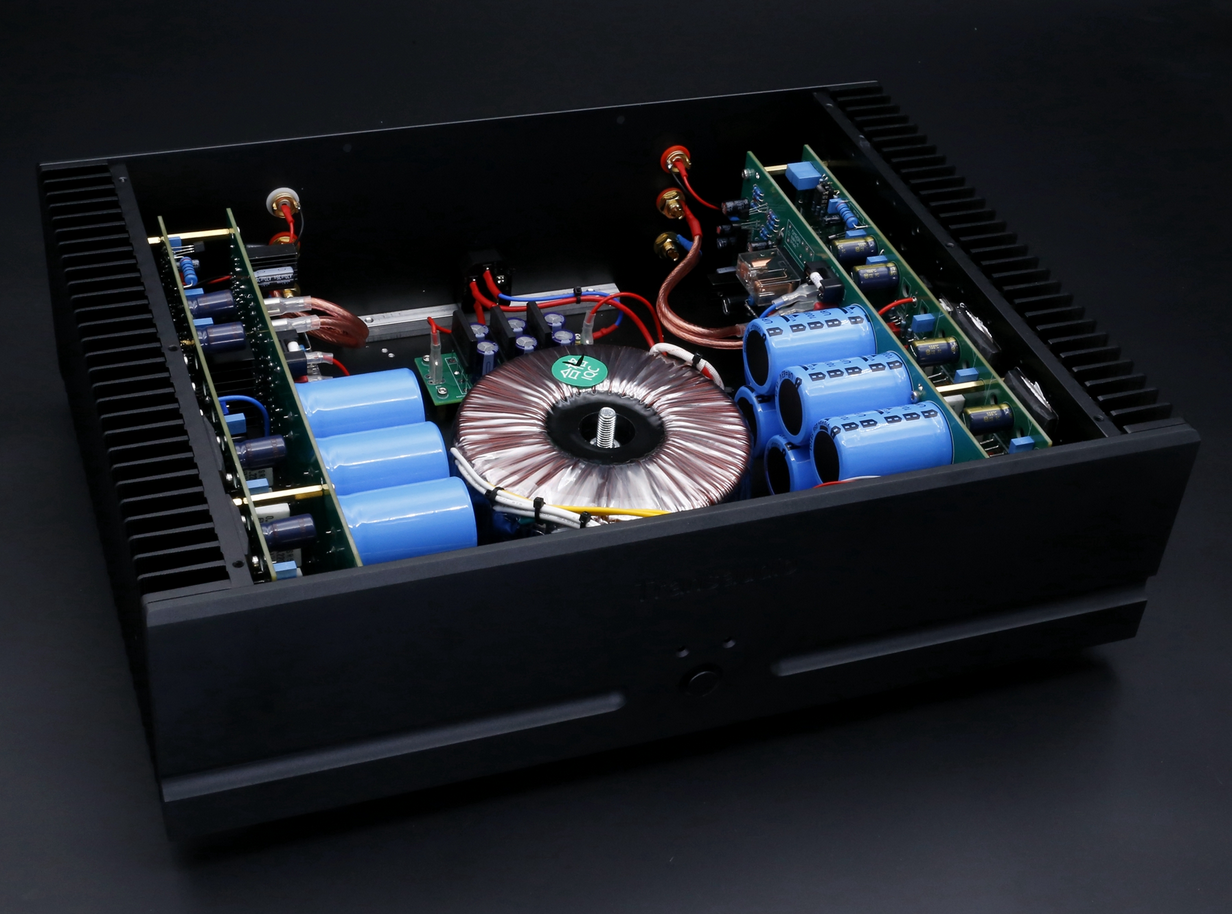

500W Nippon steel transformer
Perfect horn protection
4 pairs of precision matching SANKEN C2922/A1216, 2 pairs per channel
Twelve 10000uF rubies made in Japan were electrolyzed capacitance
The left and right channels are completely independent, reducing crosstalk interference

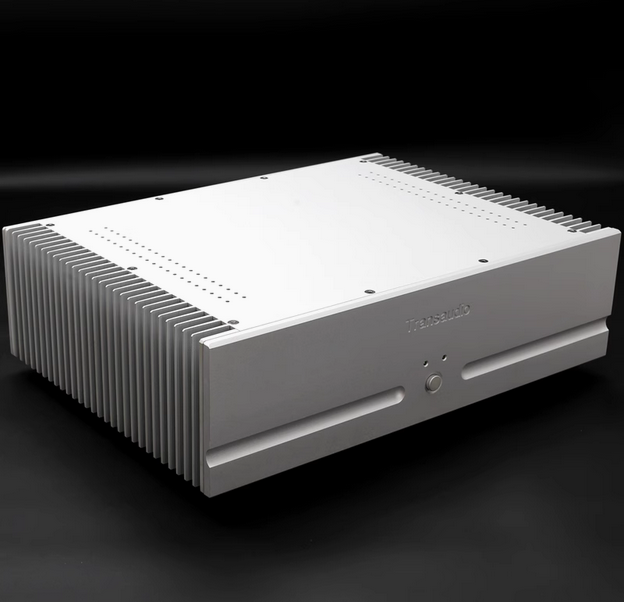

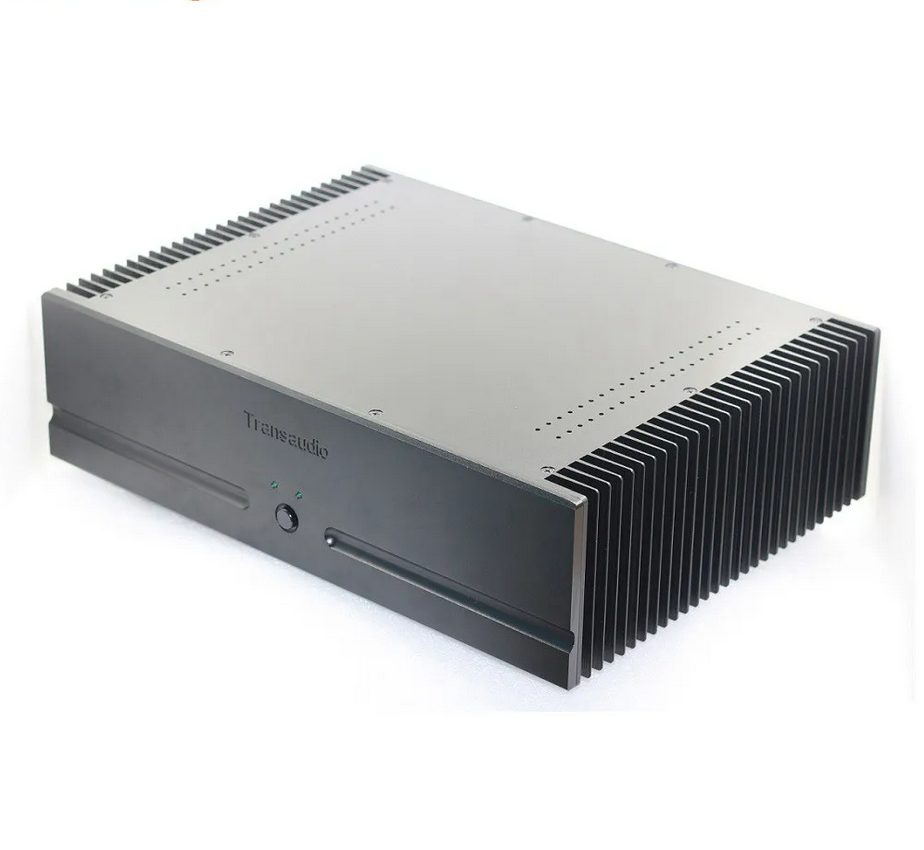

CNC machining standard size all aluminum chassis
The amplifier and the finished board are welded with American ALPHA solder wire with stable welding quality, low internal resistance, bright and strong oxidation resistance
Class A large static current design is adopted

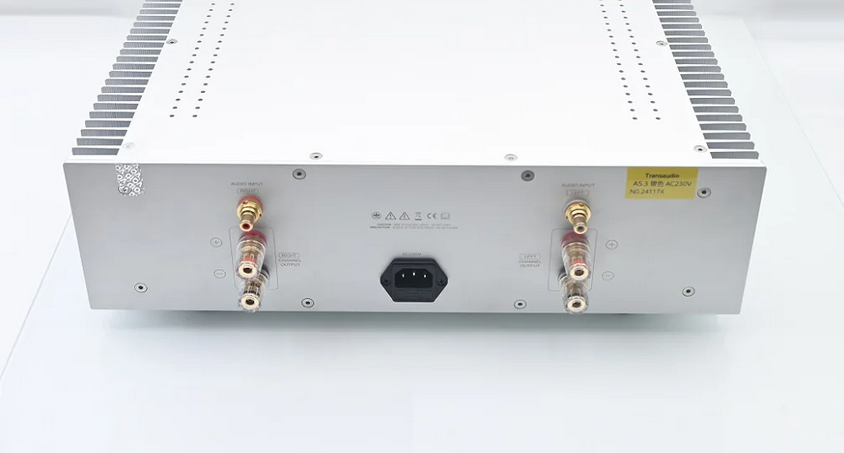

Better rhyming terminal and input RCA base
Parameters:（With 8ohm 800W load test data ）
Output Valid value: 22.7Vrms
Channel gain: 28.6dB 27.0 times
Residual noise: 22.3uVrms
SNR: 120.1dB
Dynamic range: 120.1dB
THD distortion: 0.00032%
THD+N distortion: 0.0010%
Intermodulation distortion: 0.005%
Input sensitivity: 0.85Vrms
Frequency response bandwidth: ±0.058dB
Input impedance: 33K ohms
Output power: 50W/ 8Ohm 100W/ 4Ohm
Machine size: 430*330*130mm
Weight: 15kg
Static current: 400mA per transistor
Static power consumption: 133W
List:
A5.3 amplifier x 1
