Product parameters
Model: DAC4
Product attributes: Bluetooth version (pre-stage playback decoder)
Volume control: button, infrared remote control

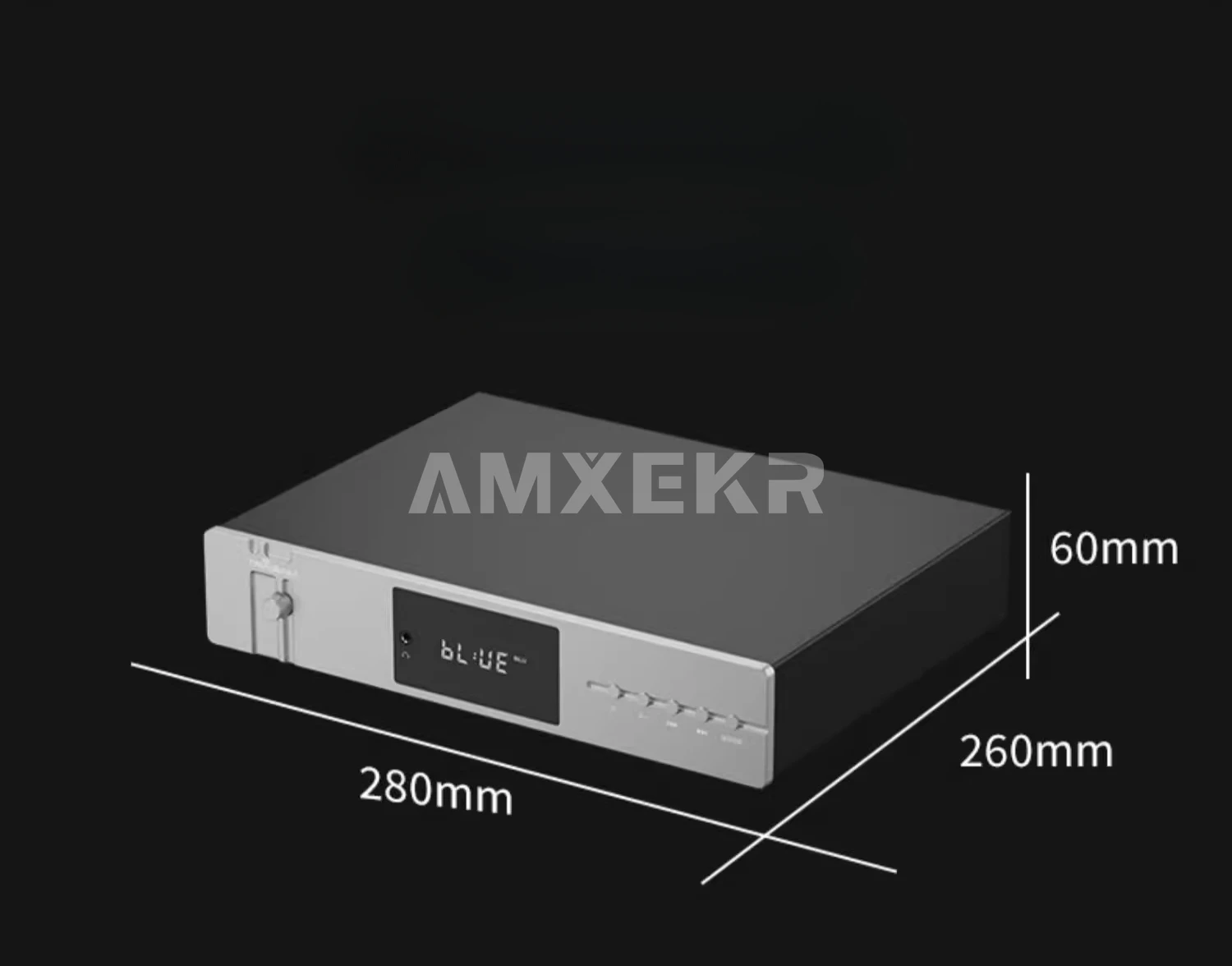

Dimensions: 280*60*210mm

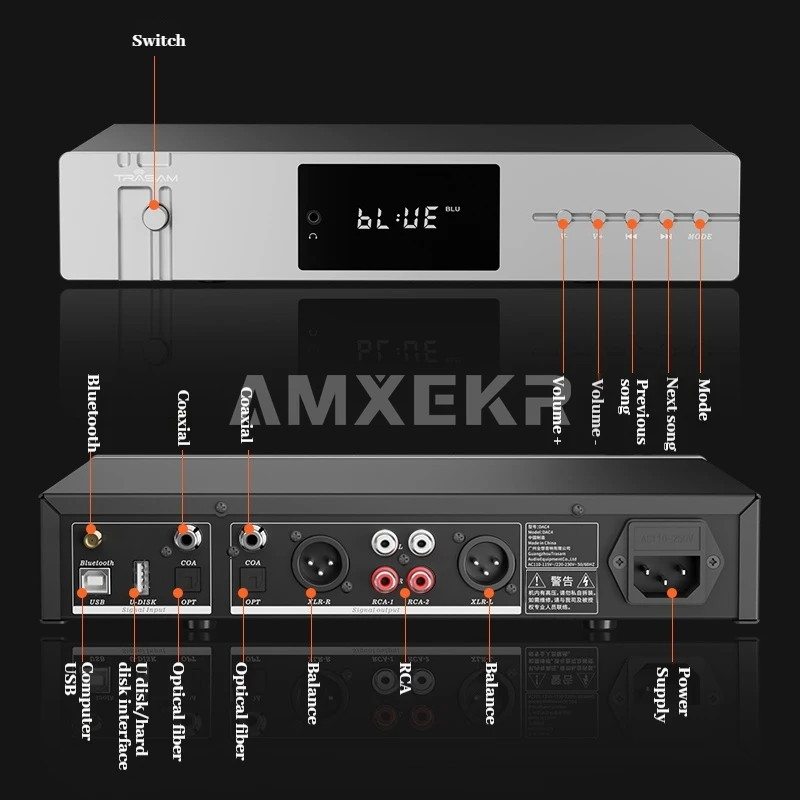

Output interface: RCA output, balanced output, optical fiber coaxial output, 3.5 headphone jack output
DA decoding chip: Xmos+ESS 9039Q2M*2+ATS2825
D/A conversion: ESS 9039Q2M*2 (32bit/384KHz)
Optical fiber coaxial sampling rate: 192KHz/32bit
Op amp: 3 op amp chips
Output impedance: 16Ω-300Ω
Sampling rate: up to 384KHz/32bit
Distortion: <0.001%
Output level: RCA output, 3.5 headphone jack output 3V, balanced output 4V
Bluetooth version: 5.0

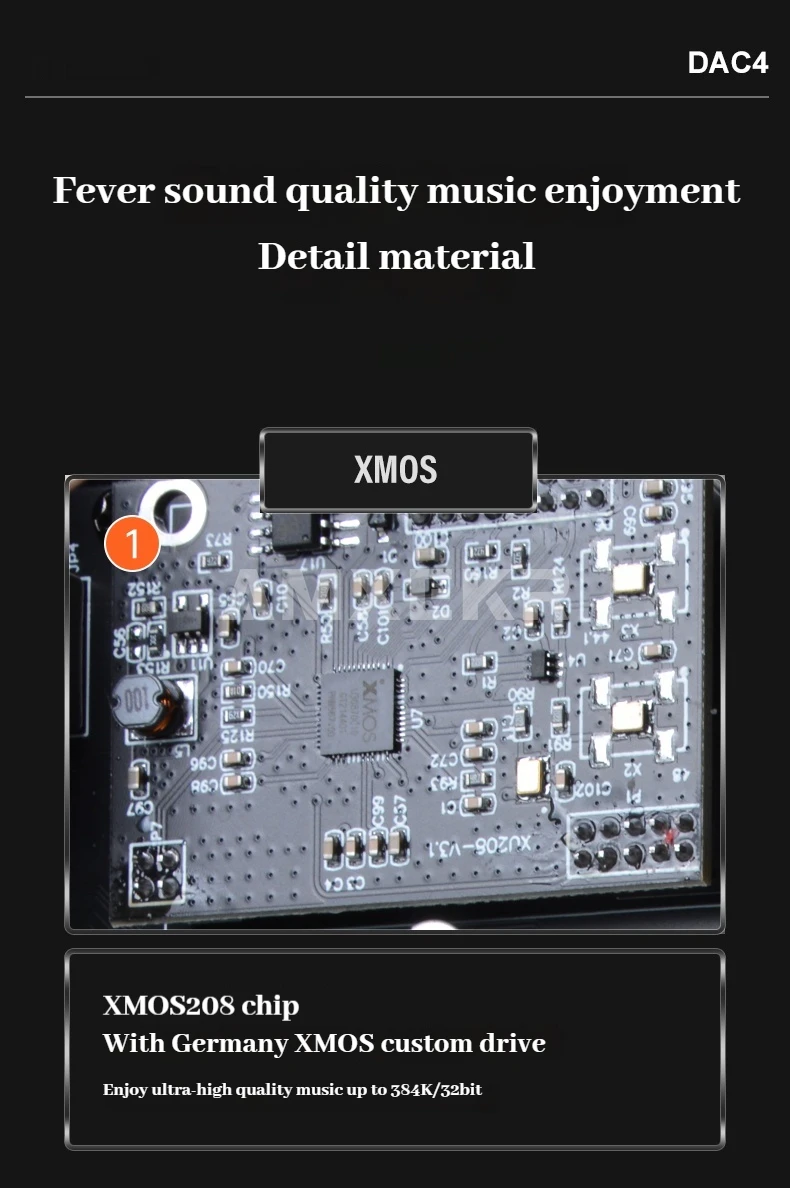

USB chip: Xmos208
USB sound card: support DSD512

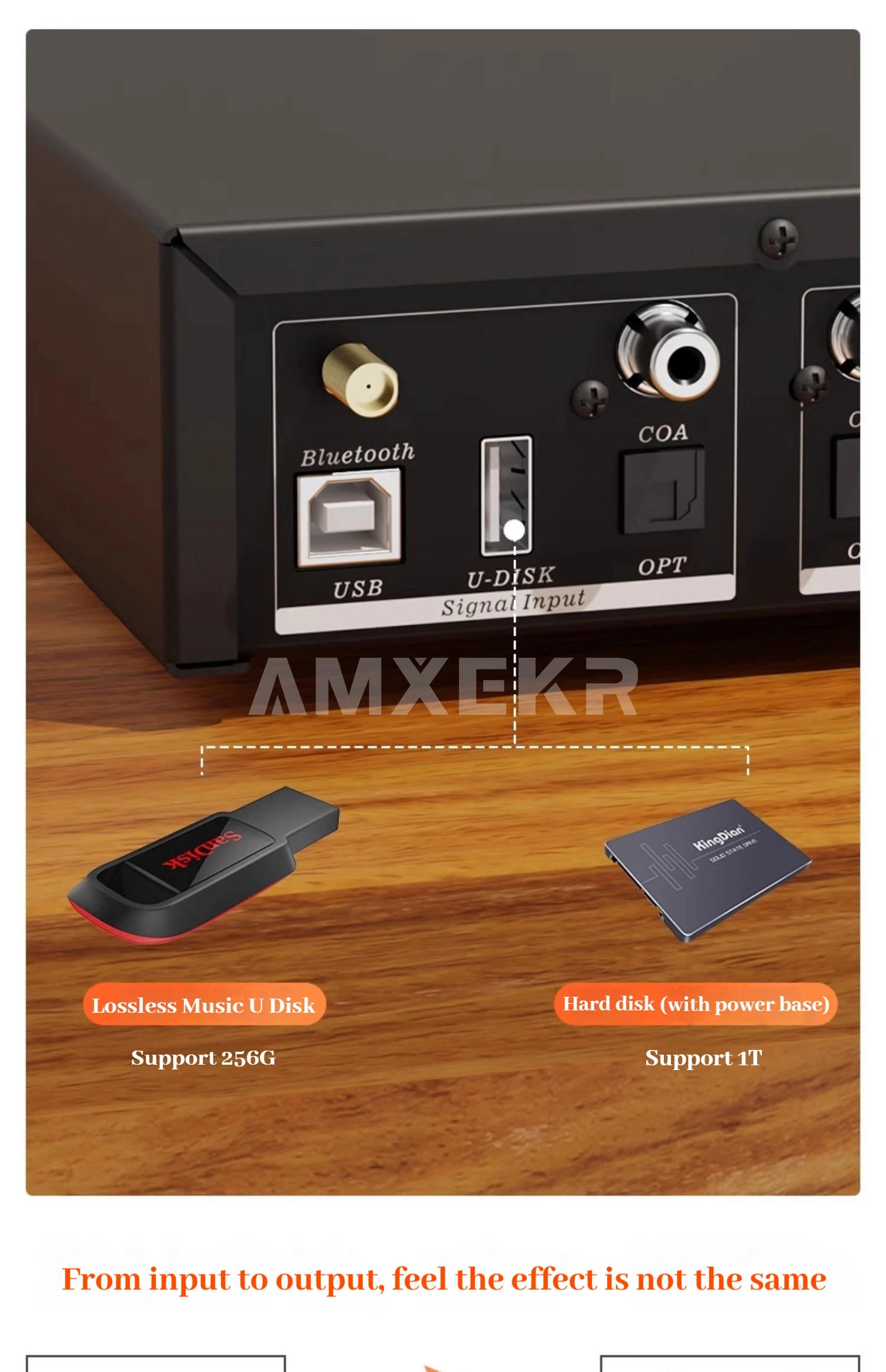

U disk decoding: 24B/48K
