Product details:

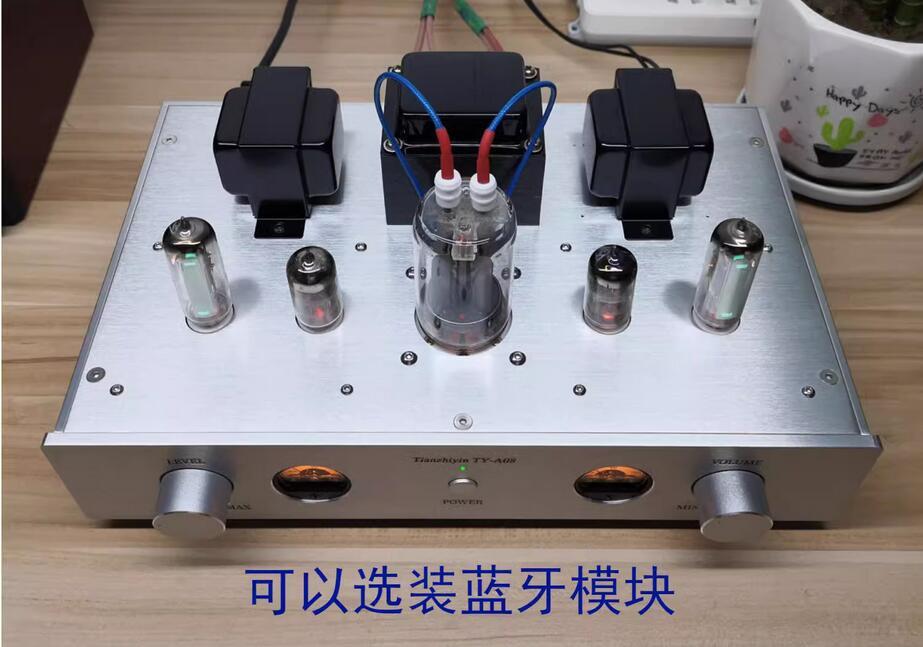

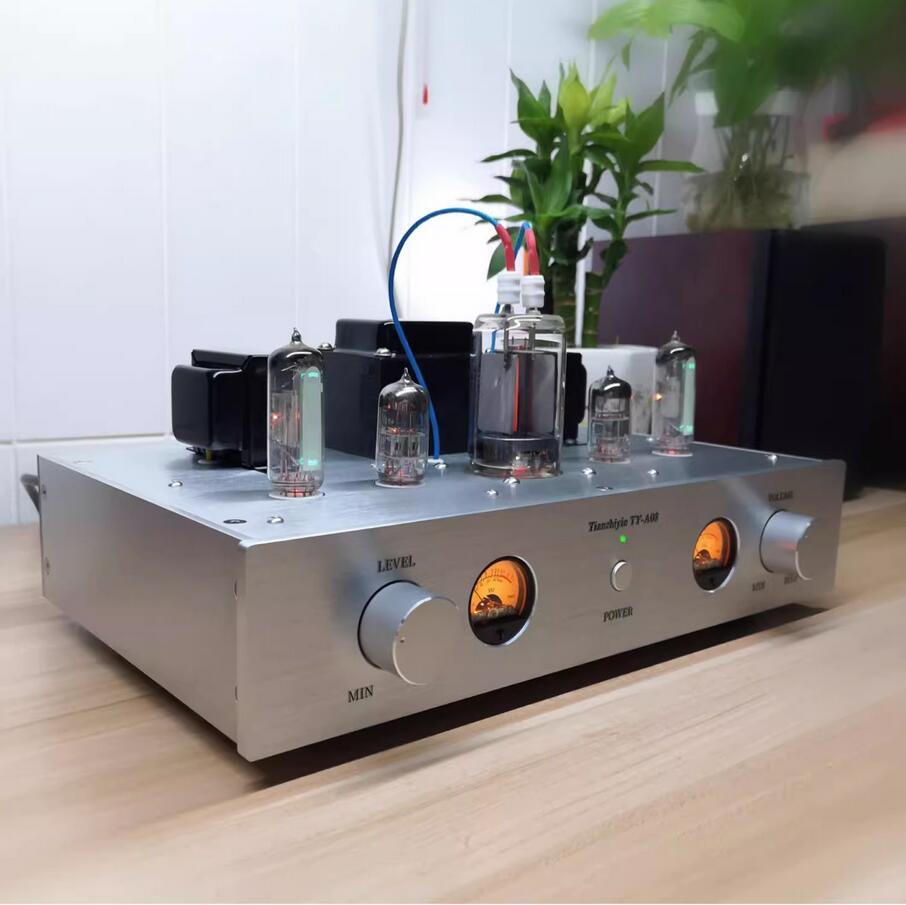

Using one 6N2 and two 6P1/6P15 to form a dual channel Class A power amplifier, the 6E2 electronic tube serves as a volume level output indicator. The very beautiful and crystal green light keeps bouncing and flashing according to the rhythm of the music, providing a pleasant visual experience while enjoying the music.
The 6N2+FU19 Class A power amplifier is high-frequency balanced, with clear layers. The low-frequency power is full, the mid frequency is warm and mellow, and the sound is stretchy and bright.
Selected design PCB, installation is also very meticulous, and the electronic tube filament is connected with AC twisted pair, with perfect bottom noise control.
Adopting multi-level capacitor filtering, the preamp part is designed with a voltage stabilizing circuit, which is noise free and has stable performance.

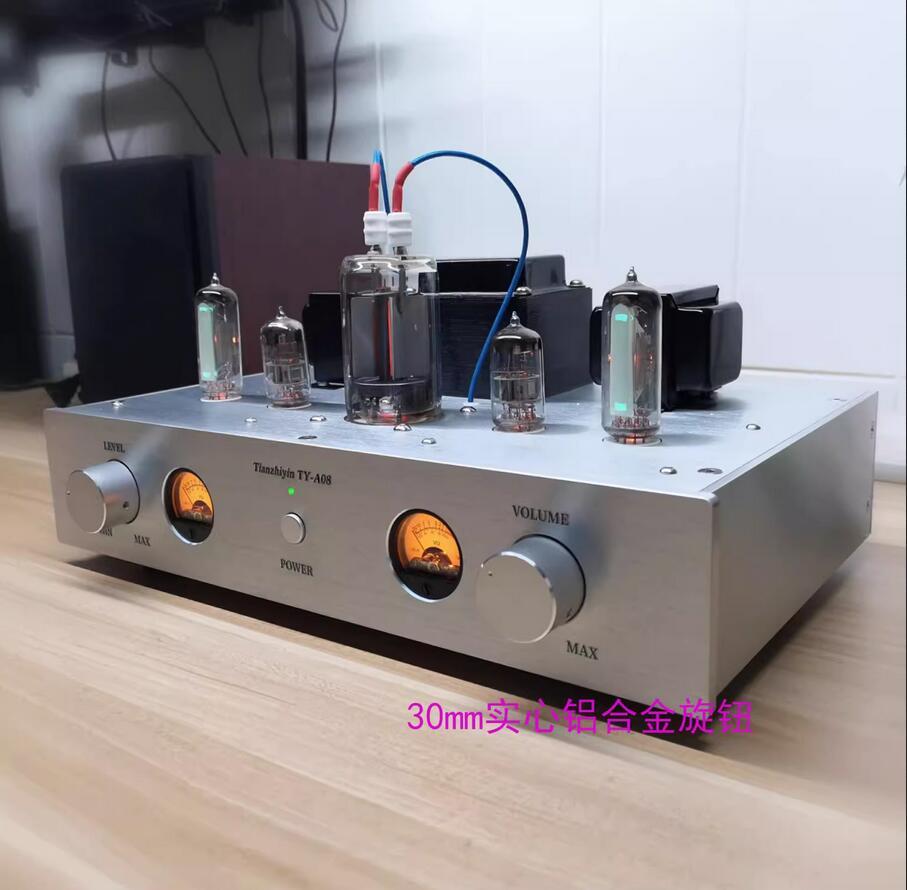

The 16 type B100K dual high-quality volume potentiometer ensures clear positioning and left right balance.

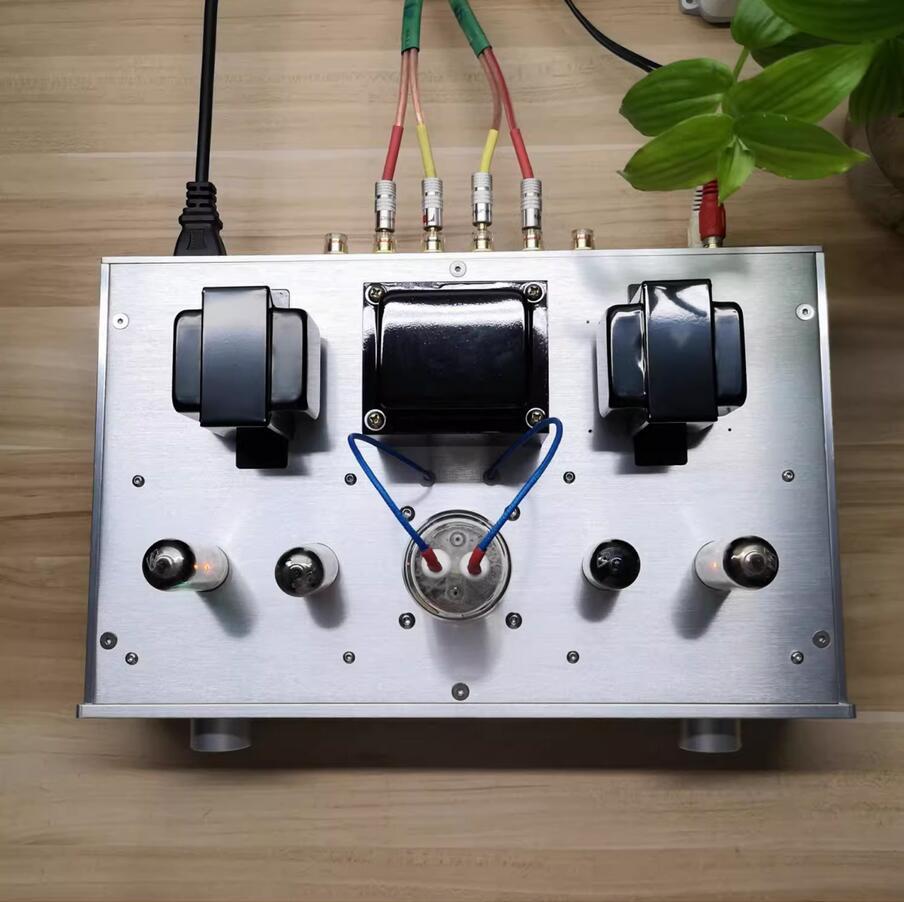

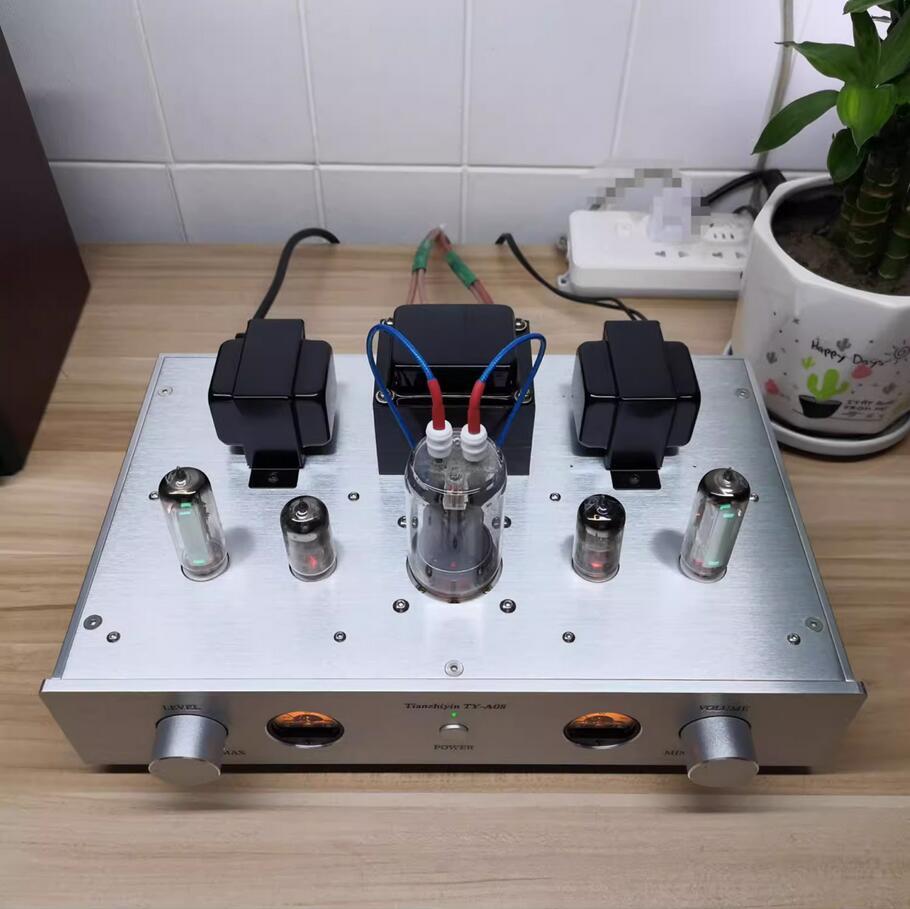

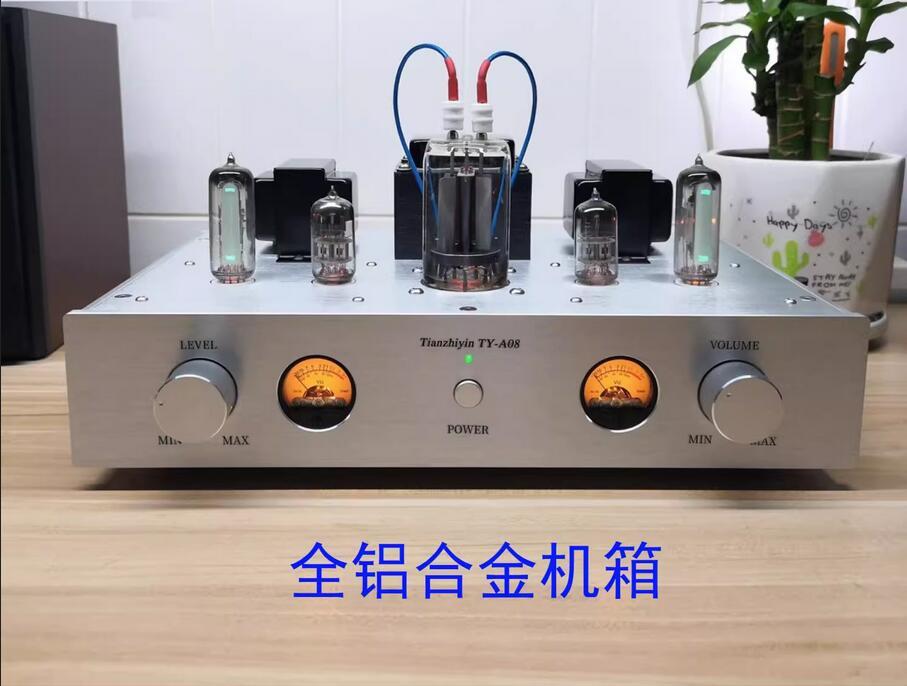

Customized all aluminum alloy split chassis.

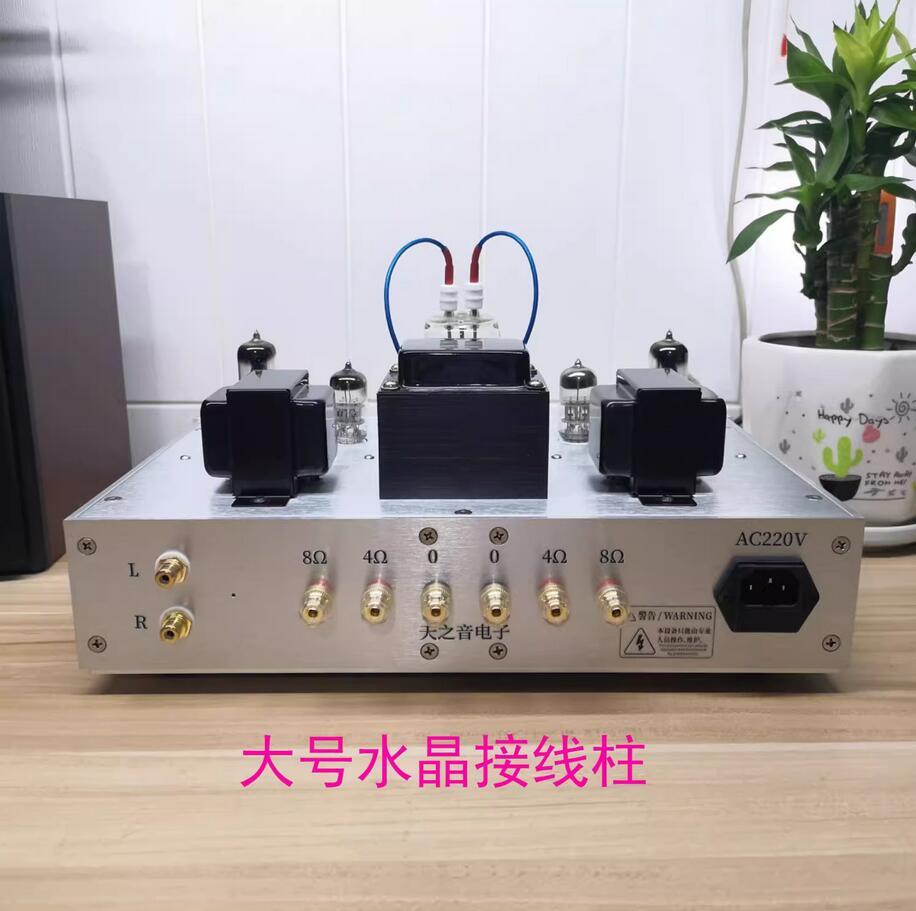

Pure copper terminal+Teflon signal wire.
Parameters:
Size: 345 * 250 * 180mm (including protruding parts)
Output power: 4.8W+4.8W
Output impedance: 4 ohms/8 ohms (one set each)
Frequency response: 20Hz-20KHz
Input impedance: 100K ohms
Input mode: RCA
Input voltage: AC110V/AC220V
Signal to noise ratio: 90db
Input sensitivity: 500mV-2
Weight: 6kg
Electronic tube: 6N2 FU19/FU29 6E2
Note that the audio system should be connected first during testing, as no-load testing can easily burn out the output transformer or electronic tube.
