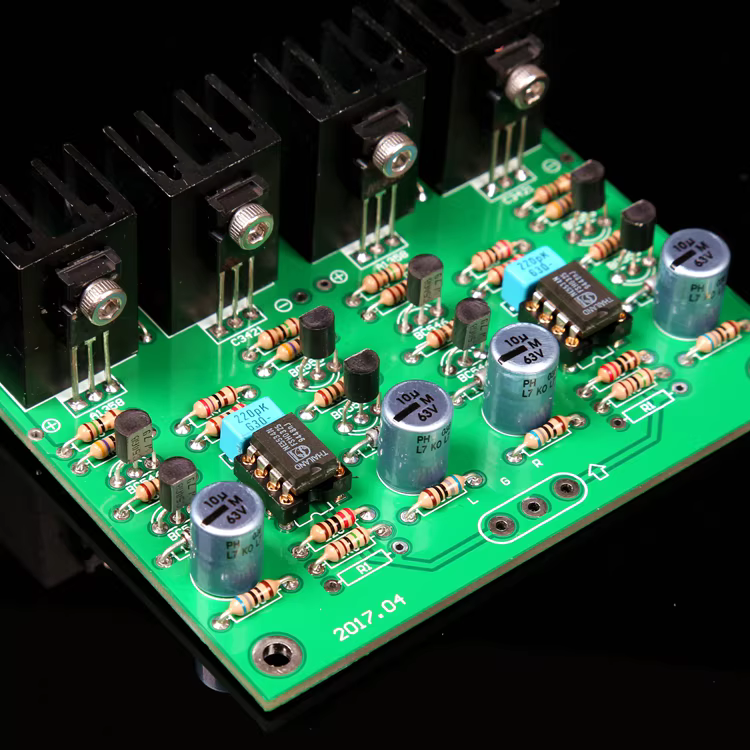

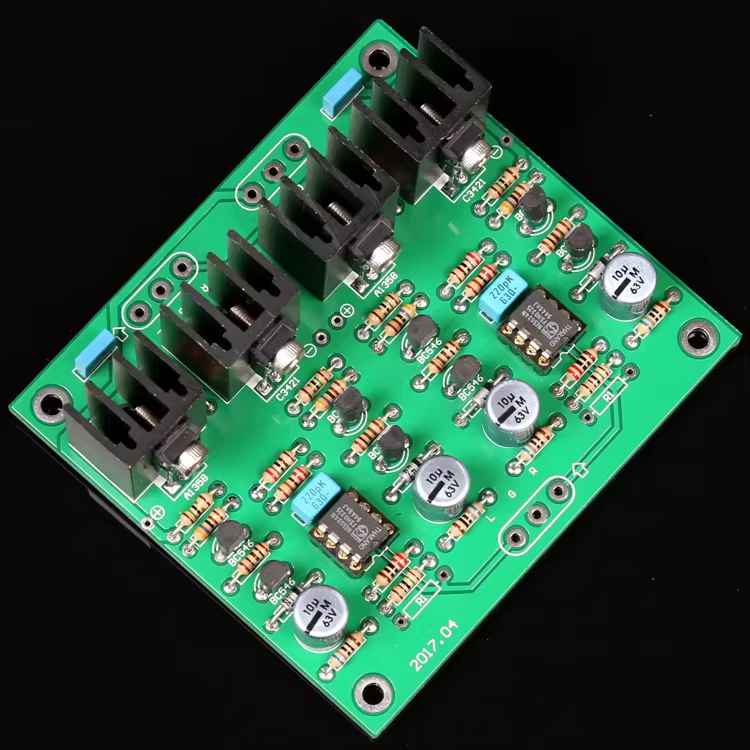

Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany

SKU:
Limited Offer!
5.0 (1 Reviews)
5 Sold
$19.00 $17.48
-8%
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (8)
  • Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany
  • Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany
  • Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany
  • Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany
  • Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany
  • Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany
  • Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany
  • Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany
1/1
  • Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany
  • Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany
  • Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany
  • Ultra low distortion ultra-low noise Class A headphone amplifier board Refer to the SAC-K1000 circuit in Germany
  • Description
Features:

● Adopting the German SAC-K1000 pure Class A headphone amplifier circuit
● The circuit architecture and static current at all levels are completely consistent with the original machine
● The transistors and triodes used are completely identical to the original machine
● Class A current of 30mA at the final stage
● Ultra low distortion, ultra-low noise, ultra-high signal-to-noise ratio, and extremely flat bandwidth.
● Dual channel module design，Full DC circuit
● TI NE5534 operational amplifier.
● Philips BC transistor.KOA resistor, WIMA high-precision capacitor, ELNA power decoupling capacitor

Parameters:

● Size: 79 × 87mm.
● Working power supply: recommended ± 17.5V.
● Potentiometer: 10kA
● Undistorted output: 12.31V
● Magnification factor: 10.85x 20.67dB
● Residual noise: 4.589uV
● Low noise signal-to-noise ratio: 128.47dB
● High signal-to-noise ratio dynamic range: 128.66dB
● THD distortion: 0.000164%
● Low distortion THD+N distortion: 0.000306%
● Frequency response bandwidth: ± 0.039dB

List:

1 x SAC-K1000 headphone amplifier board
