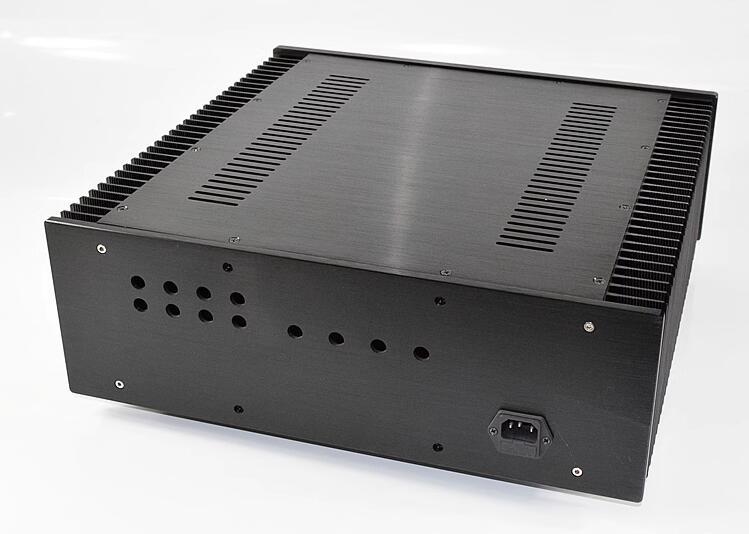

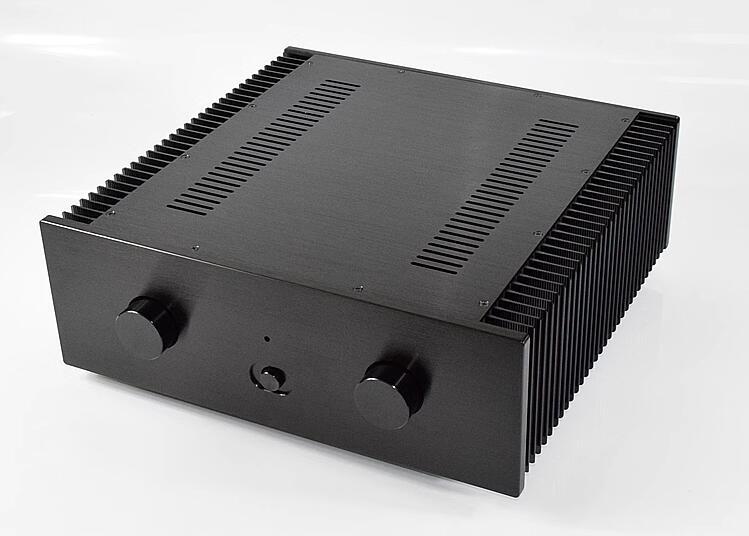

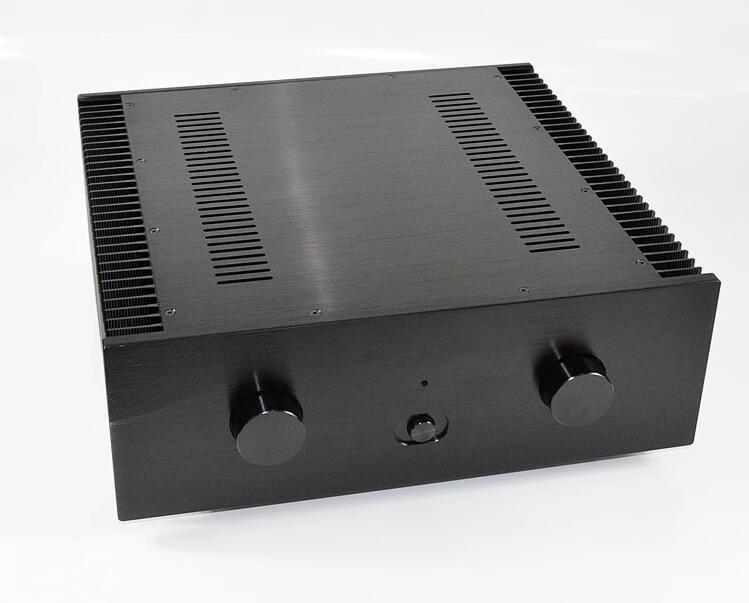

WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink

SKU:
WA122 hifi diy Class A Aluminum Amplifier Chassis
Flash Sale
0.0 (0 Reviews)
4 Sold
$198.45 $182.58
-8%
GET $2.00 OFF ON ORDERS OVER $40.00
Get it
L18J8W12
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
1/1
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • WA122 Power Amplifier Chassis All-Aluminum Large Class A Case hifi diy box with heatsink
  • Description

Product Details:


External dimensions: Width 435MM * Height 150MM * Depth 420MM

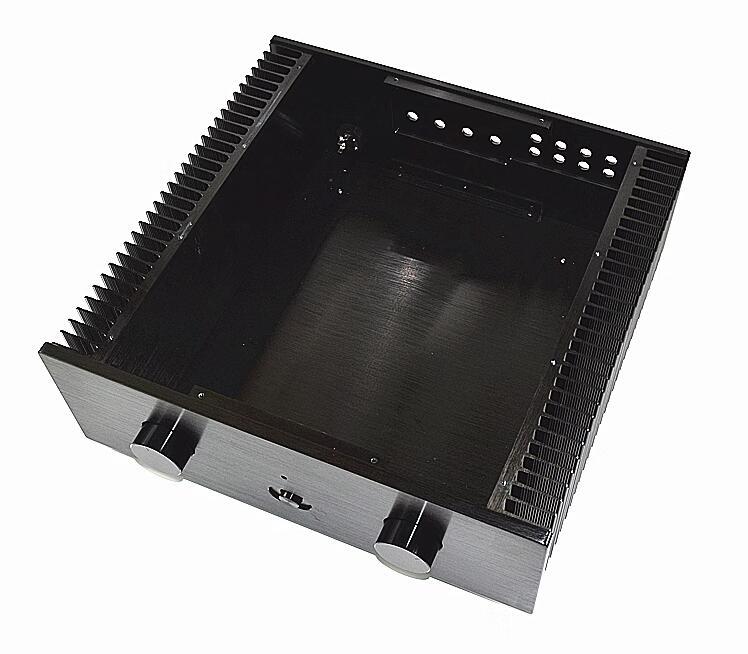

Internal dimensions: Width 330MM * Height 140MM * Depth 400MM

Radiator Substrate thickness is about 10MM, Net weight about 2.8KG

Front panel material thickness: 12MM

Back panel material thickness: 8MM

Upper cover material thickness: 3MM

Lower cover material thickness: 4MM

Weight:12kg

Package list:


1 × Aluminum case

1 × Power outlet

2 × Knob

1 × Key

1 set × Rubber machine feet
