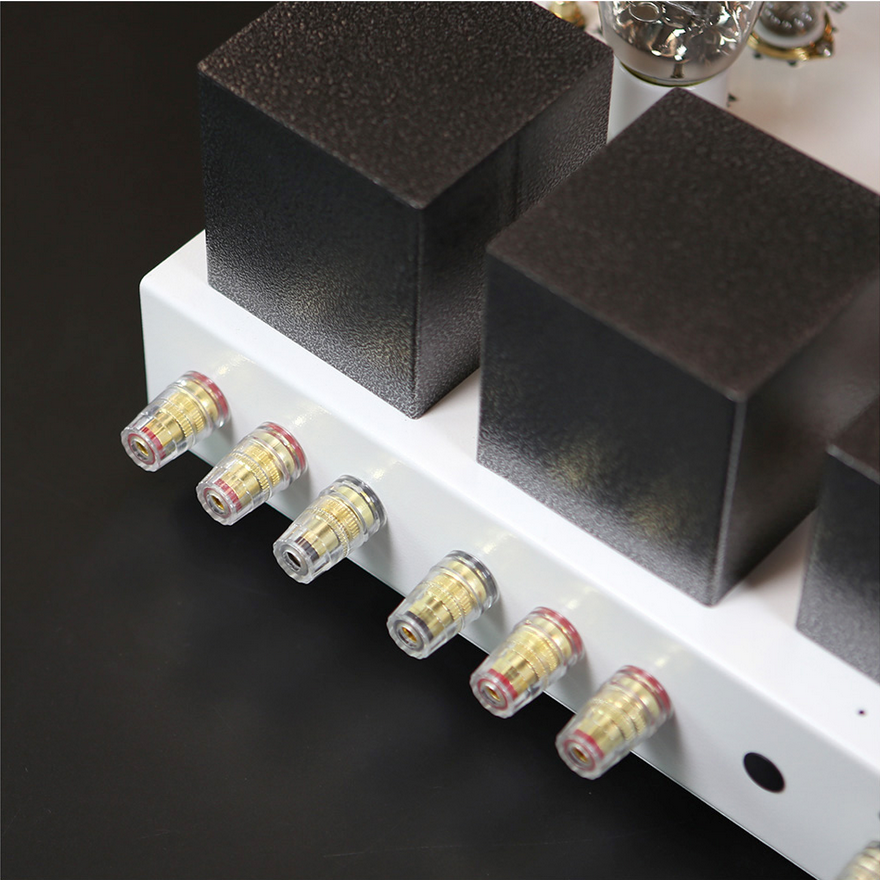

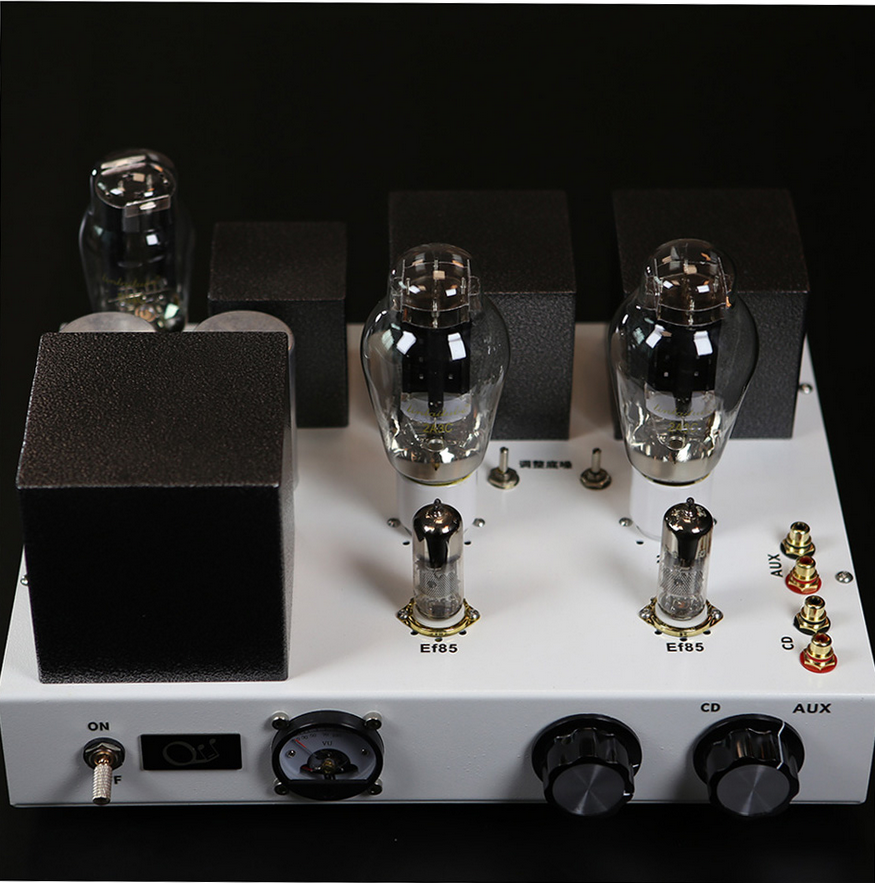

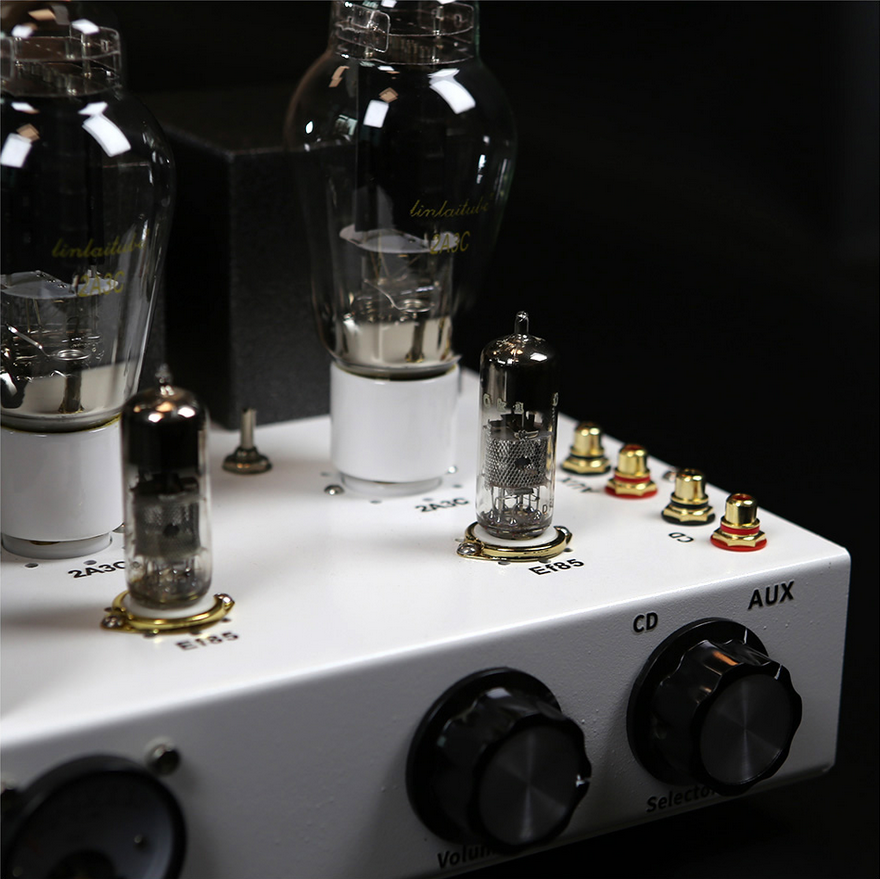

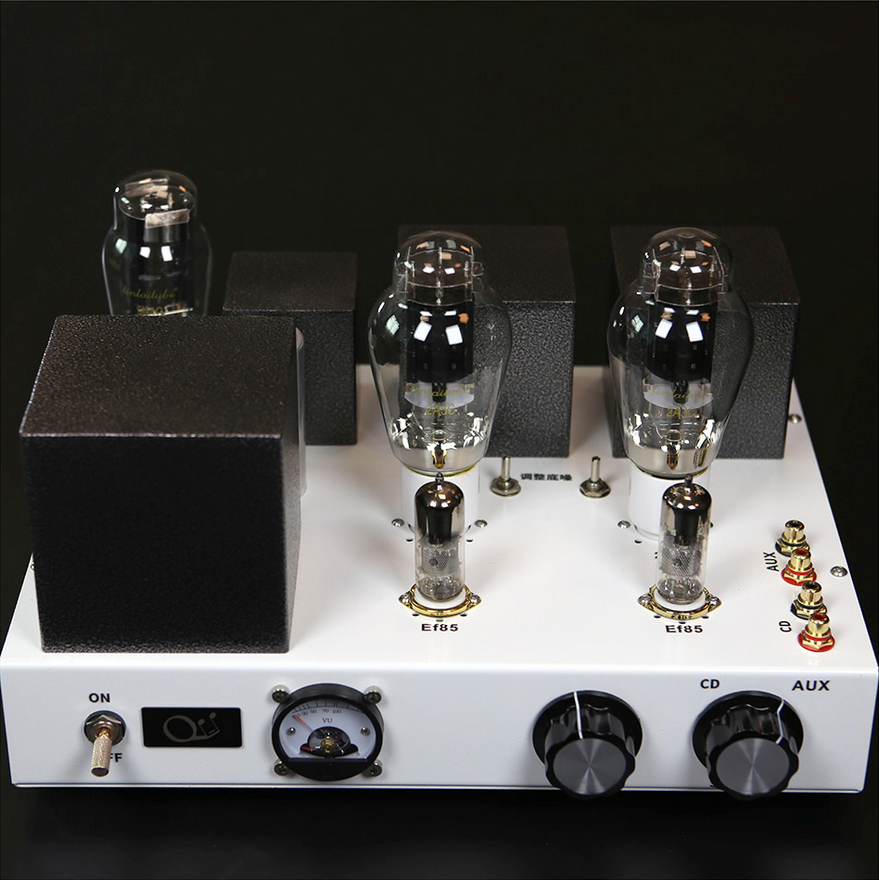

Western electric 2A3C 5WX2 HIFI DIY stereo Single ended tube power amplifier with current meter

Name: Western electric 2A3C 5WX2 HIFI DIY stereo Single ended tube power amplifier with current meter
Brand: BRZ-hifi-audio
SKU: 2A3C
Price: 827.08 USD
Availability: InStock

2A3C 5WX2 HIFI DIY stereo Single ended tube power amplifier

Sale

0.0 (0 Reviews)

4 Sold

~~$899.00~~ $827.08

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Product details:

2A3 vacuum tube is a direct heating triode developed by RCA in the 1930s in the United States Low internal resistance, good linearity, and wide frequency response It is a very excellent vacuum tube.

Communication filament lighting, lively and dynamic sound There is only a little communication noise.

Philips EF85 audio dedicated five pole tube drives 2A3C, with an output power of up to 5W × 2.Due to the strong overload capability of electronic tubes, the actual undistorted output power is comparable to that of 30w+30w transistor amplifiers.The electronic tubes all work in Class A amplification state, so the distortion is small, the sound is sweet, soft, and the listening endurance is extremely high!

Adopting high-precision imported carbon film resistors and Japanese made imported electrolytic capacitors.

C (capacitor) L (EI57X30 6H 0.2A choke) R (resistor) C multi-stage filtering, high signal-to-noise ratio.

200W full power low-temperature power transformer.

Tokyo Electronics TE MKP thin film copper leg capacitor from Japan, with a rich and mellow sound, and a slender and transparent high-frequency sound.

Handmade shed construction, with a reasonable and neat layout, stable and reliable. Designed with a one point grounding principle, the noise floor is extremely low.

The 1.2mm thick iron chassis has good shielding effect durable.

Parameter :
Working mode: Stereo single ended Class A
Output power:>2 * 5W (RMS)
Frequency response (-2dB): 20HZ-38KHZ
Sensitivity: ≤ 0.75V
Distortion: ≤ 1% at 1W
Signal to noise ratio: ≥ 96DB
Separation degree: 65DB
Static power consumption: approximately 90W
Dimensions: Width 350MM, Depth 300MM (including knob and terminal), Height 220MM (including tube height)
Weight: 12 kilograms

Electronic tube model:
1 × 5U4G (rectifier) 5U4G can be directly replaced with 5Z3P, 5AR4, 5Z4P, 274B
2 × Philips EF85 (preamp push tube)
2 × 2A3C (power amplifier tube)

List:

Finished 2A3C tube amplifier x 1
