Product Details:

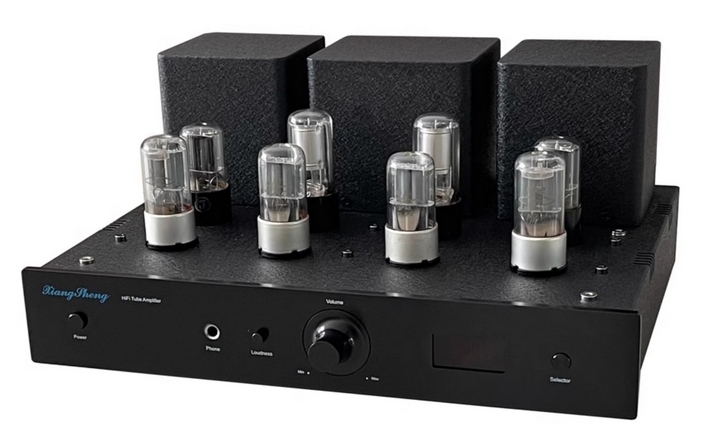

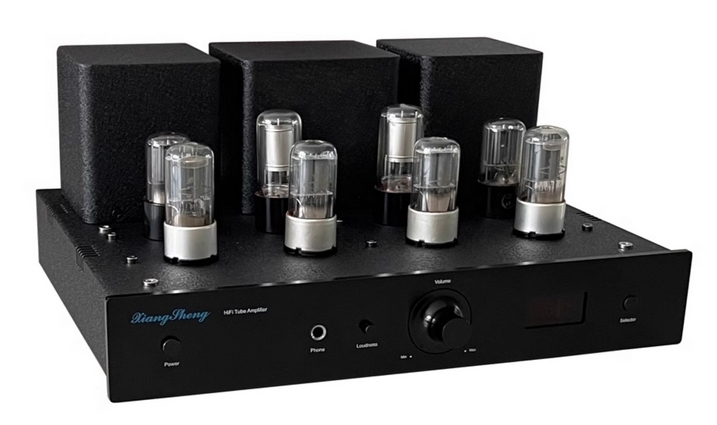

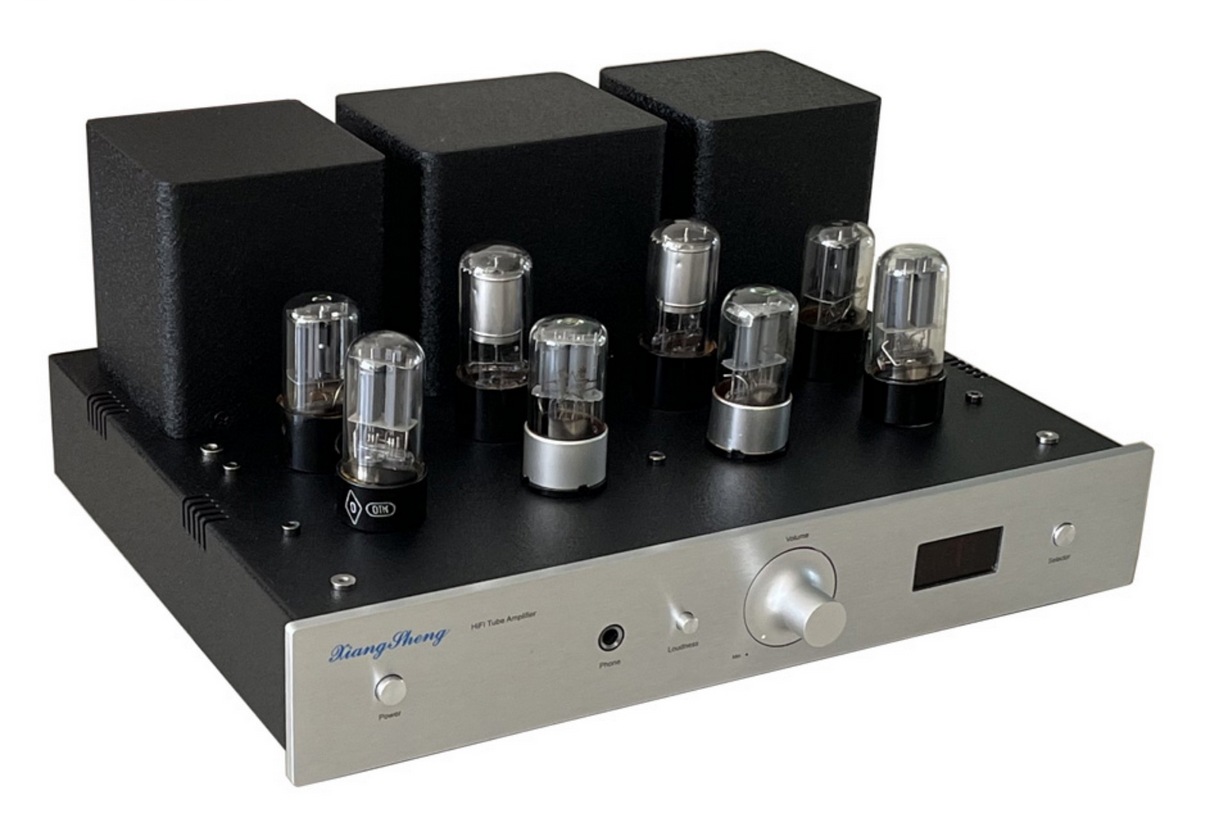

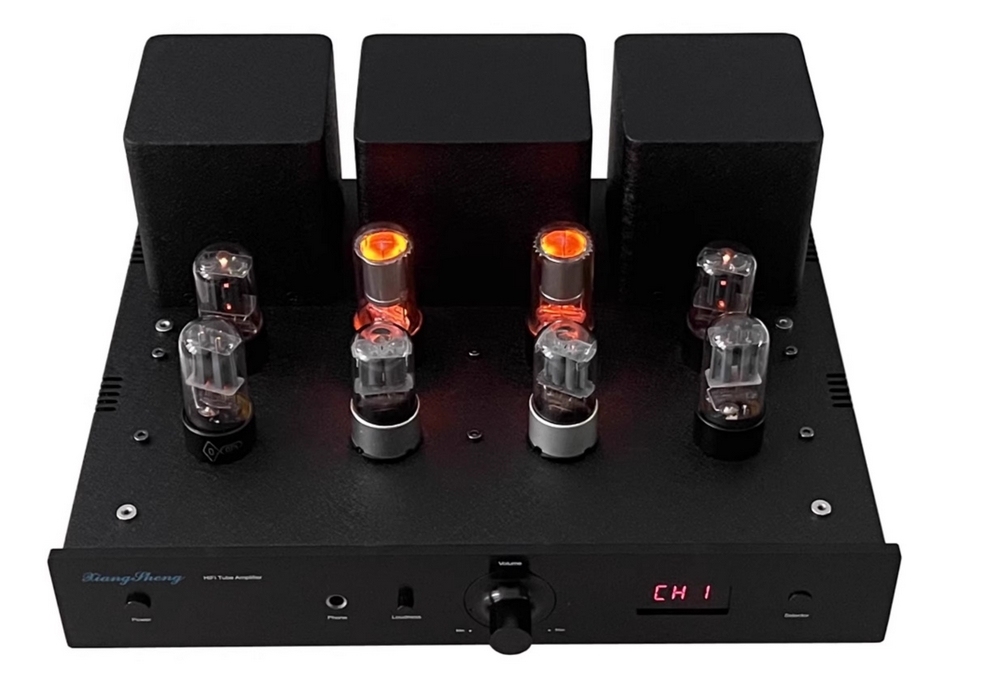

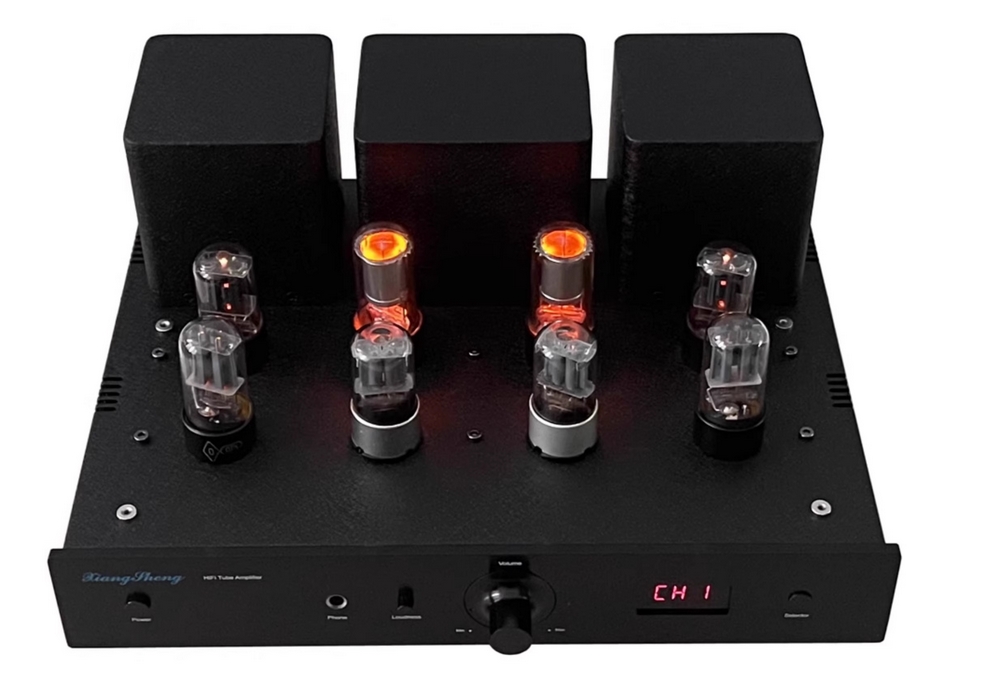

Exposed remote control electronic tube preamplifier.

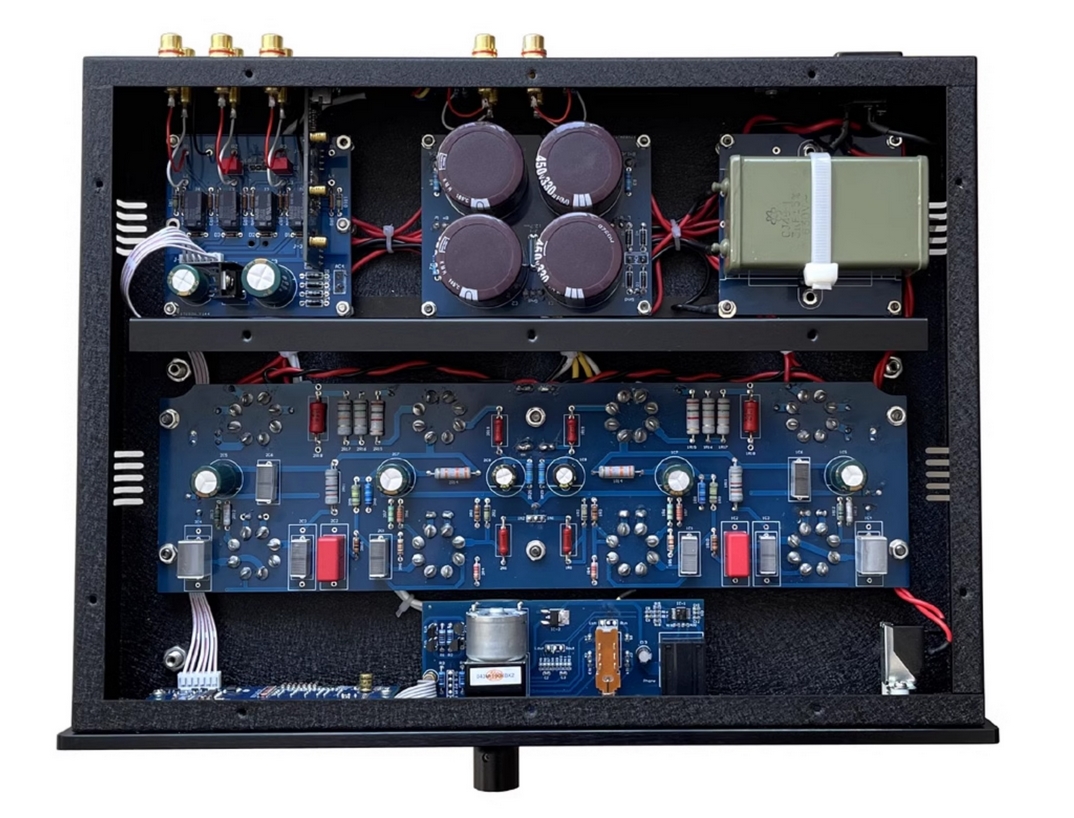

1:) Adopting dual tube rectification, dual tube stabilization, dual inductor filtering, and 4 capacitor filters.
2:) Japanese ALPS original motor volume potentiometer.
3:) 1mm thin steel is used to make the chassis and transformer cover Spray painting treatment, good shielding effect.
4:) Imported iron core oxygen free copper wound toroidal power transformer.

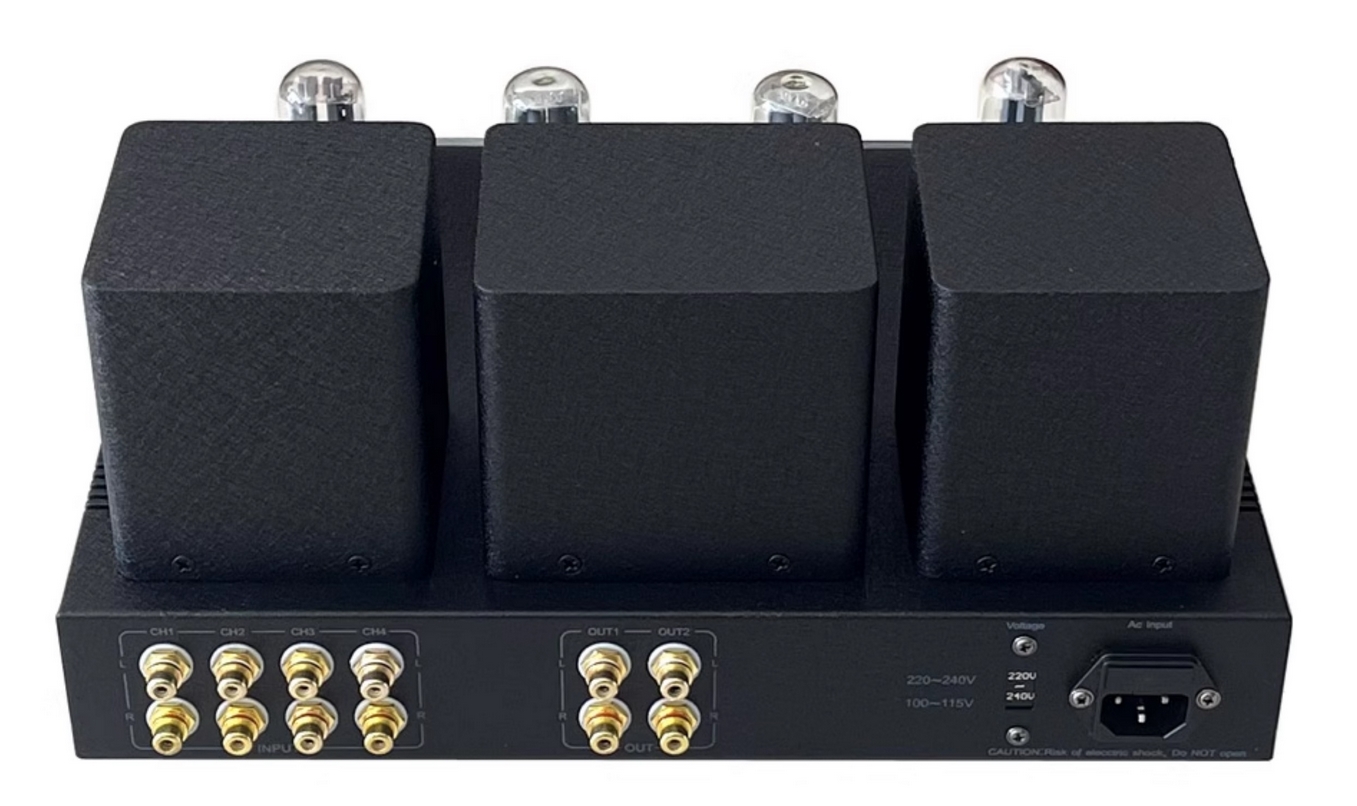

5:)The 4-channel input adopts silver contact relay switching, with low resistance and longer lifespan.
6:)Pure copper gold-plated RCA.
7:)Solid aluminum alloy knob with a good hand feel.
8:)It has a memory function to remember the sound channel status when it was last turned off
Specifications:
Input voltage: AC115V or AC230V (optional)
Input impedance: 100K Ω
Output impedance: 600 Ω
Distortion: ≤ 0.01%
Frequency response: 20Hz-30KHz
Signal to noise ratio: 90db
Size: W360 * H170 * D265mm
Weight: About 10kg
Package List:
1 × Finished 6N8P Preamplifier

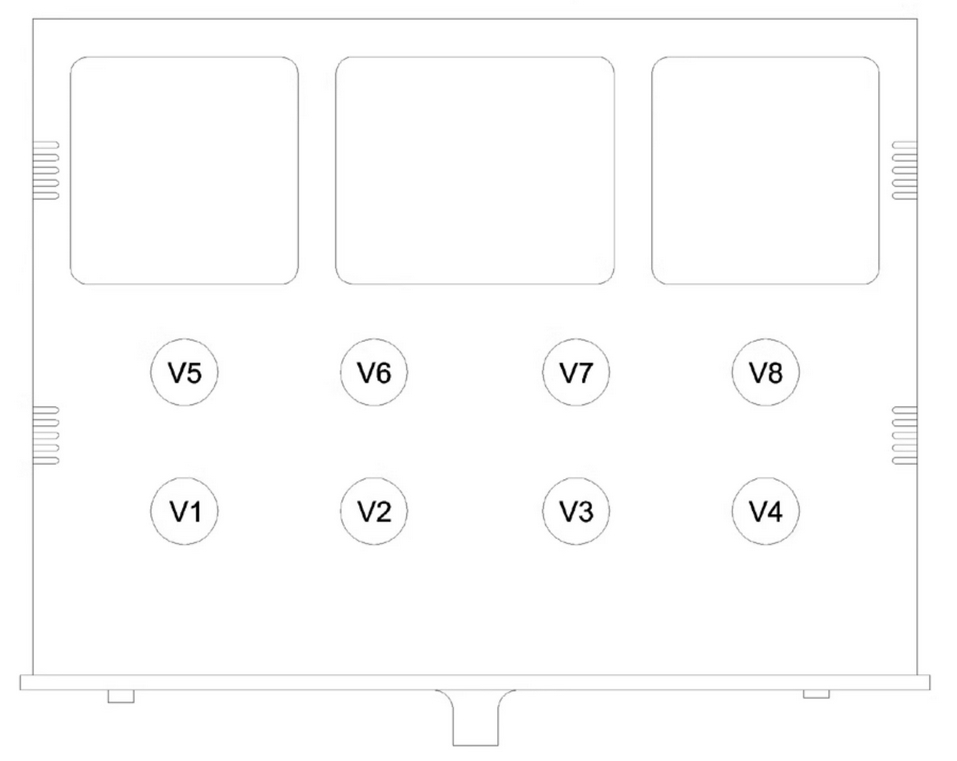

Electronic tube number:
V5 V8:6Z5P
V6 V7:WY-2P
V1 V4:6N8P(Can be replaced with 6H8C/6SN7)
V2 V3:6N9P(Can be replaced with 6H9C/6SL7)
