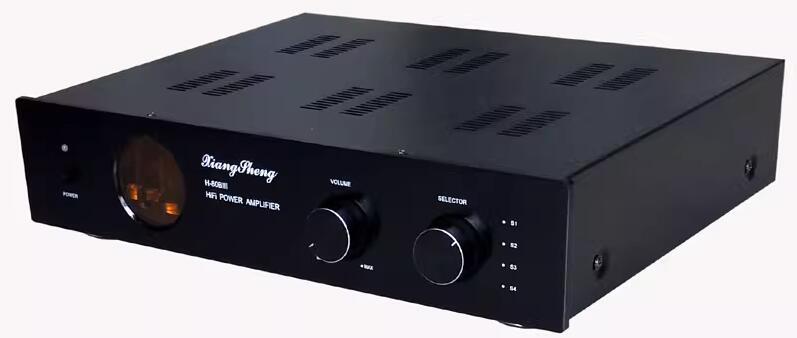

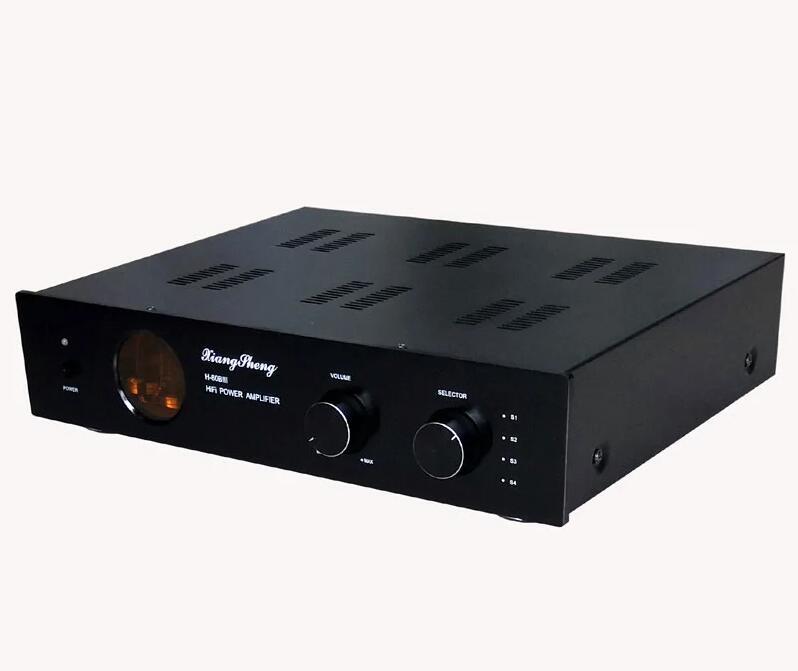

Xiangsheng H-80B III Tube Mosfet Hybrid Amplifier HIFI 12AT7 12AU7 preamp tube H80B AMP

Preamp parts use the famous British Matisse circuit as amplification.

The satble power supply for filament, reducing the noise to minimum.

Using the tube rectifier, the sound is more soft.

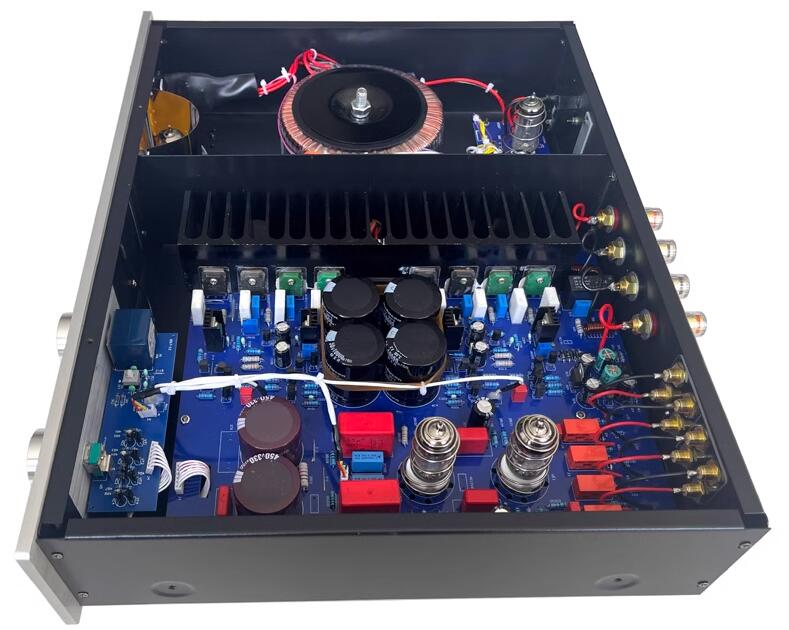

Transformer and rectifier parts are away from amplification and has a separator plate for isolation.

Using 2SA1145 and 2SC2705 chip for post voltage amplification with in total 10 paris,  and drive parts use 2 Pairs of 2SA940 and ASC2703, power amplification use 4 pairs of the Japanese orginal Hitachi mosfet

Group signal input switching,

The independent of pre amp and power ampefore, this inside is clean and beautiful.

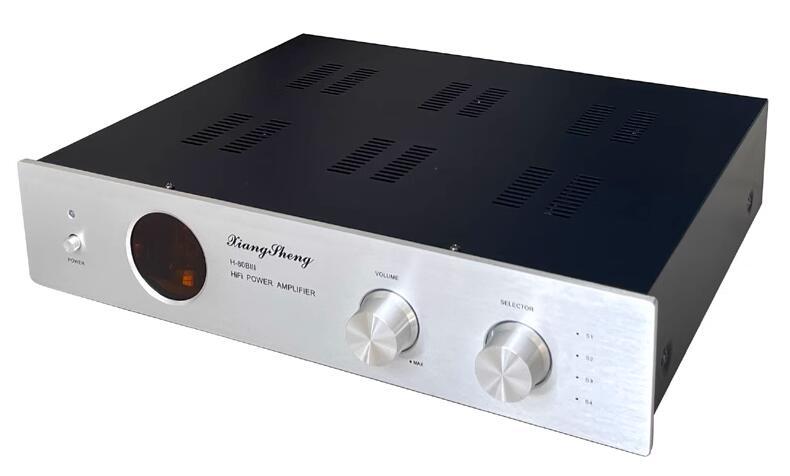

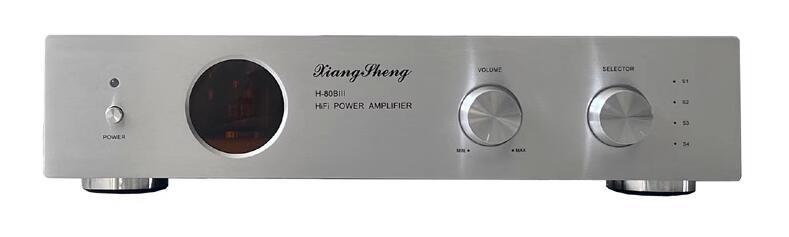

Using 7mm thick's aluminum front panel black and silver available.

Advanced matte paint technology sheet steel cabinet, high-gloss metal knobs, cellular playing machine feet.

Power flashing red light, warm-up is completed turn into blue light is on.

The output of large-current protection relay delay horn with mute switch, the midpoint potential drift, overcurrent protection, to avoid damage to your expensive speakers.

Enter gold-plated lotus seat, with the output of high-grade gold-plated binding posts oxidation amber.

Power line with three plug socket for easy replacement of high-grade power cord.

The Volume part uses 27 type blue shell sealed potentiometers.

Coupling capacitors are used in Germany or the German ERO WIMA polypropylene capacitors and other imports.

Using 300W toroidal transformer power supply, adequate power, low radiation.

Using the Imported fast rectifier bridge, four piece imported 10000u large pond filter.

with a large heat sink.
