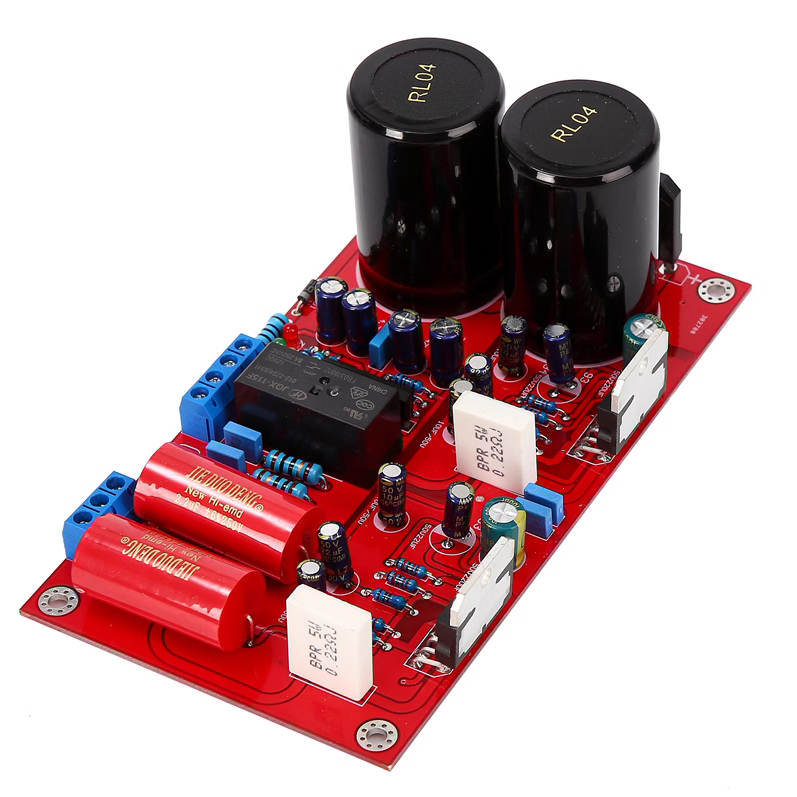

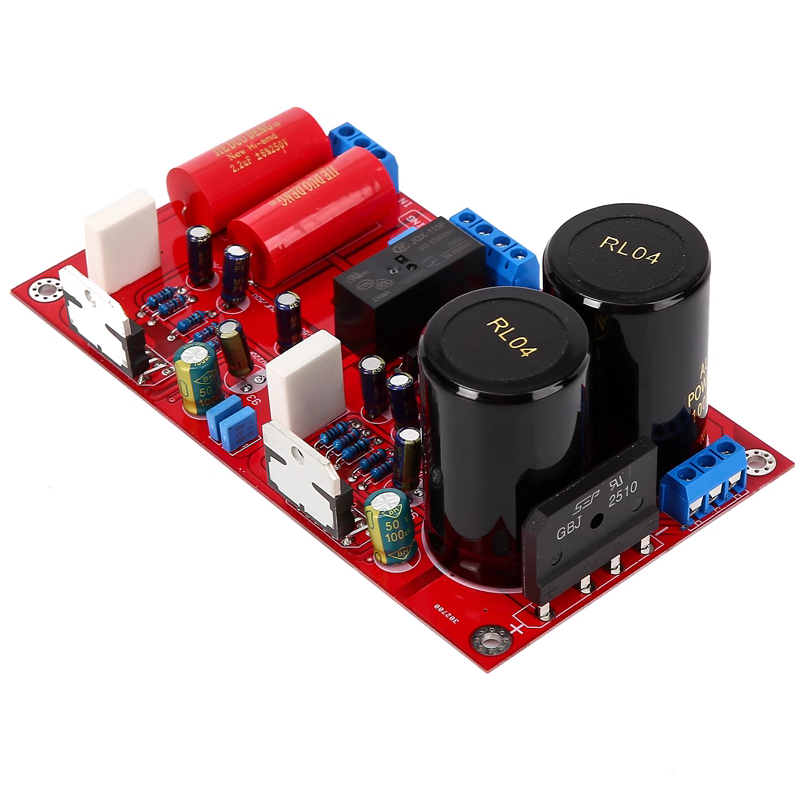

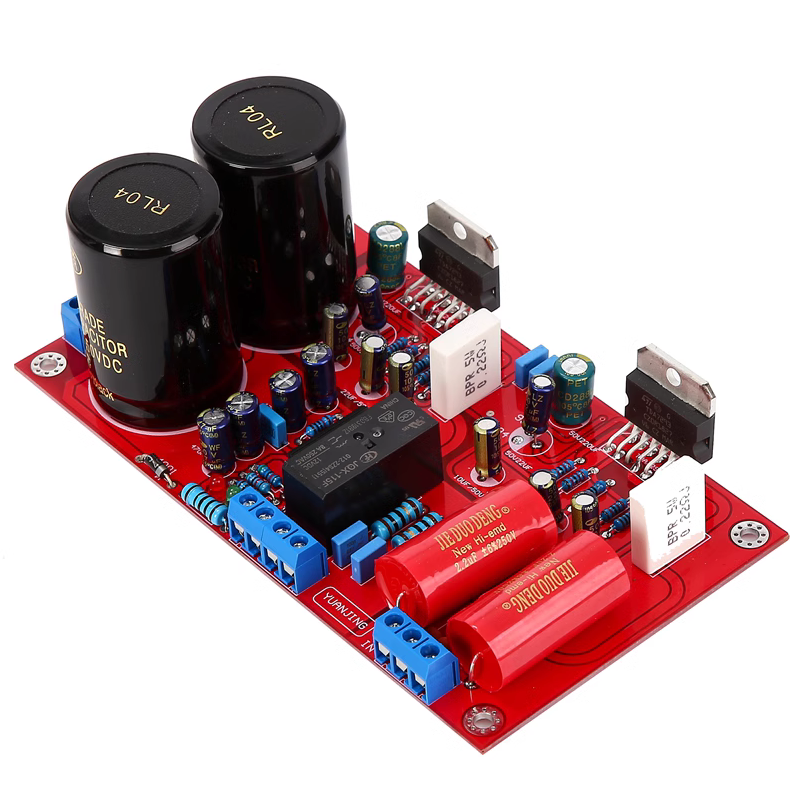

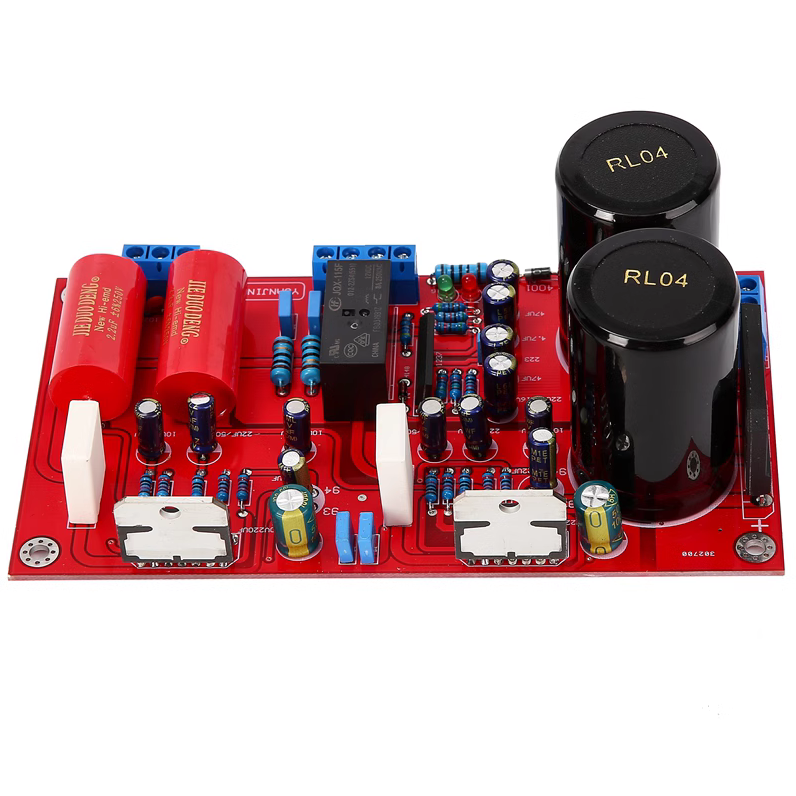

Product details:

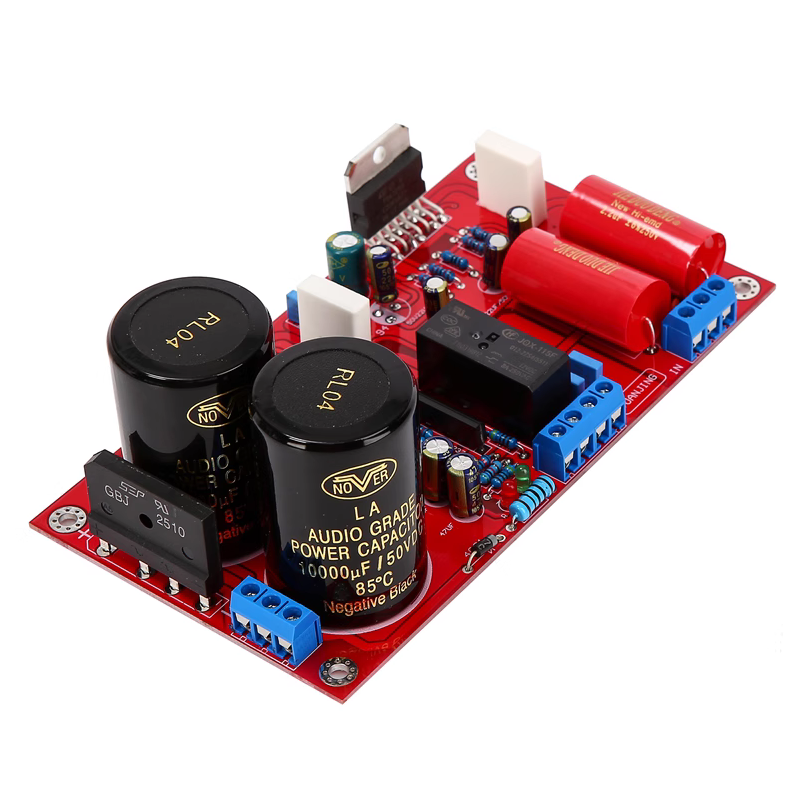

·This board adopts a 1.6mm double-sided design, and the resistance is made of a metal film with a 1% error and high precision imported from Taiwan. All small capacitors are made of original capacitors, and high-end capacitors are used for coupling. The filtering adopts the British brand NOVER 10000UF * 2 gold shaped capacitors
·This board adopts the advanced 1237 speaker protection circuit, making your speaker safer.
·This board integrates rectification, horn protection, and power amplification, making installation more convenient for users
·The materials used on this board are exquisite, the circuit design is reasonable, the signal-to-noise ratio is extremely high, the sound quality is pure and sweet, and the details are outstanding. It is a cost-effective HIFI amplifier suitable for use with 4-8 inch speakers.
Parameters:
Output power: 85W+85W undistorted power
Output impedance: 4-8 ohms
Input voltage: 20V-28V dual AC input.
Board size: 14 X 7.8 x 5 L, W, H (cm)
List:
TDA7294 amplifier board x1
