Specifications:

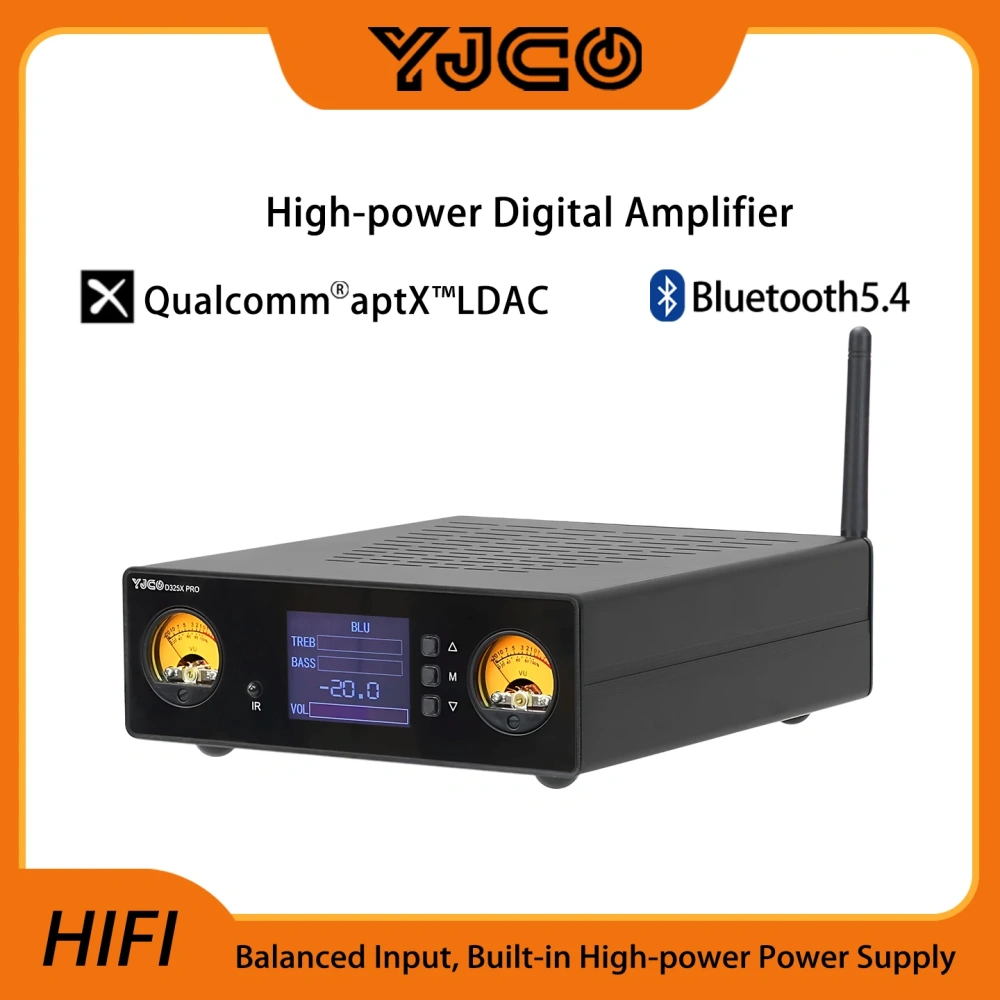

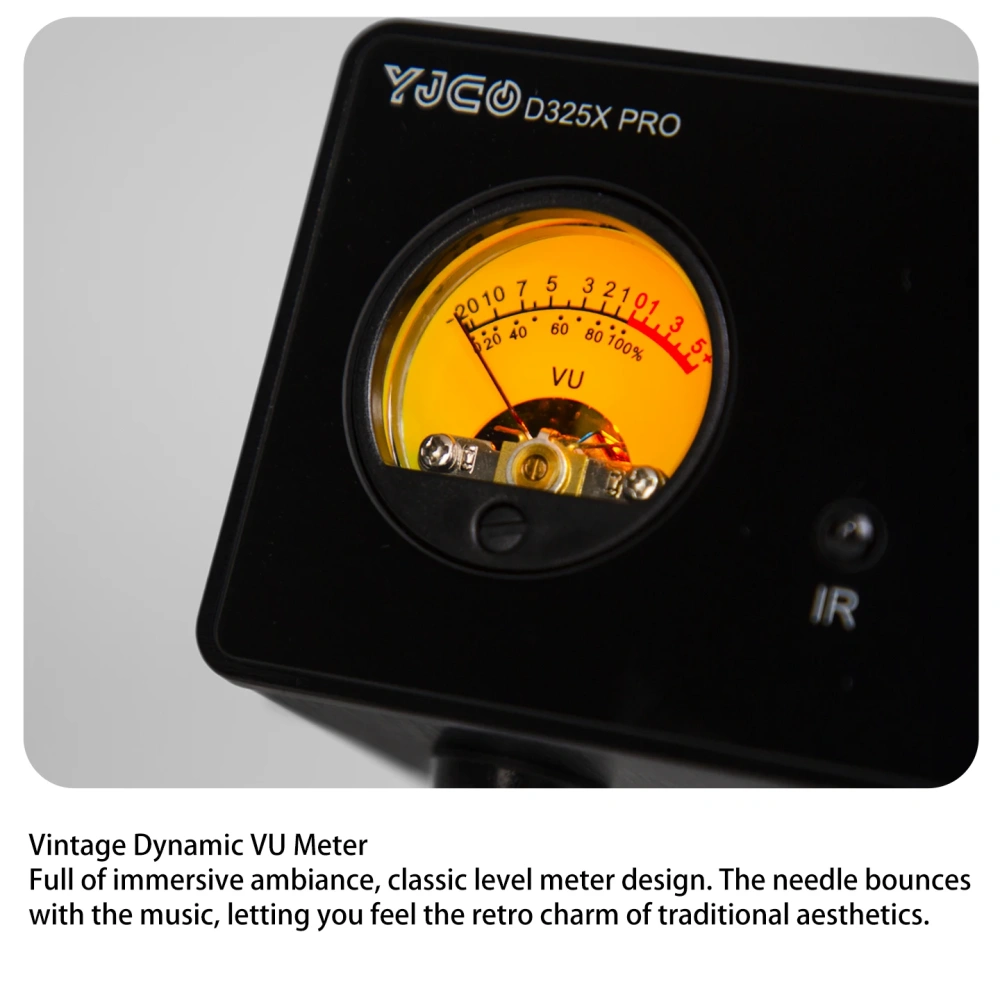

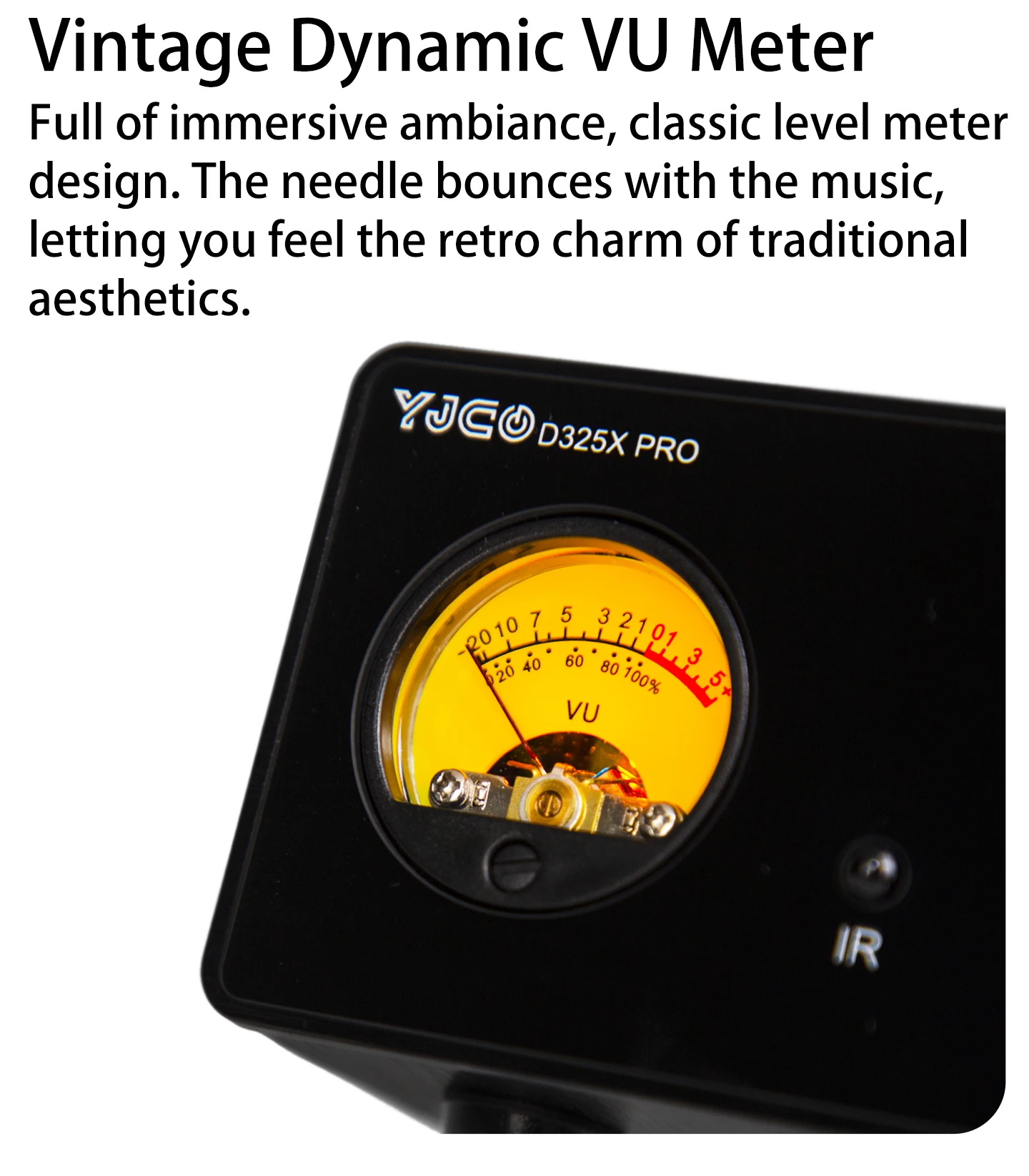

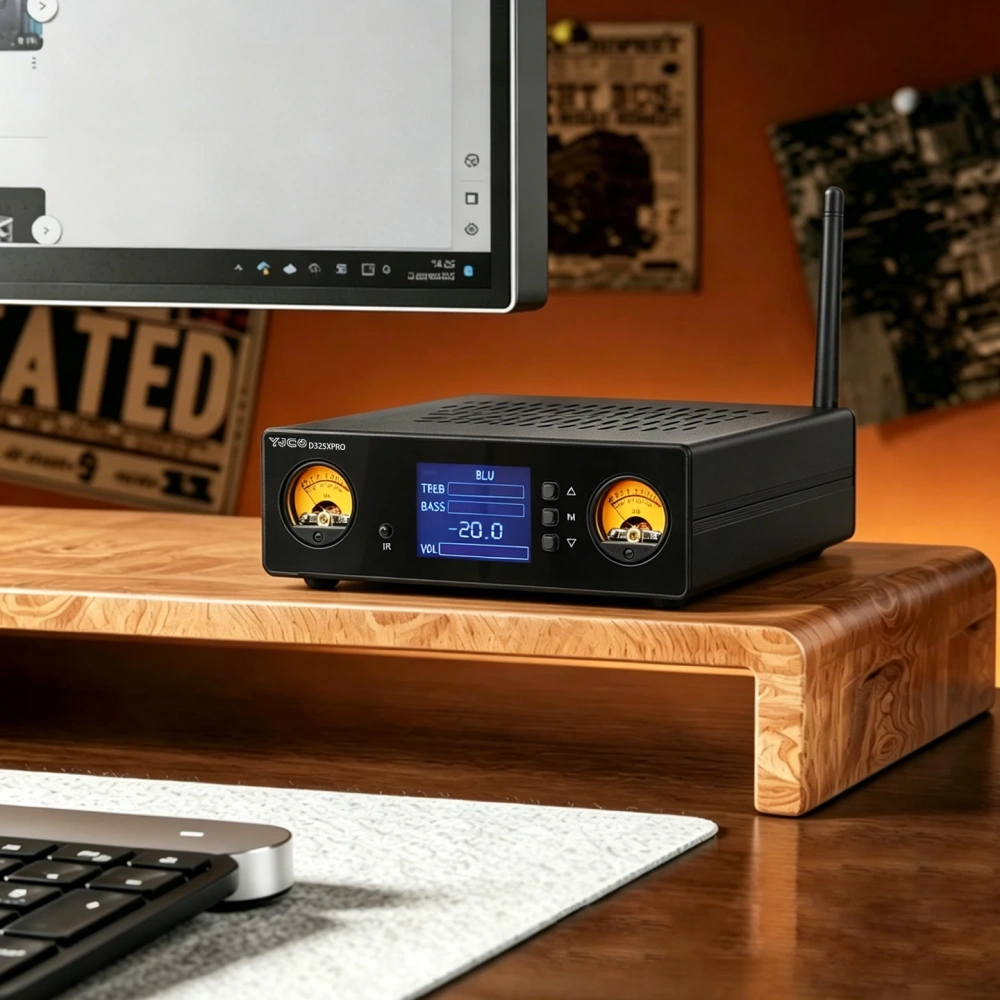

Model: D325X PRO

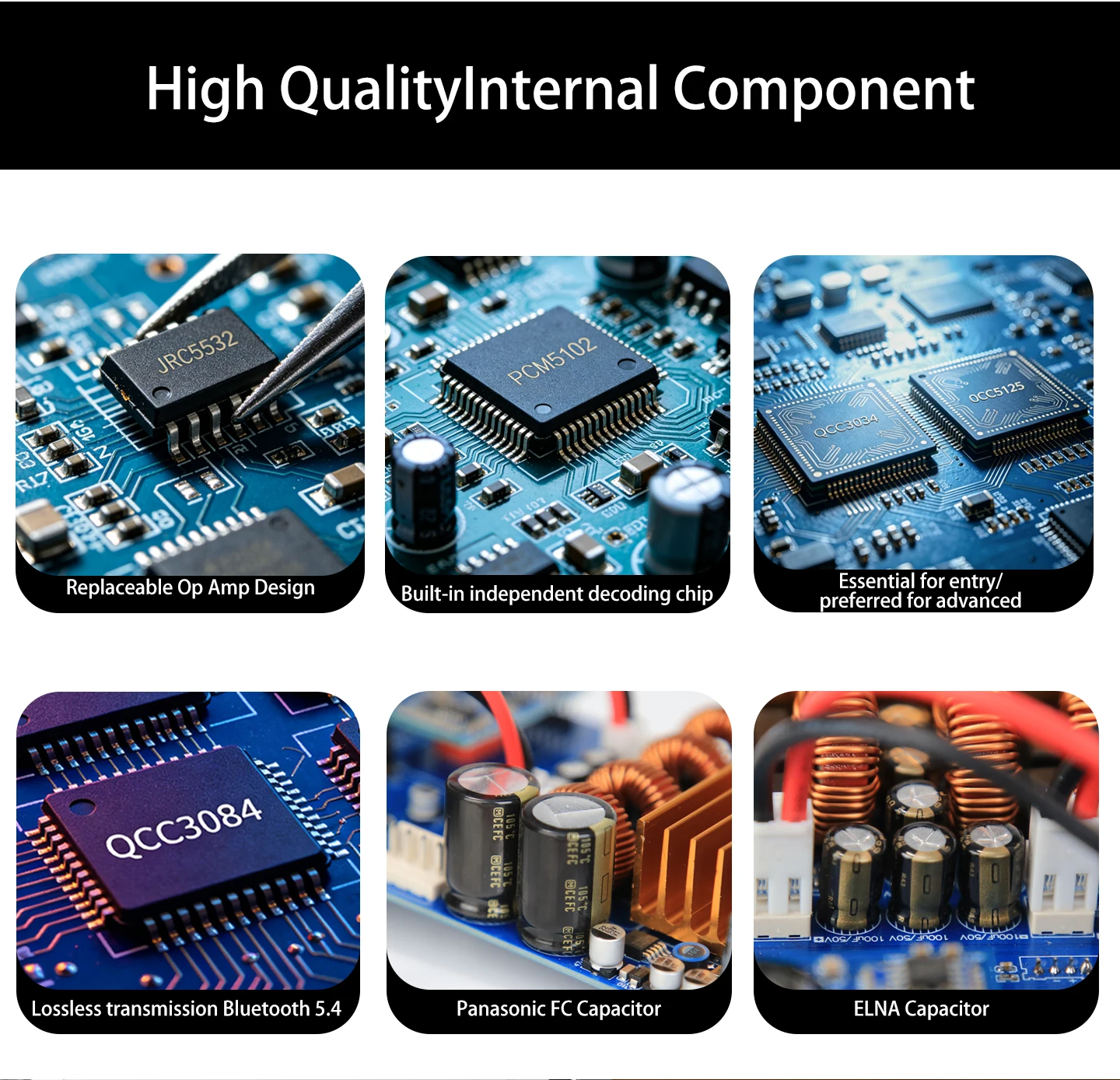

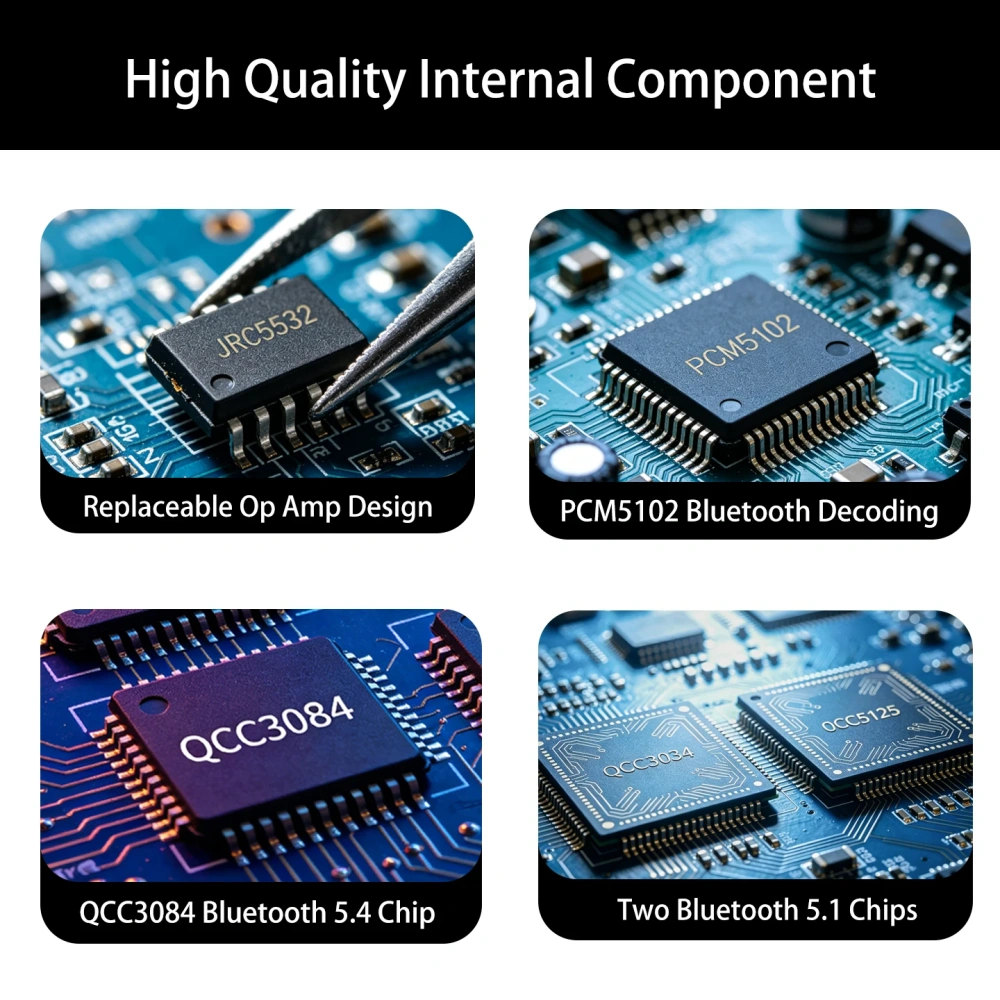

Chipset:TPA3255*2+JRC5532+QCC3084+PCM5125
Bluetooth chip: QCC3084+PCM5125

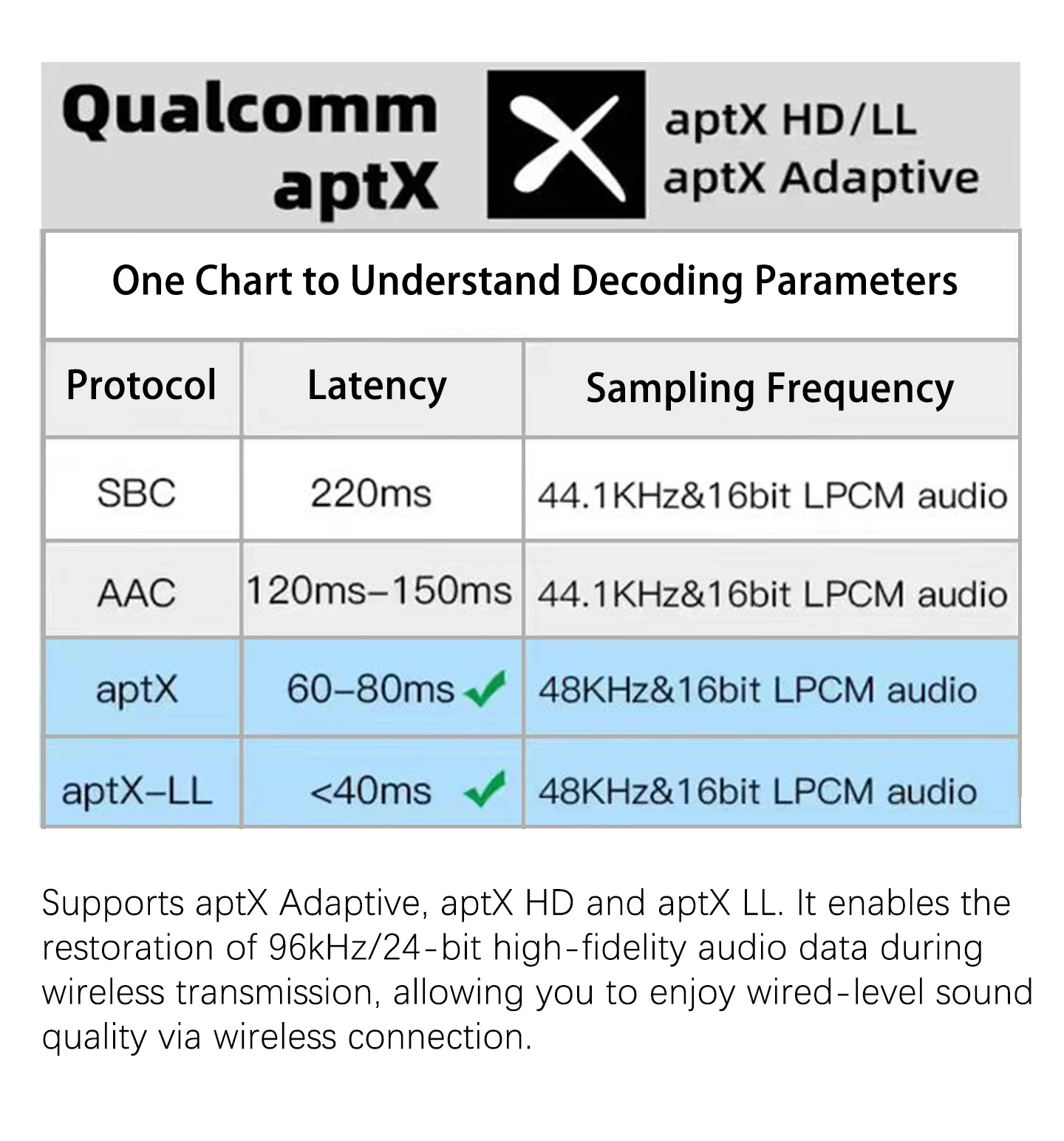

Bluetooth support: SBC/AAC/APTX/APTX-LL/APTX HD/LDAC/LHDC 16-24Bit 44.1-96kHz
Pc-usb-c sampling rate: 24-bit 96khz
Operational amplifier chip: JRC5532
Replaceable operational amplifier chips: SRT3609SM, OPA2604, OPA2134, LM4562, NE5532, OP275GSZ, OPA1612AIDR, etc
Total harmonic distortion: <0.2%
Signal to noise ratio :108dB
Frequency response :20-20K@1kHz±0.3dB
Sensitivity: Subwoofer output 0.29Vrms, left and right channels 2.4Vrms
Speaker impedance: 4-8Ω
Output power: 300W*2/4Ω

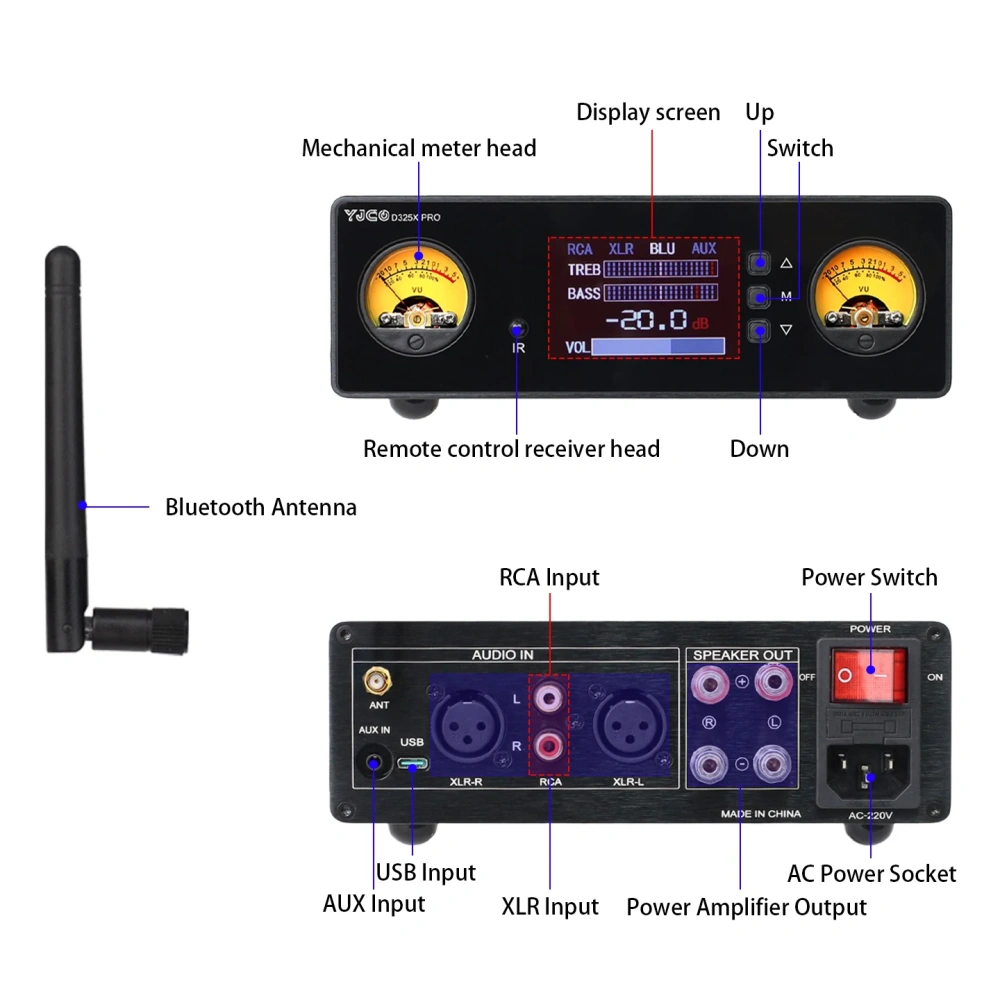

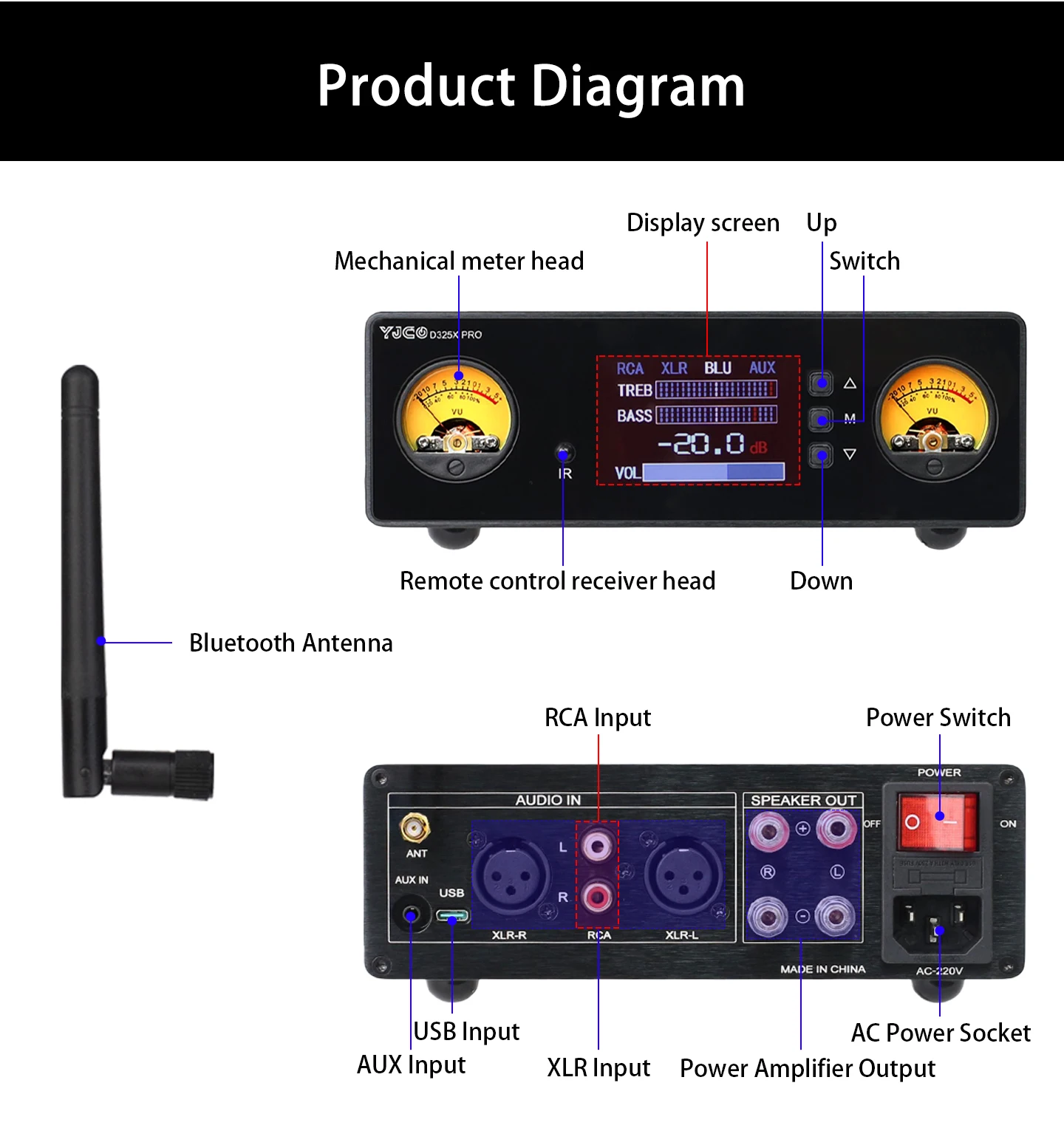

Input modes: RCA,XLR, Bluetooth,AUX,USB
Supported devices: mobile phones, tablets, computers, MP3 players, TVS, etc.
Output mode: 2.0 passive speaker
Working power supply: 110V-220V

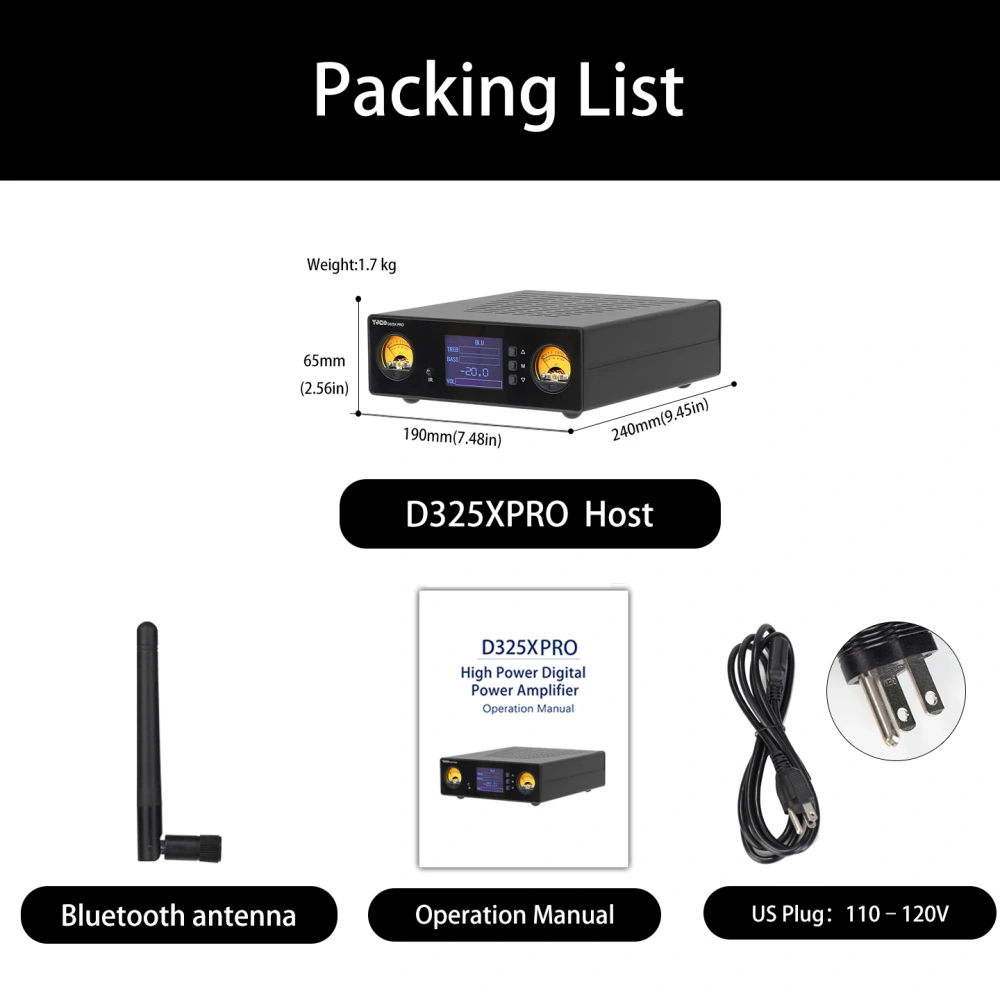

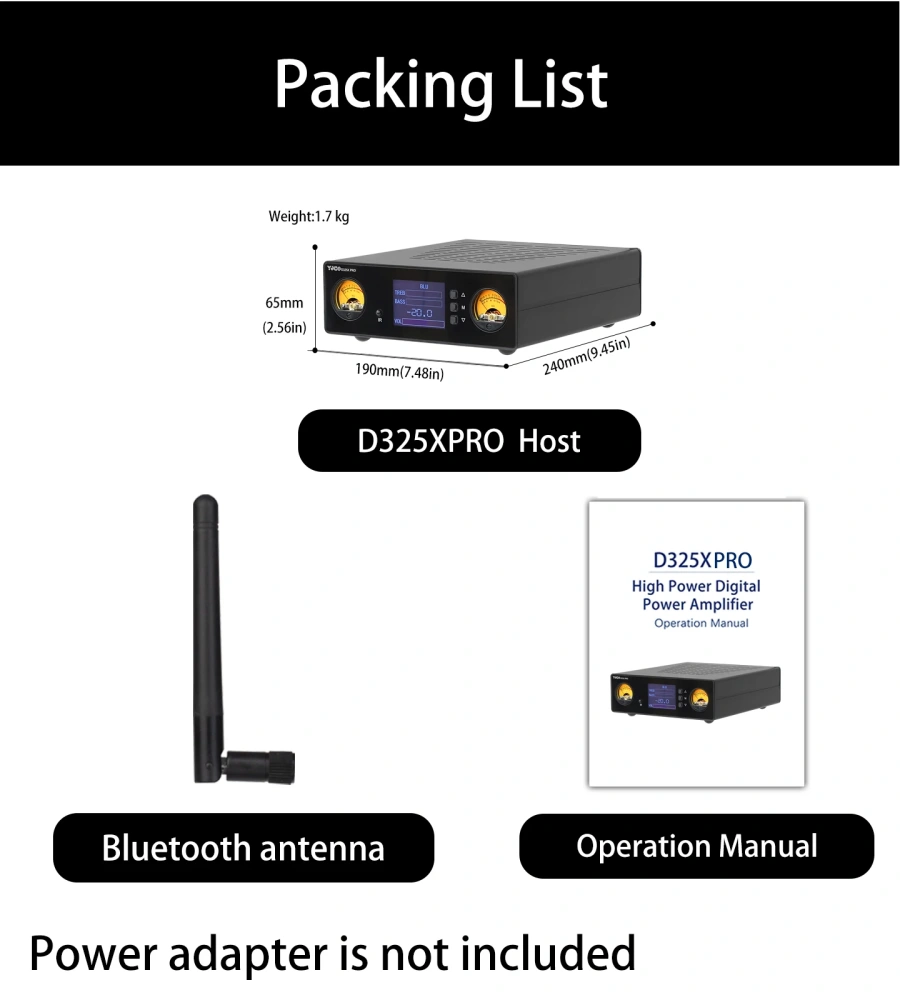

Product dimensions: 240*190*65mm
Net weight of the product: 1700g
Instructions for Use：

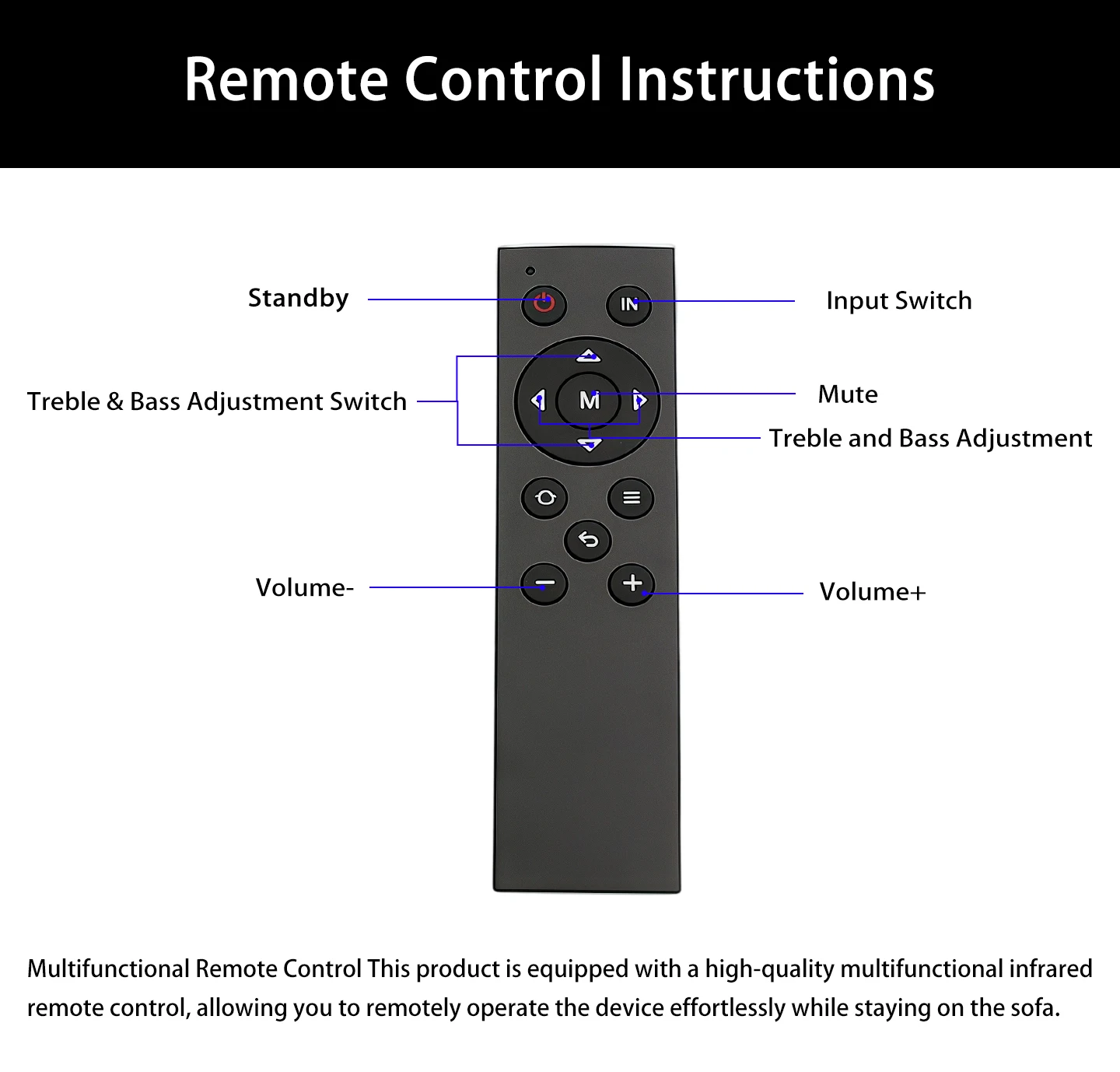

The standby button on the remote control cannot turn off the power. To shut down the machine, you need to press the switch at the back.
After the D325XPRO is connected via Bluetooth, it will not automatically switch to Bluetooth input mode. Manual switching is required Go to Bluetooth input mode.
Select different input modes through the previous toggle switch. When playing via Bluetooth or USB input, switch to BLU mode and search for the Bluetooth name on your phone. YJCO-QCC3084" Just connect it. It can be directly connected to a computer or mobile phone via USB for playback. No driver installation is required. When connecting a mobile phone's OTG to a USB, an OTG cable is required. Charging cables cannot be used, and USB cannot be connected to a USB flash drive.
