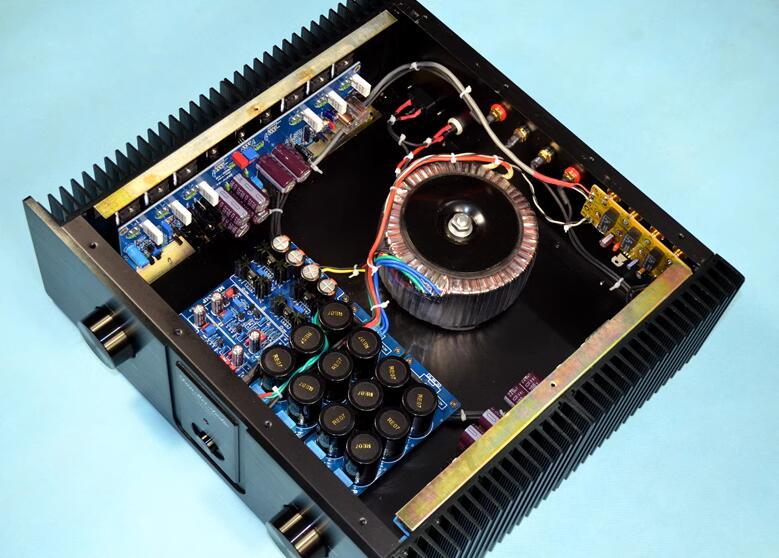

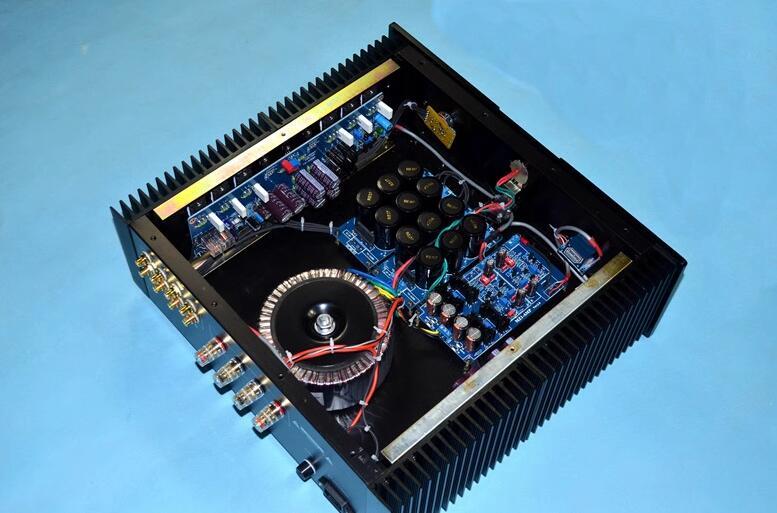

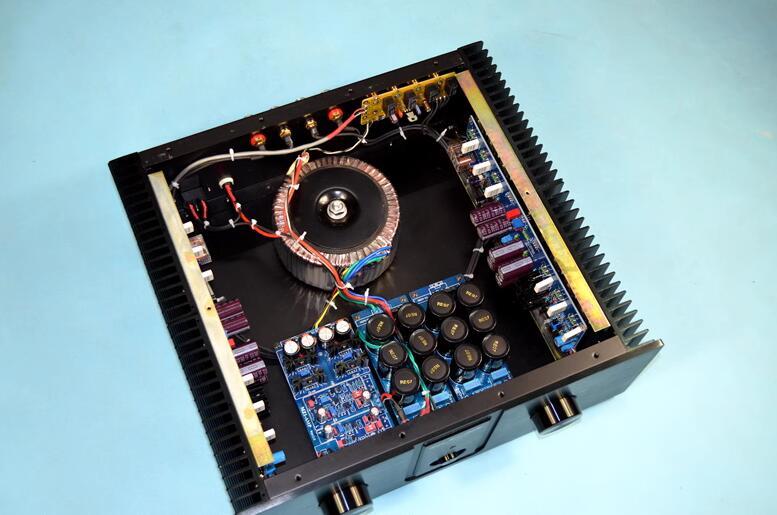

Product details: The internal structure is designed very carefully, the sound is very nature, the middle and high frequency is balanced and the control of the low frequency is very well, the deep and force can give you a another feeling.
Using the KSA-100 as circuit,Board size is 270X70MM, 2.0's thickness double-side copper FR4, Left and right CHANEL like mirror symmetry
Pre amplifier uses classical Marantz-AMP circuit, J103 K246 Mosfet input chip, the sound is soft and sweet,
Power transistors: 3 x pairs : TTA1943 & TTC5200 chip per each CHANEL
The post amplification is reference famous KSA-100 cuircuit, the sound is more balance, powerful and control is very well, the vocal is top
Parameters:Input voltage: AC110/220V
Power: ClassA/B: 265W+265W, Class A: 40W+40W
Impedence:4-8 ohm

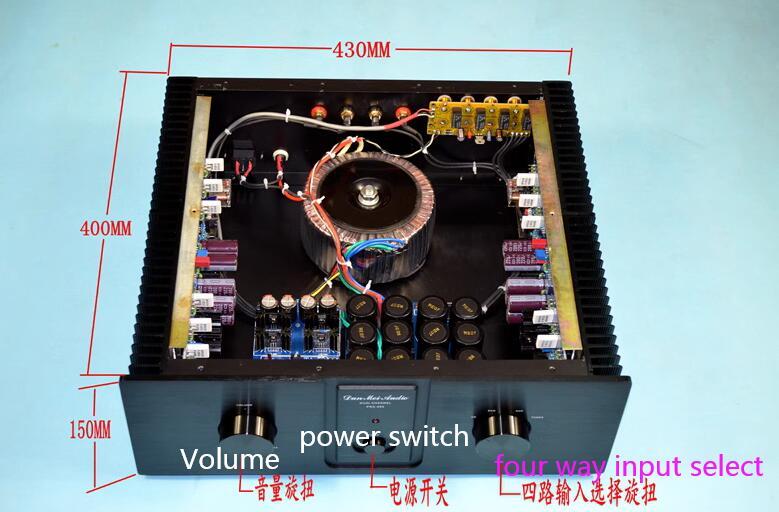

Dimension: 435X400X150mm
Weight: about 15.8kg
List:KSA100 amplifier x 1
