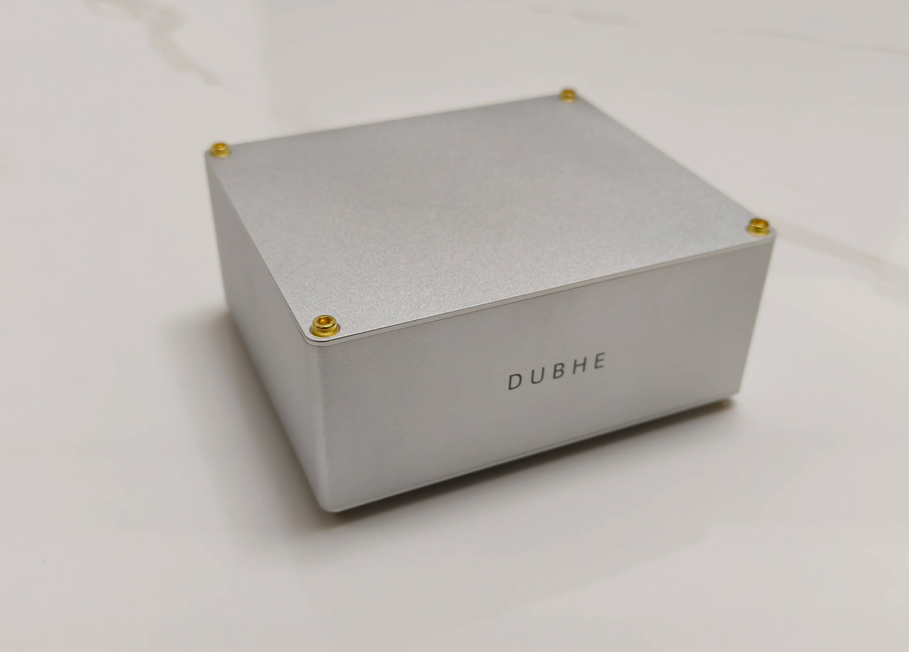

Zero magnetic leakage 35W linear power supply. Electromagnetic isolation four outputs, two 12V3A, two 5V3A

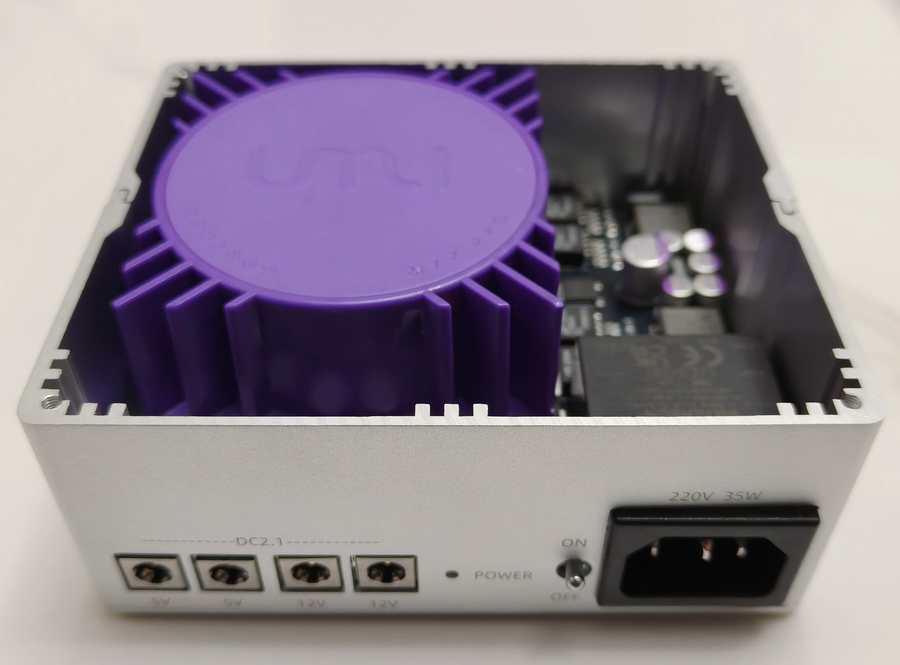

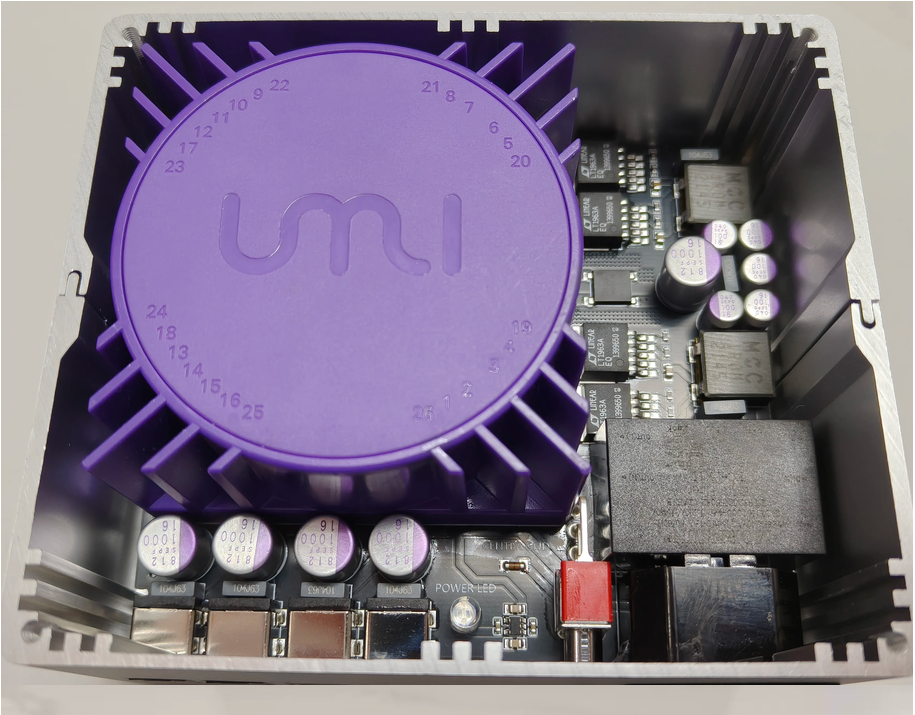

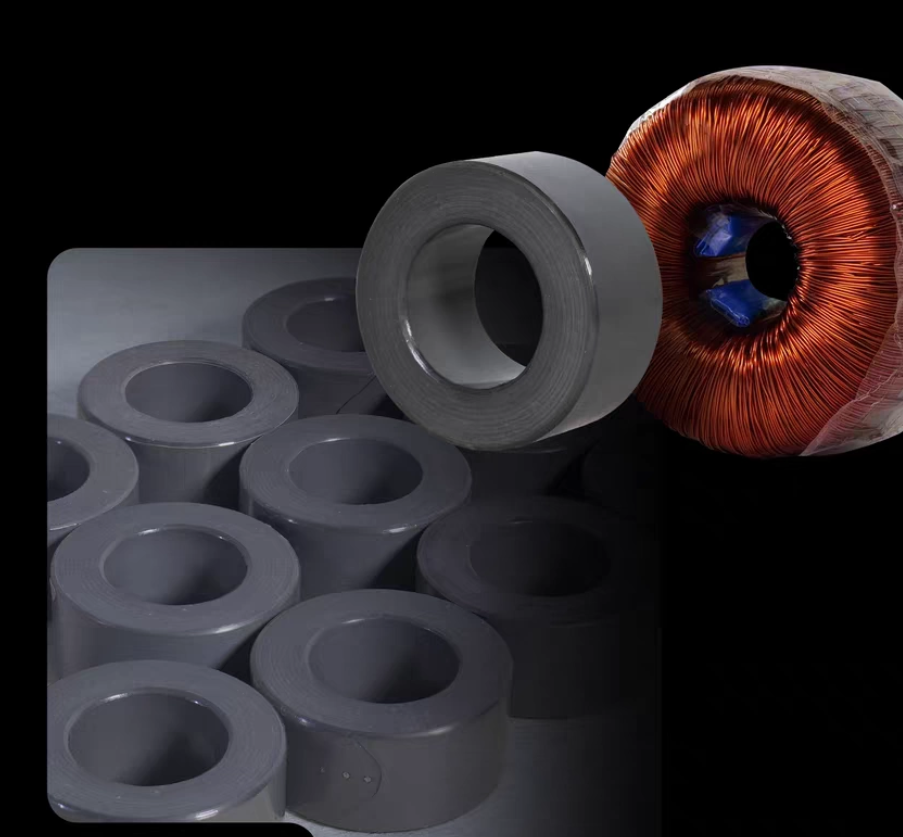

This linear power supply is fully loaded with materials, using a 35-watt transformer customized by UMI, fully shielded design, using NISCO's oriented high-flux CRGO silicon steel core, thick diameter oxygen-free copper wire winding, with materials and performance exceeding foreign talema transformers, meeting stringent EMC standards. The input circuit integrates a MORNSUN filter module for filtering, the output rectifier bridge adopts the latest glass passivation chip junction technology rectifier for 25 years, and the transformer is additionally grounded at a single point for electrostatic shielding. The two-stage voltage regulator uses four-channel LT1963A for voltage regulation, and the filter capacitor uses all Sanyo solid-state to achieve the ultimate, controlling the output ripple at the UV level while completely solving the problem of EMI interference and multi-device crosstalk, resulting in incomparably pure power supply.

Magnetic shielding, electromagnetic shielding, electrostatic shielding technology.

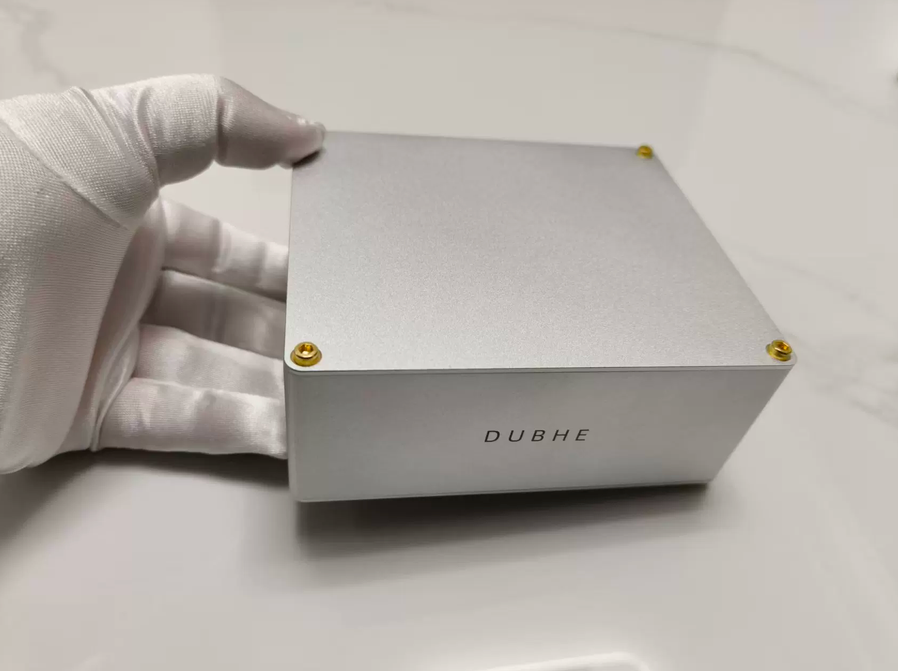

In the case of full parameters and performance, this power supply has been designed to the limit of its appearance. The 35-watt power consumption achieves a palm-sized 12x10x5cm, which is suitable for desktop use. One linear power supply can be used as four.

Input voltage: 220V
Output voltage: 12V, 5V (can be connected to 4 devices)

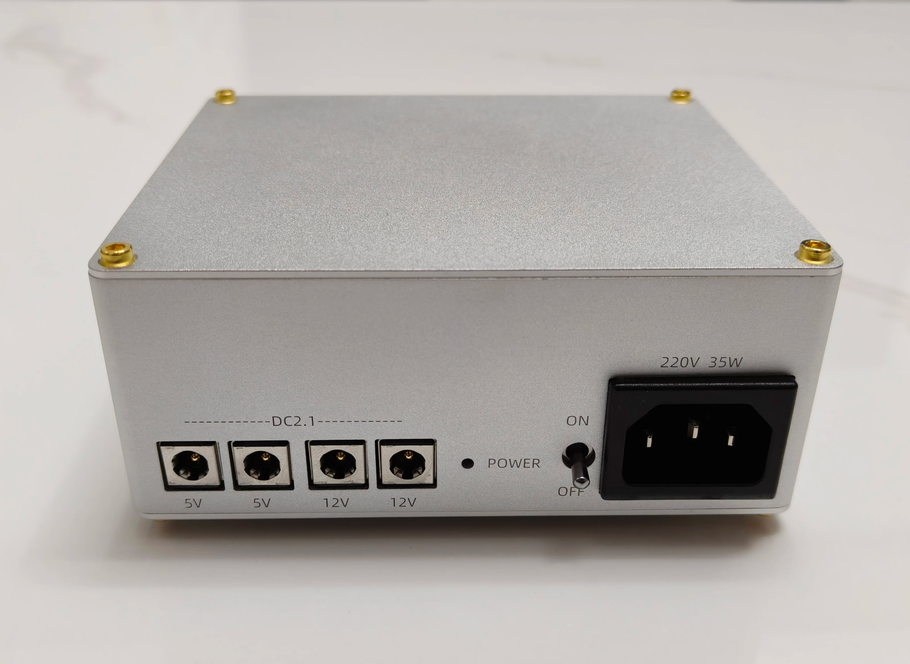

Output interface: DC2.1, internal positive and external negative
Size: 12x10x5cm (length, width and height)
Housing: All aluminum alloy, overall thermal design
Accessories: One three-term power cord, four oxygen-free copper DC output cables, support 2.1 and 2.5 interfaces.

Instructions for use: This product uses an all-aluminum alloy shell as a radiator for uniform heat dissipation. The shell will have temperature, and it is normal for a high-power linear power supply to heat up.
