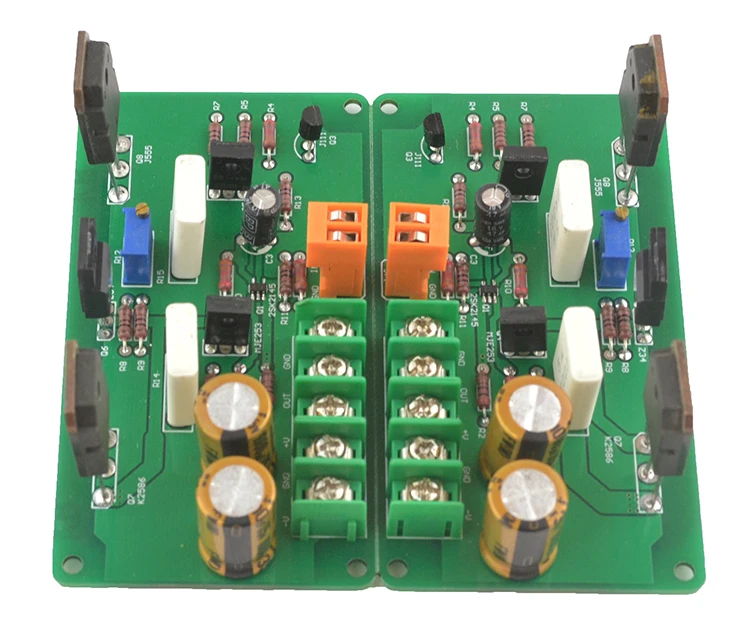

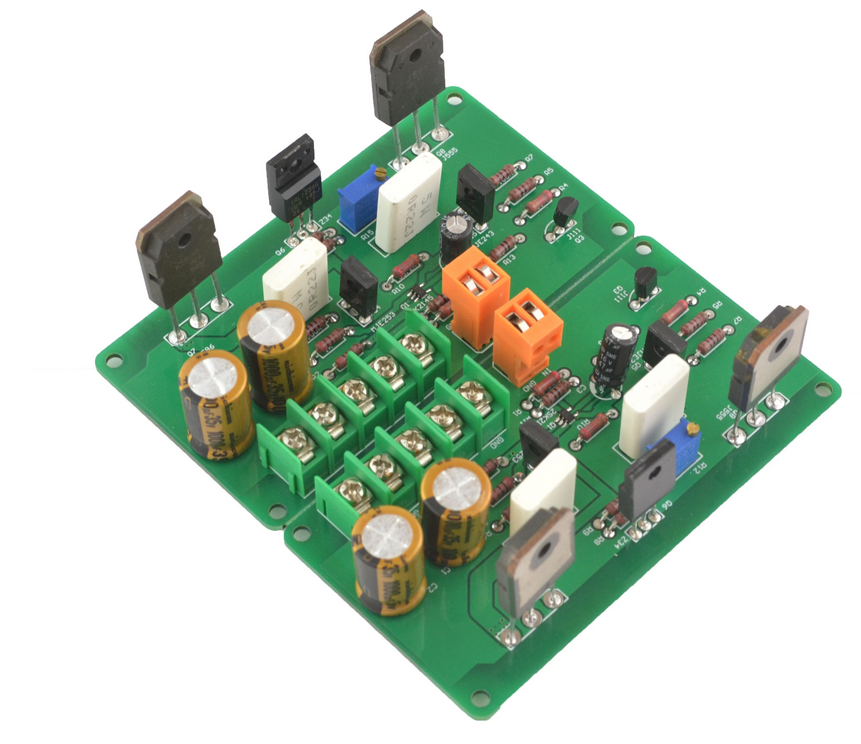

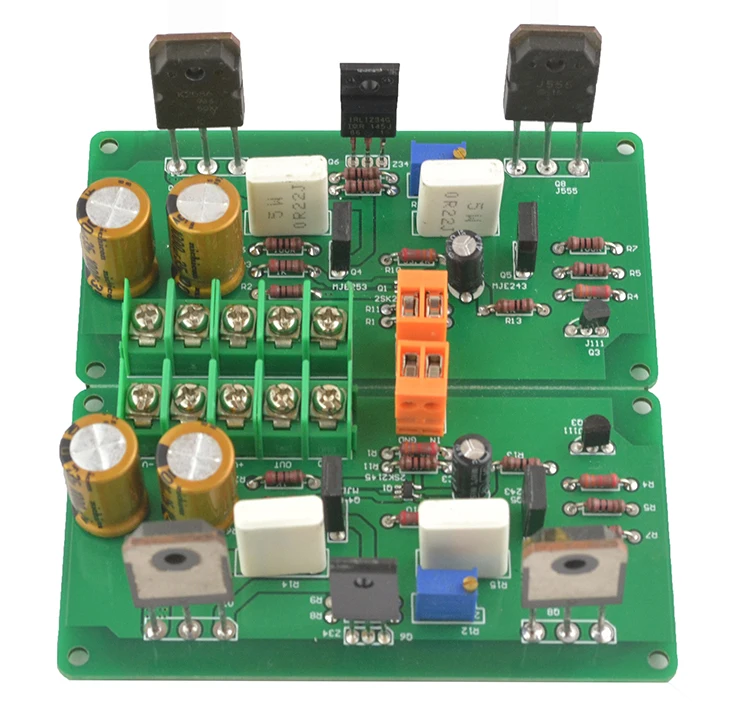

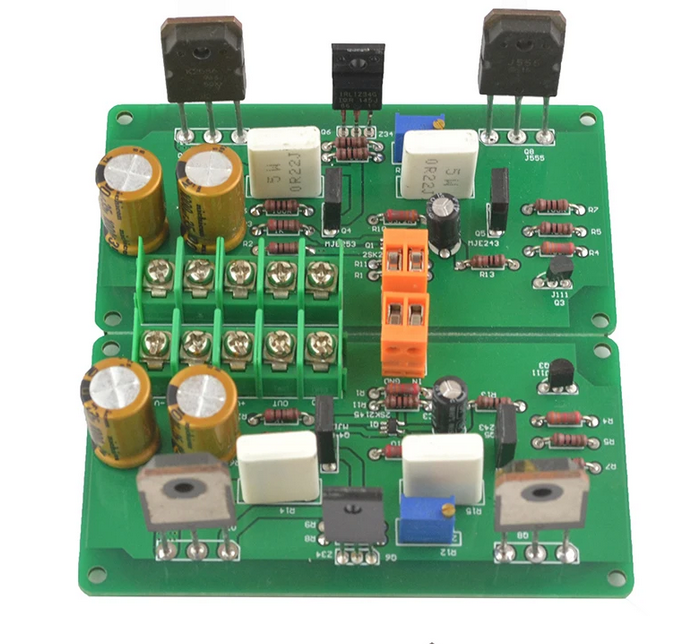

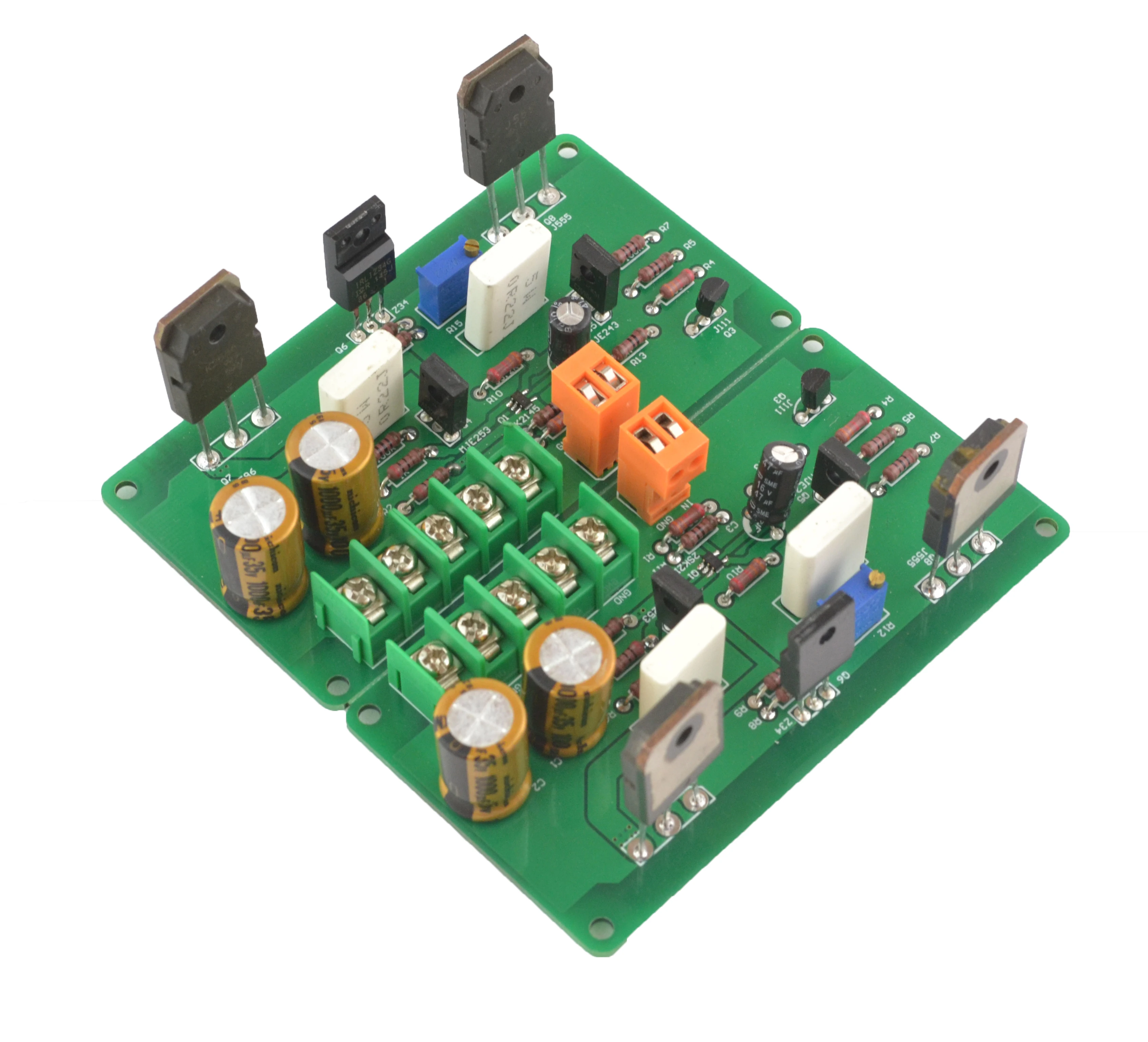

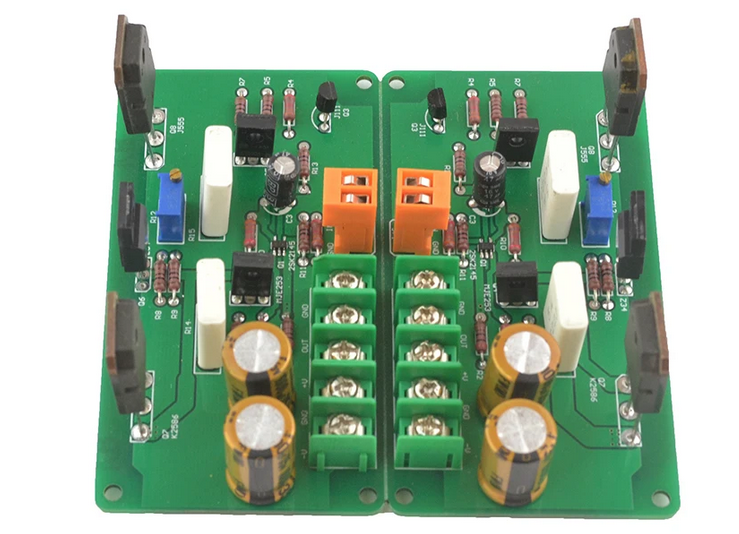

1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W

SKU:
Flash Sale
0.0 (2 Reviews)
3 Sold
$30.00 $27.60
-8%
GET $2.00 OFF ON ORDERS OVER $40.00
Get it
L18J8W12
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (5)
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
1/1
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • 1 pair Assembled A30 Pure Class A High-current Mini HI-FI Amplifier Board (2 channle) 30W+30W
  • Description
Product parameters:
Name: A30 small pure class 2-channel amplifier finished board
Channel: 2 channels (one board is a channel)
Maximum output power: 30W / 8ohm, 60W / 4 ohm
Maximum Class A Power: 30W
Maximum supply voltage: + -33V
Harmonic Distortion: <0.01% 10W / 8 ohm
Frequency response: 0Hz-100KHz
Damping coefficient:> 100
Signal to noise ratio:> 96dB
Conversion rate:> 30V / uS
Input sensitivity: 0.5V (rms)
Input impedance: 10K
Gain: 31dB (34x)

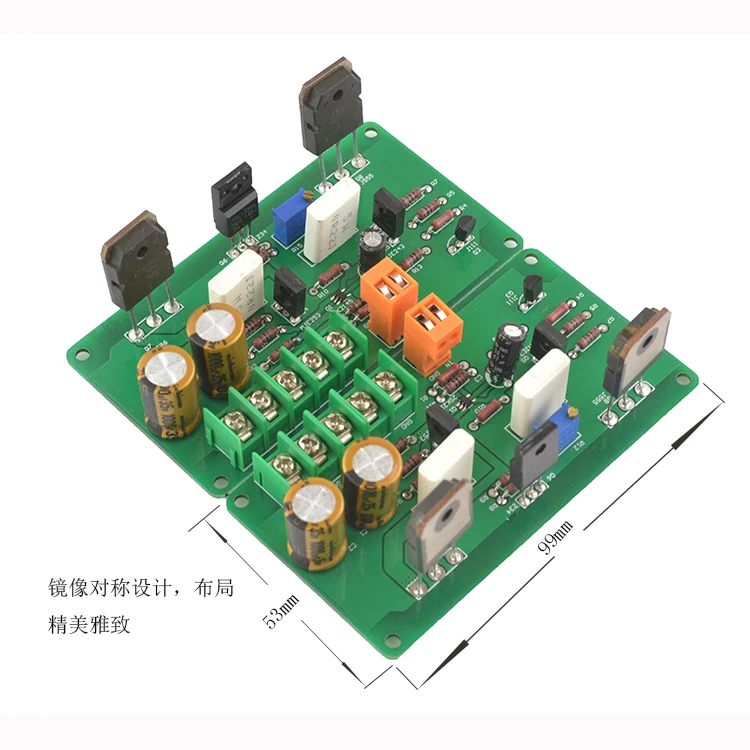

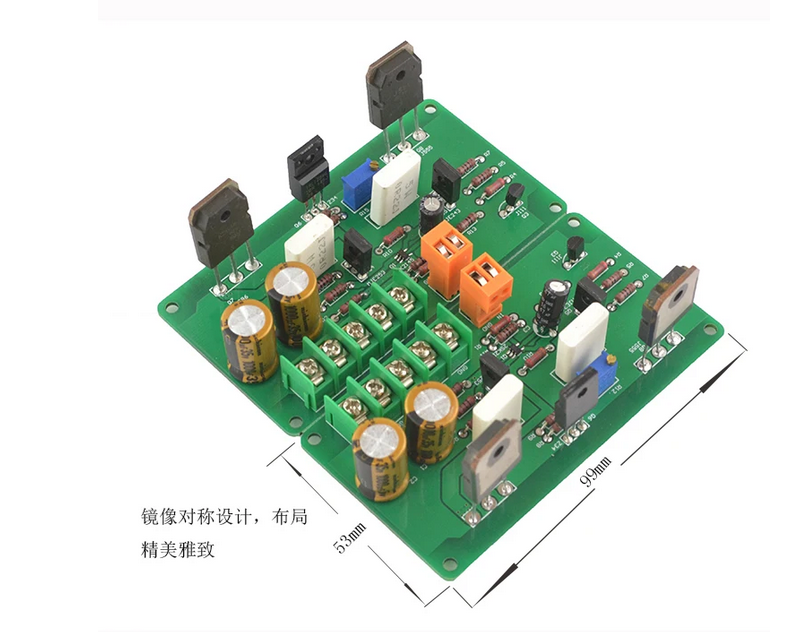

PCB Size: 99mm × 53mm
Scope: small HIFI amplifier, multi-channel amplifier

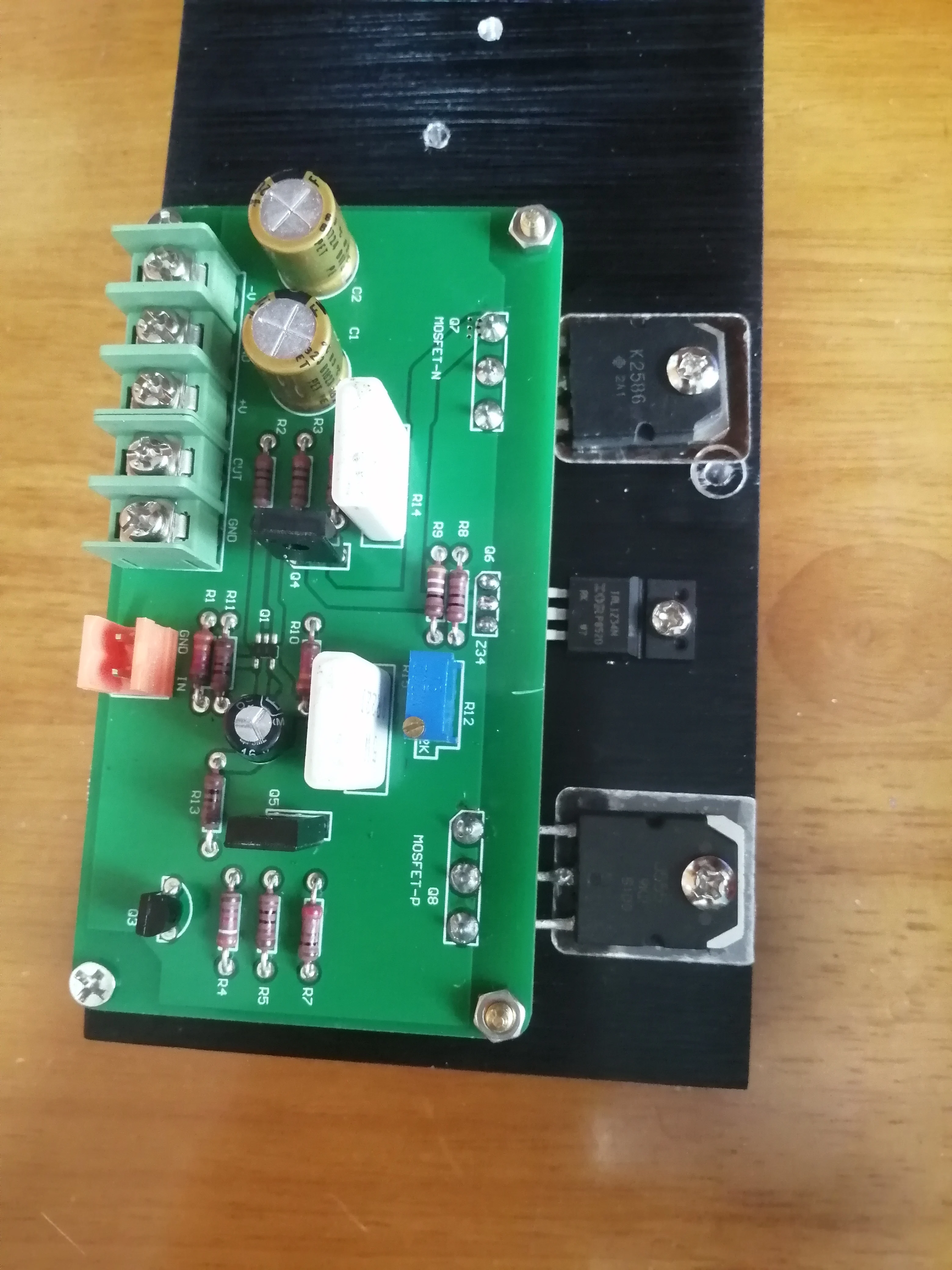

package include : 2 pcs finished board (not include the heatsink)
