Note:

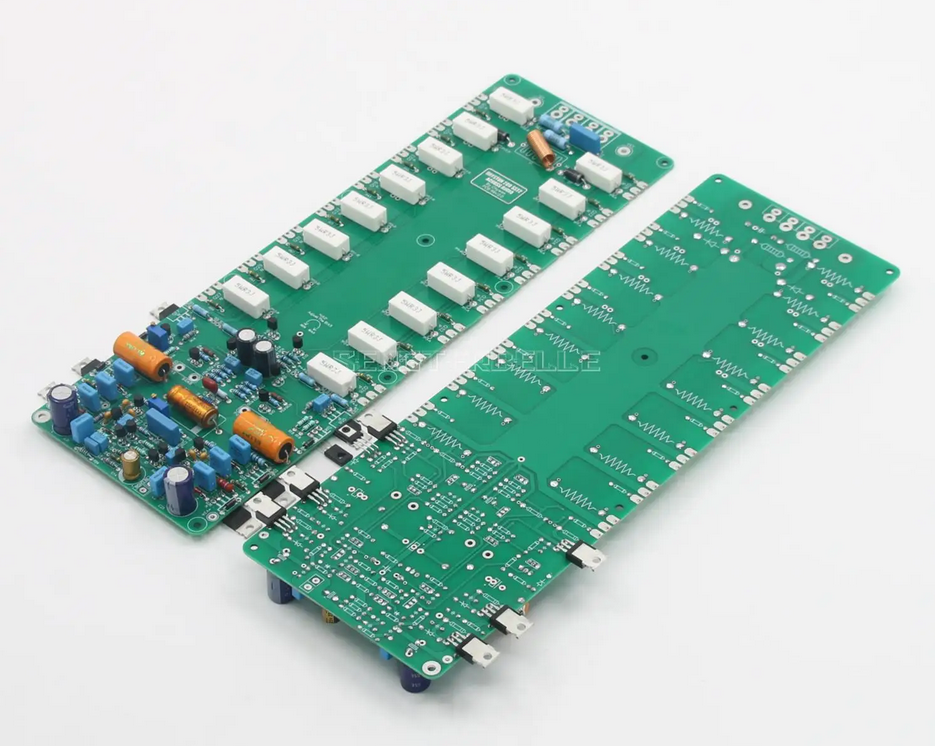

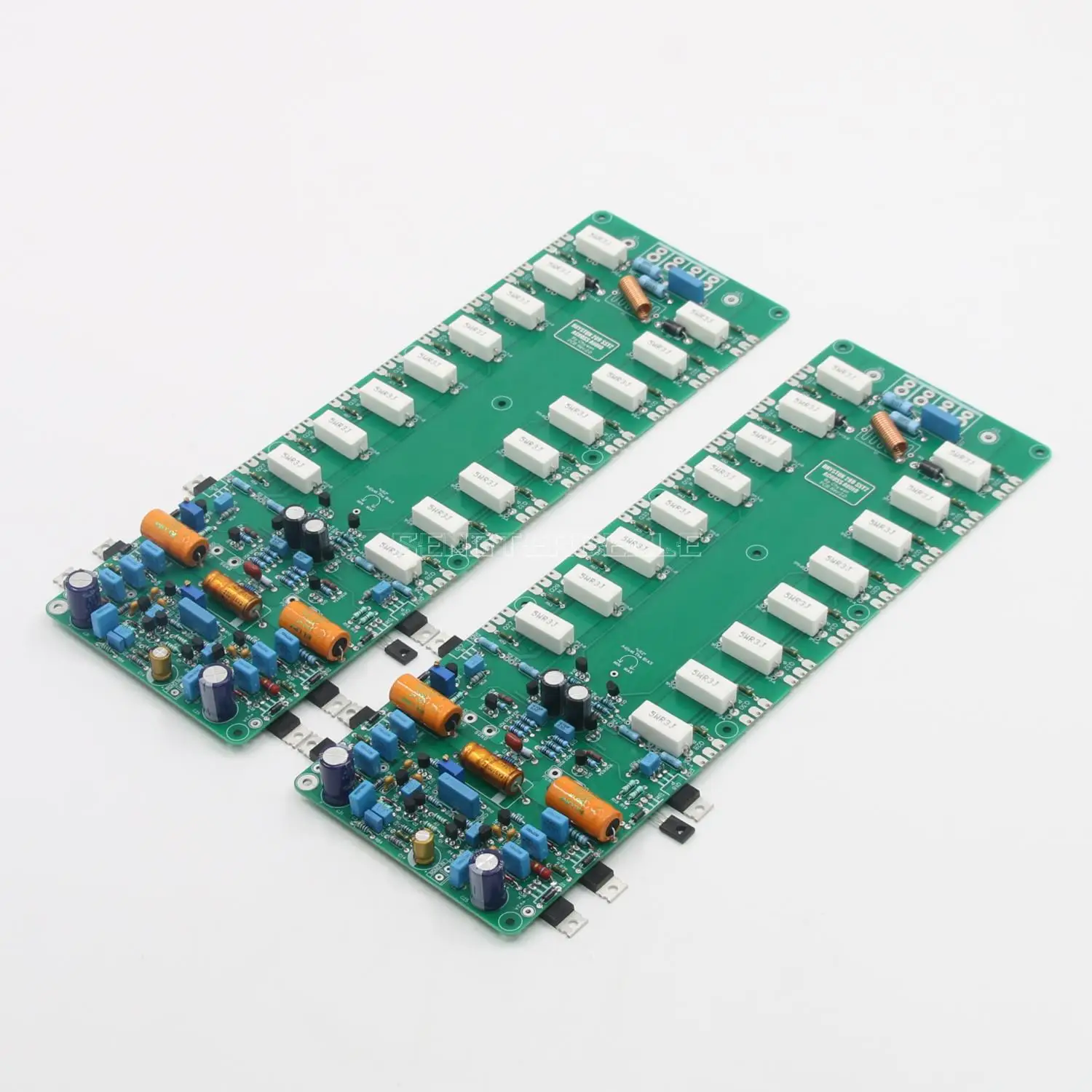

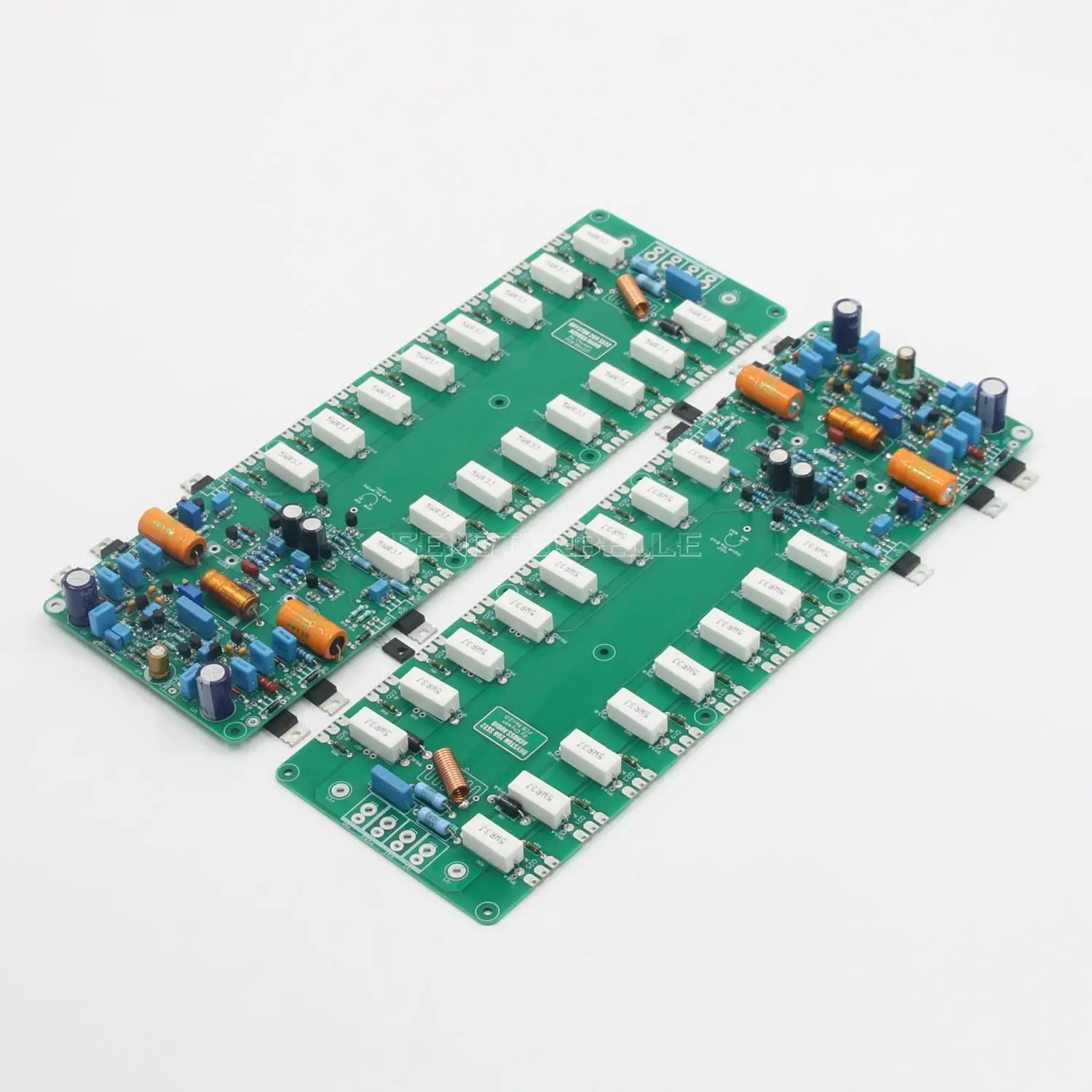

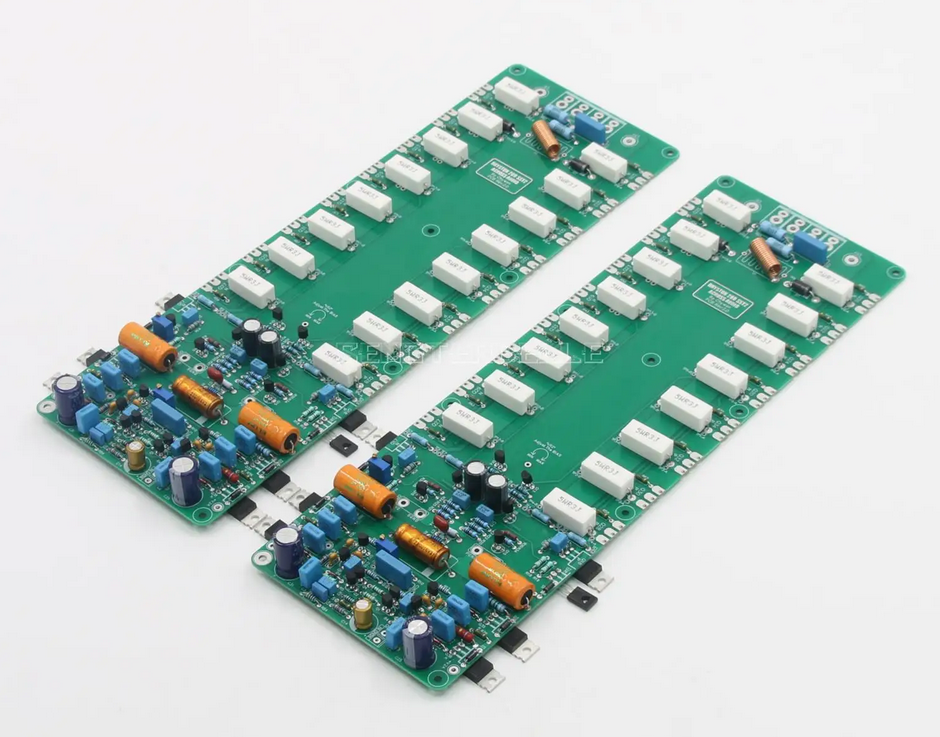

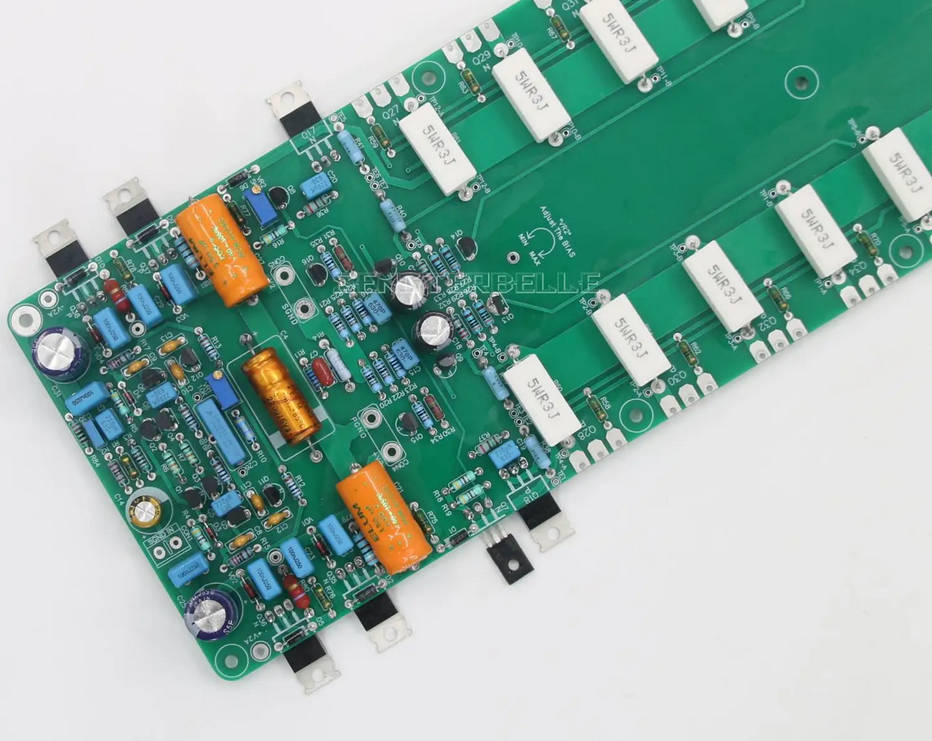

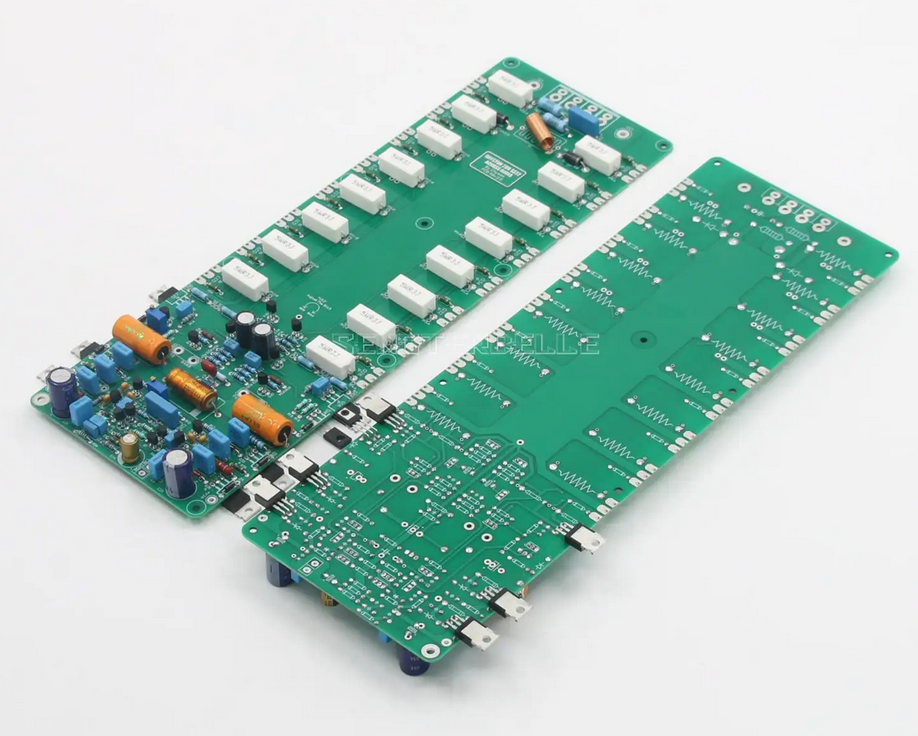

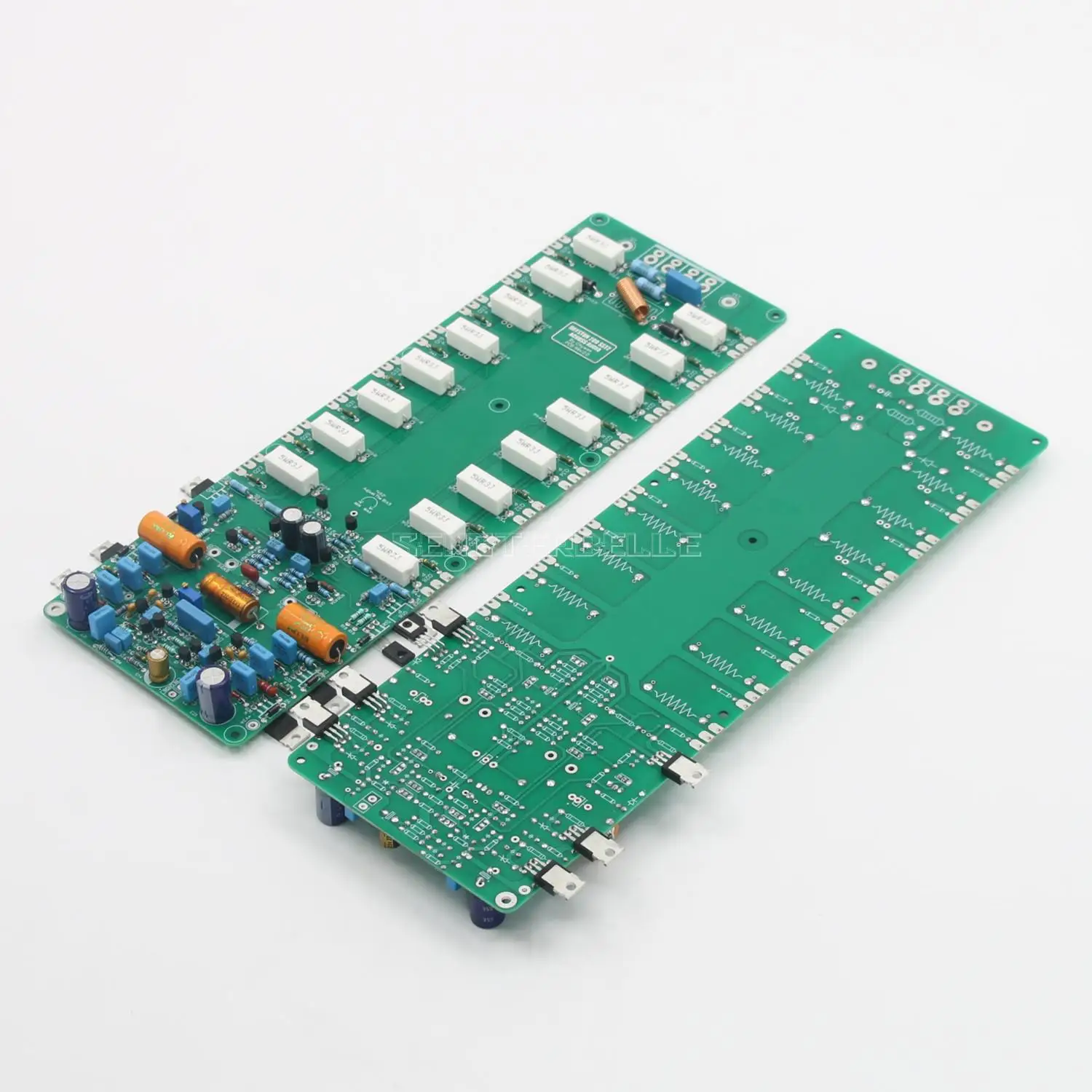

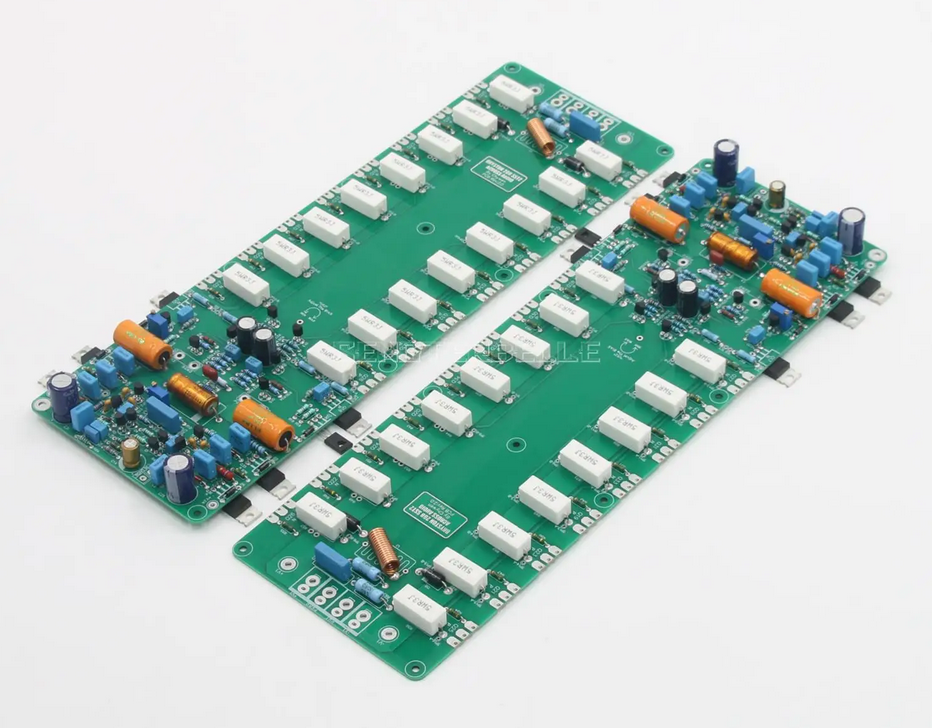

[ Finished Board ]: It has been assembled and tested OK.

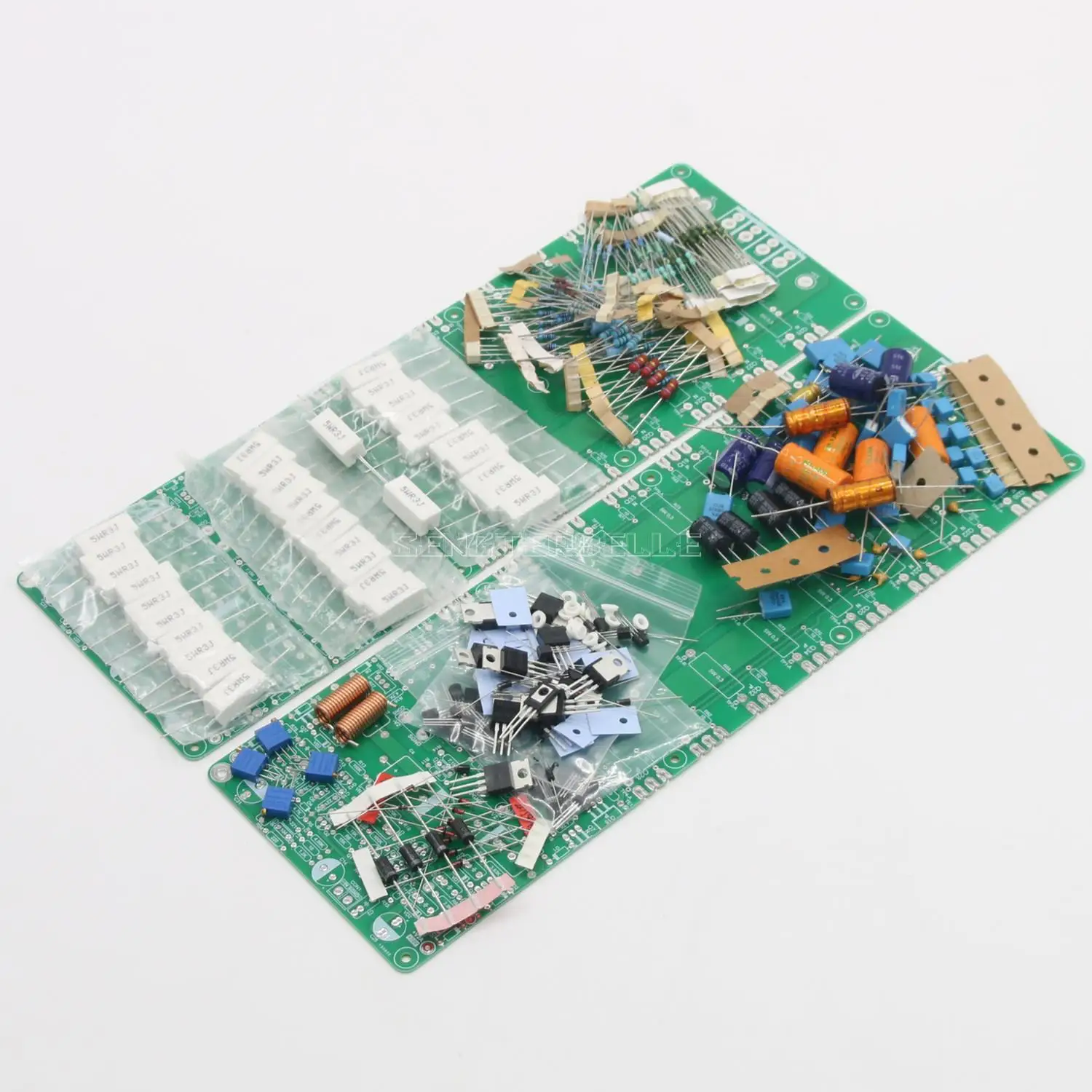

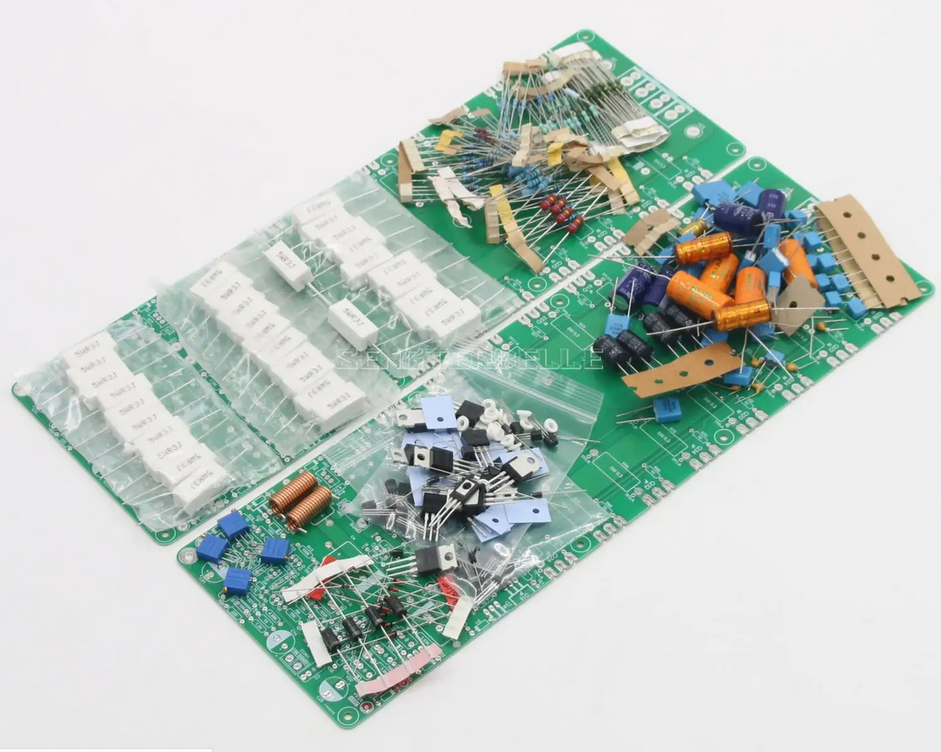

[ DIY KIT ]: DIY kit, you need to weld, assemble, and test.
No includes 16 pairs of ON MJL21193/MJL21194 transistors.
Product Details:

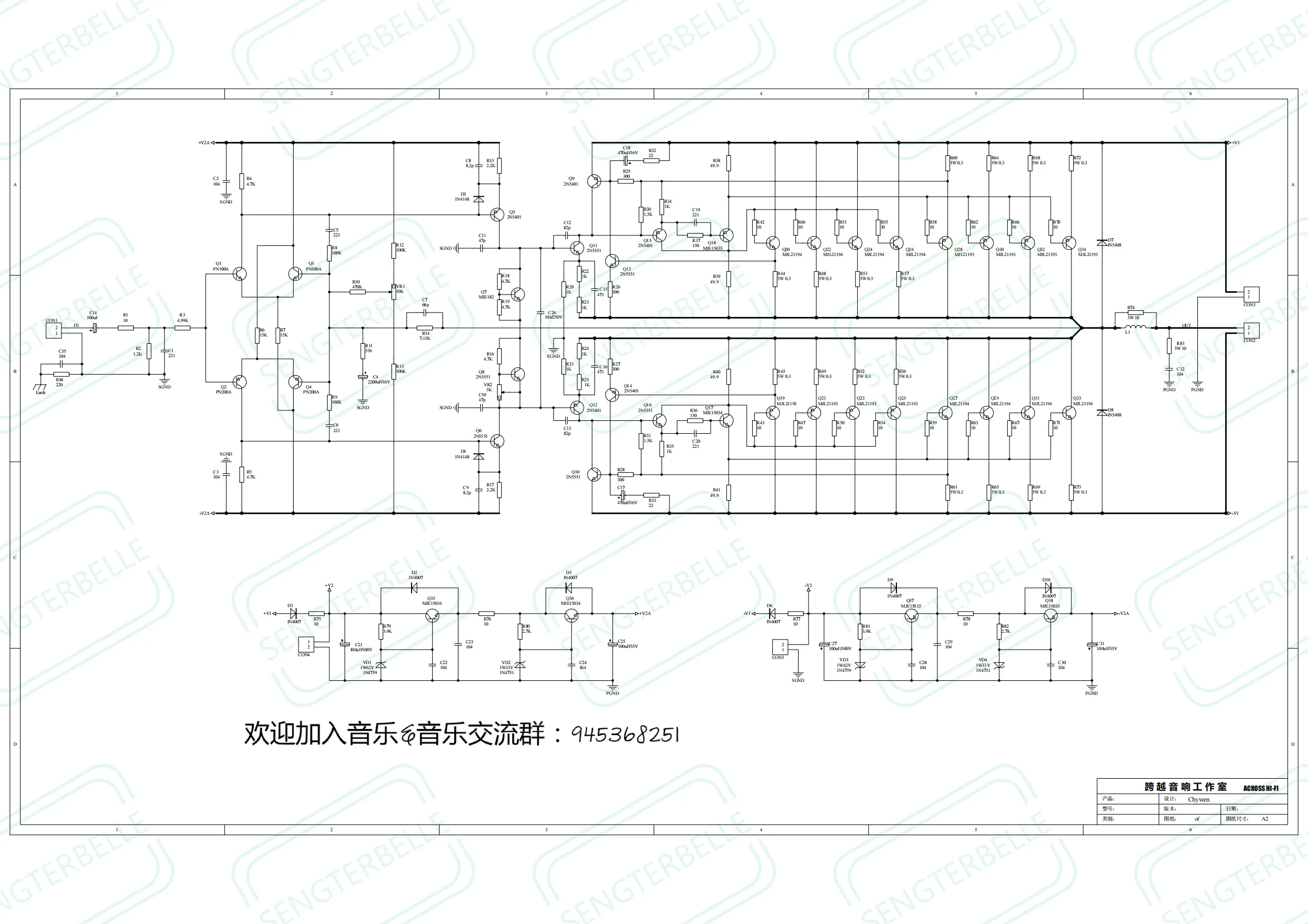

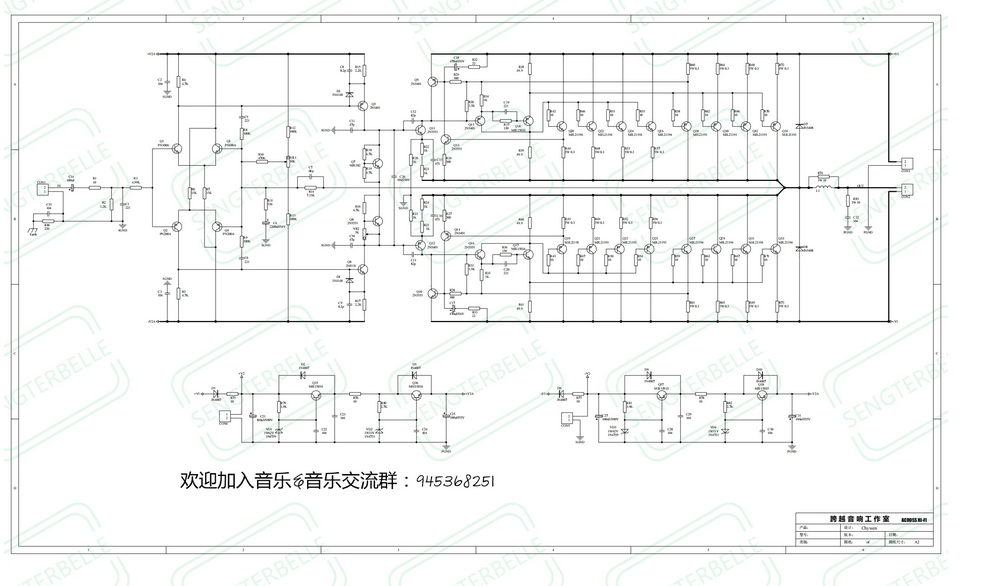

Based on the BRYSTON 28B power amplifier circuit.
Output power: 300W/8 ohms (+/-90V power supply)
Working voltage: DC+/-65V to DC+/-90V (left and right channels powered separately)
Transformer parameters:
Use 2pcs 800W or 1pcs 1500W Transfromer
Maximum 65V~0~65V, 65V~0~65V
Minimum 48V~0-48V, 48V~0-48V
0~18V For protection circuits.
Power Transistors: 16 Pairs of ON MJL21193/MJL21194 (Not included, you need to purchase separately)
PCB size: 333 * 112MM
