Product Details:

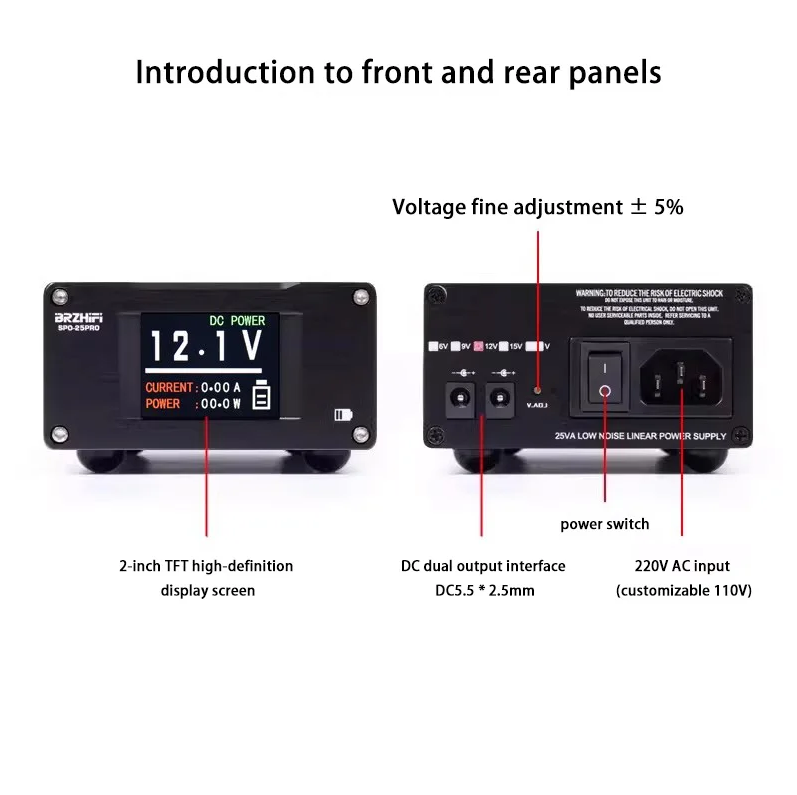

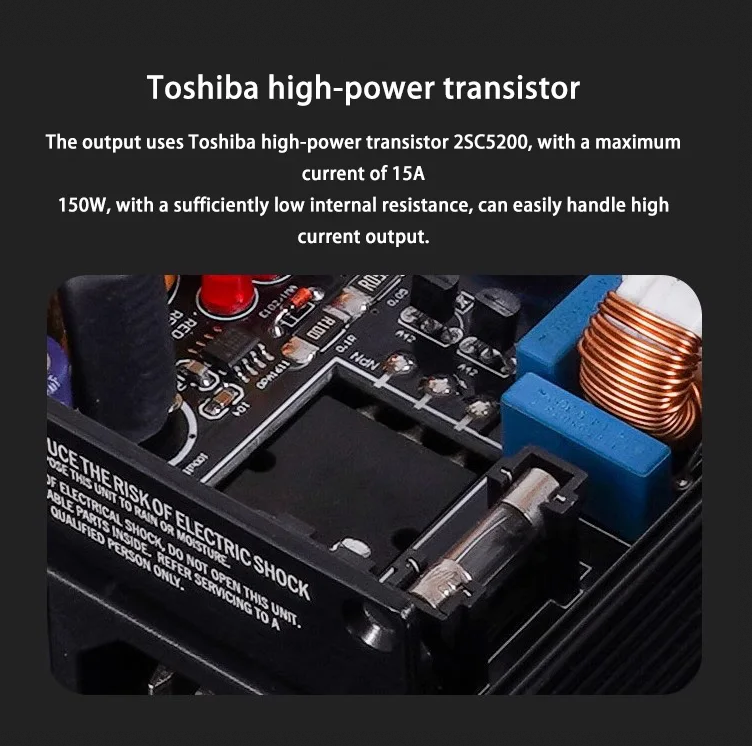

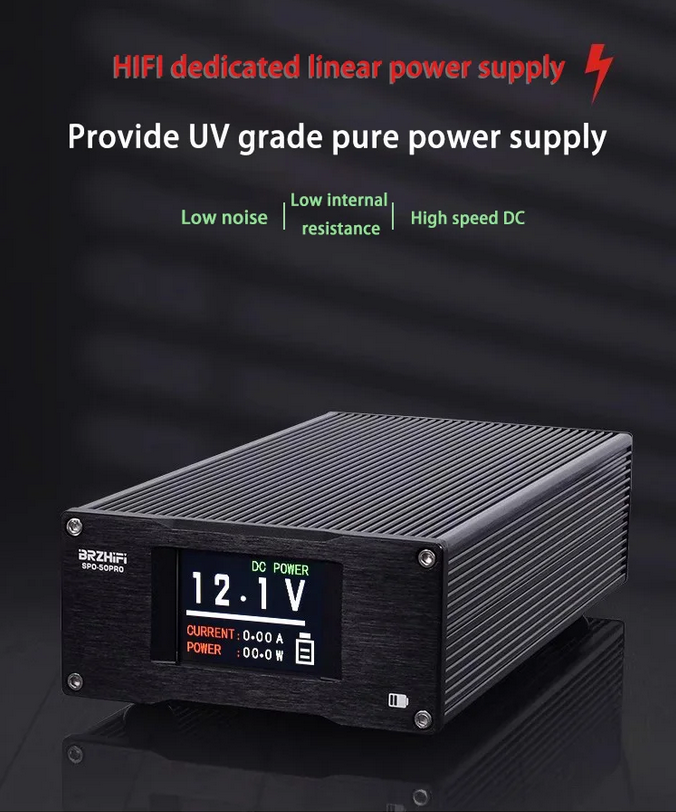

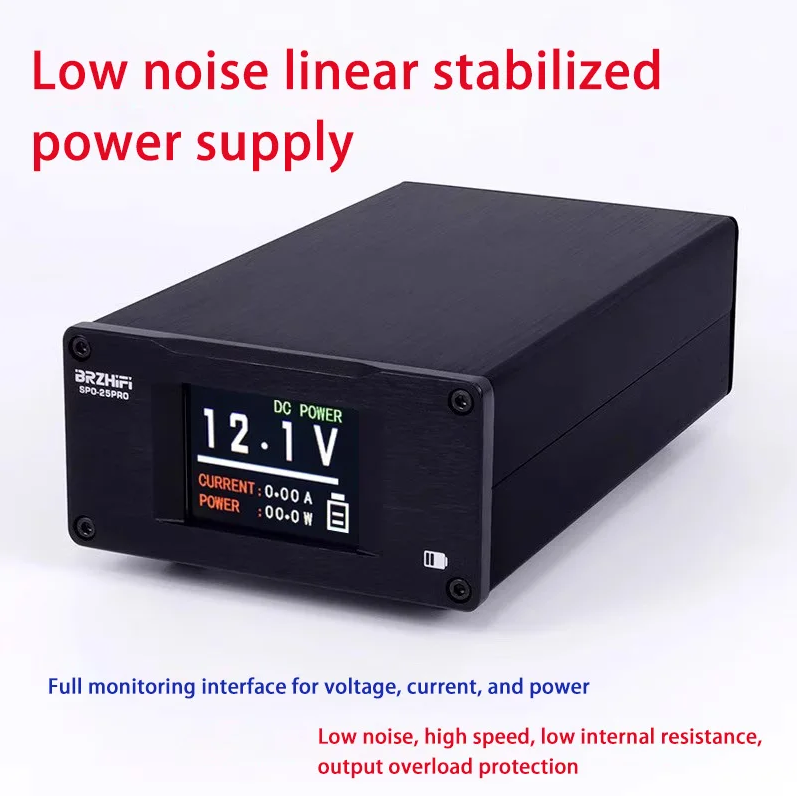

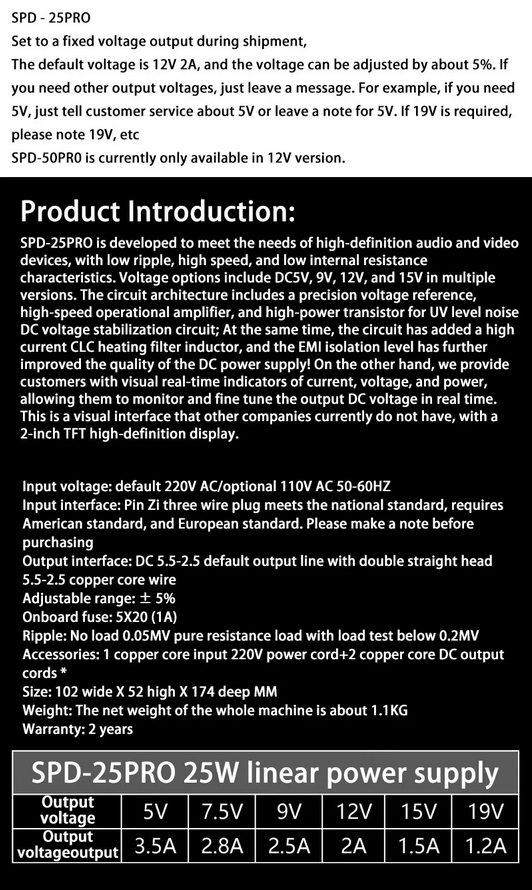

SPD-25PRO is developed to meet the needs of high-definition audio and video equipment and has low ripple, high speed, and low internal resistance characteristics. The voltage includes DC5V, 9V, 12V, and 15V multiple versions to choose from. The circuit structure is a precision voltage reference + high-speed op amp + high-power power tube UV-level noise DC voltage stabilizing circuit; at the same time, the circuit adds a CLC high-current fever filter inductor, and the EMI isolation level further improves the quality of the DC power supply! Another On the other hand, we provide customers with visual real-time indication of current, voltage, and power, allowing customers to monitor and fine-tune the output DC voltage in real time. This is a visual interface that no other company currently has, with a 2-inch TFT high-definition display. It also comes with a temperature sensor to monitor the temperature inside the machine.
Parameters:
Model: SPD-25PRO
Input voltage: AC220V /AC 50-60HZ
Output interface: DC 5.5-2.1
Onboard fuse: 5X20 (1A)
Ripple: no load 0.05MV pure resistive load load test below 0.2MV

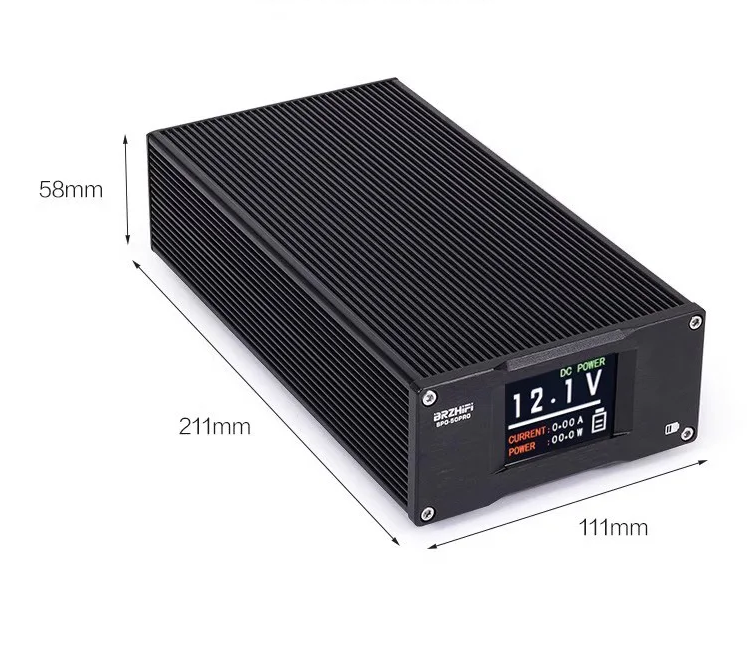

Dimensions: 102 wide x 52 high x 174 deep MM
Weight: 1.1KG
Package list:
1 × SPD-25PRO Linear Power Supply
