25W SUPER 3.5A Dual Output Low Noise DC Linear Regulated Power Supply Output: DC5V 9V 12V 24V, etc.

Product Details:

• Use Beijing Green Cube/TALEMA 25VA sealed transformer.(Beijing Green Cube Transformer for standard version，Upgraded version using TALEMA transformer)

• Ultra-low noise regulator circuit composed of precision reference + high speed op amp + MOS output tube.

• Aluminum wire drawing process shell, atmospheric fashion

• Rear precision adjustable resistor trimming output voltage.

• Vishay fast recovery high current finishing diode

• Full copper high current DC output seat

• EMI high current filter inductor

Specifications:

• Working voltage: AC230V or AC115V (optional)

• Output voltage: (optional)

  • DC5V

  • DC7.5V

  • DC9V

  • DC12V

  • DC16V

  • DC18V

  • DC24V

• Maximum output power 25W

• Dimensions (W*H*D): 102MM*50MM*150MM

• Net weight: 1.04KG

Package list:

1 × Linear power supply

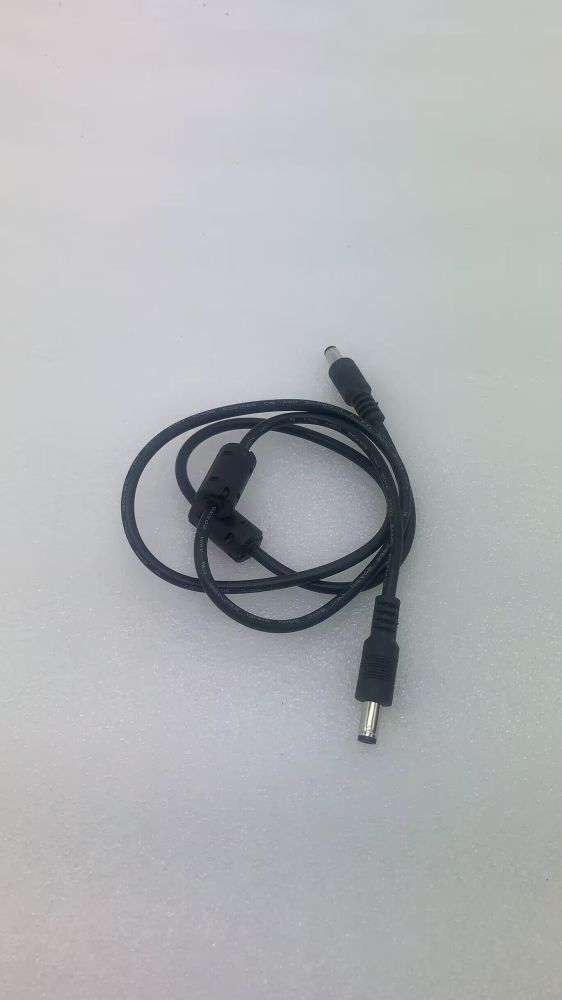

1 × DC 5.5-2.1mm output connection cable

P.S. Output connection cable We can also provide 5.5-2.5mm or 4.0-1.7mm or 3.5-1.3mm interface or USB cable
