The Leo line power is set to protect it from the set voltage value of 0.4V.
Ripple noise is very excellent. at audio frequency (20-20KHZ) is only about 5UV.
In the aspect of adjustment, it is inclined to be neutral, and at the same time strengthen the extension of high and low frequencies, and further strengthen the dynamic response. For players with higher system balance and players who like symphonic, Leo line is very A good choice.
Input voltage: AC115V or AC230V for choose
Output voltage: DC12V (continued 12A, peak 15A )
we also can custom-make following voltage:
DC5V---12A continuous, 15A peak
DC9V---12A continuous, 15A peak
DC12V---12A continuous, 15A peak
DC15V---12A continuous, 15A peak
DC19V---12A continuous, 15A peak
Interpretation: continuous current and peak current
Continuous current: refers to the safe current that can be used for a long time, mainly considering the overall heat dissipation problem.
Peak current: refers to the maximum output current that can be supplied in a short period of time, such as many NCU digital broadcasts. The current is relatively large when the power is turned on, but the current is not large when it is used normally after power on.
Size: 320*311*90MM (W*D*H)
Note: When using this linear power supply, do not hot-plug the power supply when the power is on, that is, the power supply cannot be plugged in device when power on.

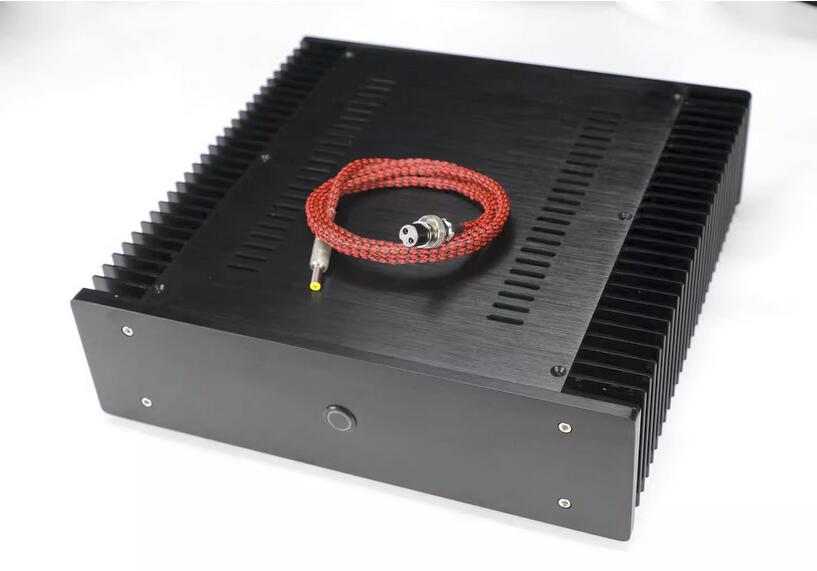

Package include: Power supply X 1
AC input cable X 1
DC cable X 1 (with 5.5*2.5mm plug)
