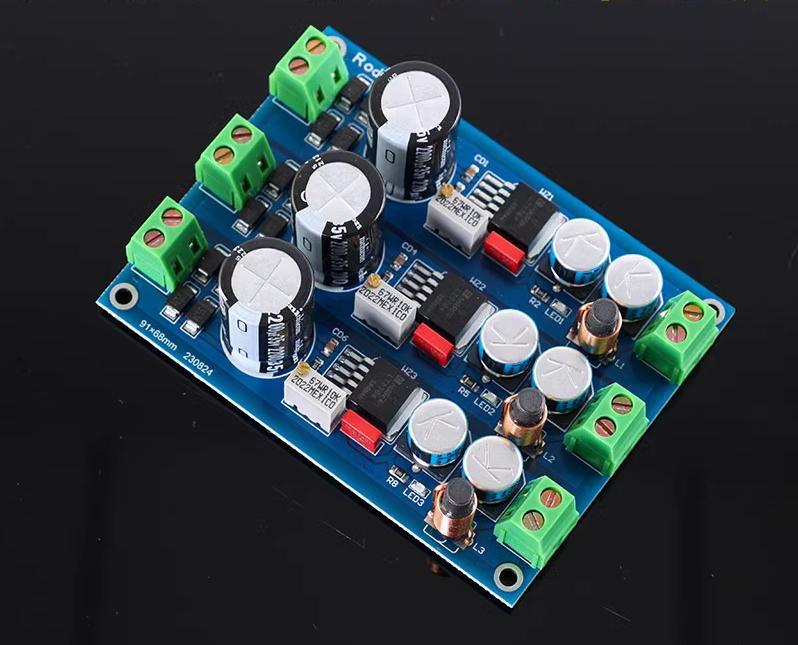

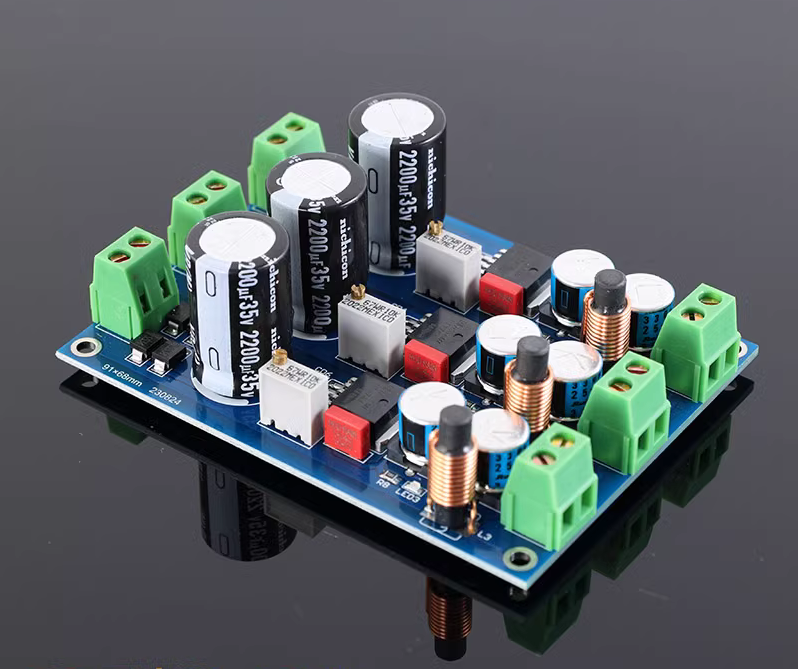

3A three-way LT1963 high-speed low-noise independent linear voltage regulator power supply board

Details:

3A three-way LT1963 high-speed low-noise independent linear voltage regulator power supply board

Using LT1764 chip

Supports 3A current, compatible with AC input or DC input! DC input voltage 4-16V, AC requires transformer labeled voltage below 12V! Cannot exceed! Output voltage 3-15.5v continuously adjustable

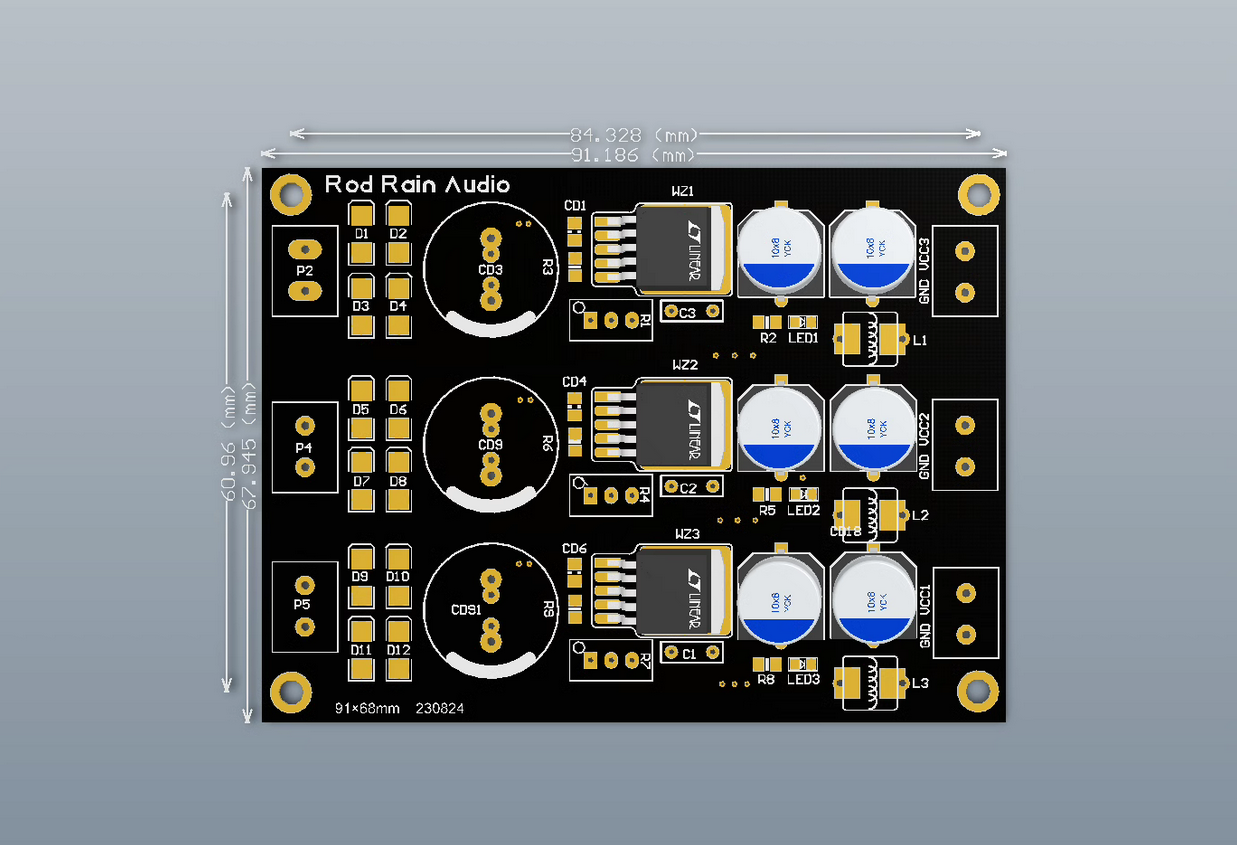

Size: 91*68mm ; Height about 30mm

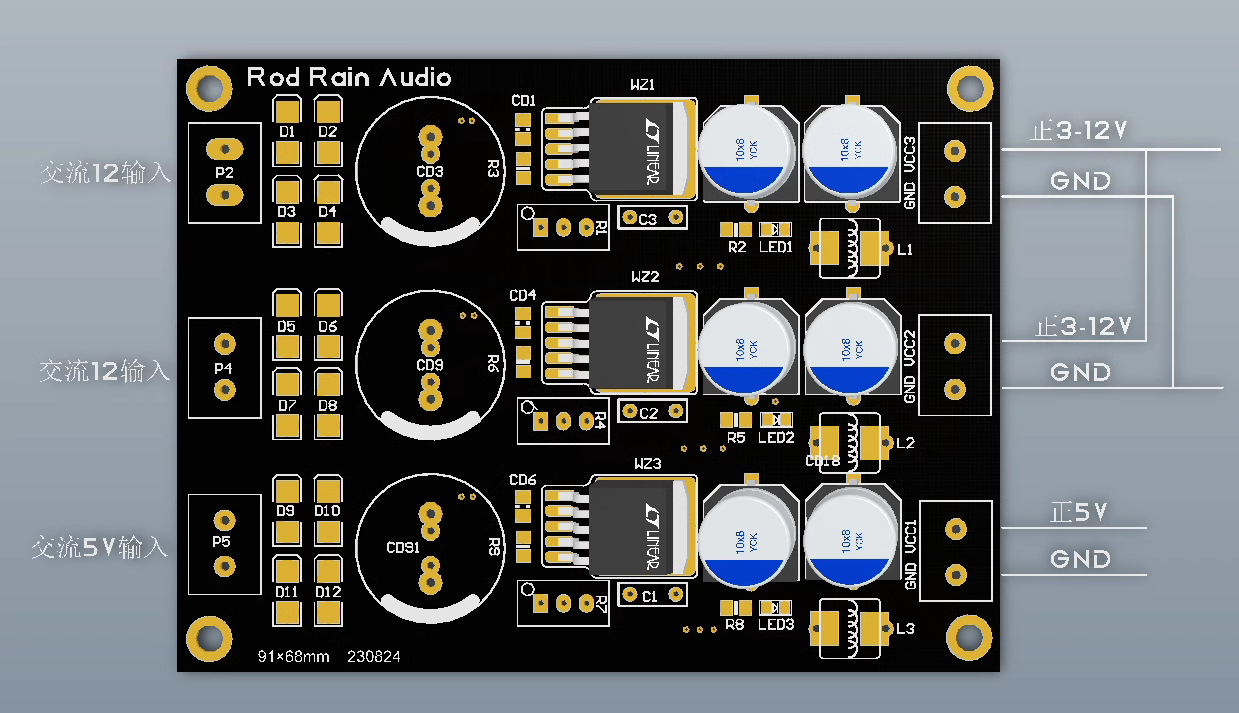

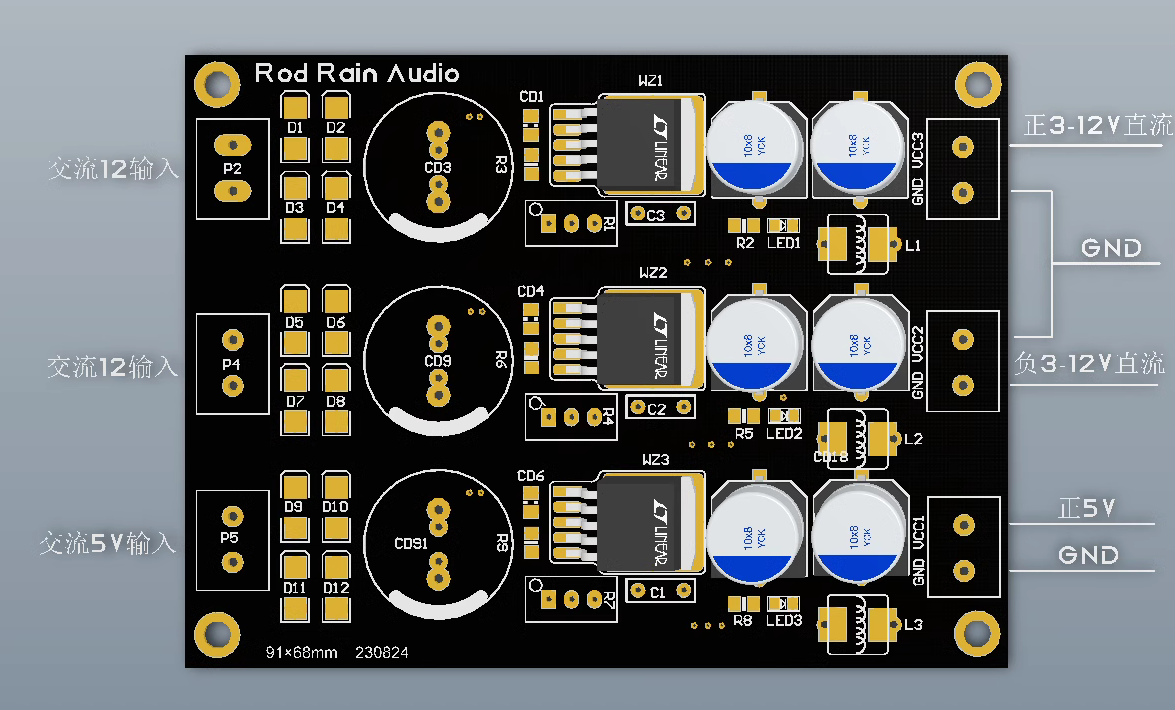

Provide 3 outputs, customizable output voltage according to customer requirements, DAC core stabilization option

Package List:

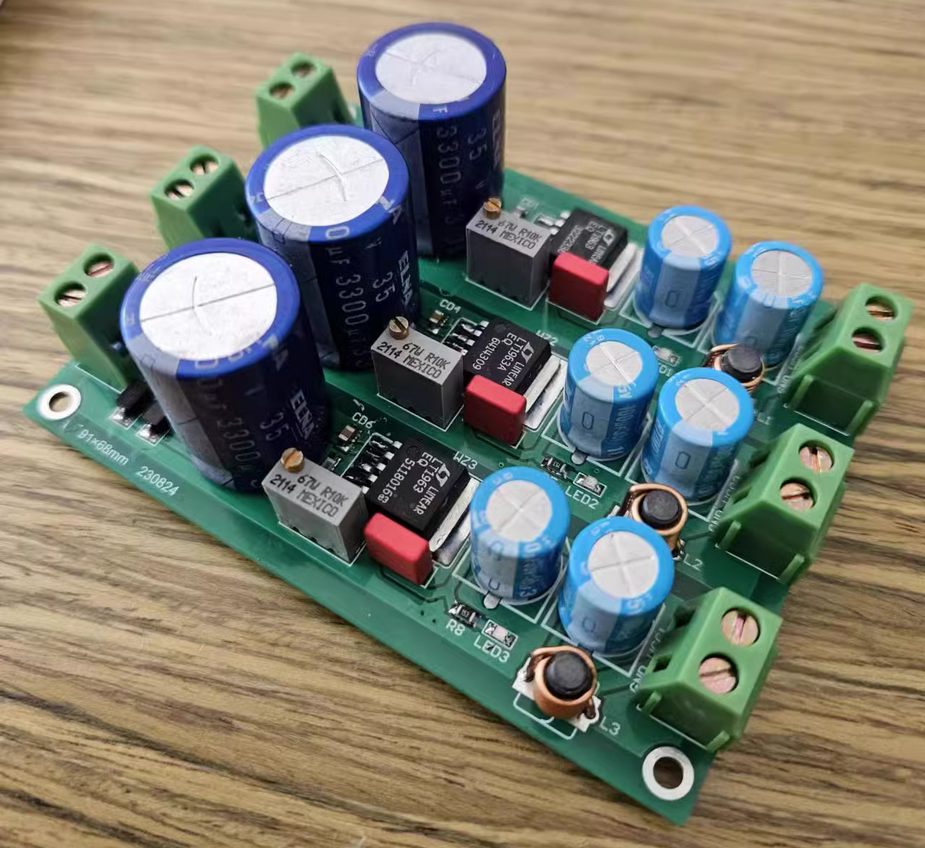

Assembled LT1963 Linear Power Supply Board x 1
