Product Details:

Output Power: 500W

Input voltage: AC100-120V or AC200-240V

The output voltage:

+/-30VDC

+/-35VDC

+/-37VDC

+/-40VDC

+/-45VDC

+/-50VDC

+/-55VDC

All auxiliary voltage: +/- 15V, 1A (shared GND with the main voltage), + 12V, 0.5A (Use independent grounding)

Dimensions (W*H*D): 133*50*100MM

Net weight: 0.3KG

Transformers 0.1mm * 100 multi-strand oxygen-free enameled wire, heat is very low, efficiency is more than 90%.

All high-frequency low-impedance electrolytic capacitors specifications, low ripple.

Instantaneous output current can reach 5-10 times the normal current, very suitable for high-power amplifier

Package list:

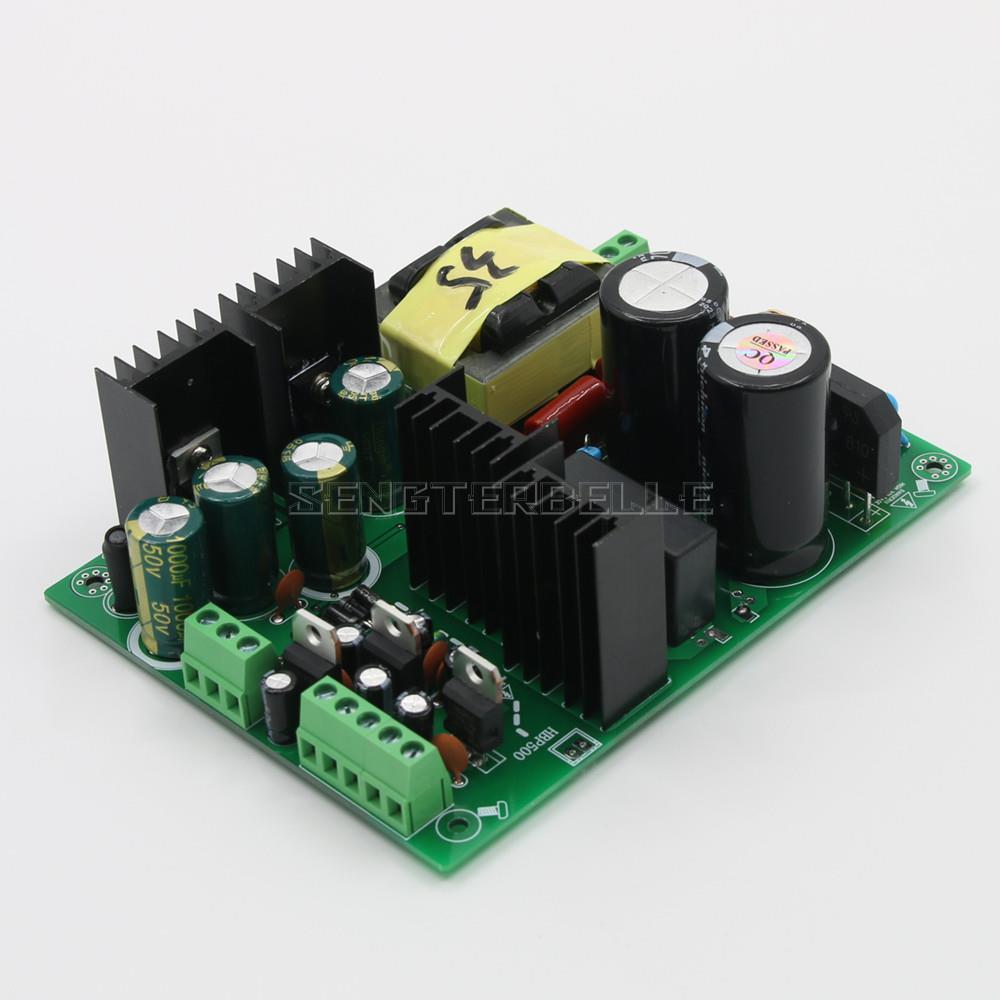

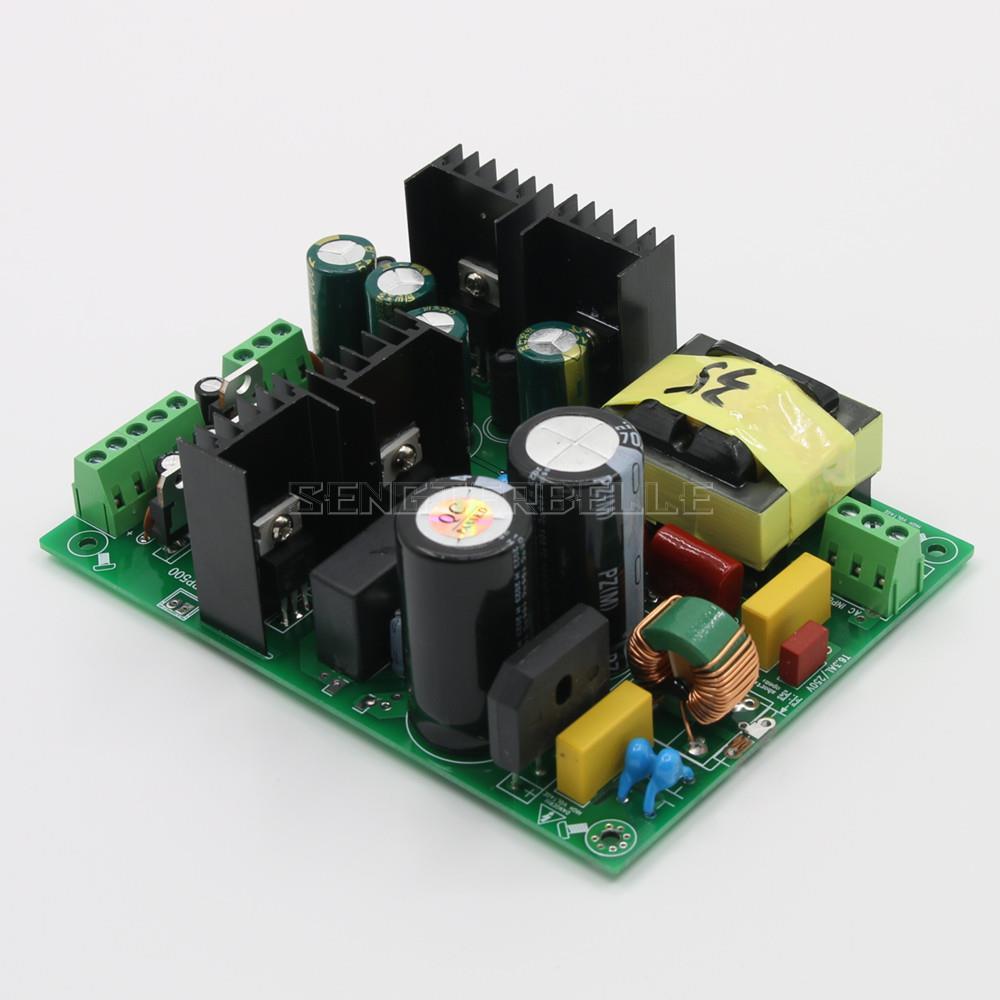

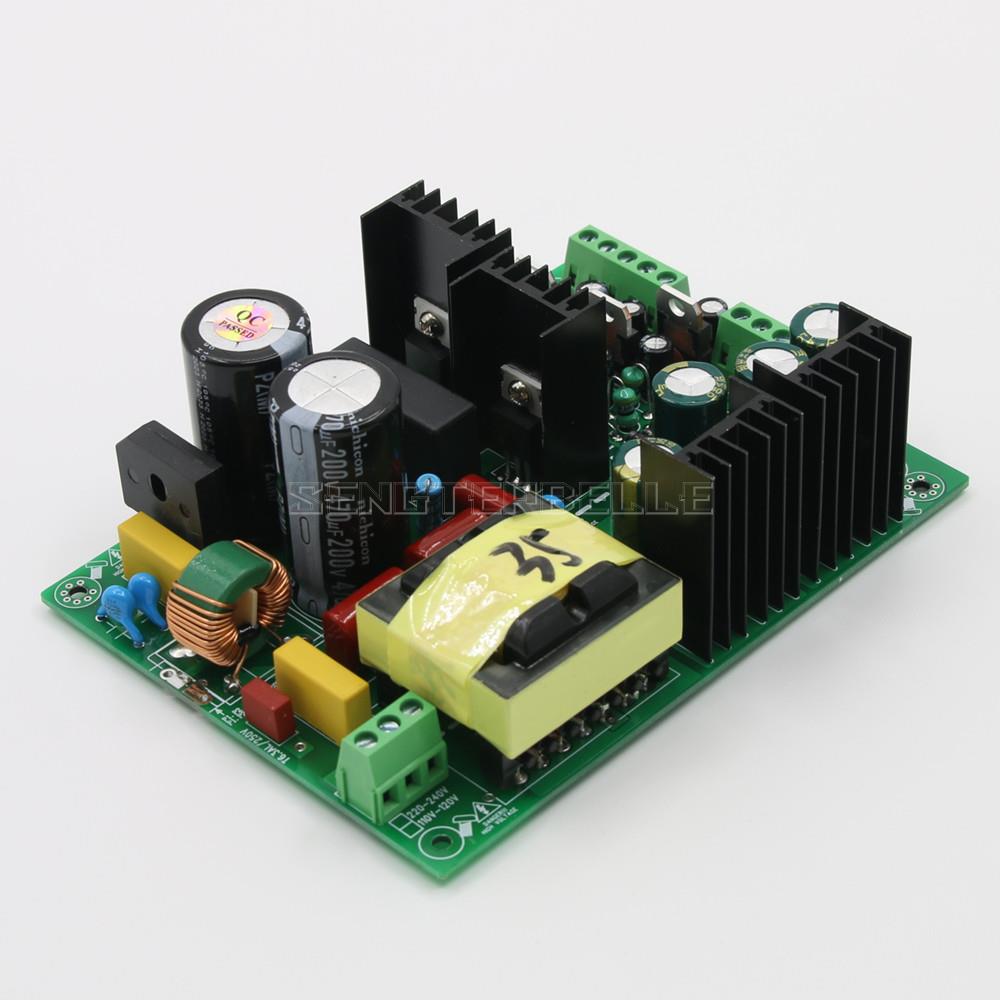

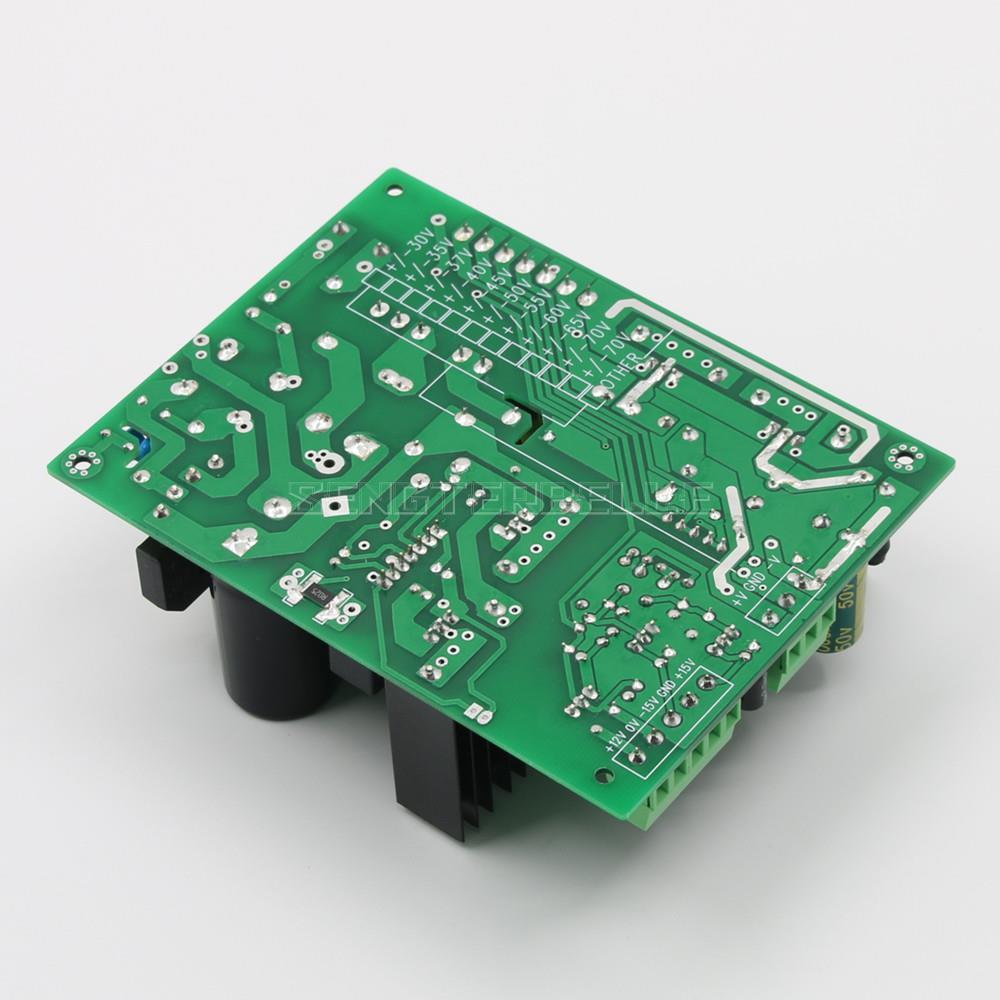

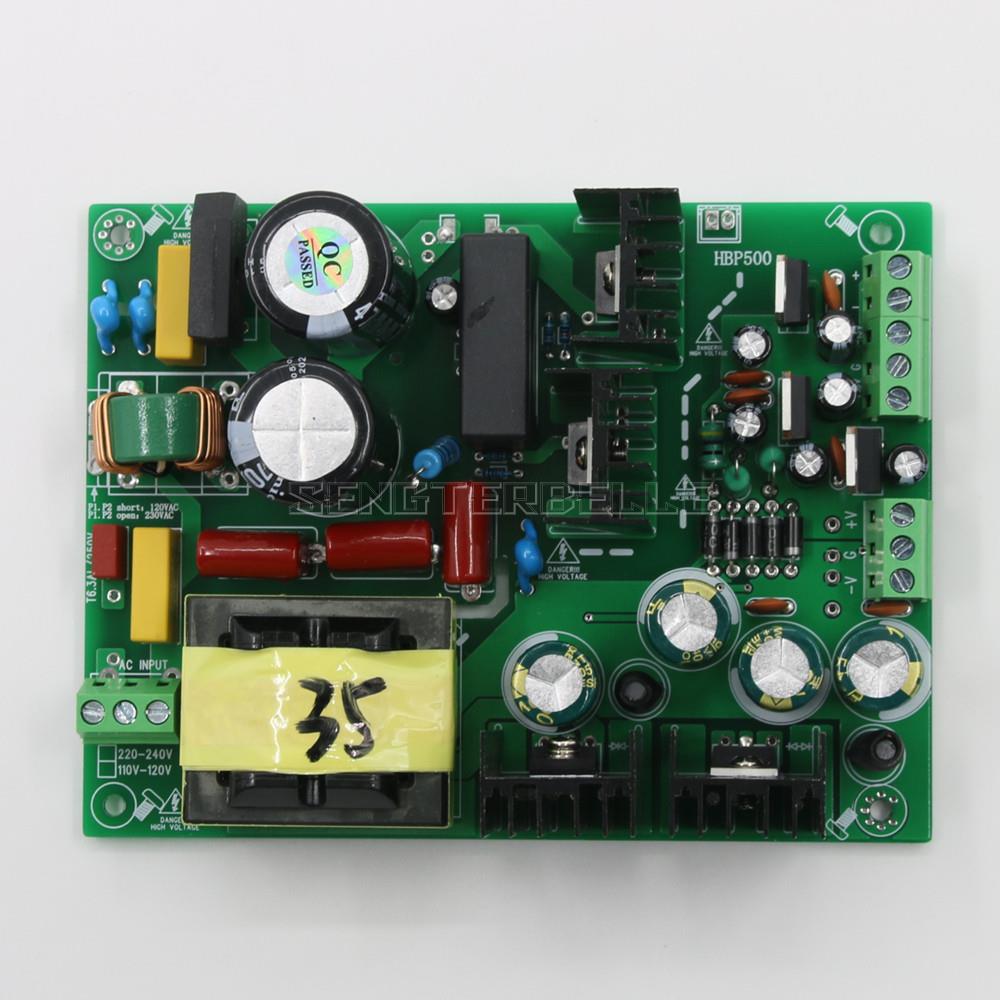

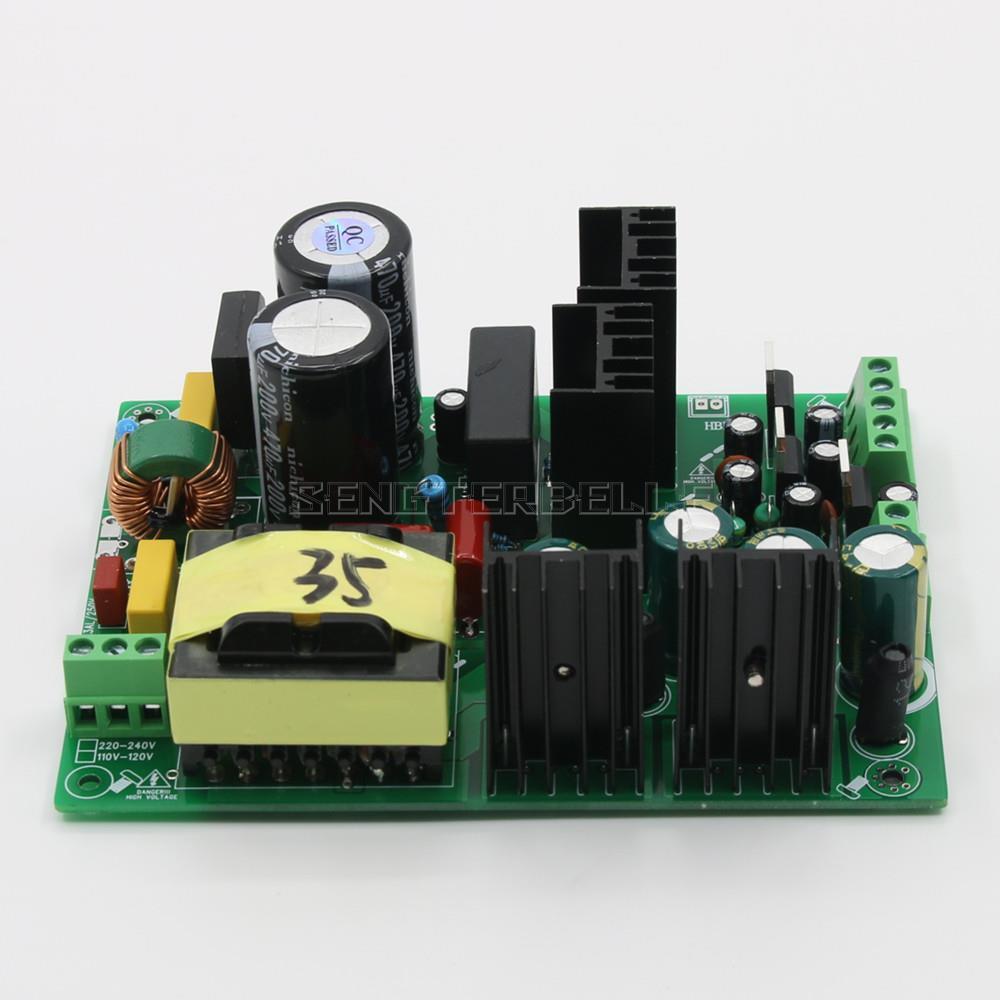

1 × 500W switching power supply board
