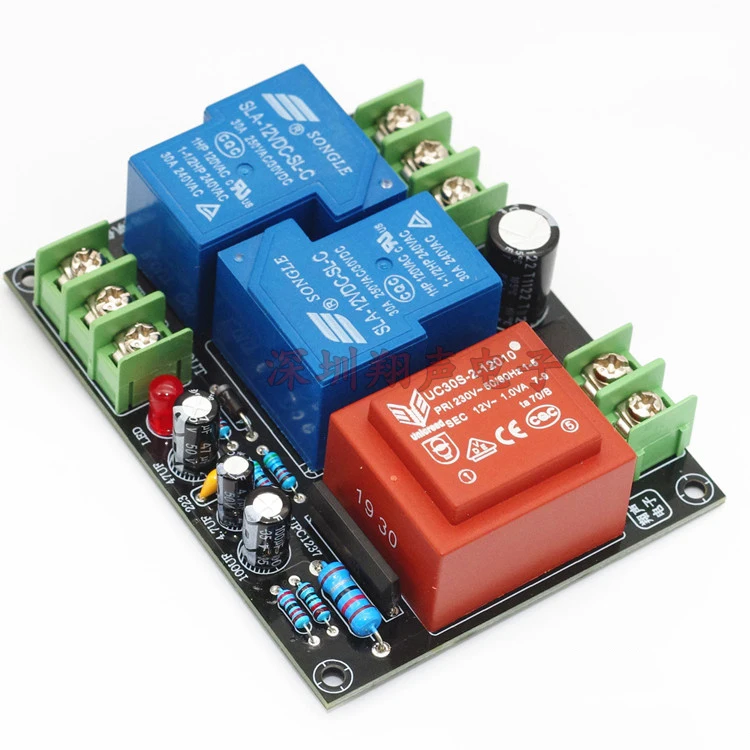

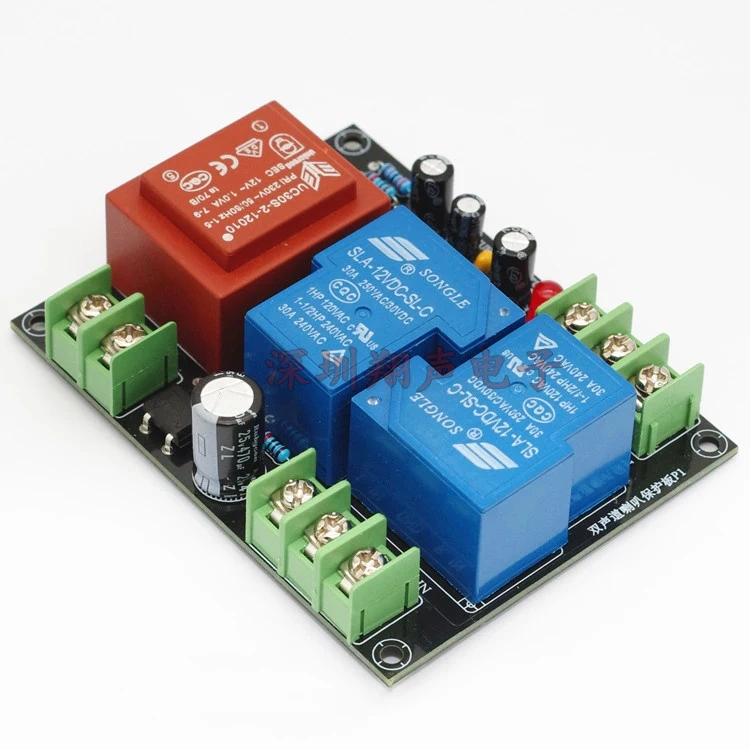

Overview of the two-channel speaker protection board:
Overview of the two-channel speaker protection board:
1. UPC1237 speaker protection chip dual-channel protection design,
2. Direct 220V AC power supply, built-in sealed small transformer on the board.
3. Use high-current terminal blocks for easy wiring.
4. Each channel uses a relay independently, the mono channel control current is 30A, suitable for power amplifier output protection below 2000W
5. When the designed LED lights up, it means it works normally.
performance:
Power-on delay: about 3S (3 seconds)
Midpoint protection: about 1V
Working voltage: AC 220V

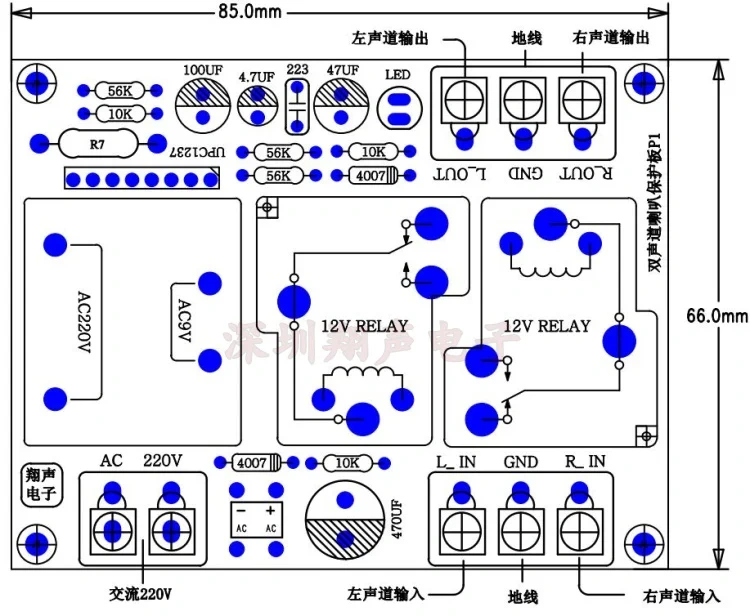

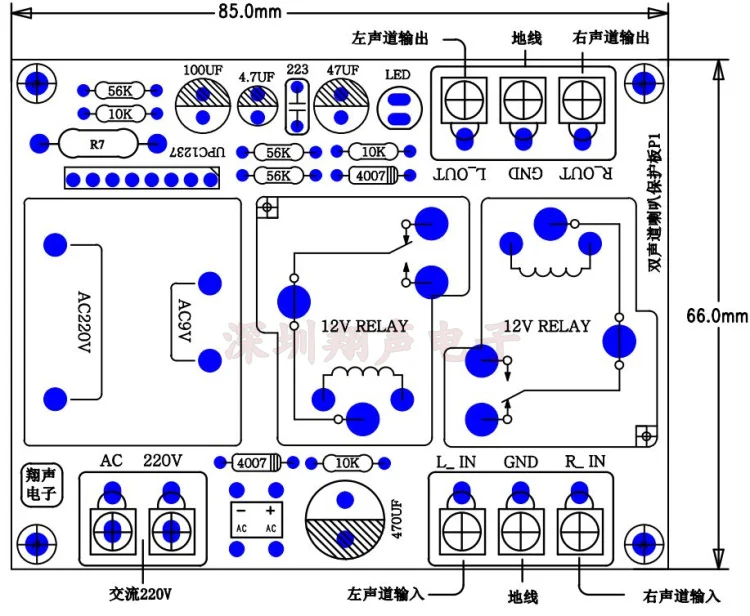

Board size: length 85mm, width 66mm, height 26MM, net weight: 158g
Protection category: startup protection, shutdown protection, DC midpoint protection
Remarks:
1). The relay adopts 30A sealed relay, one channel is controlled by one relay, and each channel is controlled by 30A current. The compact design of the small board saves installation and use space.
2). AC 220V power supply requires professional operation, high voltage is dangerous! ! ! !
Special attention is paid to the UPC1237 speaker protection circuit which is only suitable for ordinary power amplifier boards shared by the ground wire, and is not suitable for BTL, balanced output power amplifiers, or power amplifier circuits with capacitor output such as 1969.
2.0 Dual-Channel Speaker Protection Kit This UPC1237 kit provides reliable dual-channel speaker protection, ideal for high-performance audio systems. Designed for durability and precision, it ensures long-term stability in demanding environments.
High Current 30A Power Supply Support Built to handle high current demands, this board supports up to 30A, making it suitable for powerful amplifiers. The robust design ensures consistent performance under heavy load conditions.
220V AC Power Compatibility Designed for use with 220V power supplies, this kit fits standard home theater systems in regions with 220V electrical networks. Ensures safe and efficient operation with compatible power sources.
Fully Assembled or DIY Kit Option Available in both DIY KIT and Fully assembled versions, this product offers flexibility for users at any skill level. Choose the version that best matches your technical preference and project needs.
Compact and Lightweight Design With a package size of 15 x 15 x 5 cm and a weight of 0.300 kg, this kit is easy to store and transport. Its compact form factor makes it ideal for small workspaces and quick installations.
