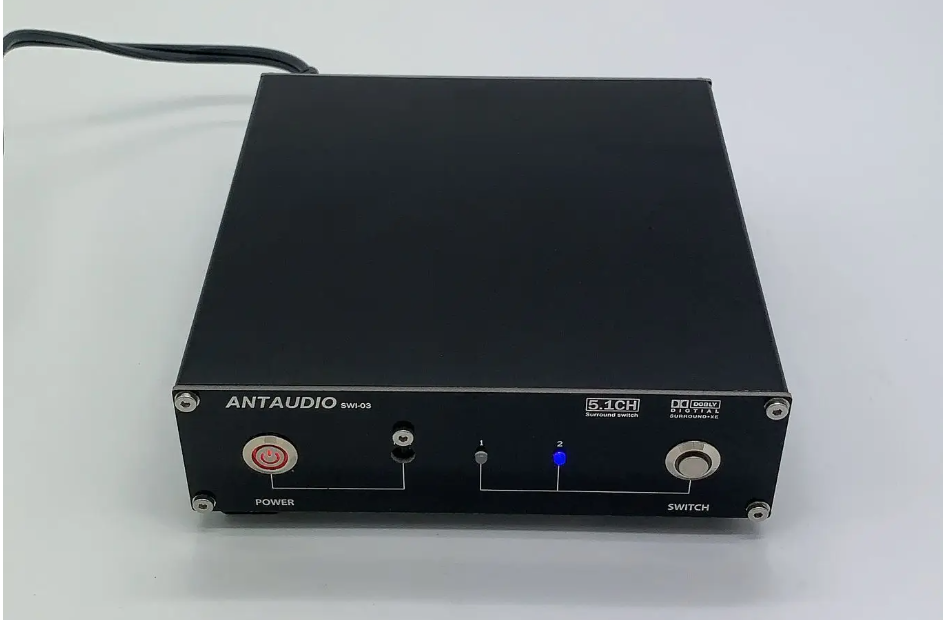

Functional introduction:
At home, there are several of 5.1 channel output devices, such as DVD, computer sound card, set-top box, but only 1 power amplifier with 5.1 channel input, so if the different equipment access to the power amplifier will be frequent connection, very annoying brain.
Using this board can solve the above problems perfectly. You can connect 2 sound source devices to the 2 sets of the switch, and then connect the output of the switch to the input of the 5.1 channel amplifier. At this point, you want to listen to the control switch that only needs to operate the switch board. To say goodbye to the trouble of frequent wiring.
Reverse applications such as access to 1 5.1 audio source devices can be allocated to 2 power amplifier devices through this switcher.
This board power connection is very simple, because the board with its own polarity automatic conversion circuit, so no matter the AC or DC power supply, do not consider the positive and negative pole, that is, the power supply 2 lines. Never damage the main board.

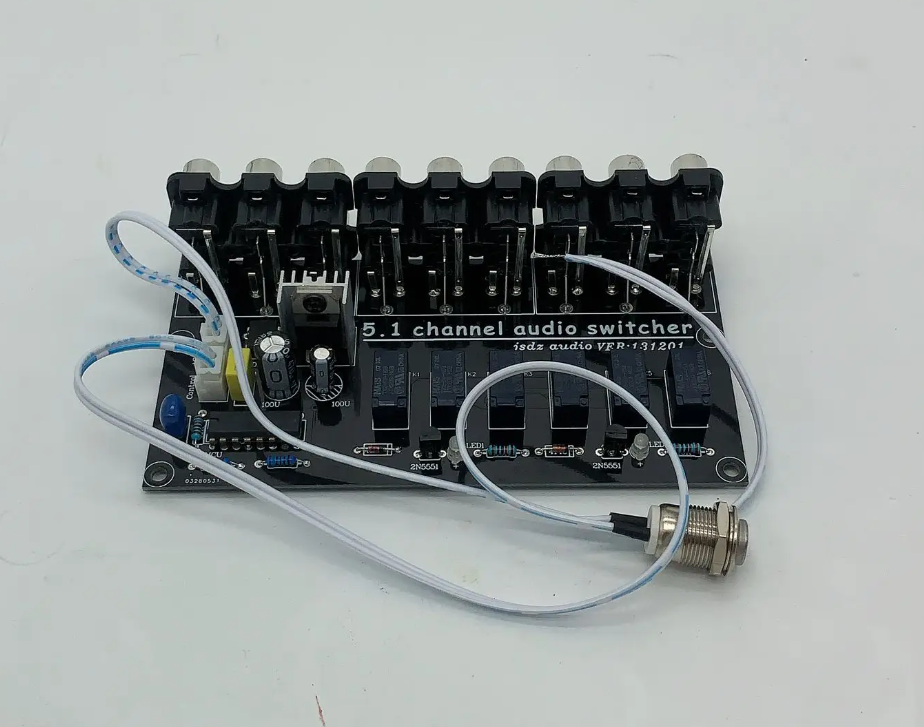

Switching mode: relay switching

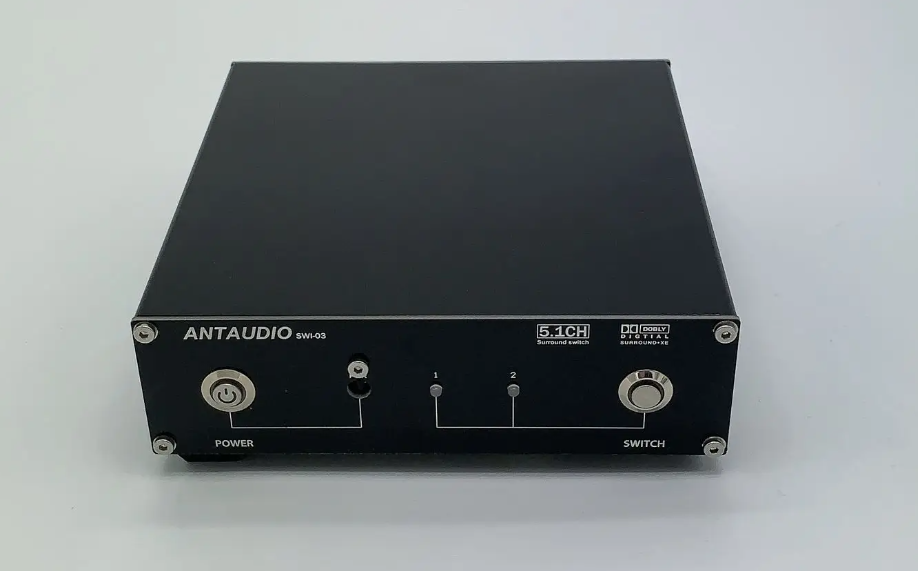

Control mode: electronic touch key loop control

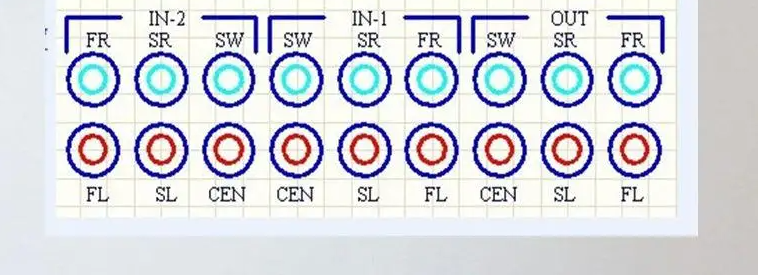

Number of inputs: 2 Road (6 sound track)
Number of road output: 1 Road (6 sound track)
Main board size: 124.6MM*62.3MM
Working voltage: AC (AC) 9V-12V
DC (DC) 12V-15V
