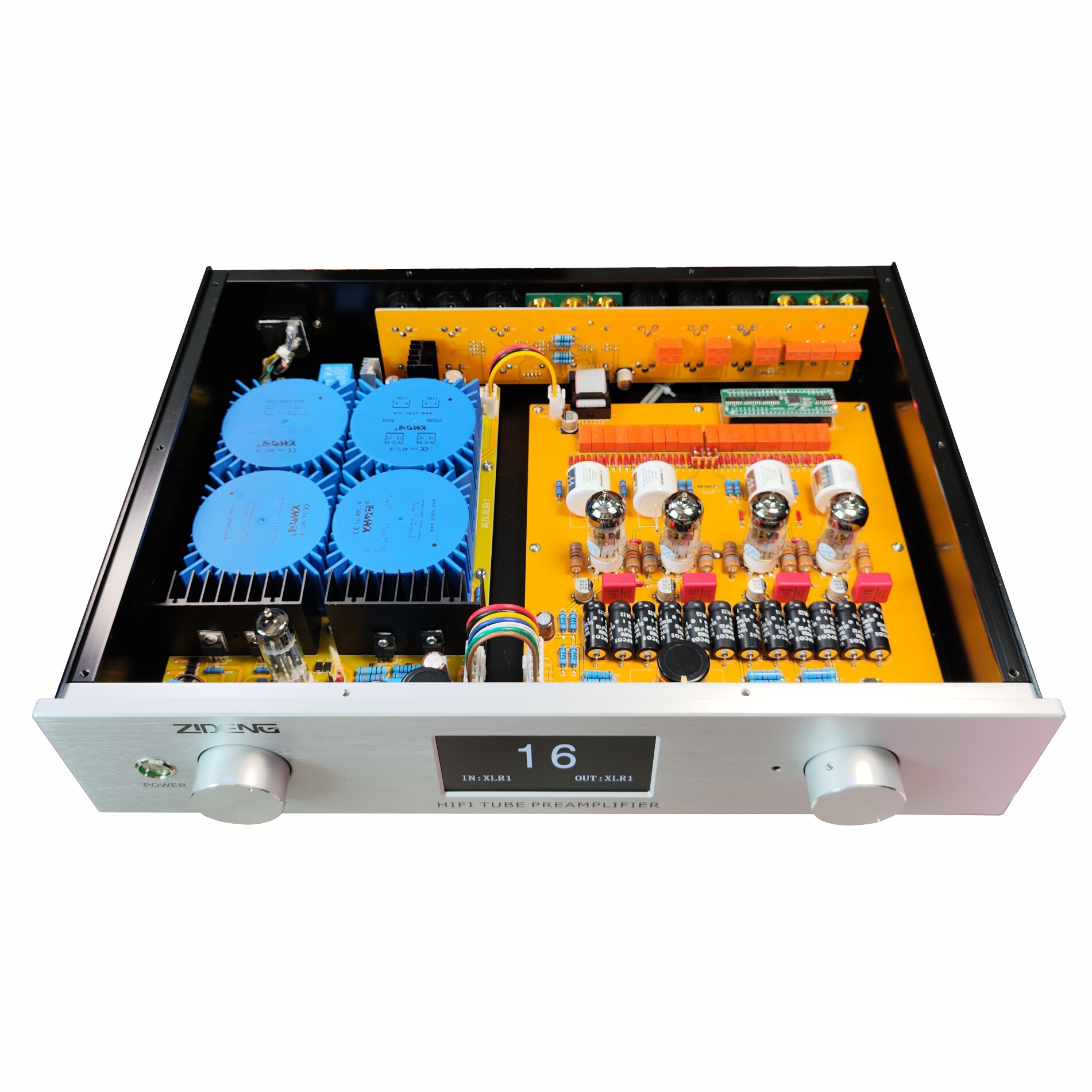

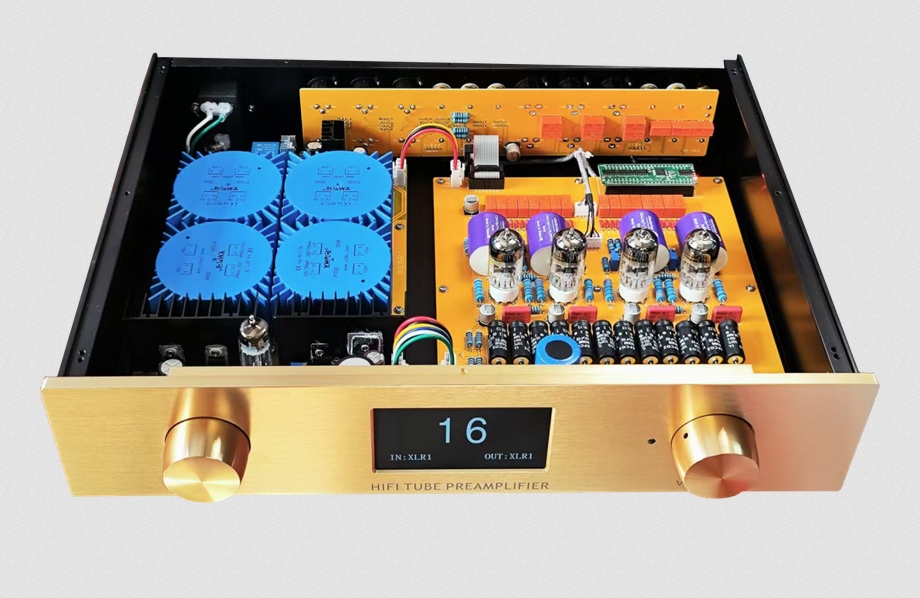

6DJ8 6922 HIFI DIY stereo Fully balanced tube preamplifier Multiple configuration options available

Name: 6DJ8 6922 HIFI DIY stereo Fully balanced tube preamplifier Multiple configuration options available
Brand: BRZ-hifi-audio
SKU: D66
Price: 598 USD
Availability: InStock

sales

5.0 (1 Reviews)

3 Sold

~~$650.00~~ $598.00

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

input voltage:

AC220V

AC110V
Front panel color:

silver

gold

black

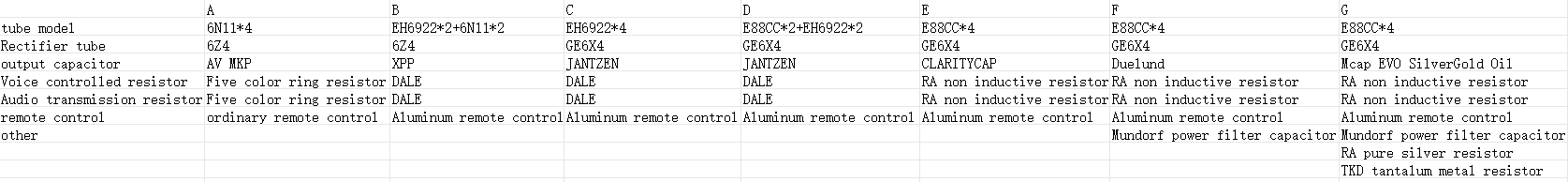

Type:

A

B

C

D

E

F

G

Quantity:

Add to Favorites (10)

1/1

Description

Features:

This preamp is designed with reference to Conrad Johnson, ARC, and other circuit designs, with high and low frequency extensions in place; Moderate mid frequency; Accurate sound field positioning and transparent sound.

After 50 hours of use, this preamp fully activates the electronic tube, resistors, and capacitors before entering a good state.

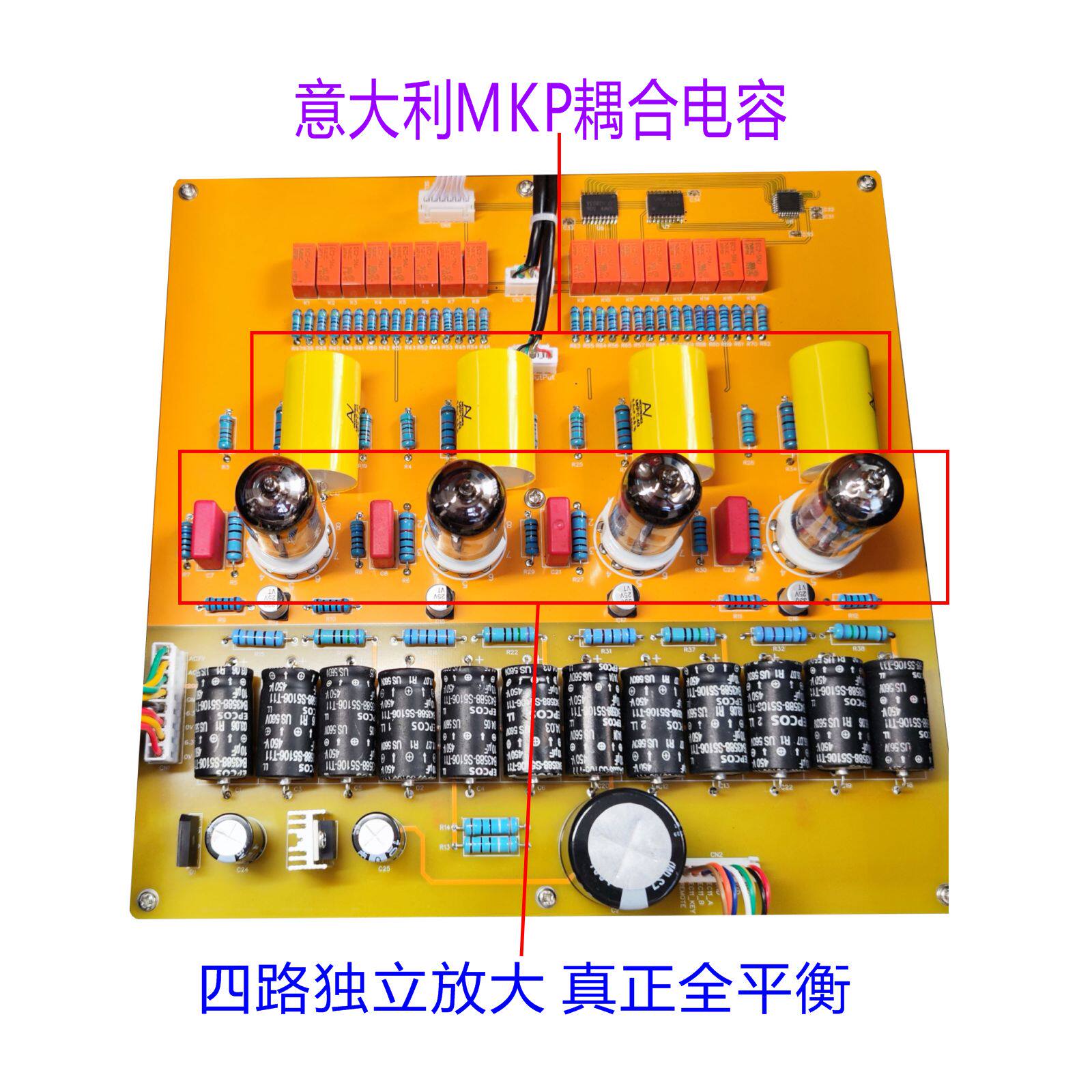

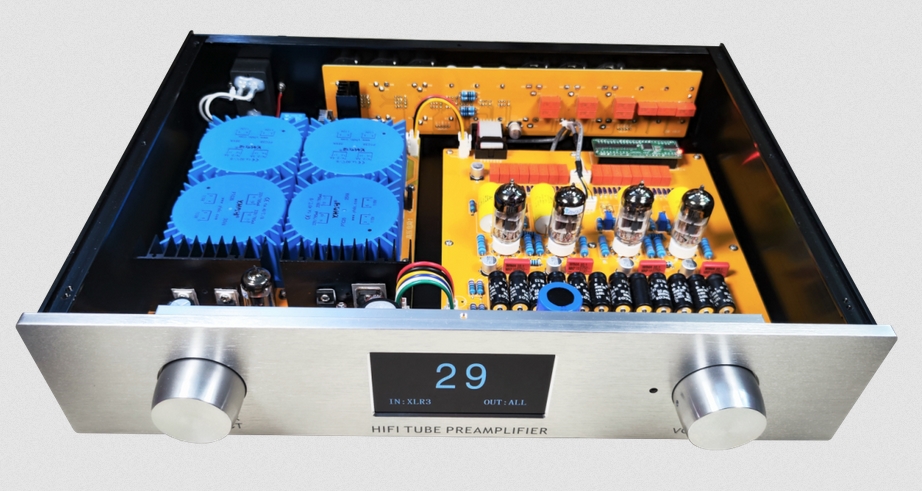

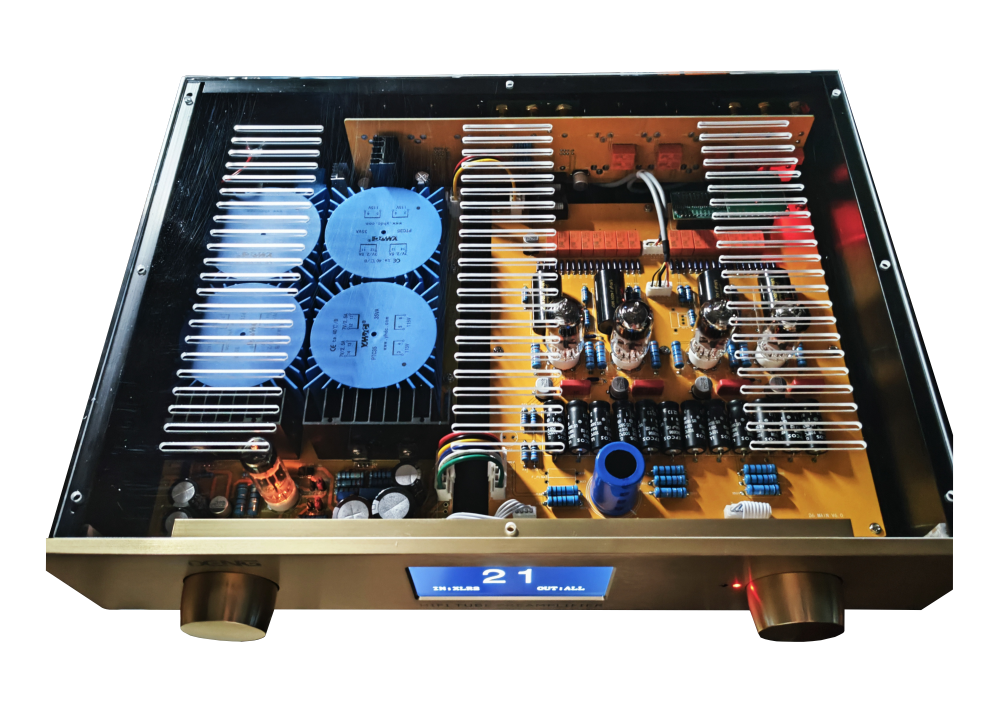

● Truly balanced, with 4 independent control and amplification channels throughout the entire process.
● Built in balanced isolated power supply for a quieter background.

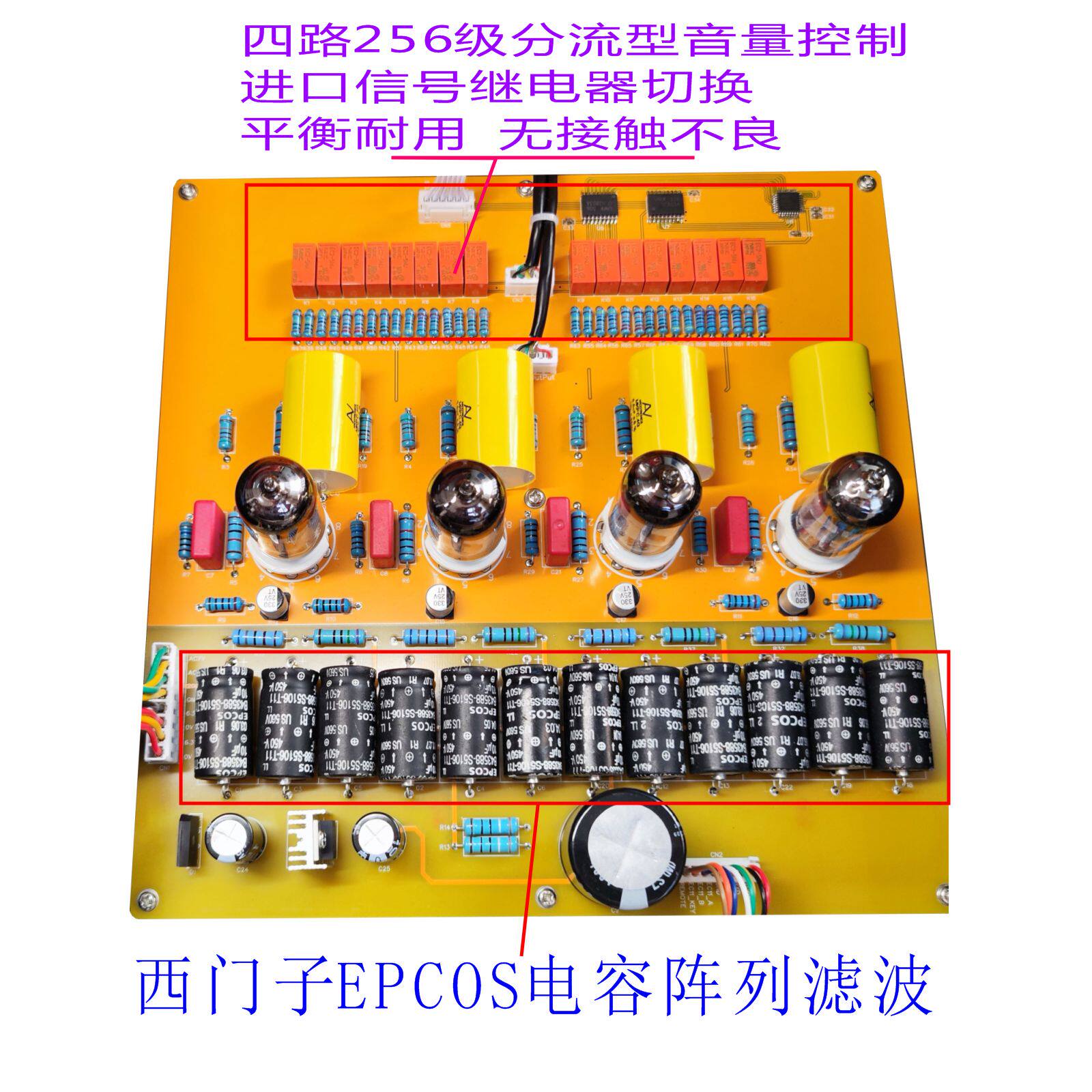

● Relay switching resistor R2R controls volume, with good sound quality, stable and reliable.

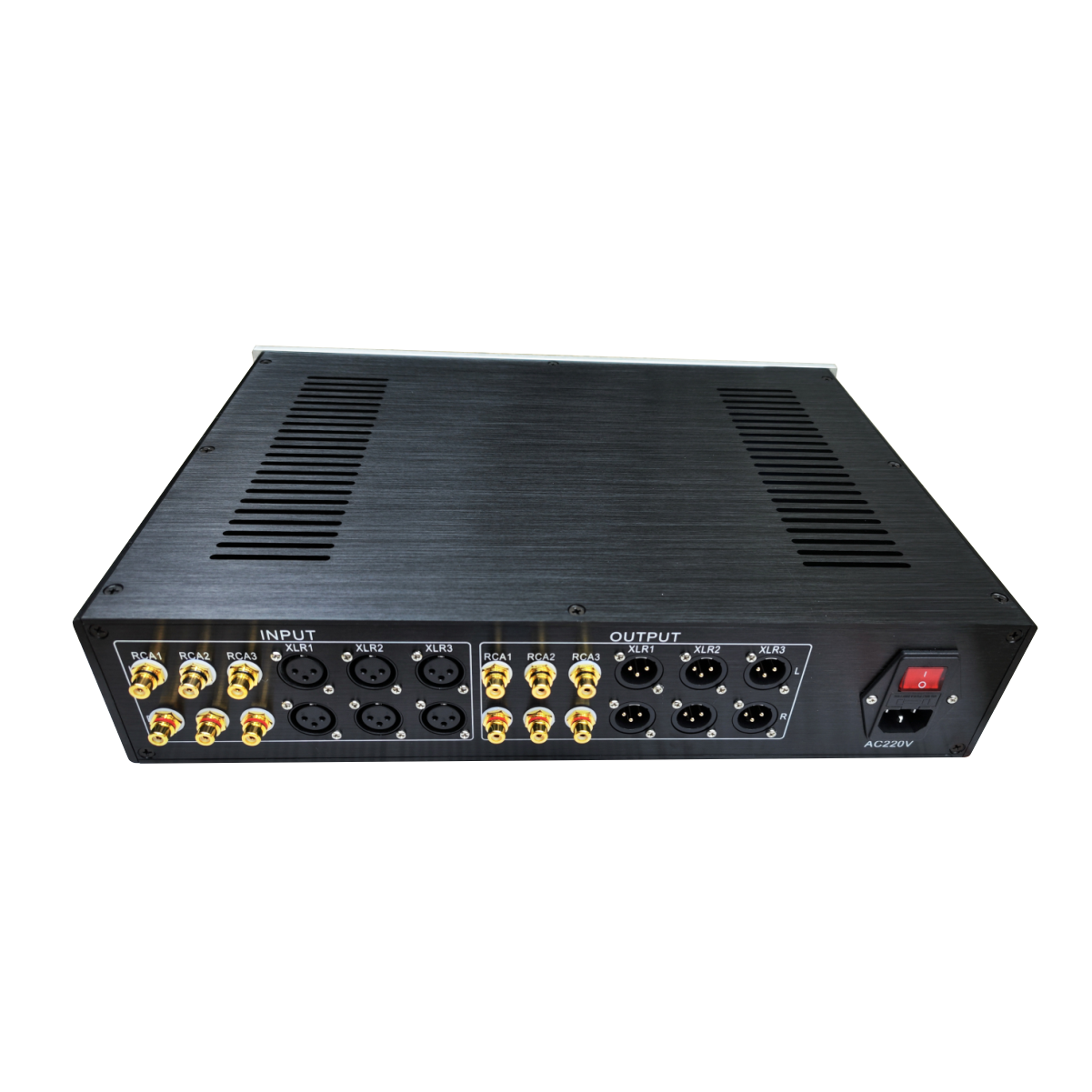

● 3 XLR inputs, 3 RCA inputs
● 3 XLR outputs, 3 RCA outputs.The output port can be switched and selected, with single output or 6 simultaneous outputs

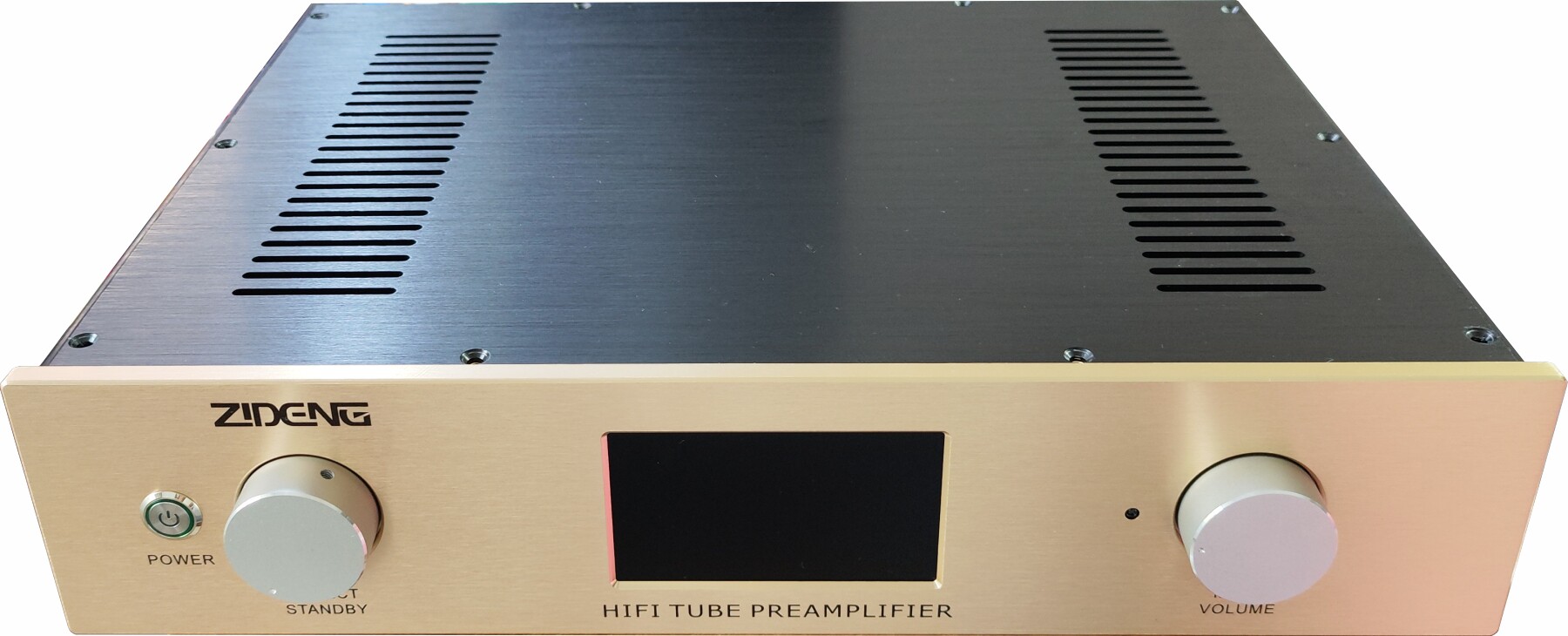

● Remote control and button power on/off, low standby power consumption.
● Independently developed complete machine control system, smooth, safe and stable.
● Power on mute delay, no impact when turning on or off.
● The rectifier tube is compatible with 6Z4 and 6X4.

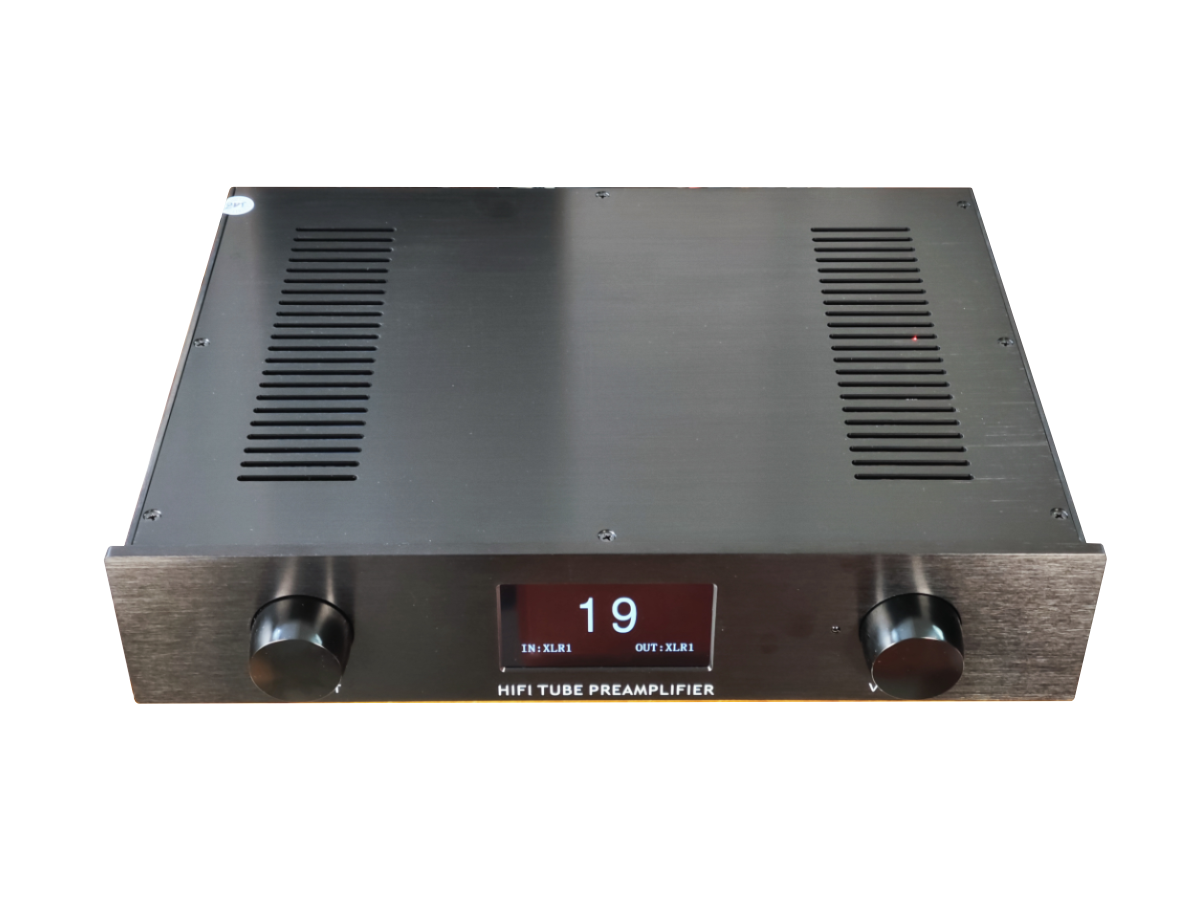

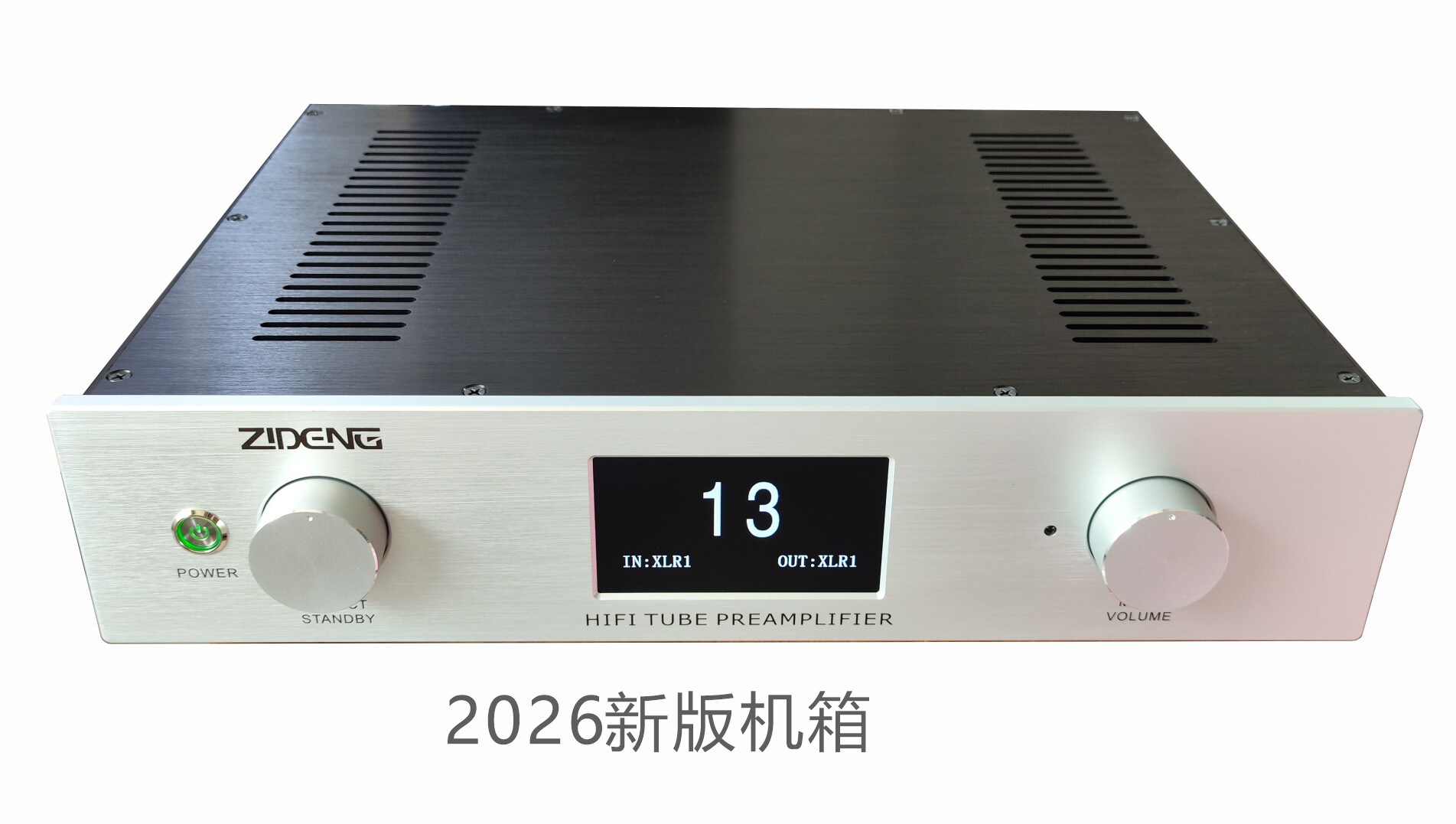

● Large screen LCD display, showcasing high-end features
● CNC machining of all aluminum alloy chassis.
●

Parameters:

● Input impedance: 100K
● Output impedance: 150 Ω
● Voltage gain: 15db
● Frequency response: 8Hz-150KHz
● Harmonic distortion: 0.01%
● Signal to noise ratio: 100db
● Power consumption: 55W
● Weight: Approximately 9kg
● Size: 430 * 310 * 95mm
● Input voltage: AC220V/110V

List:

1 x tube preamplifier(To ensure installation during transportation, power input cables are not included by default)

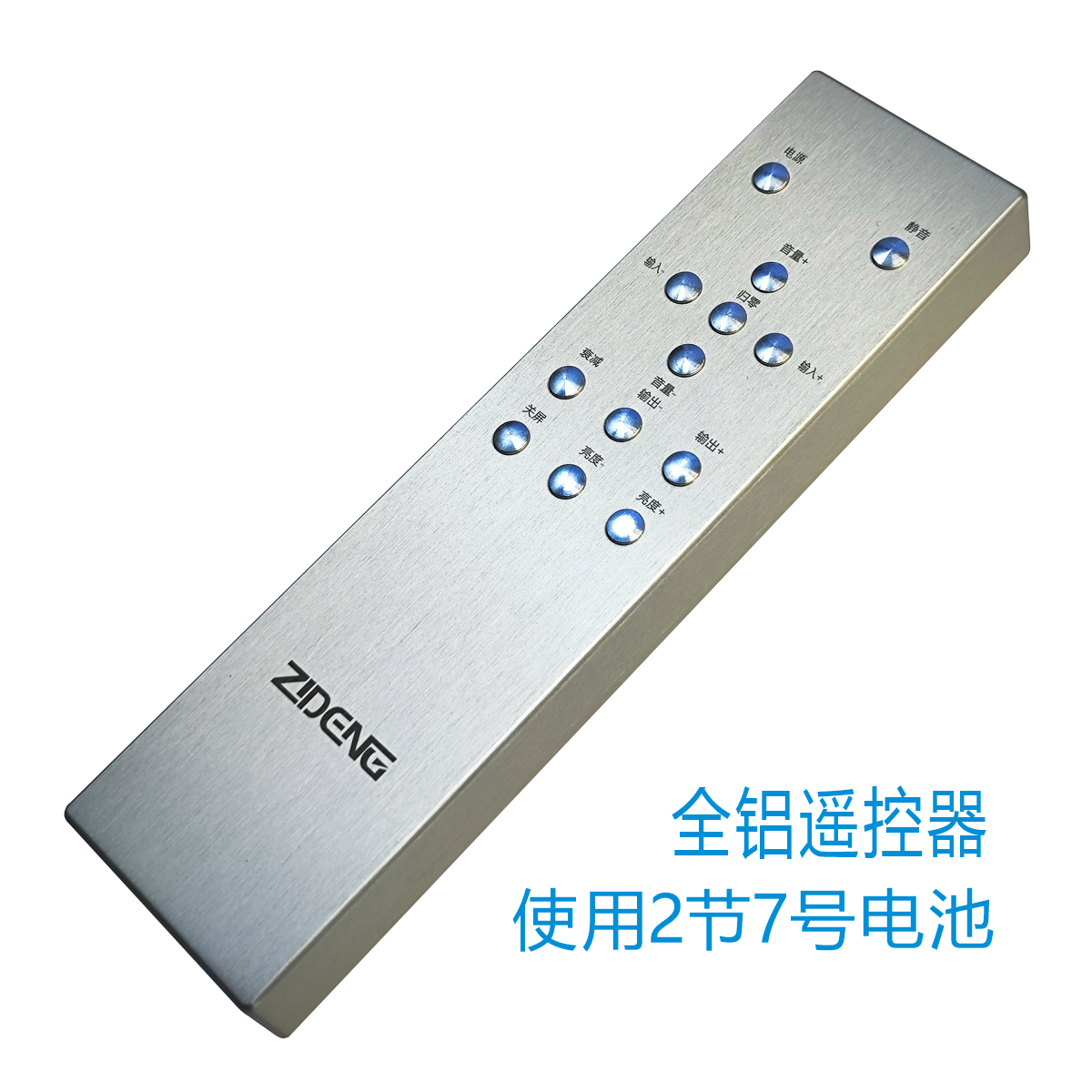

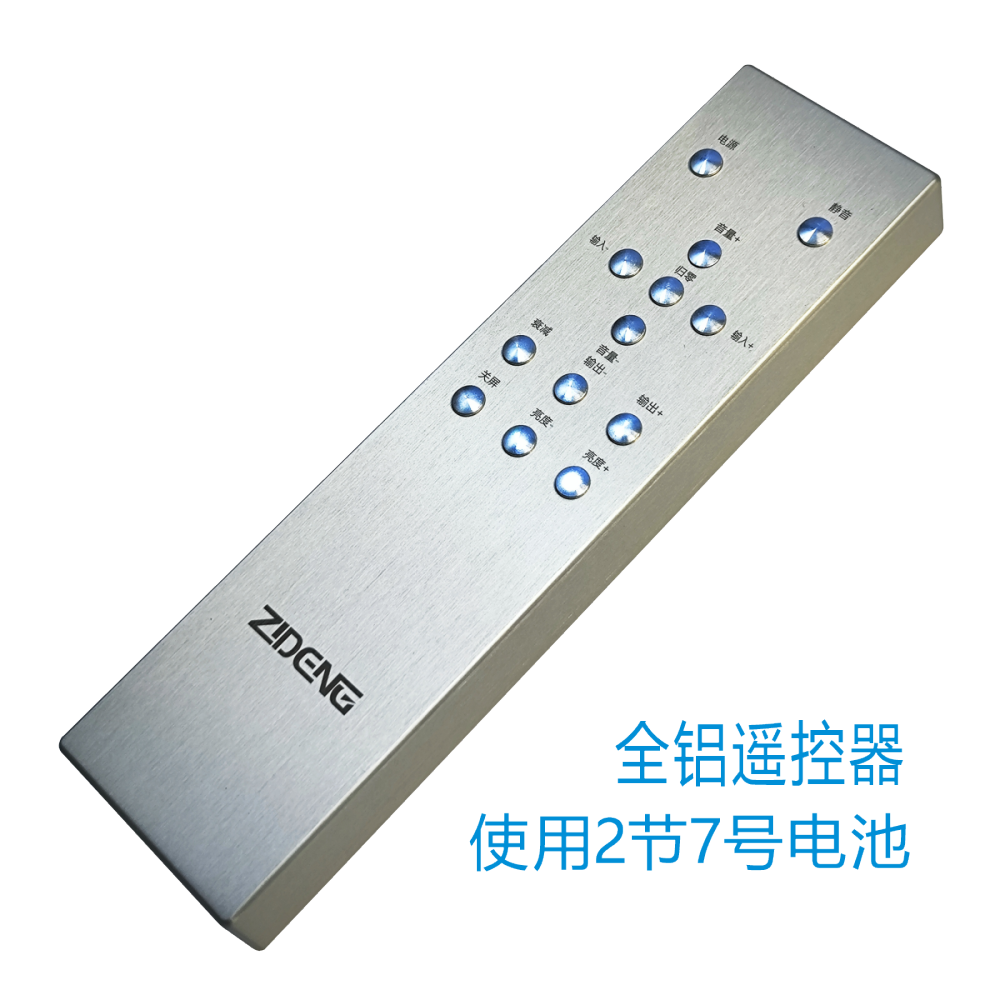

1 x Remote control (without battery)
