Product Details:
EIZZ Precision Long Life 33 Step by Step Potentiometer Stereo Freezing Edition with Divided Pressure Structure
AMRS high-end series, featuring high-quality national treasure level AMRS resistors from Japan.
Strictly measure and match, allowing each note to be perfectly and realistically displayed.
Specifications:
Number of steps: 33
Type: Stereo, Serial type
Angle of each step: 10 degrees
Resistance: 100K
Resistors: Japan ARMS 1/4W carbon film resistors
24K gold plated contacts
Total: 65dB
Mechanical life: 20,000 cycles and above
Outside housing: Aluminum 6061, chrome plated

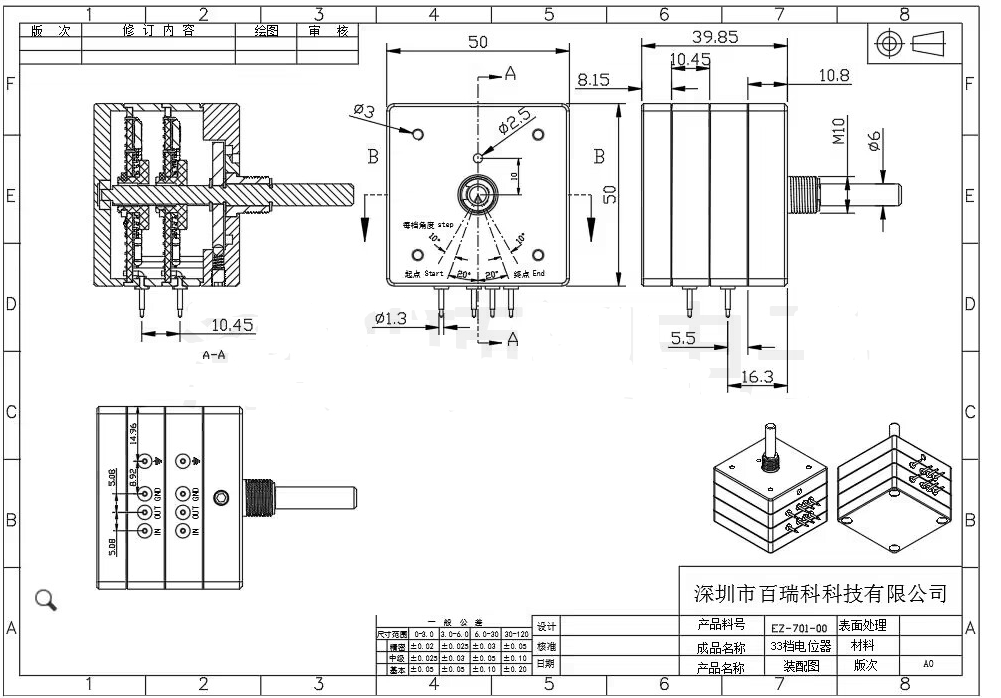

Housing dimension: 50*50*40mm
6mm brass shaft (C3064)
Overall shaft length: 31.25mm
Net shaft length: 8.25mm
Panel cut out: 10mm
24K gold plated copper pins
ABS insulator
Pin diameter: 1.3mm
Package List:
1 × EIZZ Stereo 33 level volume Potentiometer
