Product details:

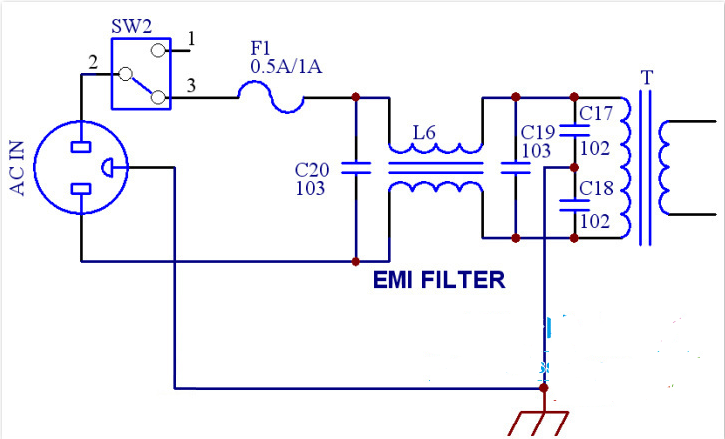

The power EMI filter is a reactive low-pass filter installed at the power inlet of electronic devices. It can suppress noise interference transmitted through the power line of the power grid, as well as high-frequency interference signals generated by the electronic devices themselves from entering the power grid, which can harm other electronic devices. Therefore, EMI has become a necessary component to be installed in electronic devices.

matters needing attention :

The selection of EMI filters should consider their operating voltage, operating current, and withstand voltage value.
The EMI filter should be installed at the power inlet to reduce radiation interference.
It is preferable to use twisted pair cables for EMI filter connection, as they can eliminate some high-frequency interference signals.
The input and output lines of EMI filters should not be parallel and should be separated by a certain distance to ensure the functionality of the filter.
The E point of the EMI filter must have good contact with the chassis and be properly grounded.

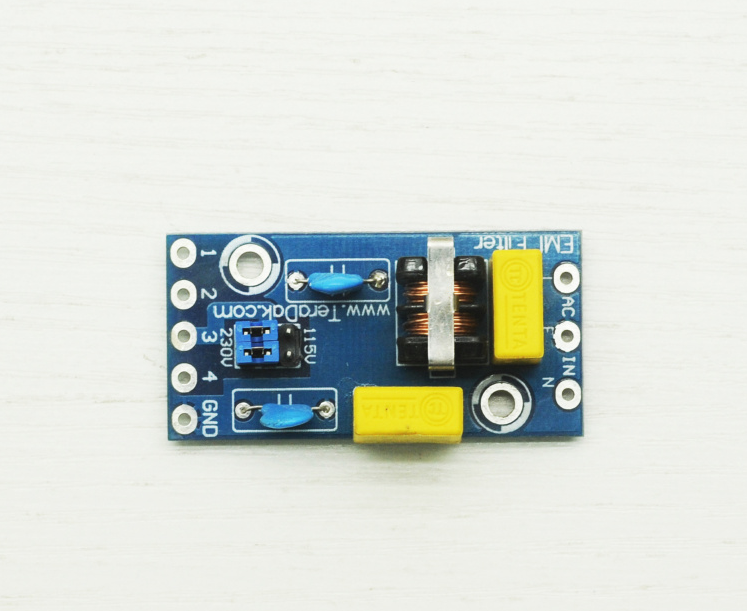

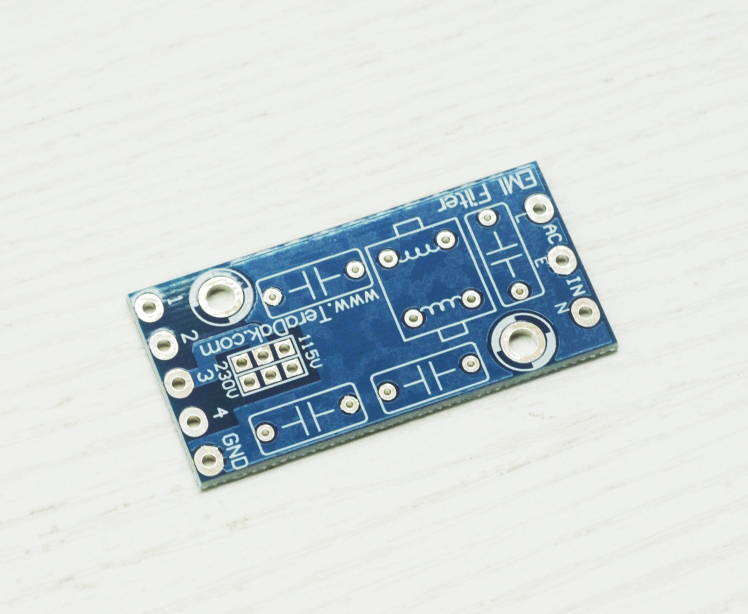

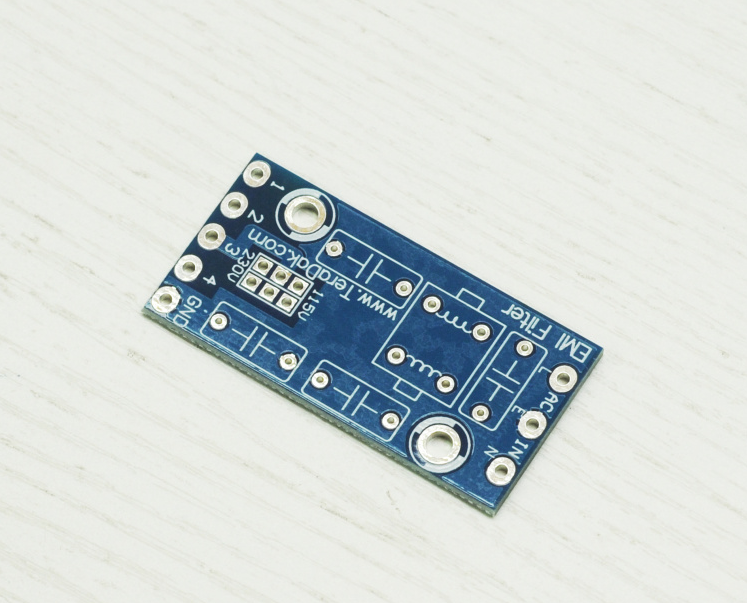

PCB size: width 25mm * length 50mm (see figure for mounting hole size)
PCB thickness: 1.6mm
Finished board height: 18mm
Screw hole diameter: 3.5mm
Distance between front and rear holes: 9.5mm
Distance between left and right holes: 4MM

List:

EMI board x 1
