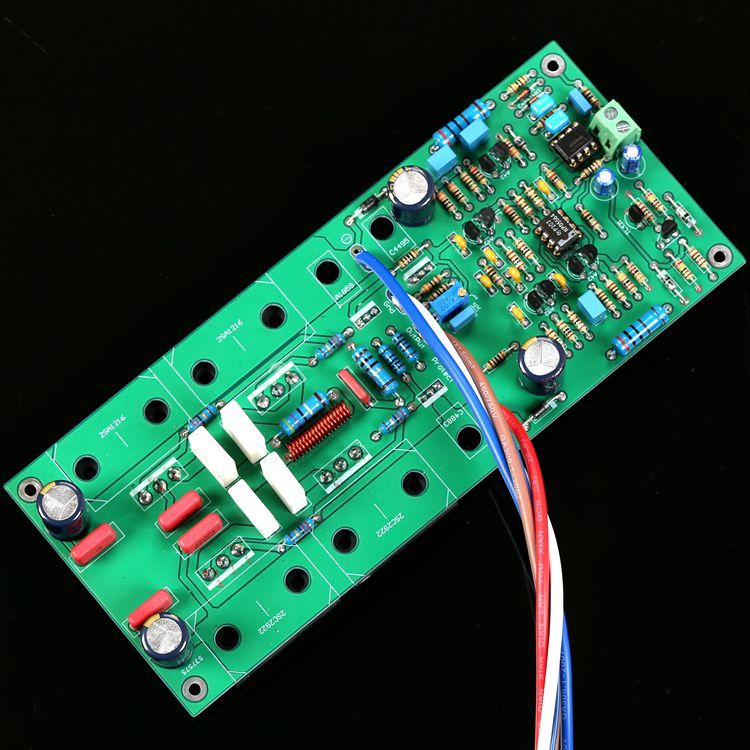

1. Field effect transistor input, single-ended asymmetric amplifier circuit from Goldmund
2. Full DC coupled circuit
3. With the characteristics of high damping, it can promote all low-sensitivity large speakers
4. Class AB design, high quiescent current of 150mA per pair of transistor
5. Has Goldmund's dense, detailed and pleasant voice
Design materials:

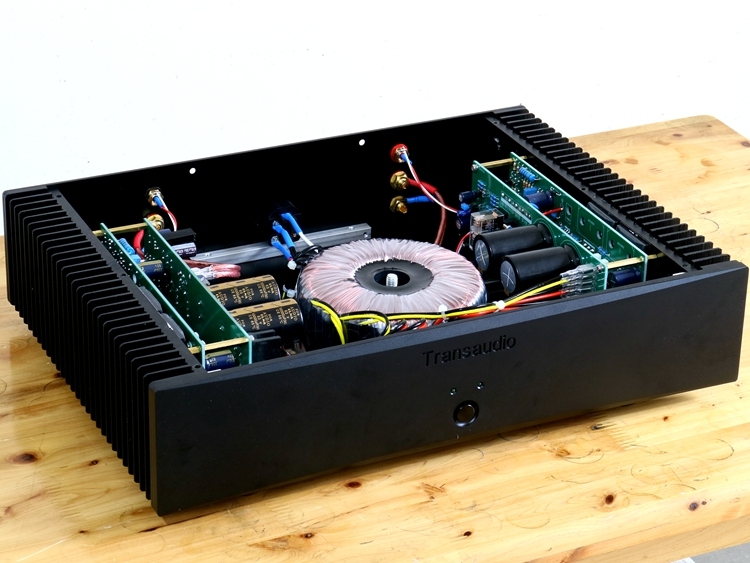

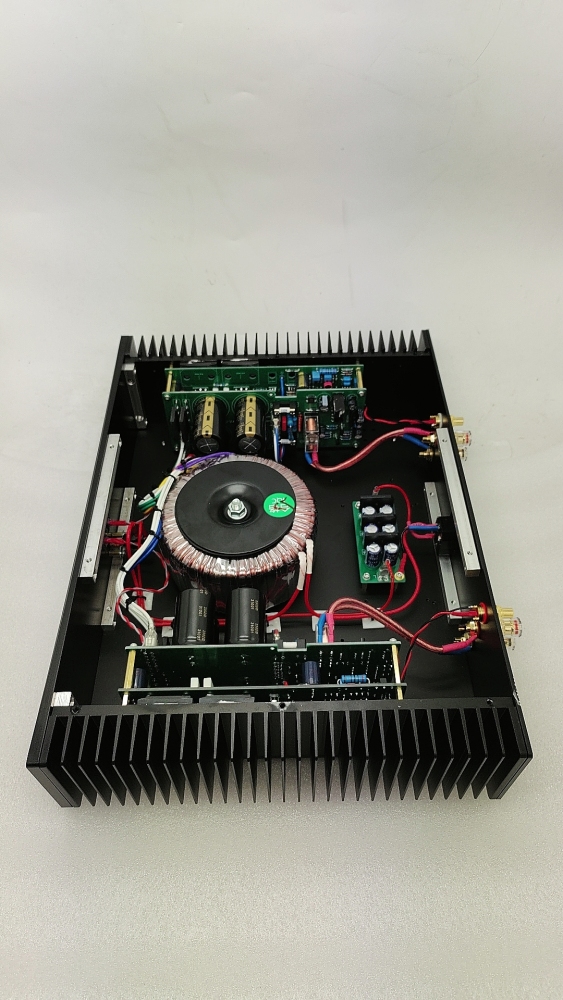

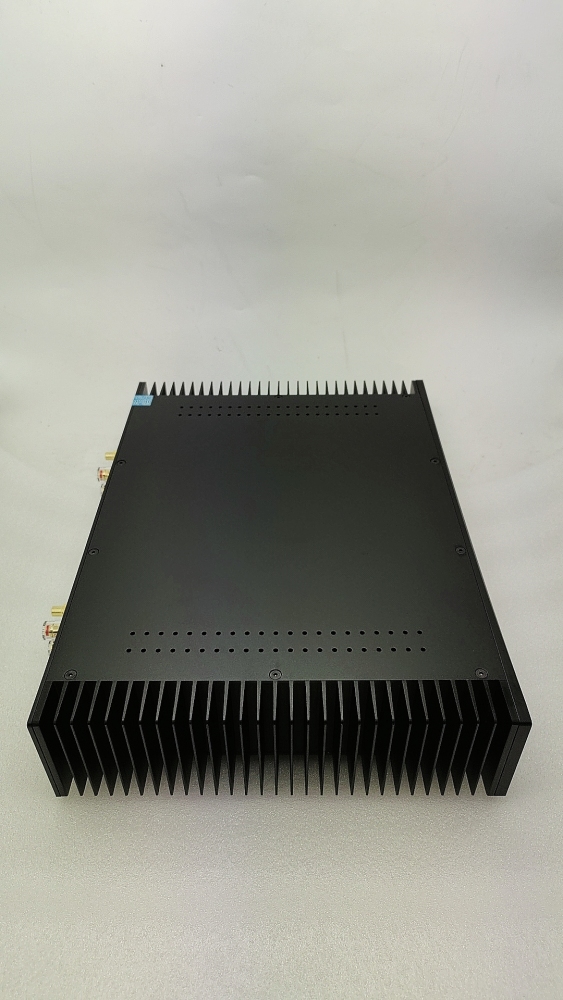

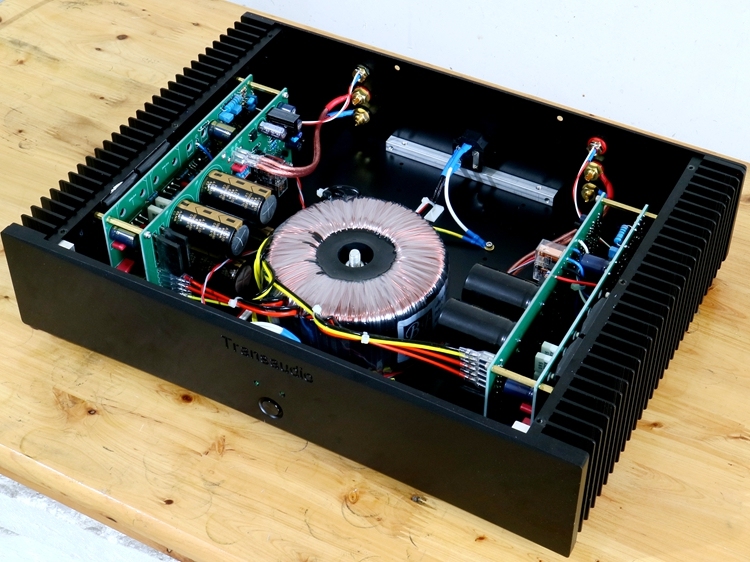

1. CNC machine tool CNC machined all-aluminum chassis, exposed radiator with excellent heat dissipation
500w Nippon Steel iron core transformer, the quality is completely better than imported products from the United States

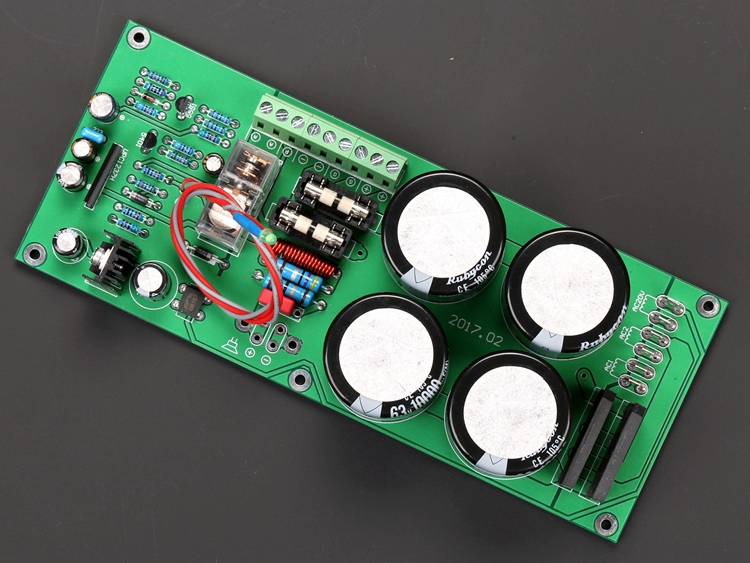

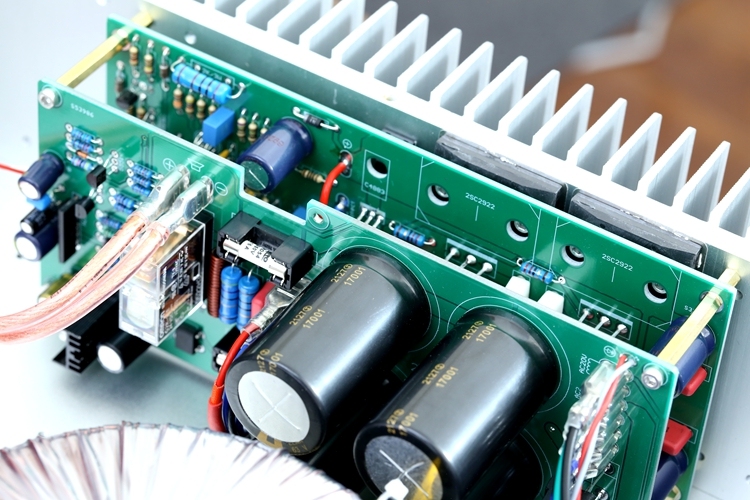

2. 4 pieces of ELNA FOR AUDIO 63v10000uF audio dedicated electrolysis per channel

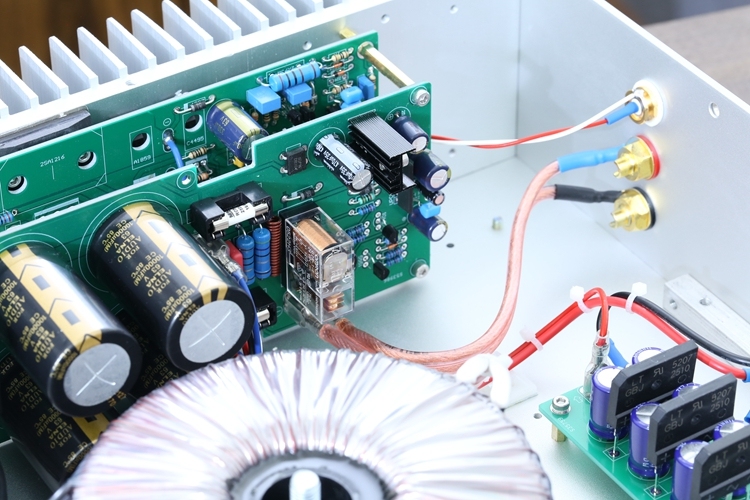

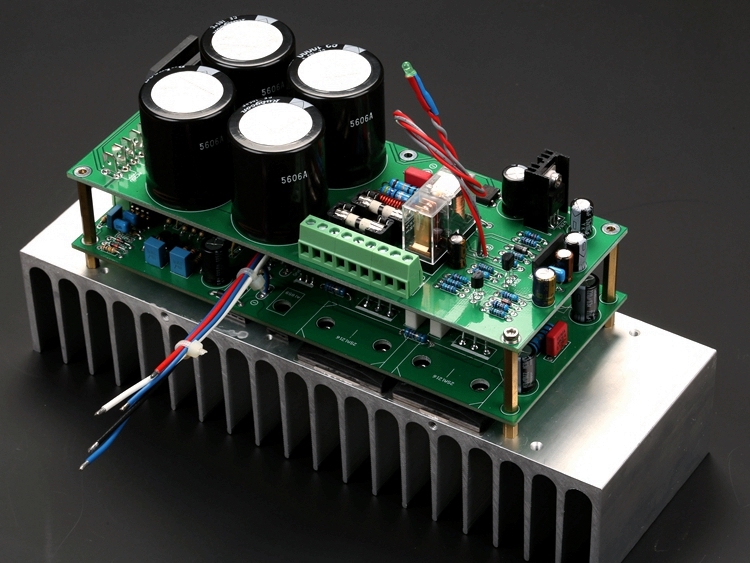

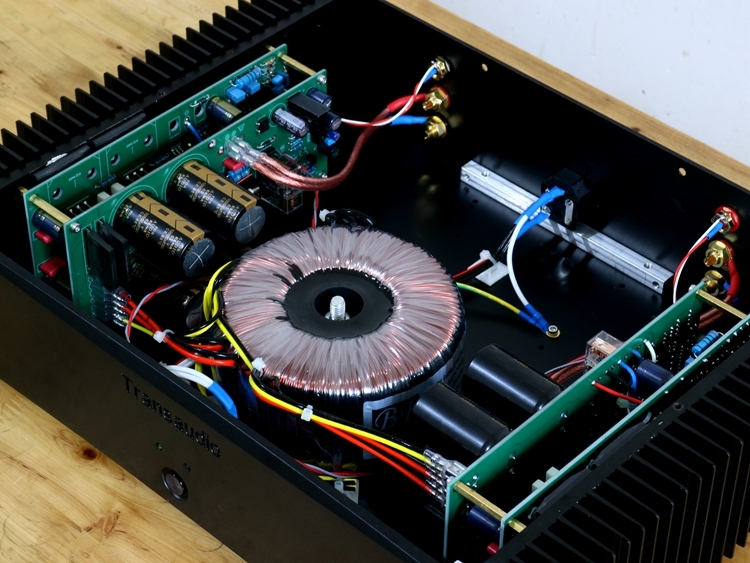

3. The left and right channels are completely independent, and the amplifier board, power board, and protection board are completely separated from left to right.
4. 2 pairs of precision matching Japanese original Sanken transistor king per channel, 34A output capacity per channel
5. Perfect speaker protection, effectively protect your expensive speakers
6. Super control power, super analysis power, super high signal-to-noise ratio
Parameter:
Signal-to-noise ratio: 120dB

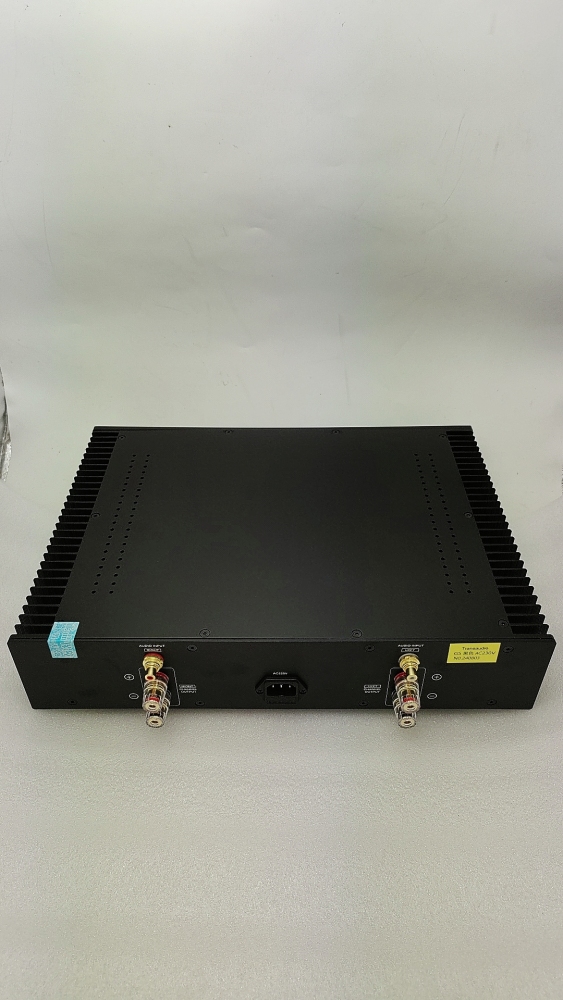

Amplifier size: 430*300*100mm
Amplifier weight: 12kg
Static power consumption: 80w class AB
Distortion at full load: 0.001%
Output power: 120w*2/8 ohm; 240w*2/4 ohm
Each whole machine should be copied for 3 days with 8 ohms full load (8 ohm resistance), and then tested
Test items include: maximum output power, full power range waveform distortion, full power range waveform, noise, midpoint, magnification, temperature
[G5 test] 1KHz maximum undistorted output 31.3v, 8 ohm output 122w
