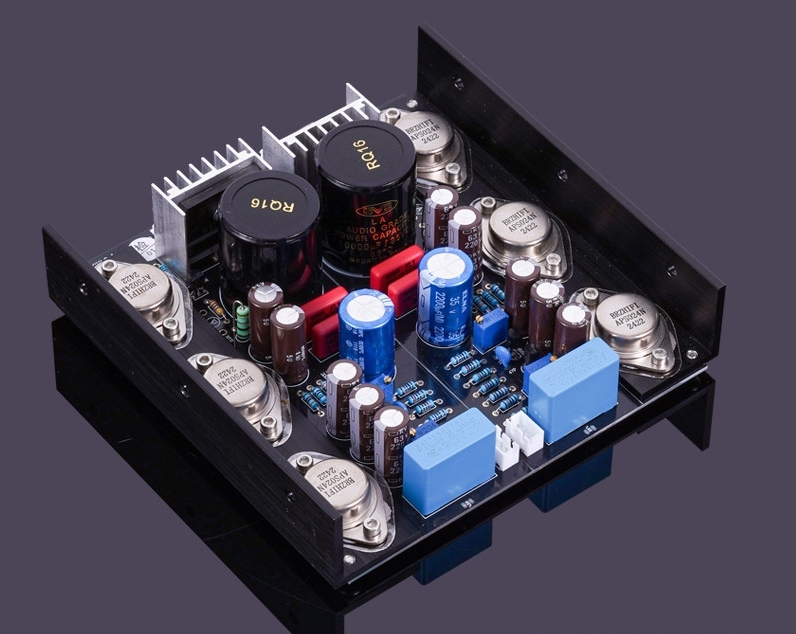

Product Details:
This 1969 circuit amplifier board adopts single ended output, with low odd harmonic distortion; Working in Class A status, the sound is warm and charming, with a strong sense of music and a friendly tone.

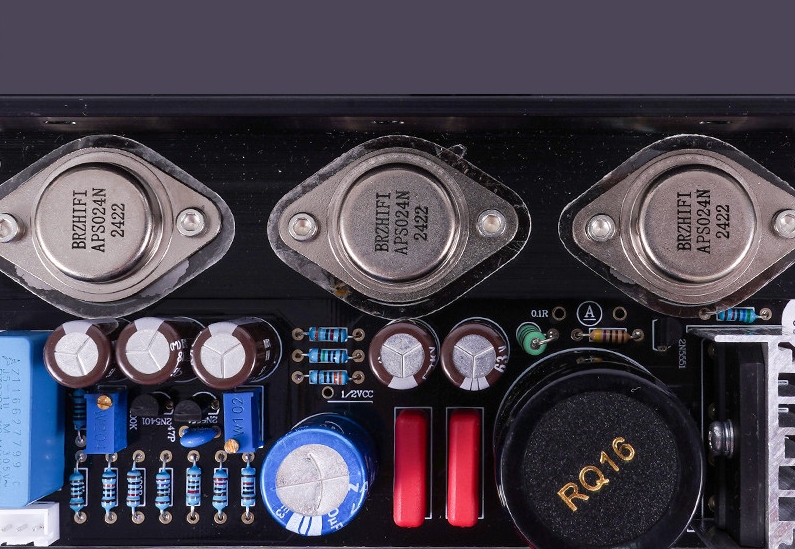

Six metal encapsulated transistors are used for electronic filtering and power output, providing a warmer, more delicate, and fuller sound quality than ordinary transistors.
Military grade resistor.
WIMA capacitors from Germany.Panasonic capacitors

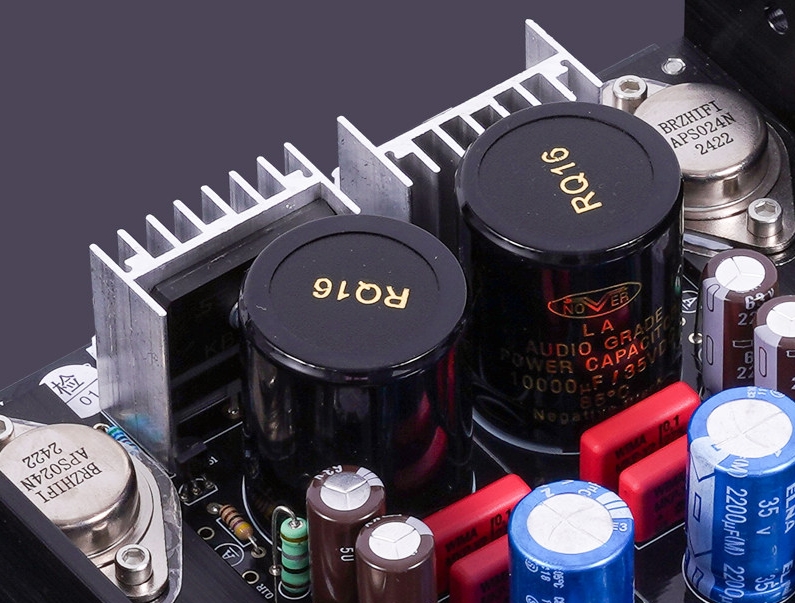

NOVER electrolysis.
Upgrade to a new generation of metal encapsulated transistors with high power, high stability, and good sound quality.

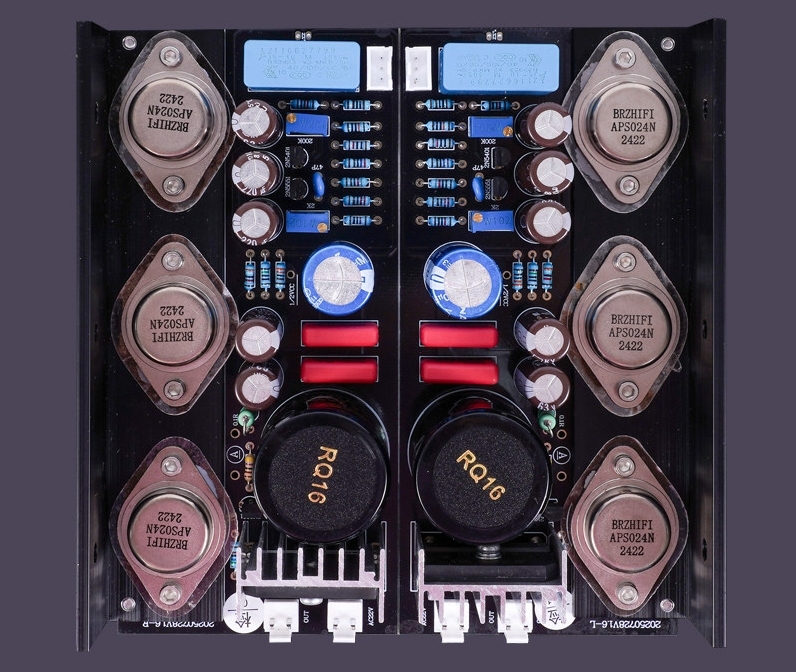

Independent and symmetrical design for both left and right channels.

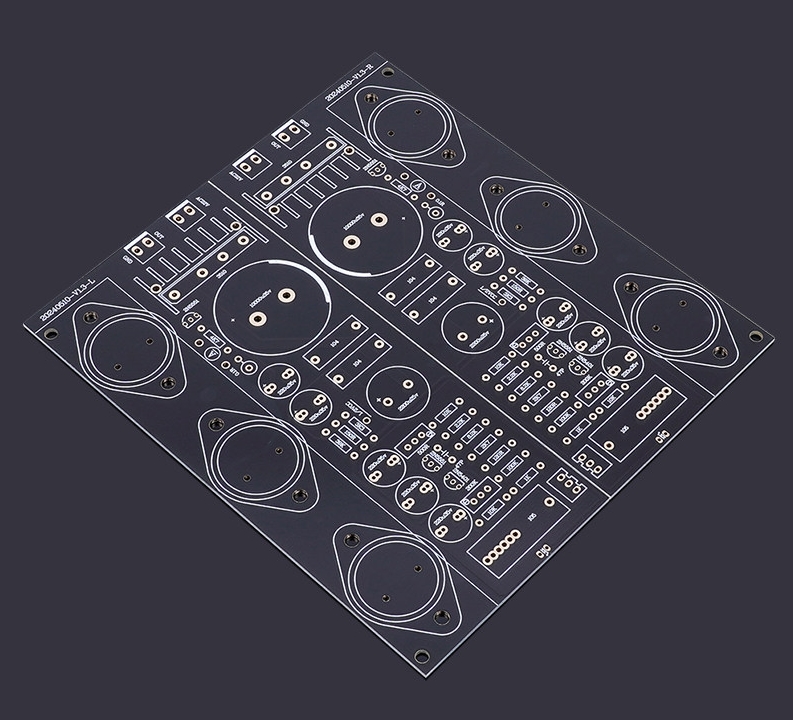

Double sided gold-plated PCB.
Parameter:
Input voltage: AC 15V - 26V
Output Power: 10W +10W

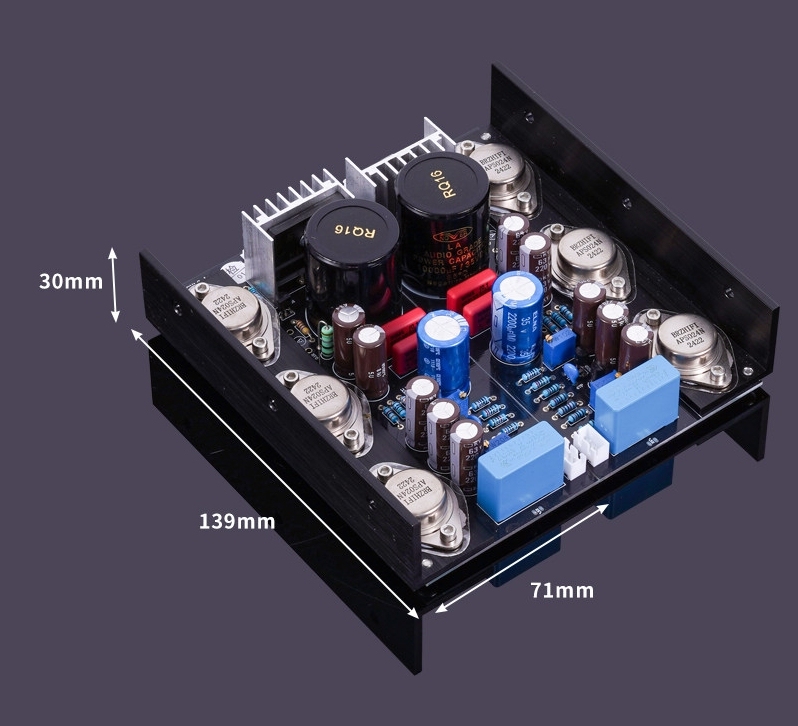

PCB size：142*67mm
Attention: Angle aluminum cannot be used as a radiator. Due to its Class A design, it generates a relatively large amount of heat, and each board needs to be equipped with a radiator weighing at least 0.5kg.
Package include:
1969 amplifier board X 1 pair
Every amplifier board has been professionally tested in perfect working order before shipping!
