Main highlights:
◆ High current in small size;
In the commonly used small size chassis (150mm * 60mm * 250mm),From the early continuous 2A working current to the current continuous 4A long stable and safe working current, it is an important breakthrough in technology.
◆ Large dynamics with low noise and low resistance;
Low noise: within the rated working current (within 4A), 20Hz--20KHz (audio section) ripple is only 1uV, only 4.8mV peak measured at 1MHz
◆ Low impedance;

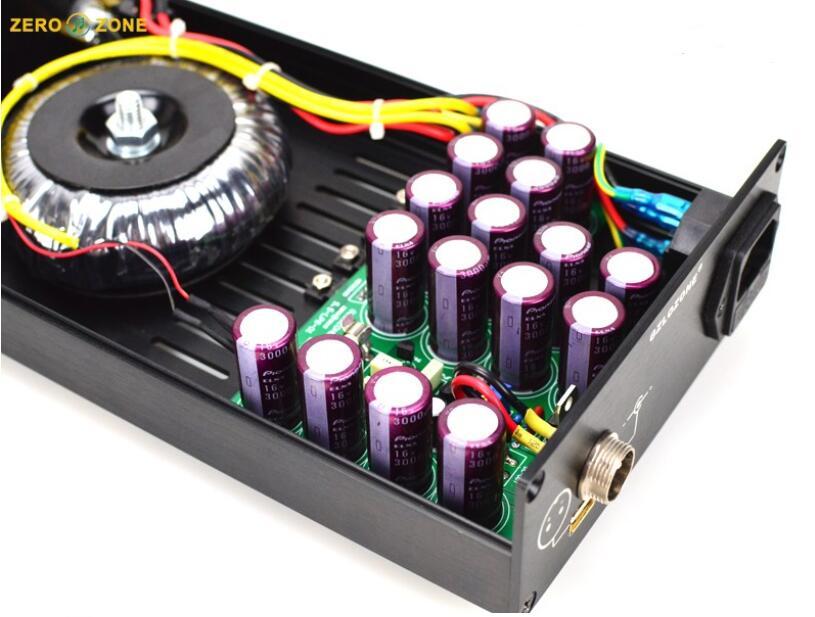

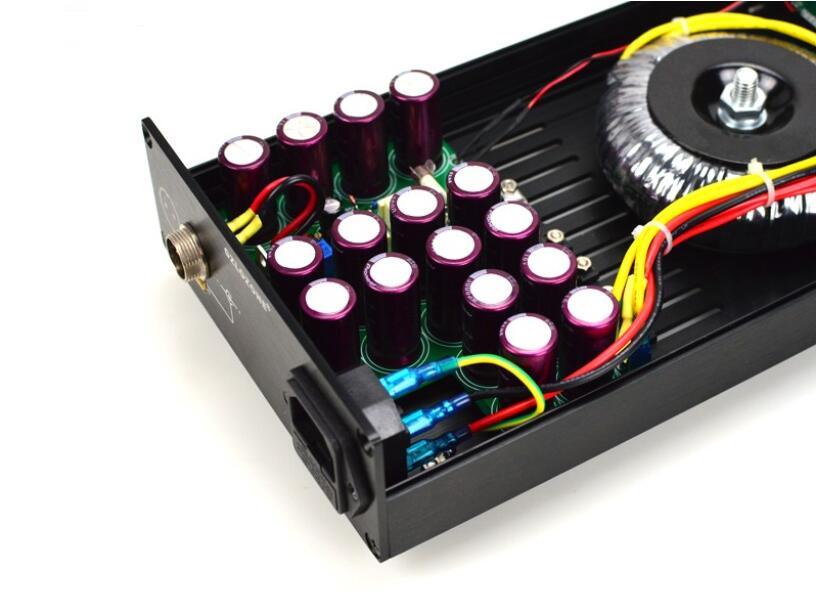

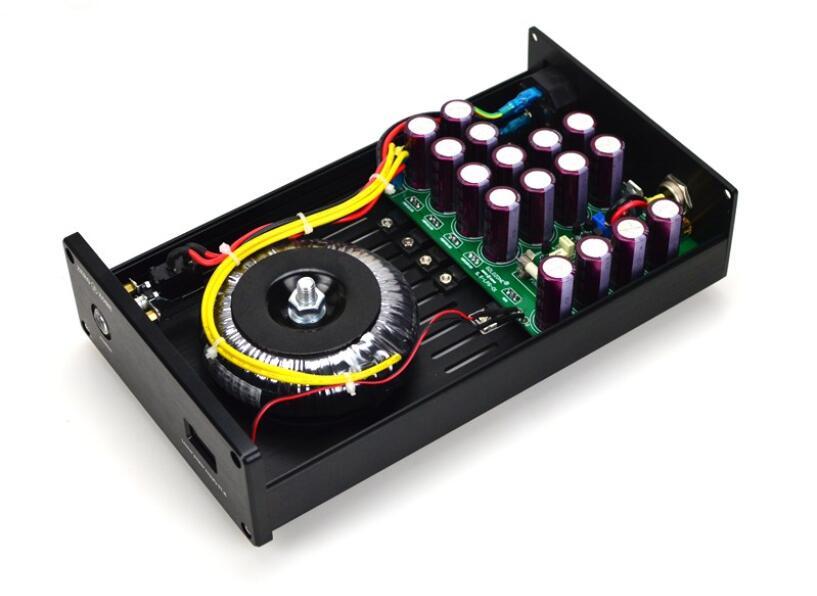

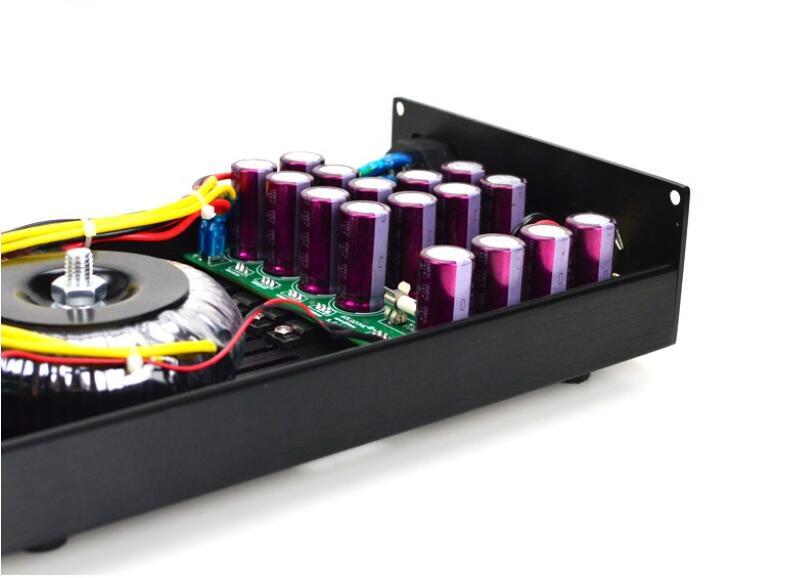

The newly designed linear voltage regulator module cooperates with Schottky rectifier tube, capacitor array, and transformer with as much power as possible in the chassis space to further reduce the internal resistance of the power supply.
◆ Large dynamics;
Thanks to the low-impedance configuration, the low-impedance linear voltage regulator module + high-power transformer + capacitor array is extremely fast in power supply energy output response.
◆ With overvoltage / overcurrent / short circuit protection;
An important protection method in the application of linear power is over-voltage protection. Over-voltage is the original cause of equipment damage; one more protection is more worry-free. Not to mention there are three kinds of protection!
◆ Voltage regulator tube;
The ZERO-ZONE traditional MOS tube still continues, which has a positive effect on anti-breakthrough and rich harmonics.
◆ School Sound;
S.S benchmark series linear power supply still follows ZERO-ZONE's school calibration manual "Equal emphasis on price, performance and listening sense, and overall pursuit of harmony"
◆ Listening;
The bottom of the sound becomes clean, the background is black and quiet, the details are more detailed, the high-frequency overtones are crisp, the mid-frequency adds a bit of luster, and it is resistant to hearing; the low-frequency layering sense is increased. The overall tendency is neutral.
Input voltage: AC 115V or AC230V (For choose)
Output voltage: DC 5V/9V/12V/15V/18V/19V (For choose)
We have following several kinds voltage for choose (Output voltage / current)
● DC 5V /3.5A
● DC 9V /3.5A
● DC 12V /4A
● DC 15V /4A
● DC 18V /4A
● DC 19V /4A

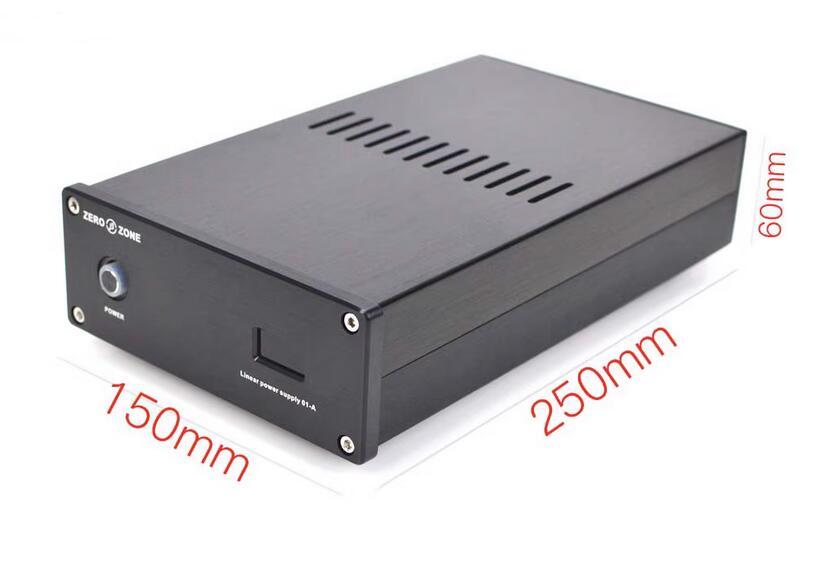

Dimensions: 150mm * 60mm * 250mm (W * H * D)
Weight: About 3.5kg
GX16 plug polarity: 1 "+" / 2 "-"
DC Plug Polarity: inner"+" external"-"
DC Plug Size: Outer diameter 5.5mm, internal diameter 2.1mm (If you need other Size DC head, Please contact us)
Display colors: Red
Package include:
S.S-LPS-01 Linear Power supply X 1
1.2M (5.5*2.1mm) output DC cable X 1
NOTE: We do not include AC input cables.
