Product parameters:

Output power: 400W (200W+200W) (suitable for single 15 inch or less speakers)

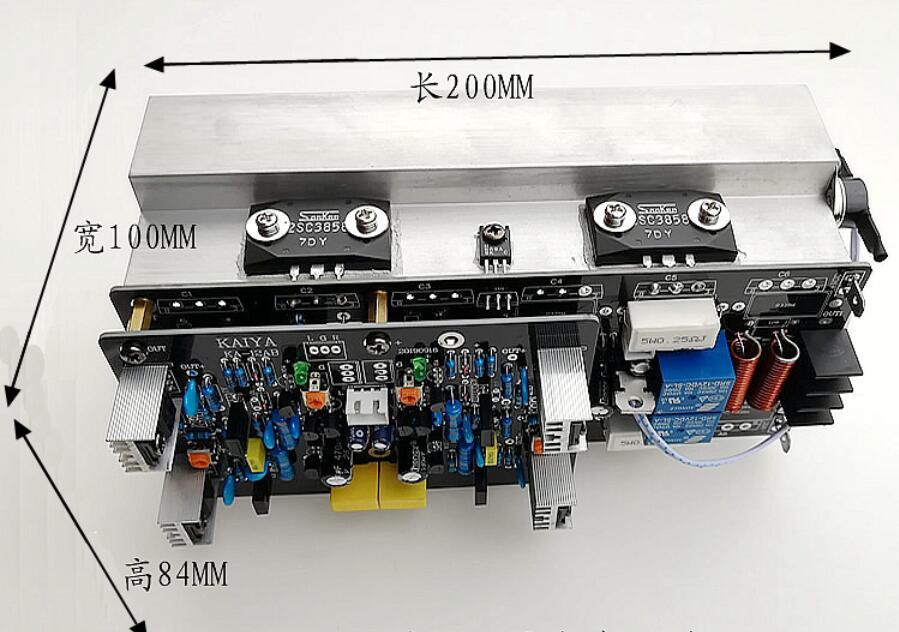

Amplifier board size: 200MM * 100MM * 84MM

Output impedance: Recommended 2-16 Ω

Frequency response:+0dB/-0.8dB (20Hz~20KHz)

Total harmonic distortion:<0.1% 8 Ω 20Hz~20KHz

Signal to noise ratio: (20Hz --20KHz): A-weighted, full power output>98dB

Instantaneous bear response: 25V/ μ S

Damping coefficient: 10Hz -400Hz:>200

Cross talk between channels: 1kHz: -76 dB/20kHz: -58dB

Input impedance: 20K Ω (Balanced)/10K Ω (Unbalanced)

It is recommended to use DC dual 30-75V for the main voltage,

The protection circuit requires a separate power supply (AC 12-18V, a separate winding must be used

Group, cannot be shared with others)

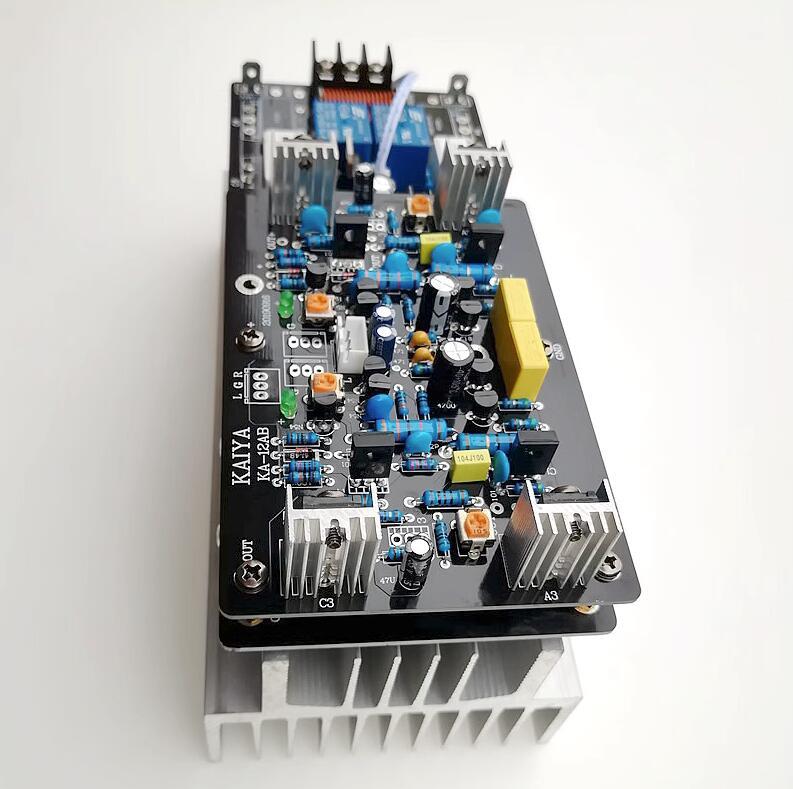

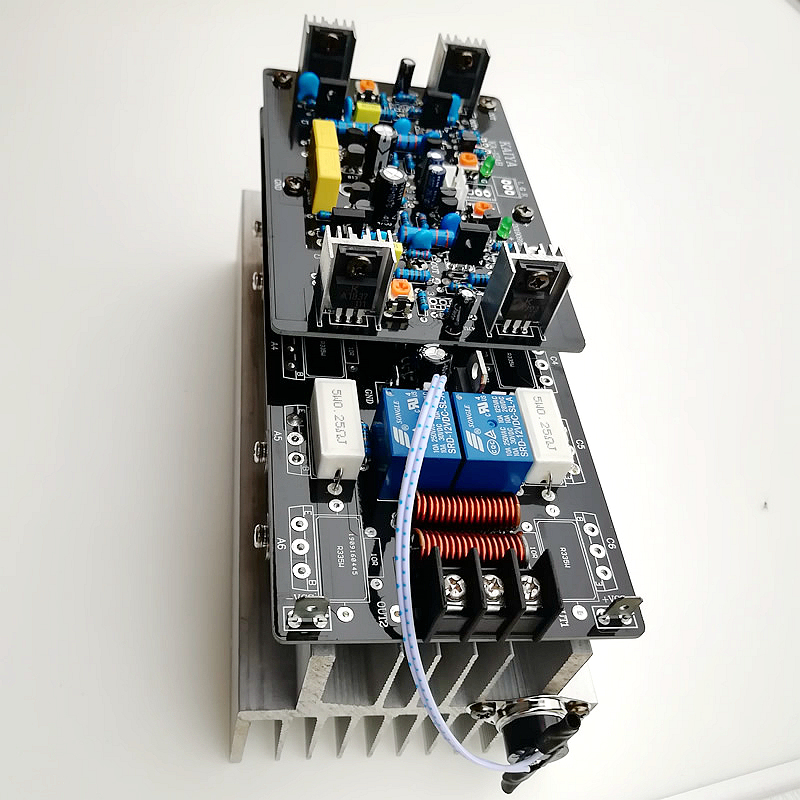

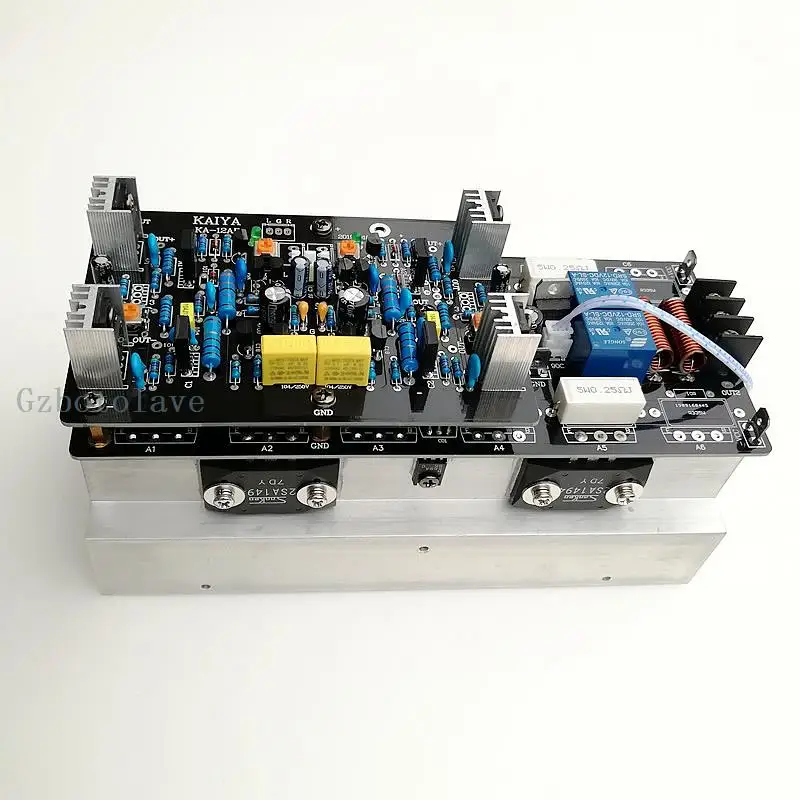

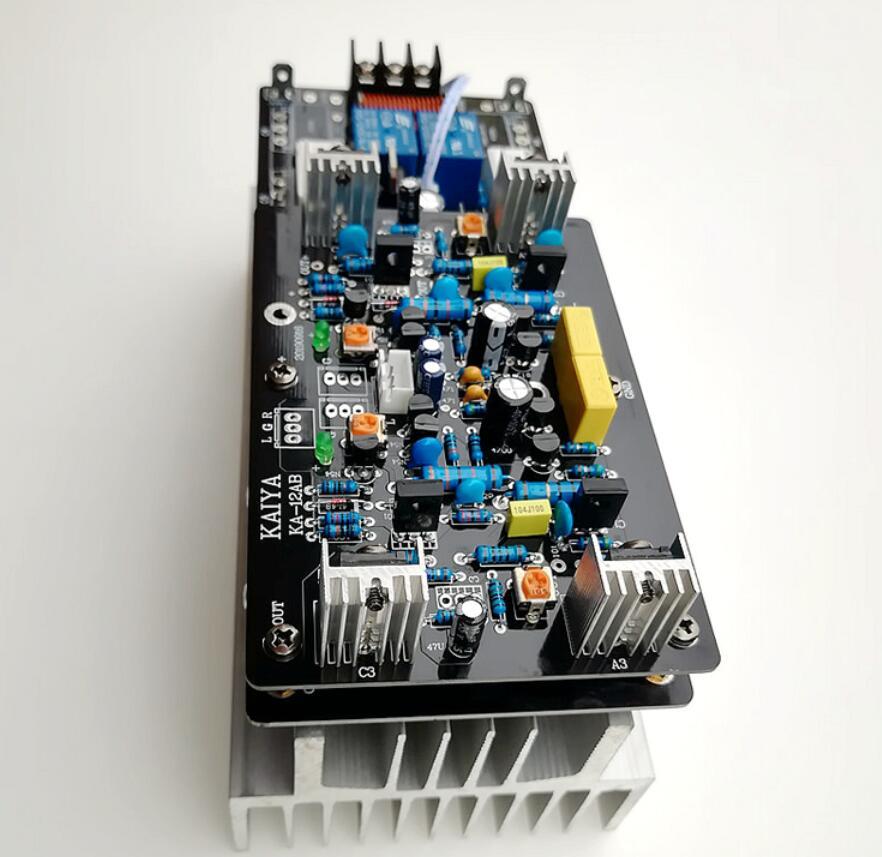

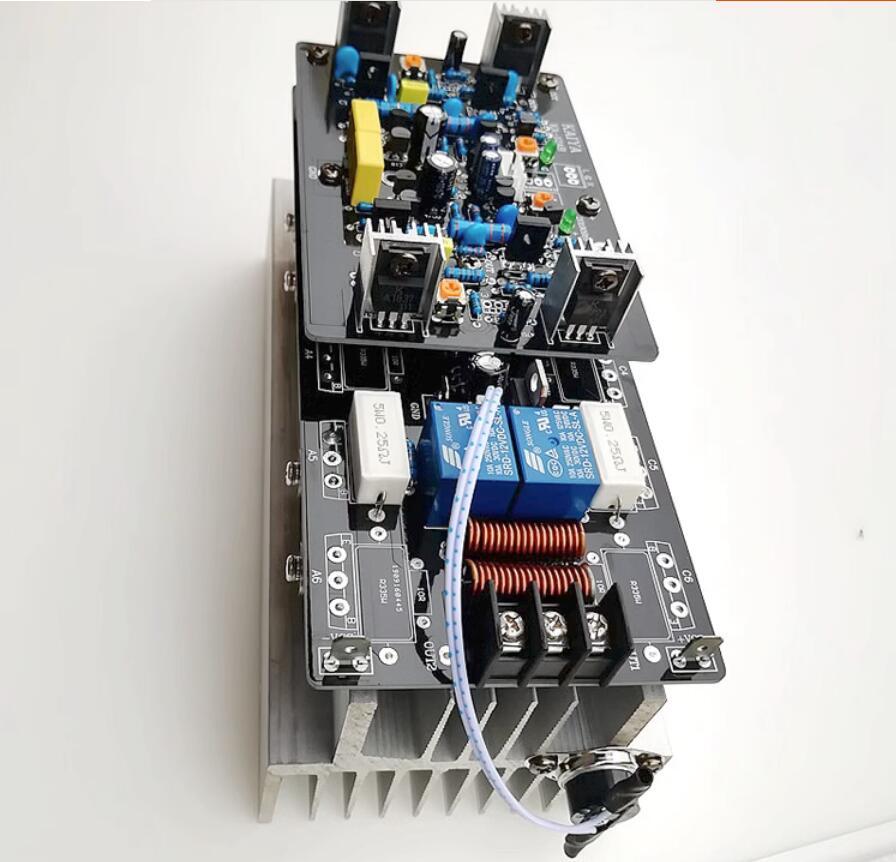

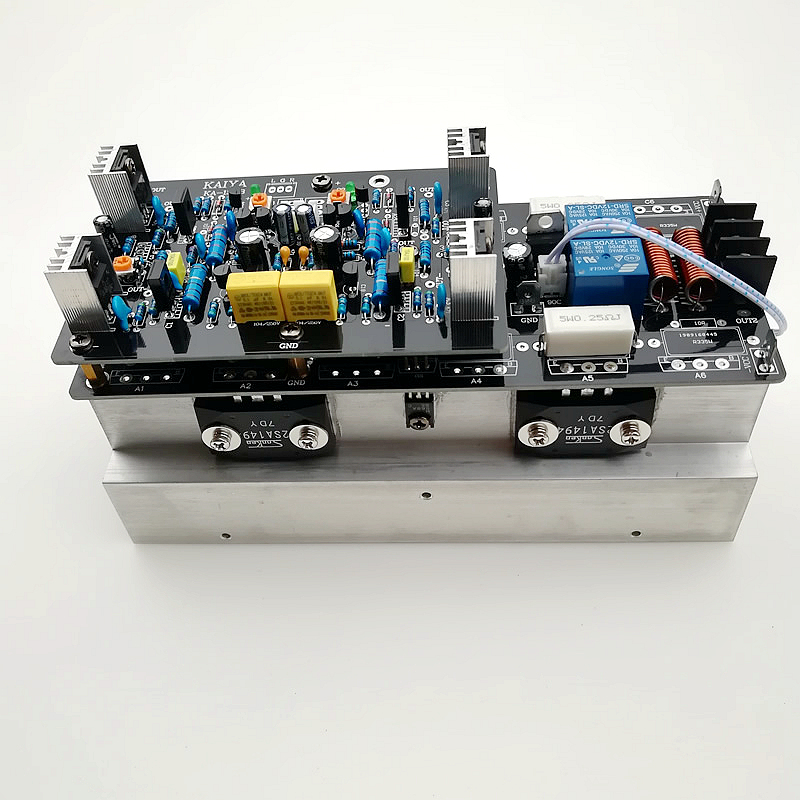

 package include：finished amplifier board with heatsink*1

Newly designed high-power dual channel high fidelity amplifier board, suitable for household and stage use

Used, with full power, clear and powerful sound quality, pure, and clear and delicate tone,

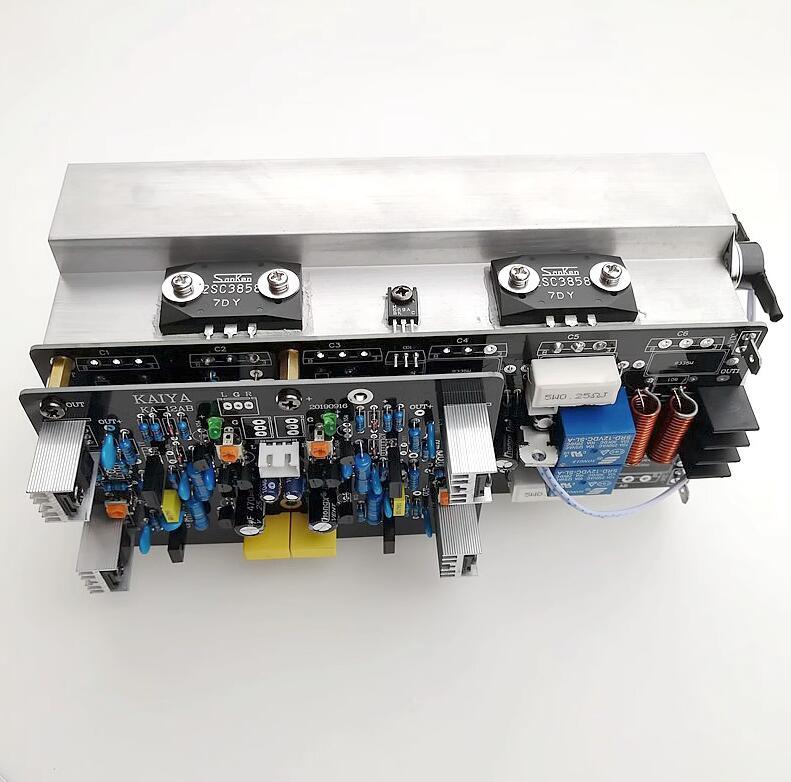

After input differential amplification, push the medium power transistor, and then push the original Sanken transistor

2SA1494/2SC3858 amplifies power output, and the power amplifier board is designed with dual channels

Each pair of 200W ultra high power transistor outputs greatly enhances the effect

Full thrust, strong enough, with new and original pipes selected to ensure sufficient pressure resistance

The effect is stunning, the force is extraordinary, the circuit design is optimized, and the switch is integrated

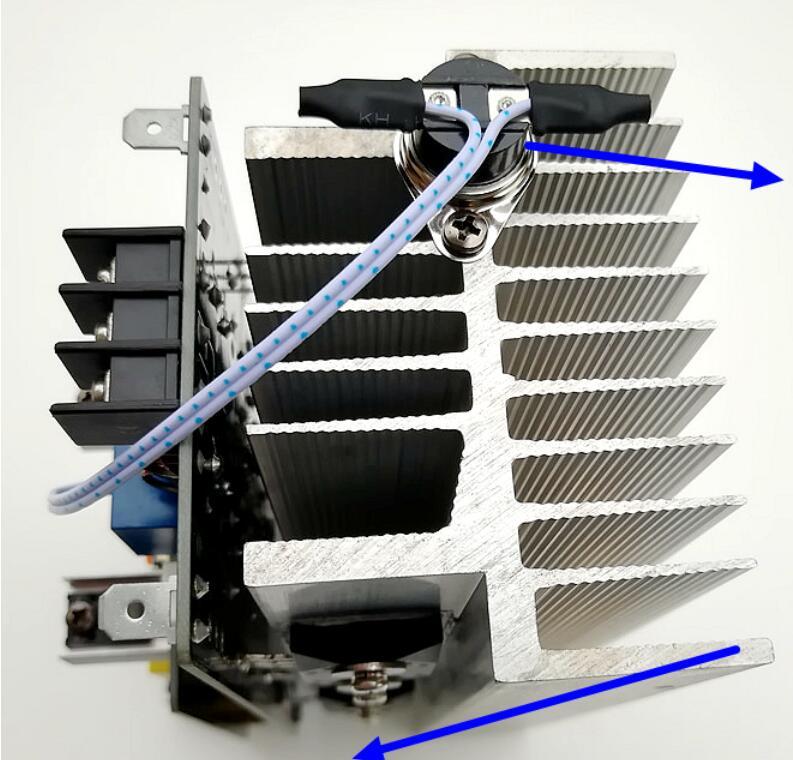

Machine mute, over temperature protection, overload protection, high overall noise to noise ratio, installed

Almost no noise can be heard
