Choose

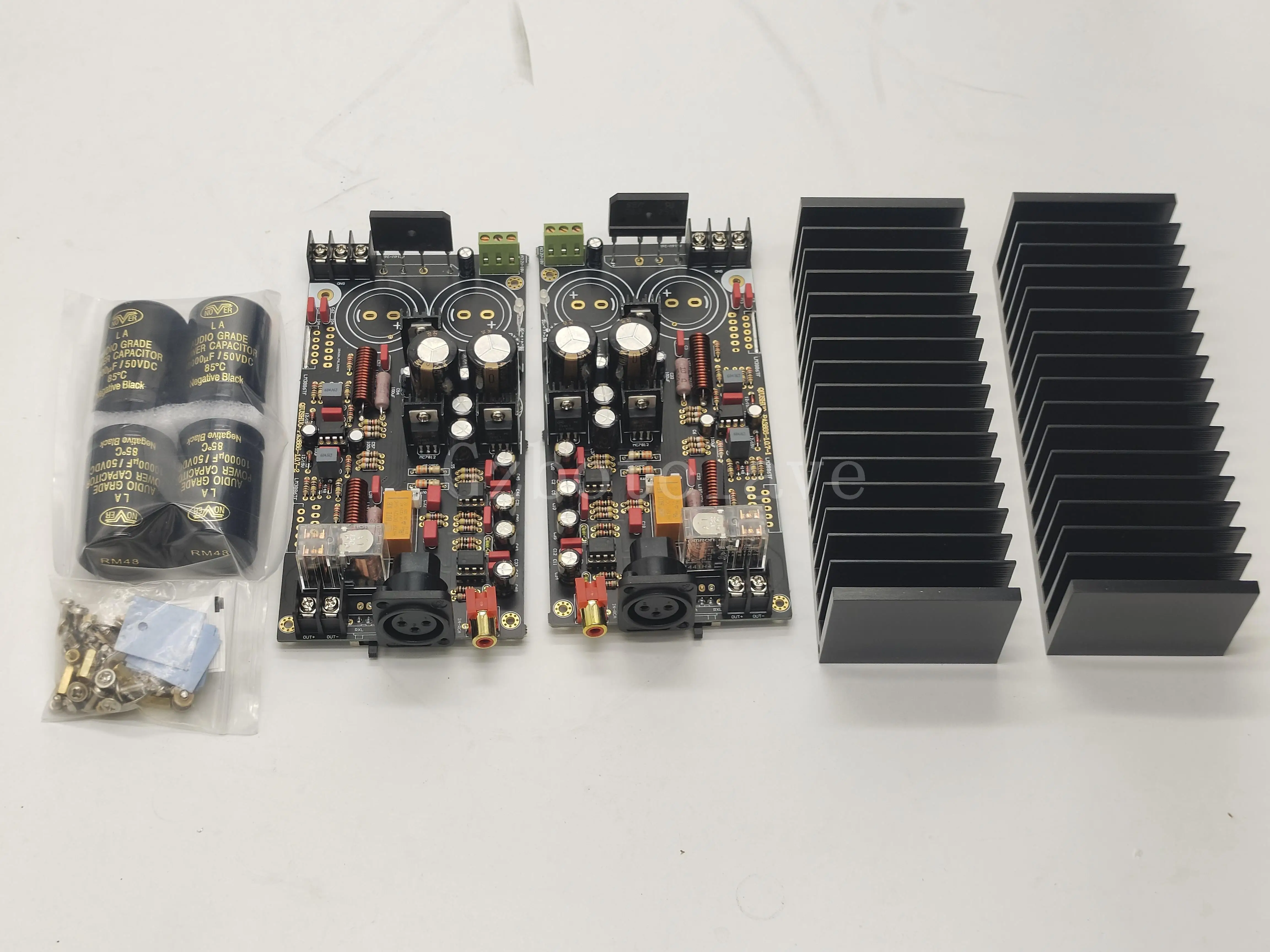

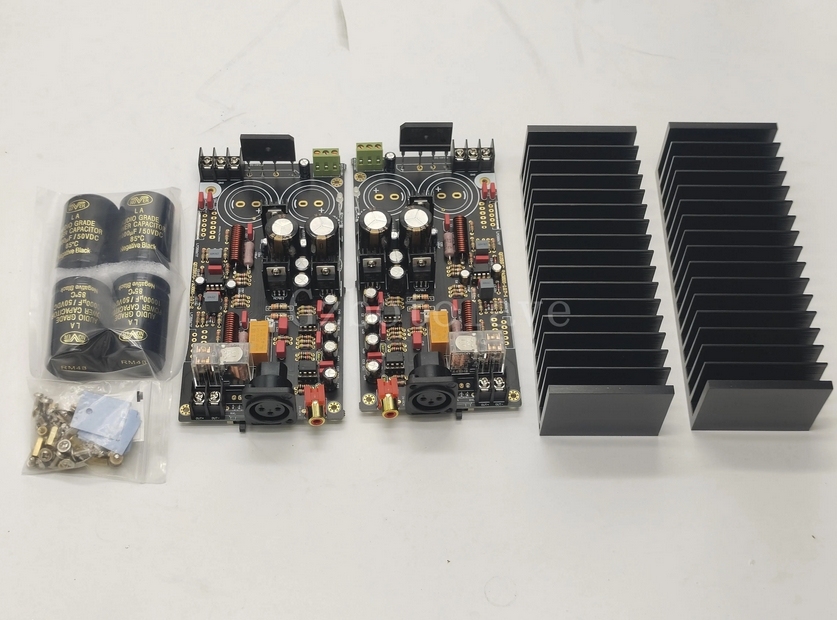

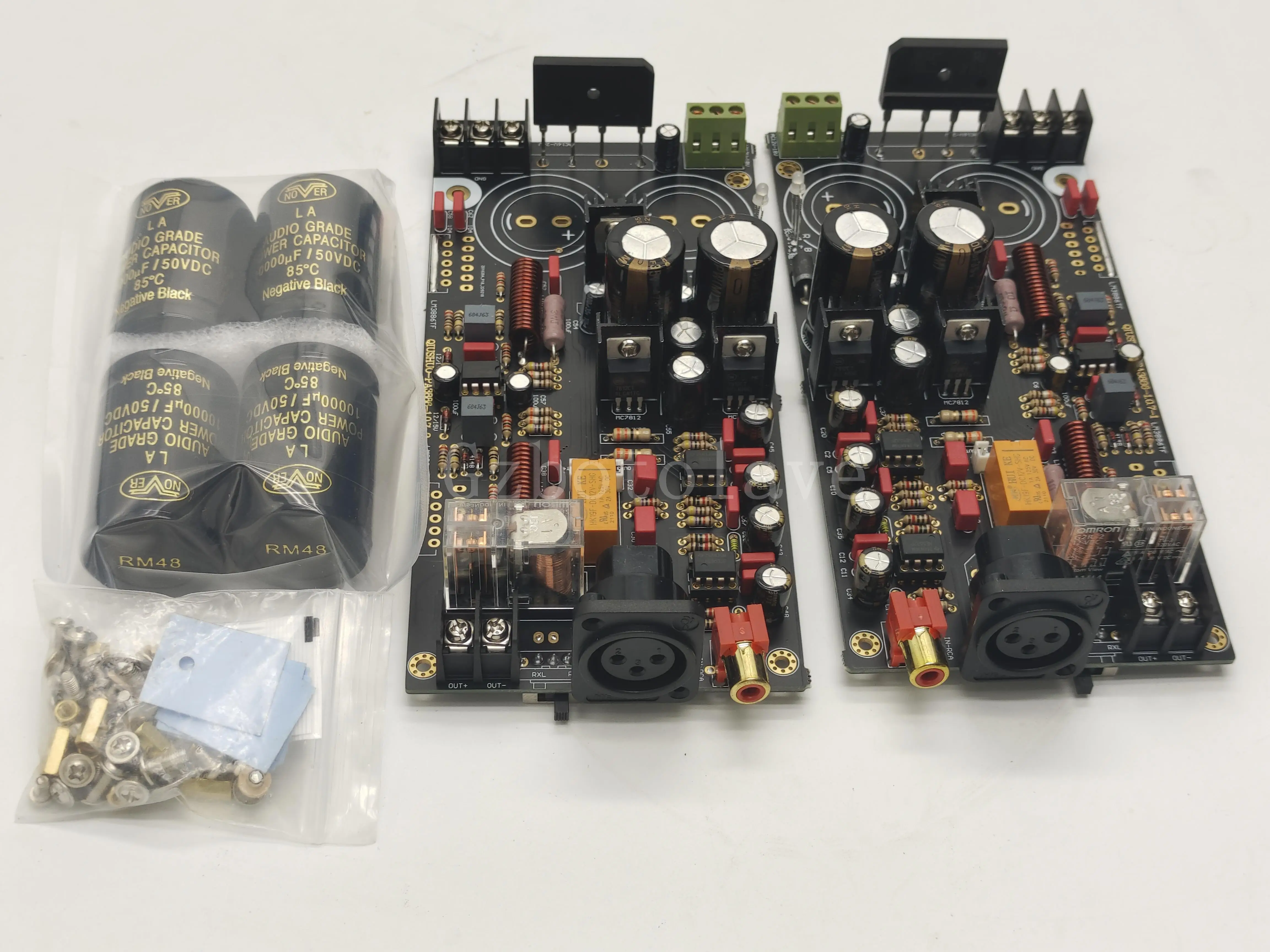

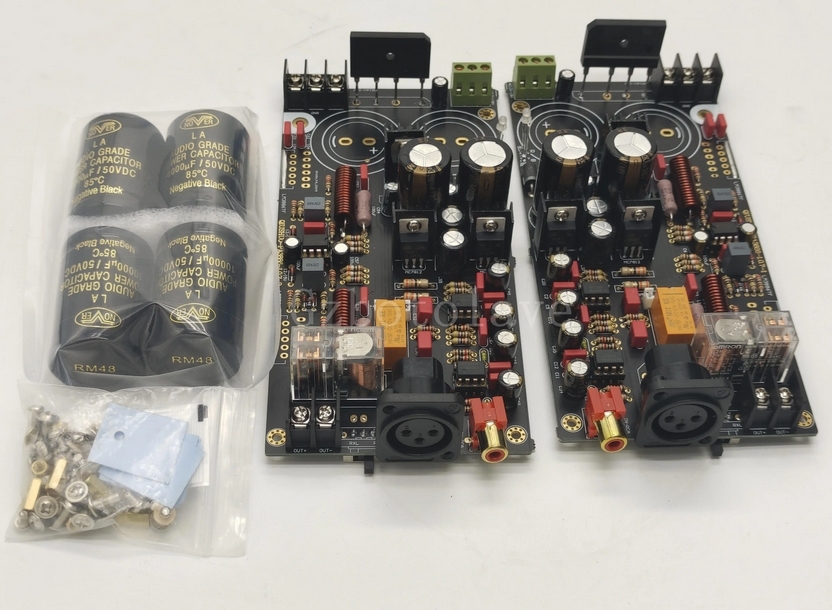

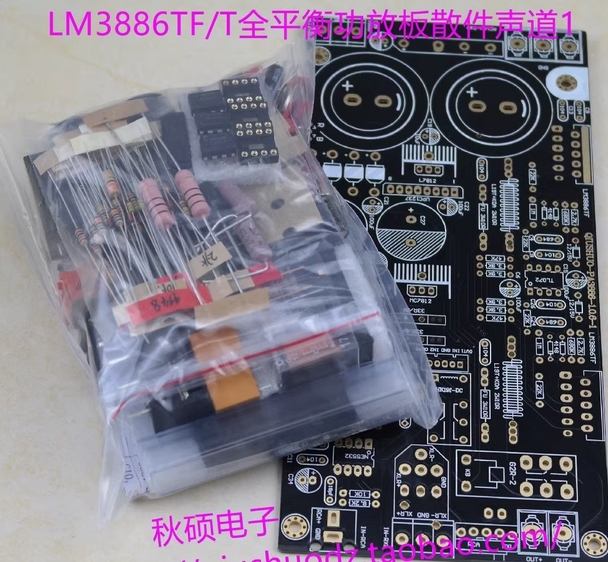

2 channels DIY kit include 2 channels DIY kit need you welding yourself

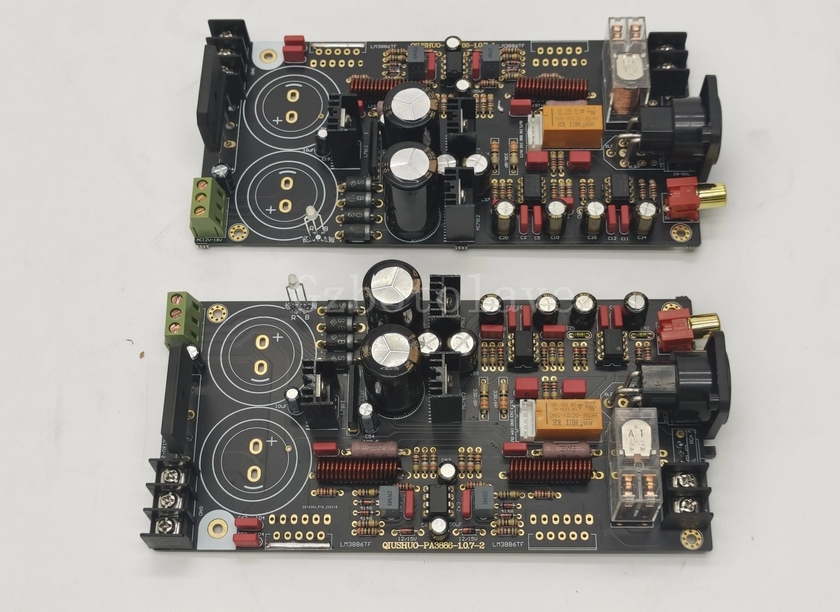

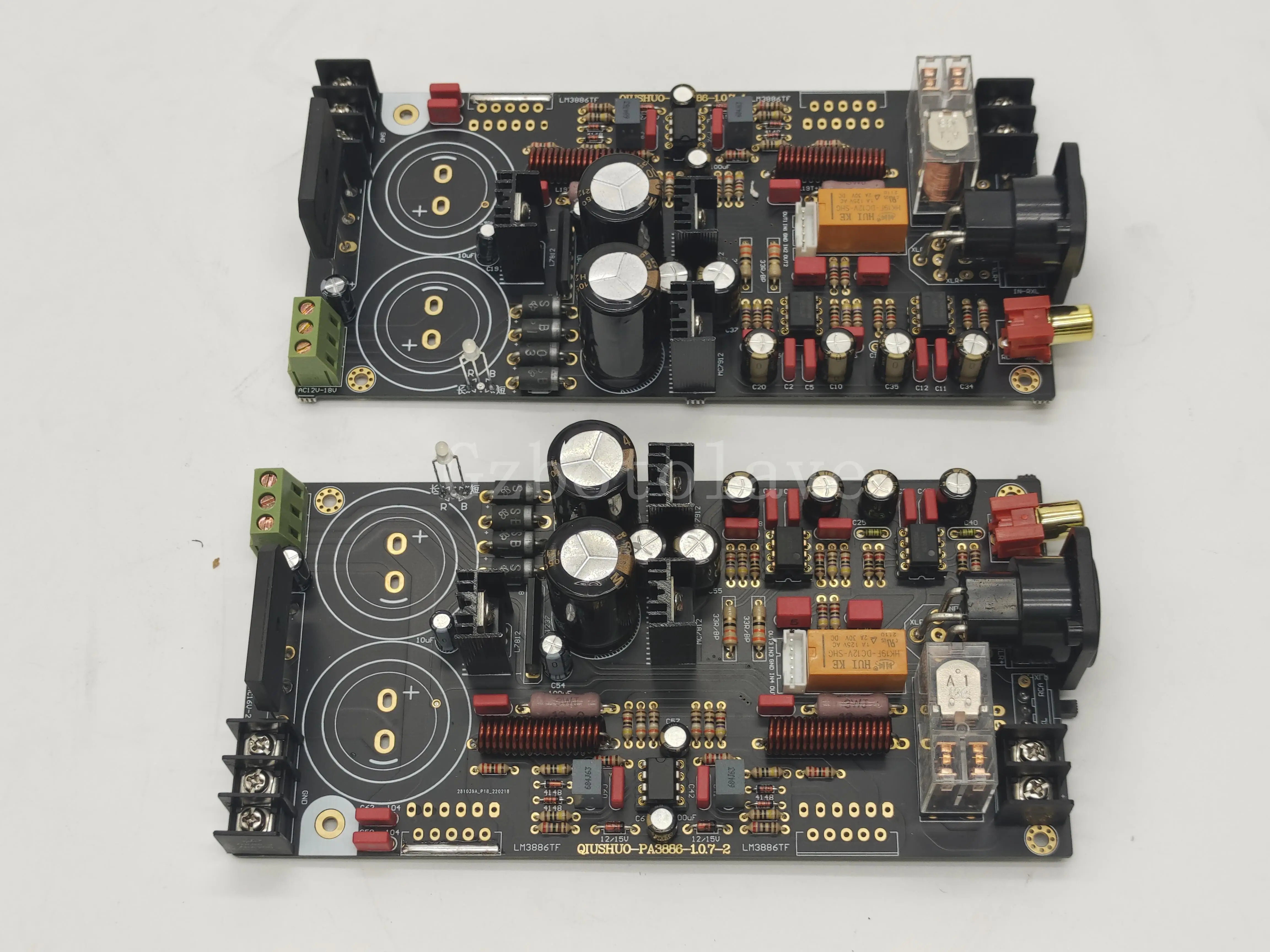

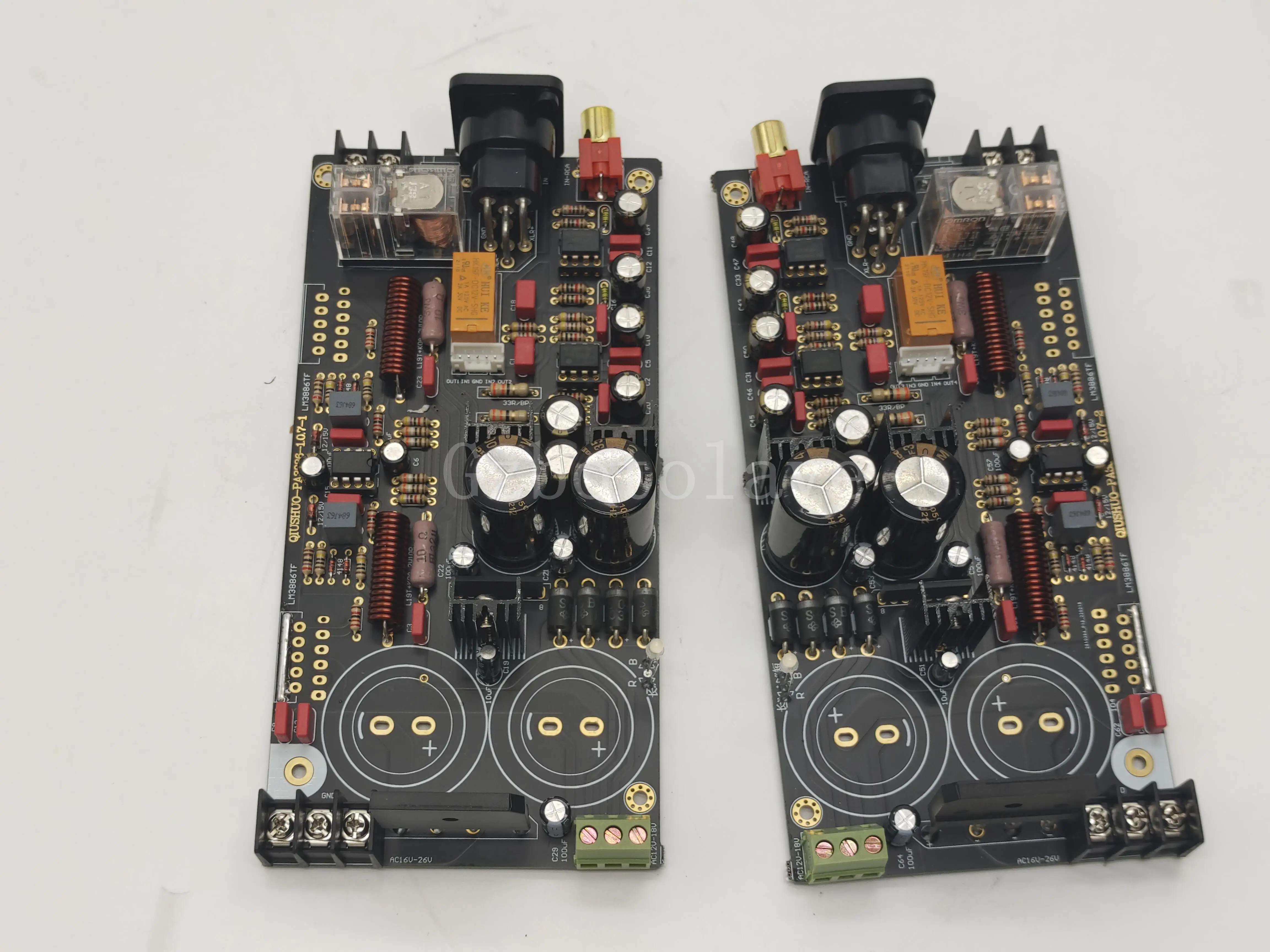

2 channels finished board include 2pcs finished tested good board

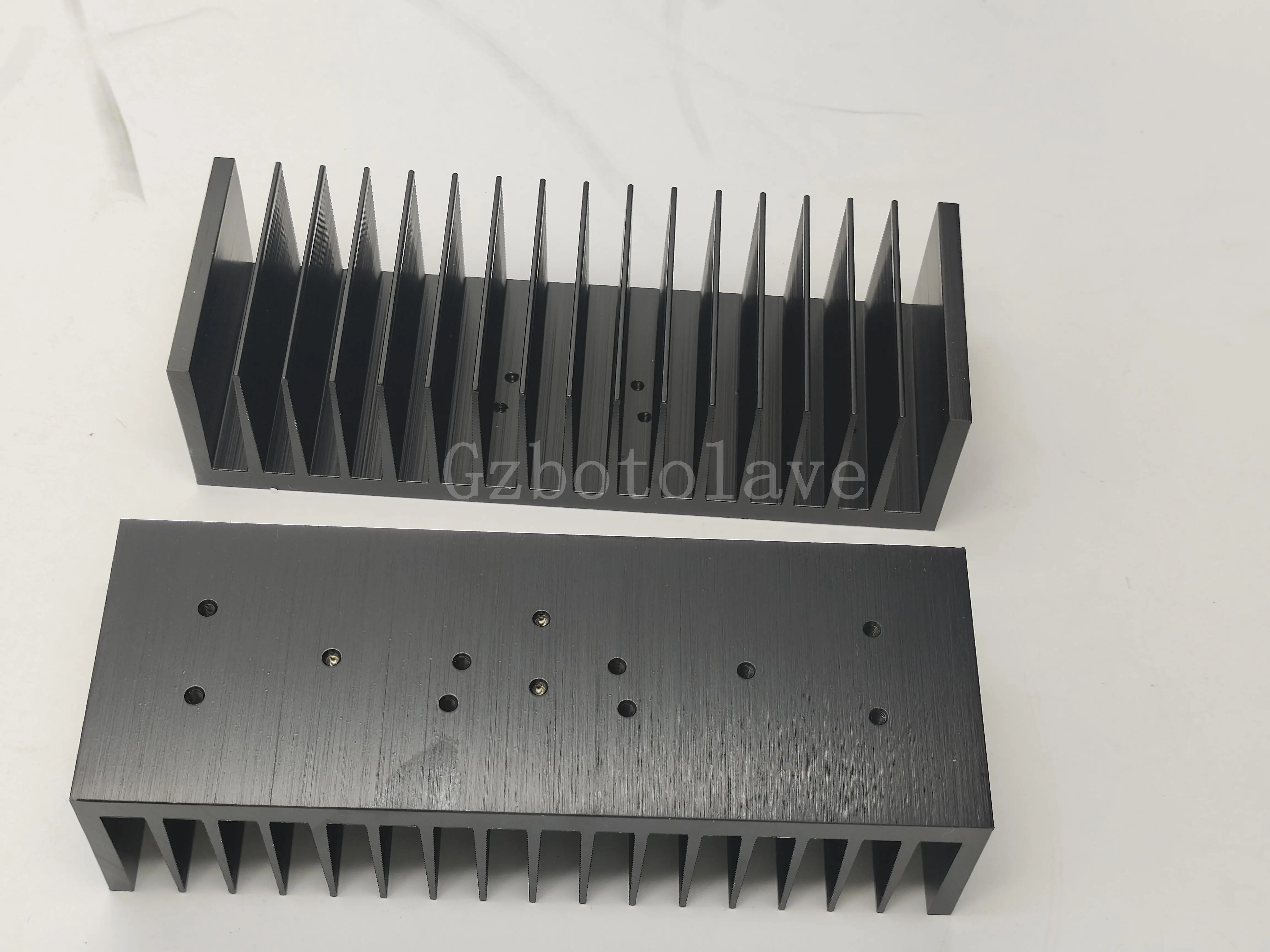

2 pcs heatsink only include the heatsink

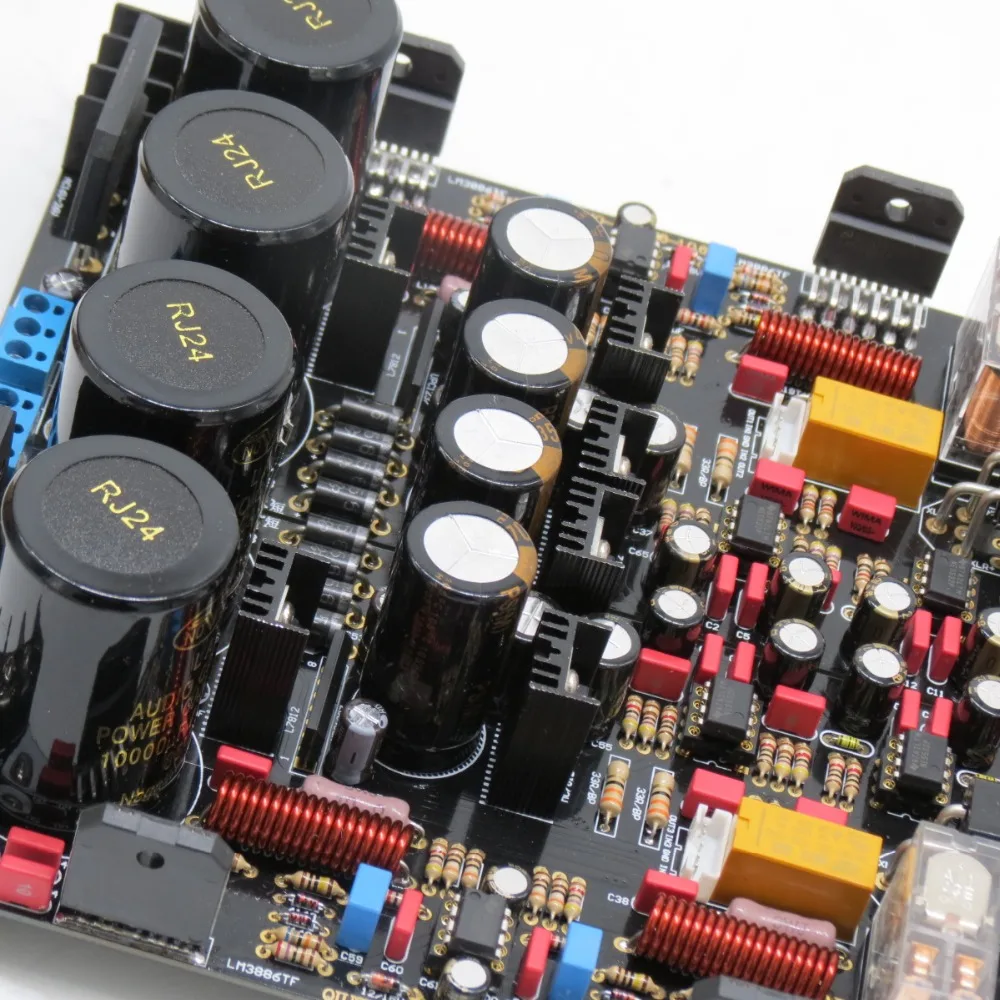

① This is a two-channel, one-board one channel. This is the price of two boards.
② Each channel uses two Texas Instruments original LM3886FT amplifier chip.
③The signal path resistance adopts the ring resistor of ± 1% of 718 military regulation precision. The high-power resistance adopts Fukushima of Japan or Japan light tone, which ensures the good signal-to-noise ratio of the whole machine.

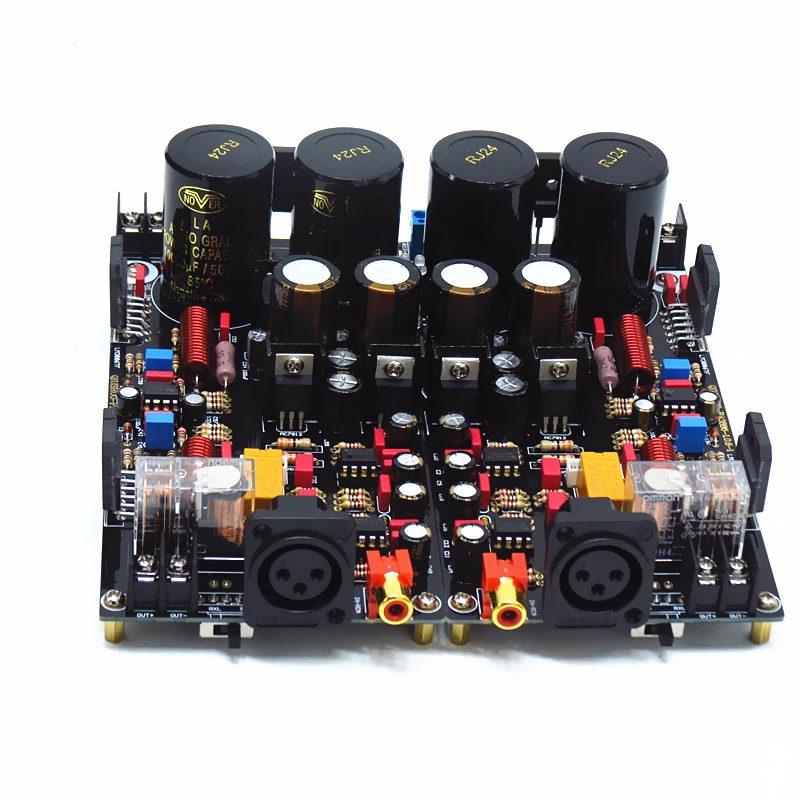

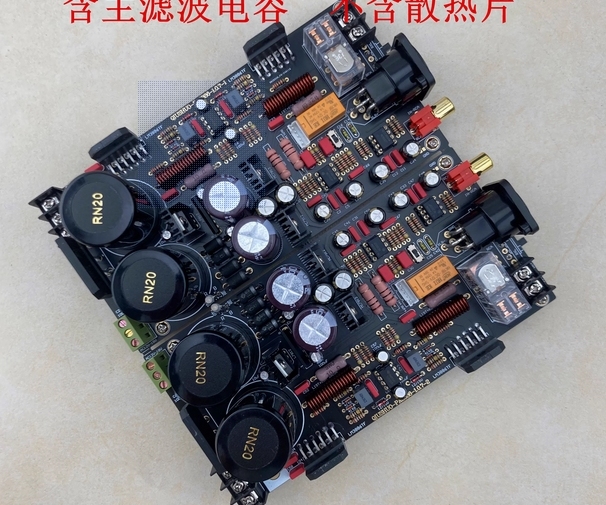

④ Main filtering Using two NOVER 10000UF / 50V HiFi capacitance.

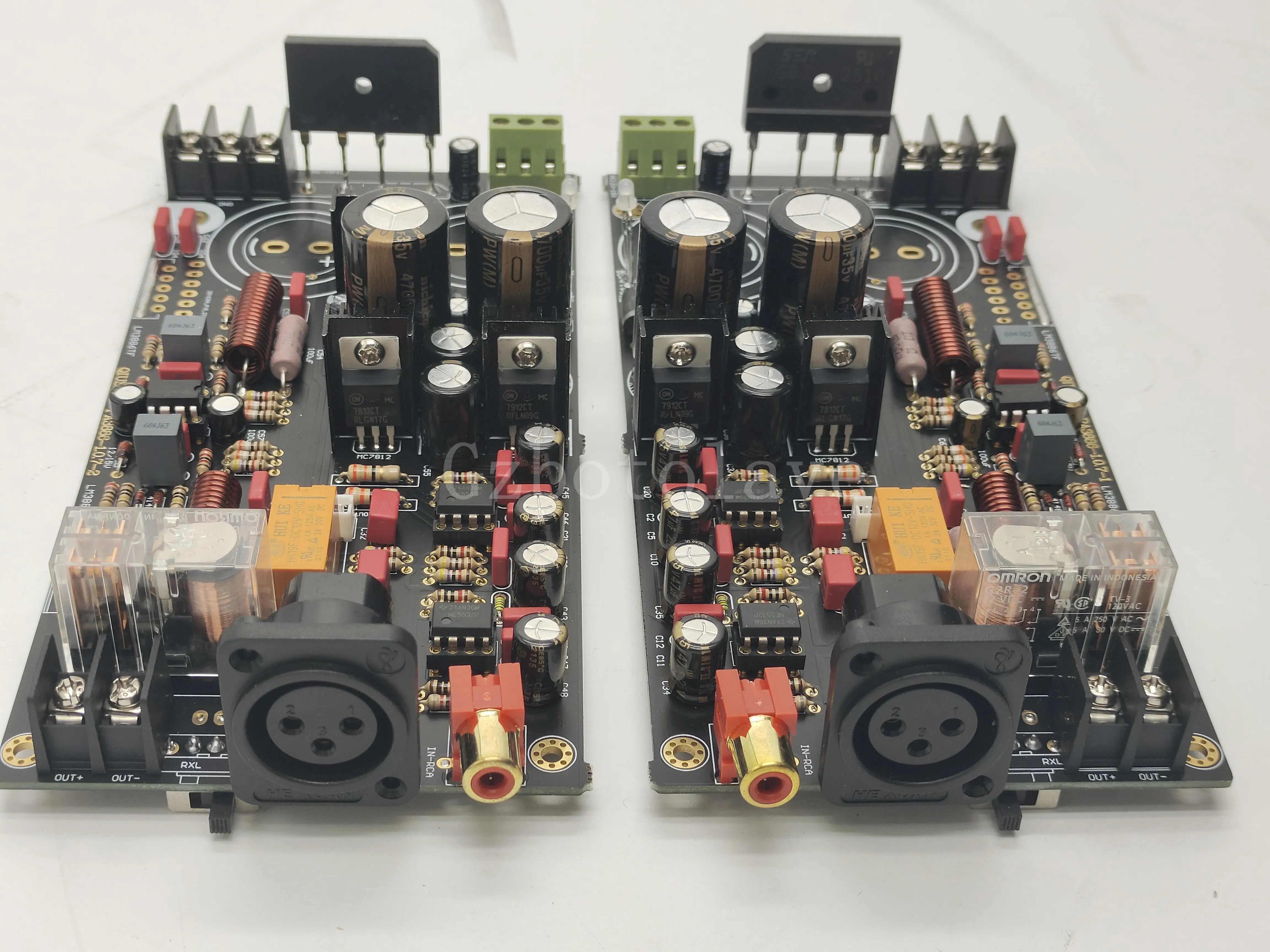

⑤ UPC1237 + Omron relay speaker protection circuit.
⑥ The pure dc structure is adopted.
⑦ Fully balanced structure.
⑧Two channels separate system board, and separate power supply, the volume potentiometer point chassis through the ground, the real realization of dual mono, two channels do not affect each other, to eliminate mutual crosstalk, so absolutely discrete.
Specifications:
Supply voltage: the main voltage AC 24V-0-24V; vice voltage AC 15V-0-15V
Output power: Each channel rated 120W, impedance 6-8 ohms
Input parameters: single-ended input impedance 20KΩ, balanced input impedance 50KΩ
Net weight: 0.28KG (one channel)
Dimensions (W*H*L): 83MM*40MM*170MM (one channel)

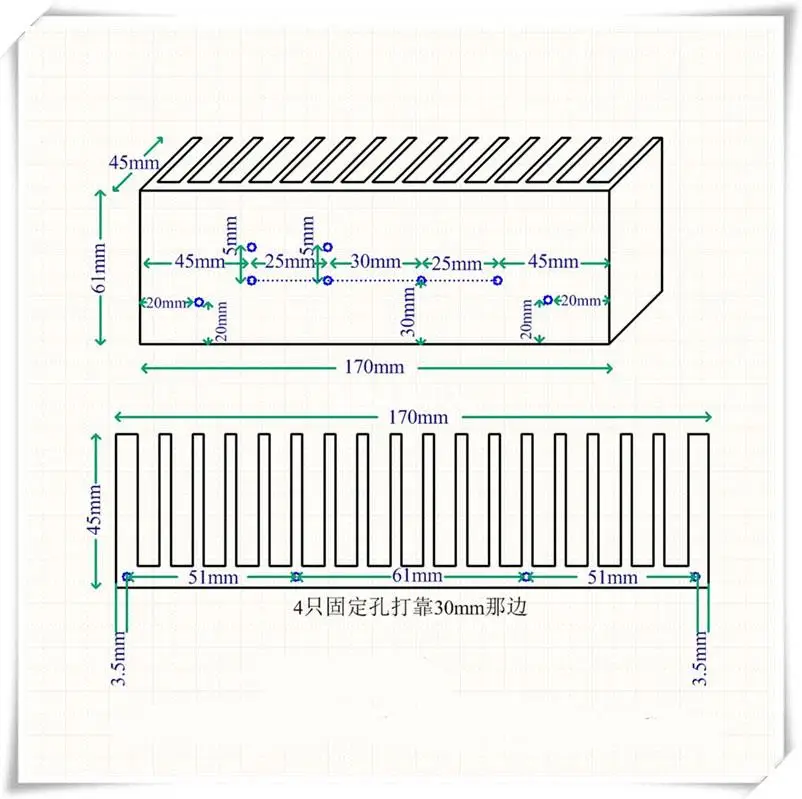

Radiator size: length 170mm* width 45mm* height 61mm
Package Included:
1 × LM3886 2-channel amplifier board
