Details:

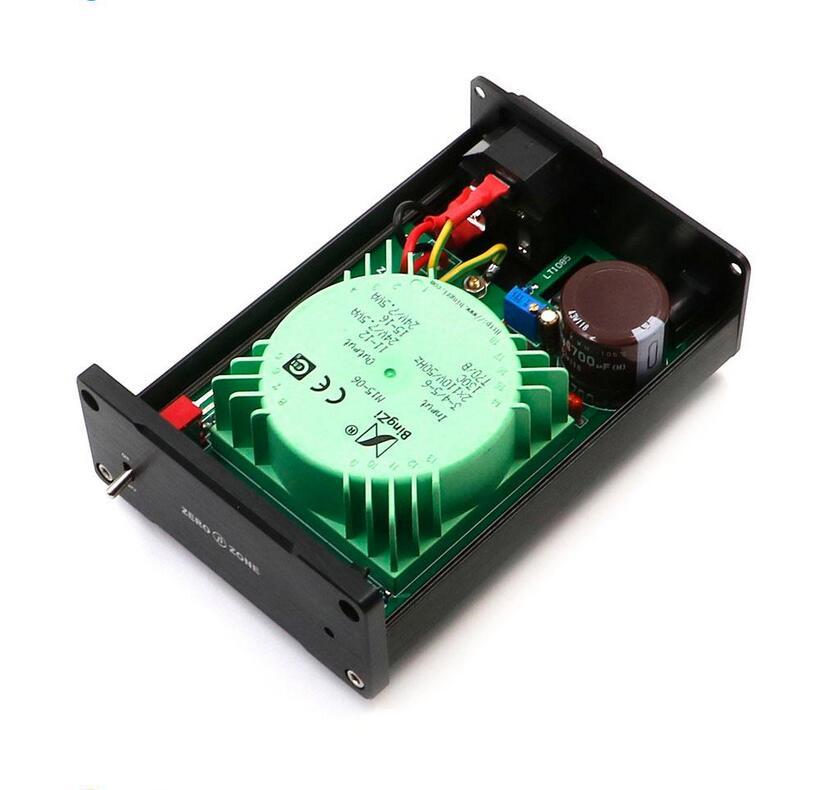

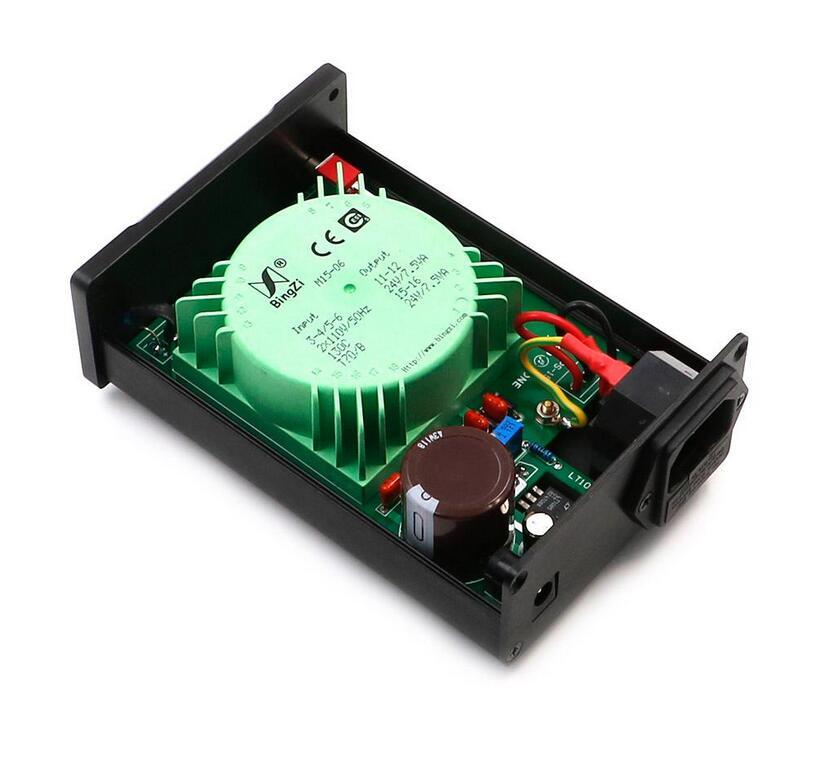

Use rectifier MIC FR207 Fast Recovery series, with PHI CBB, suppress high-frequency noise filter capacitor using a Japanese chemical electrolytic capacitors, capacity up 4700UF, can provide a steady stream of power.
Regulator IC using Use the Original old dismantling chips LT1085.
Size: 90mm*40mm*130mm (W*H*D)
Package Weight: 0.75kg
Input voltage: AC 110V or 220V (Optional)
Transformer power: 15VA
Output voltage / current: Only the following voltage selector
DC-5V / 1.6A
DC-6V / 1.4A
DC-9V / 1.25A
DC-12V / 1.0A
DC-15V / 0.83A
DC-18V / 0.83A
DC-24V / 0.62A
Polarity: Internal + / External -
DC plug size: External diameter 5.5mm, Internal diameter 2.1mm
(We can provide Other specifications DC Conversion head, If you need, please contact us)
Package Includes:
LPS-15 15W Linear power supply X1
0.5M 5.5mm * 2.1mm DC cable X1
Note: We do not offer AC input cable.
