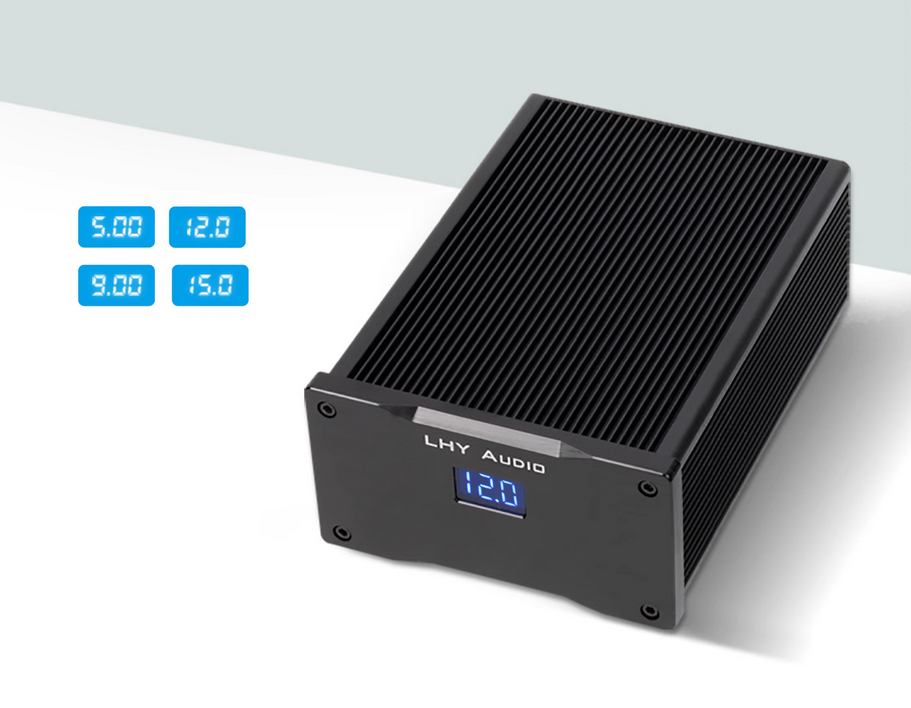

Product Details:

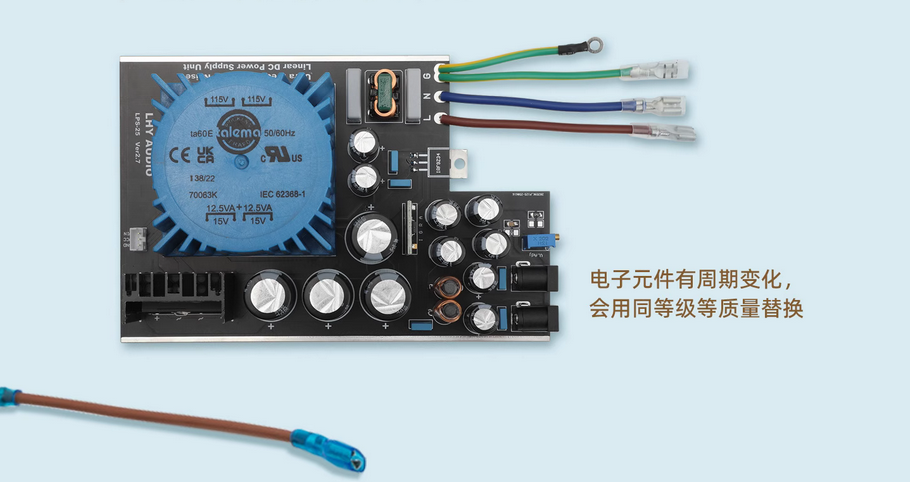

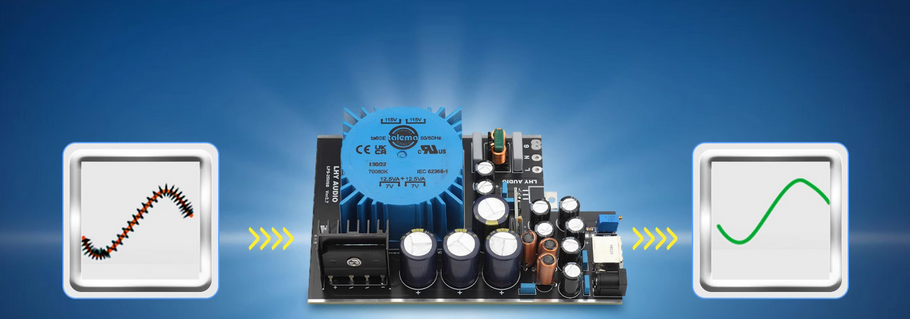

This LPS25 adopts a precision voltage reference, high-speed ultra-low noise operational amplifier, and low internal resistance MOS power transistor to construct a core voltage regulation architecture Form a truly ultra-low noise DC output system Multiple high current filtering capacitors and inductors are used internally Construct a matrix based energy storage filtering circuit Fundamentally purify the power supply Improve dynamic performance Make the sound purer and the picture more transparent.

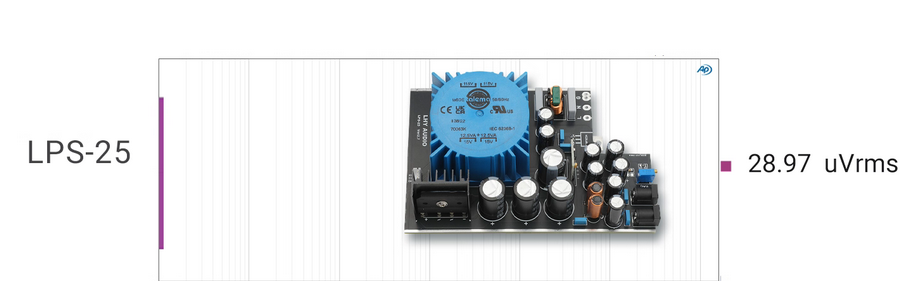

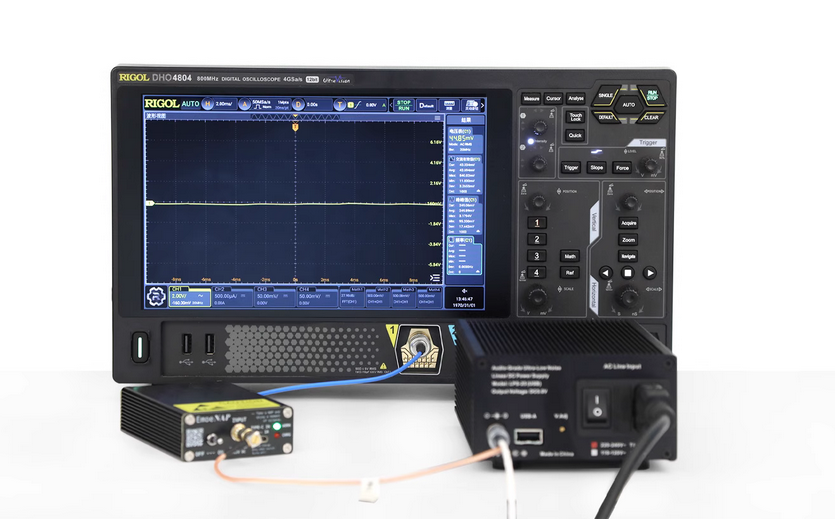

1. Ultra low noise output ripple.High speed, fast response, ultra-low noise operational amplifier voltage regulator module
2.Low differential voltage regulation and high stability output.

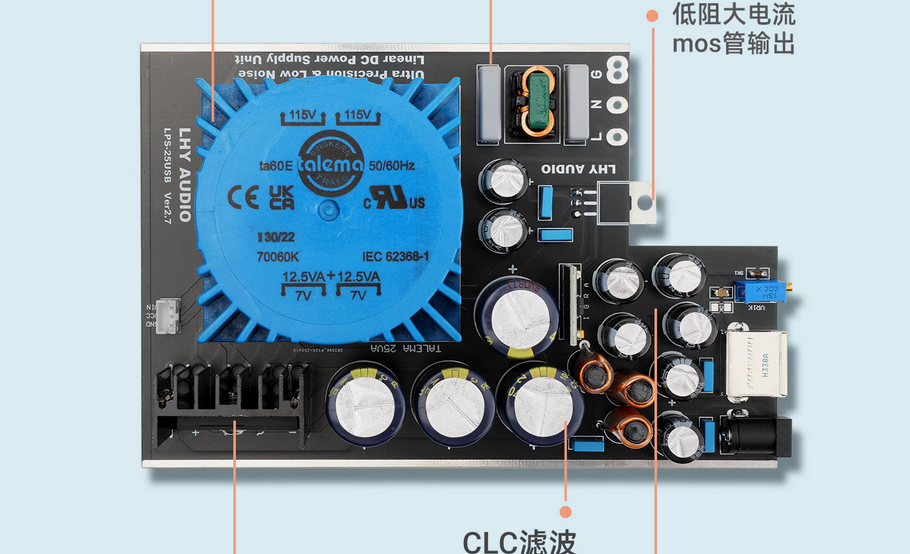

3. Dual parallel output.EMI AC filtering circuit.CLC matrix filtering
4. The back adjustment potentiometer can adjust the voltage output range of+-0.5V.
5. Adopting high-quality sealed ring transformer.
5. Low internal resistance and high current MOS transistor output.High quality integrated heat dissipation chassis
How to choose the appropriate specifications?
1. Confirm the input voltage of the device (refer to the device power interface or instruction manual).
2. Select the voltage model that is the same as the input voltage of the device.
3. Ensure that the required current of the equipment is ≤ the rated output current of this link power supply.
4. Confirm that the interface size and polarity match. Low noise active noise cancelling DC power supply
Parameters:
Input voltage: AC 110V or AC 220V (Optional)

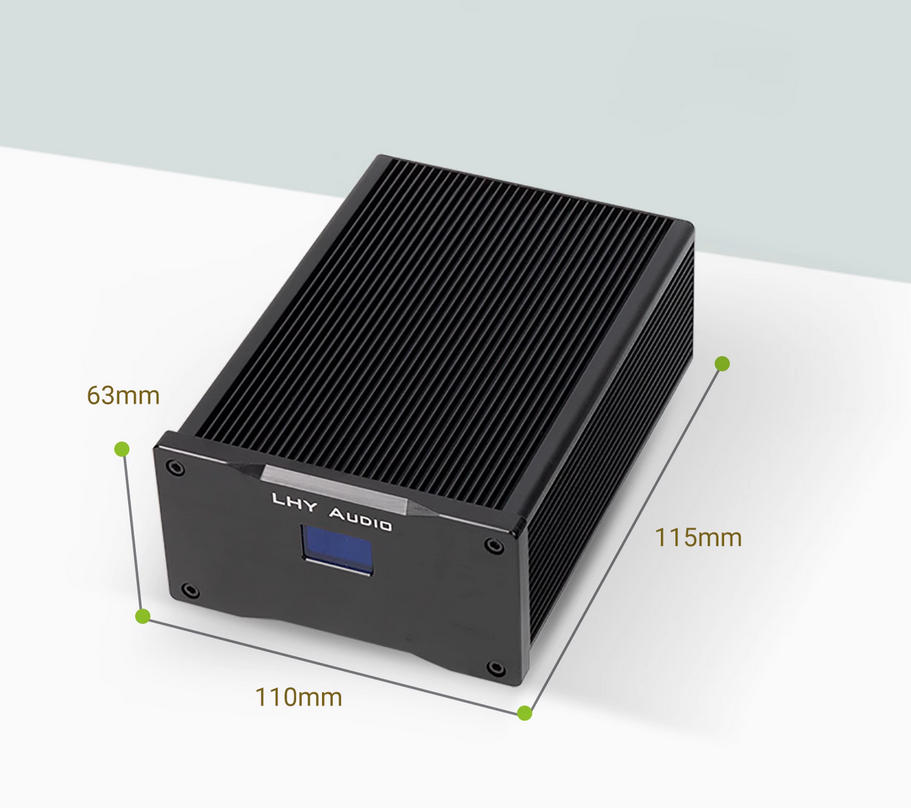

Size: 110*63*155mm (W*H*D)
Weight: About 1.2kg
Output interface: 16mm 2P aviation socket
Package list:
1 × LPS25 power supply
