Specifications:

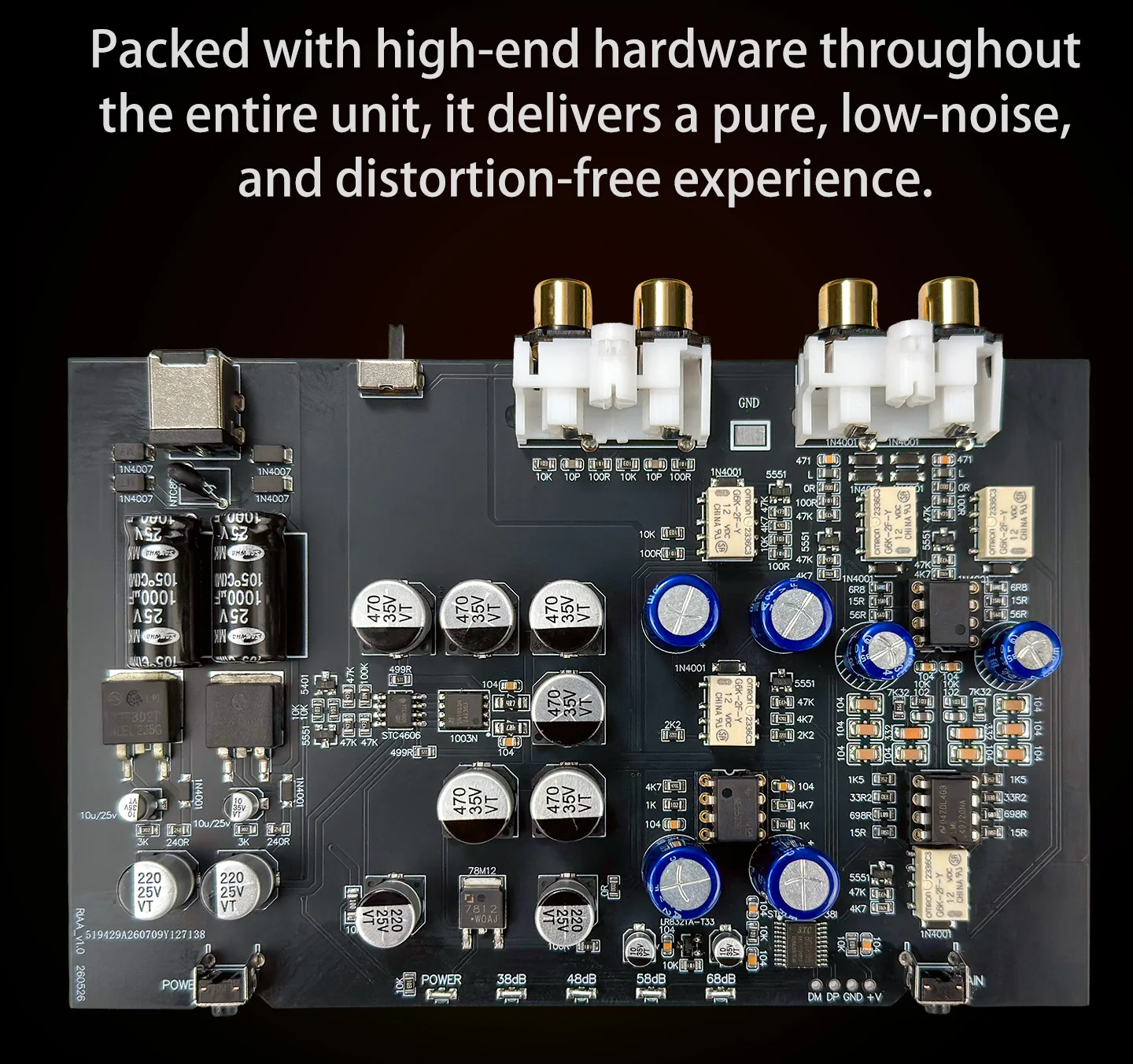

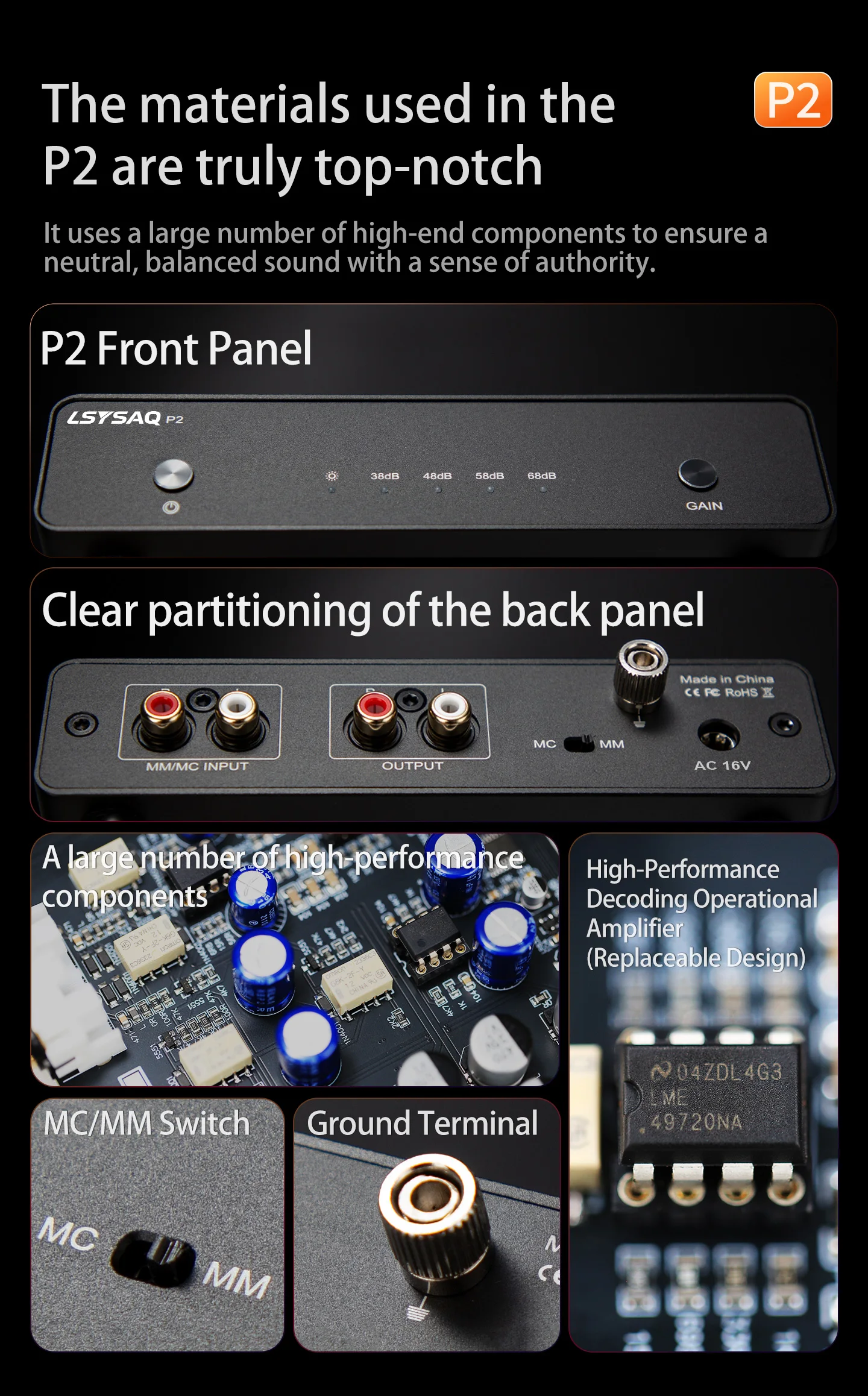

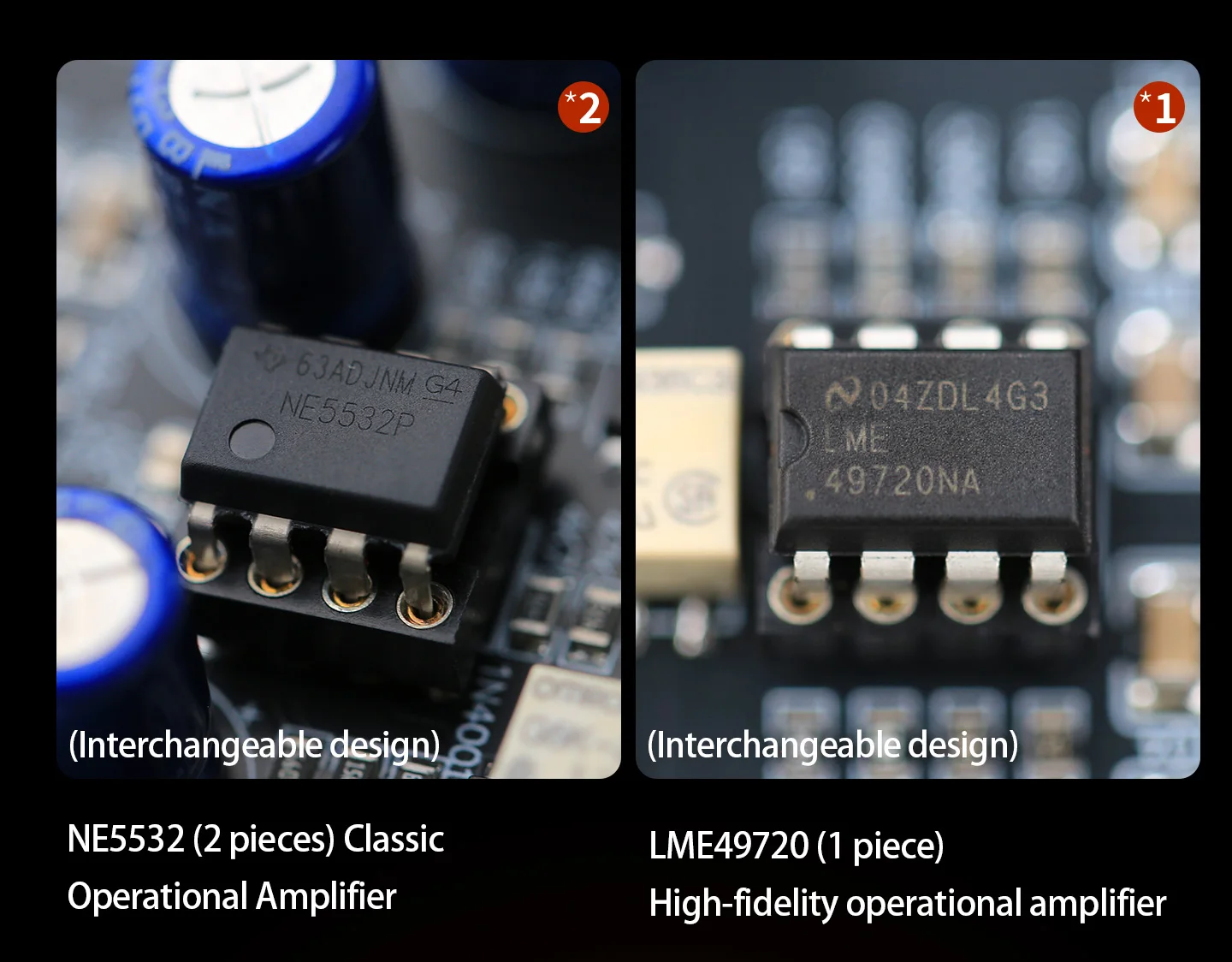

Chipset: NE5532P*2 + LM49720

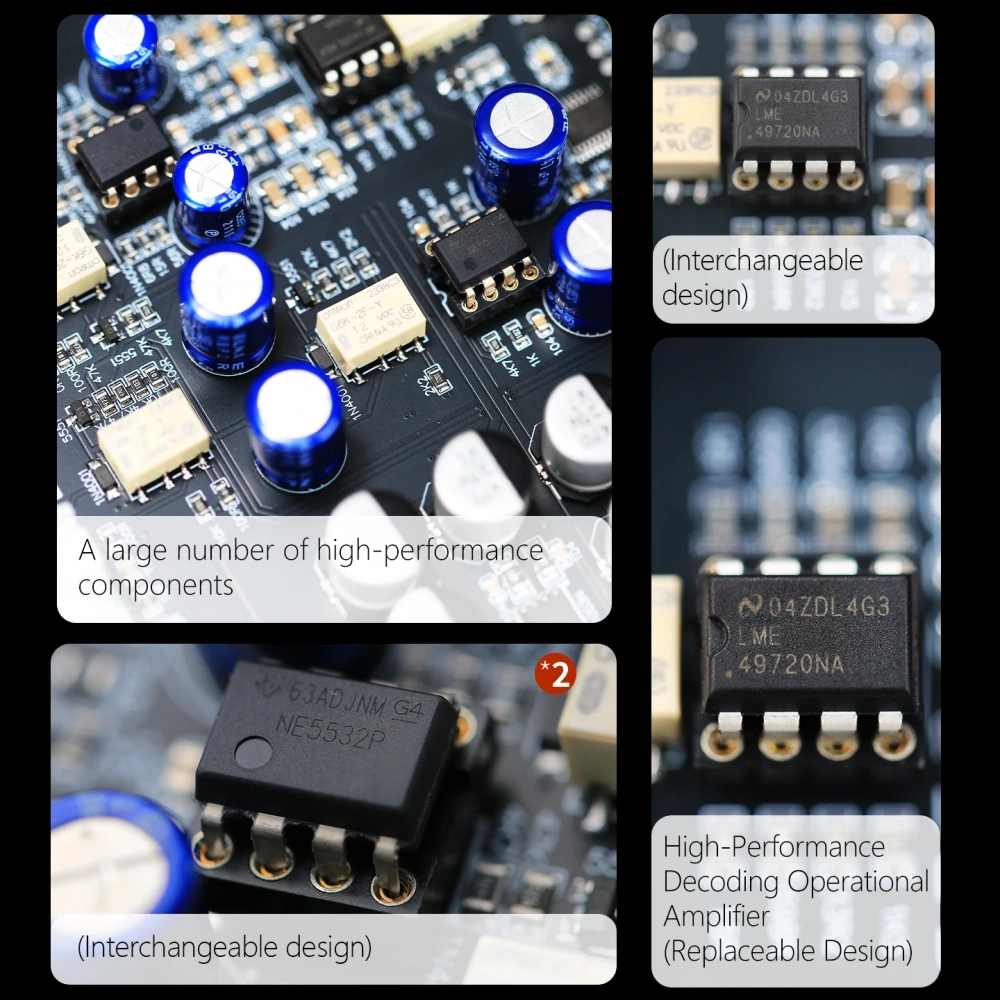

Replaceable chips: OPA2604, OPA2134, LM4562, JRC5532, etc.

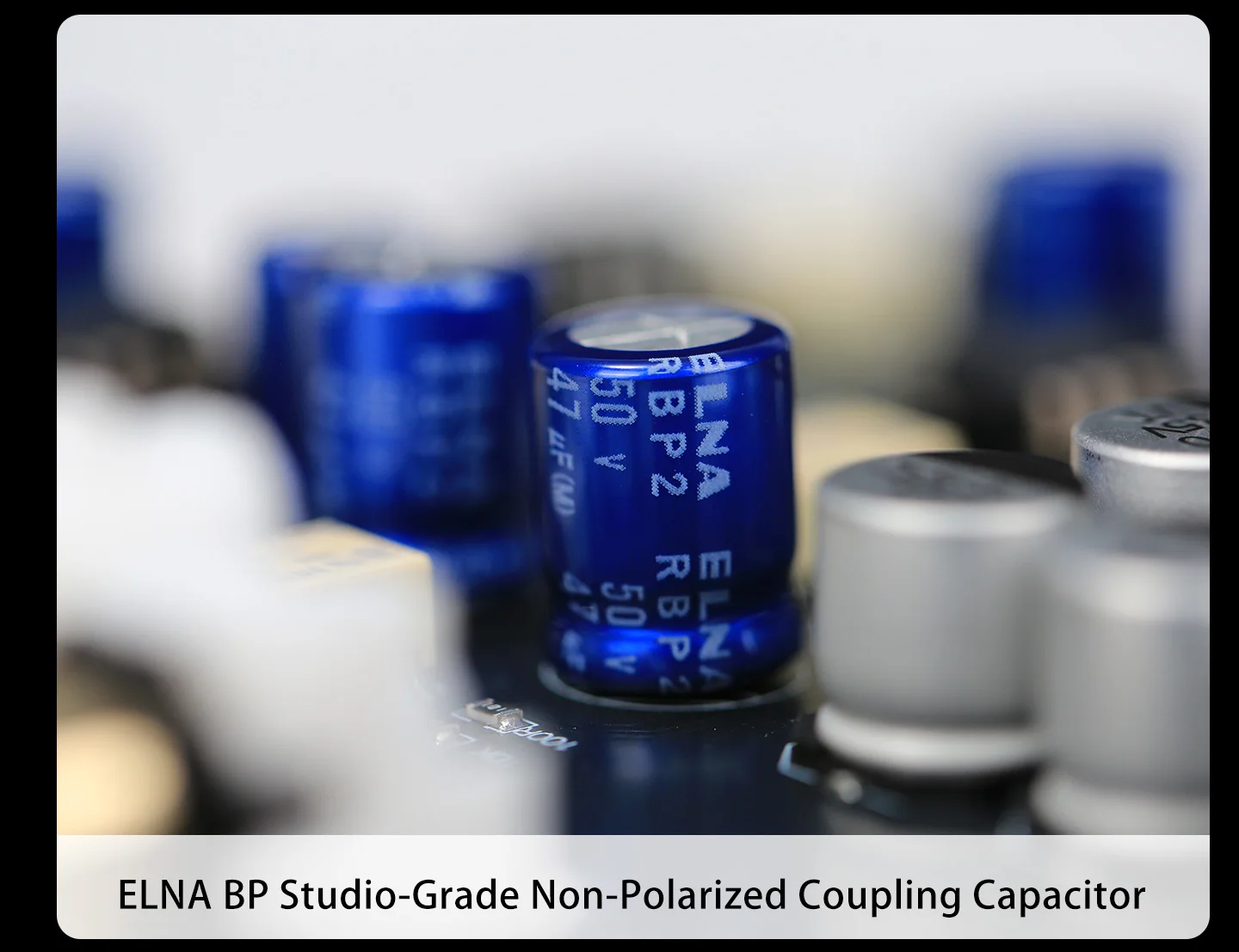

Capacitors: ELNA BP

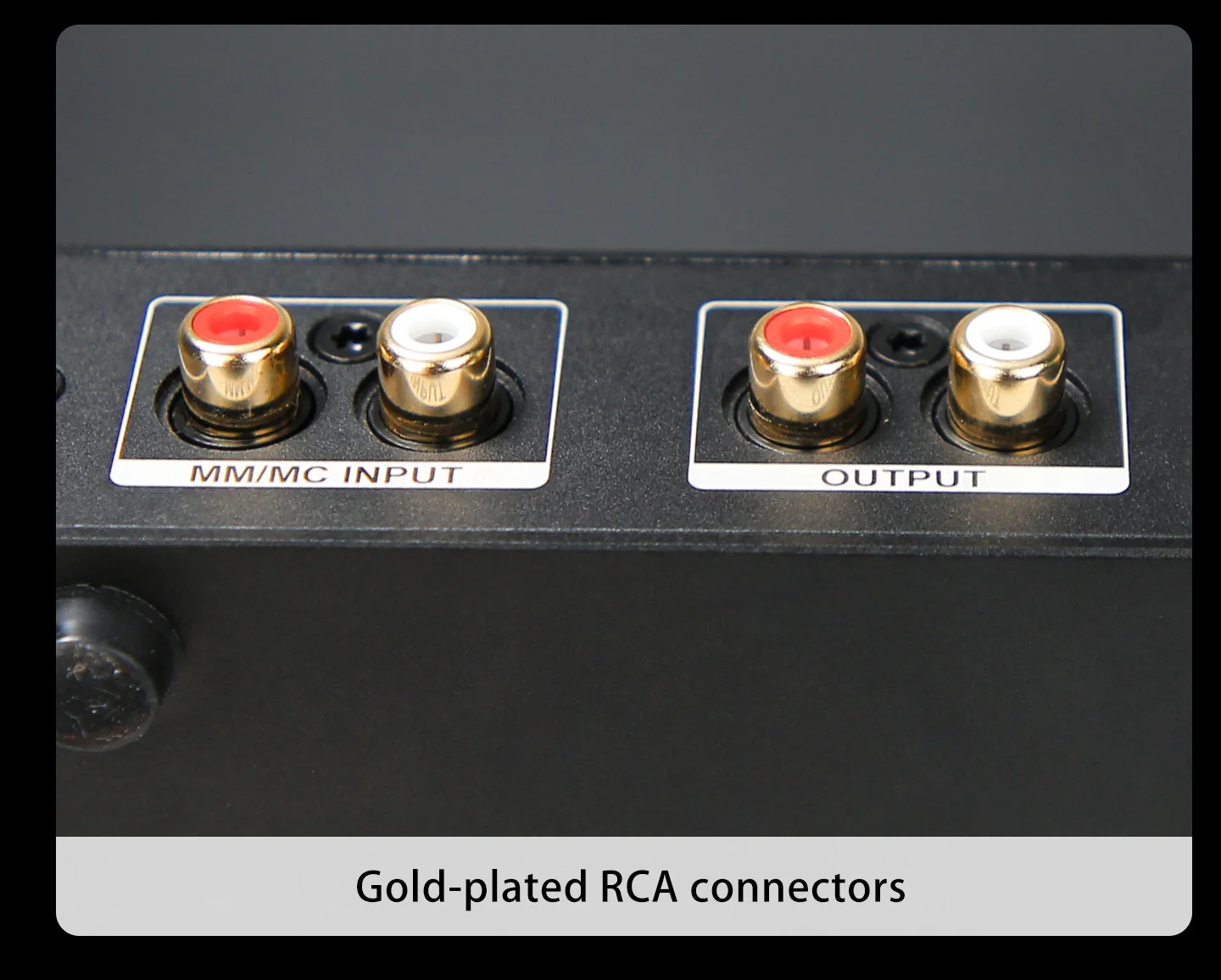

Input/Output: RCA
Frequency Response: 20–20K @ 1kHz ±0.3dB

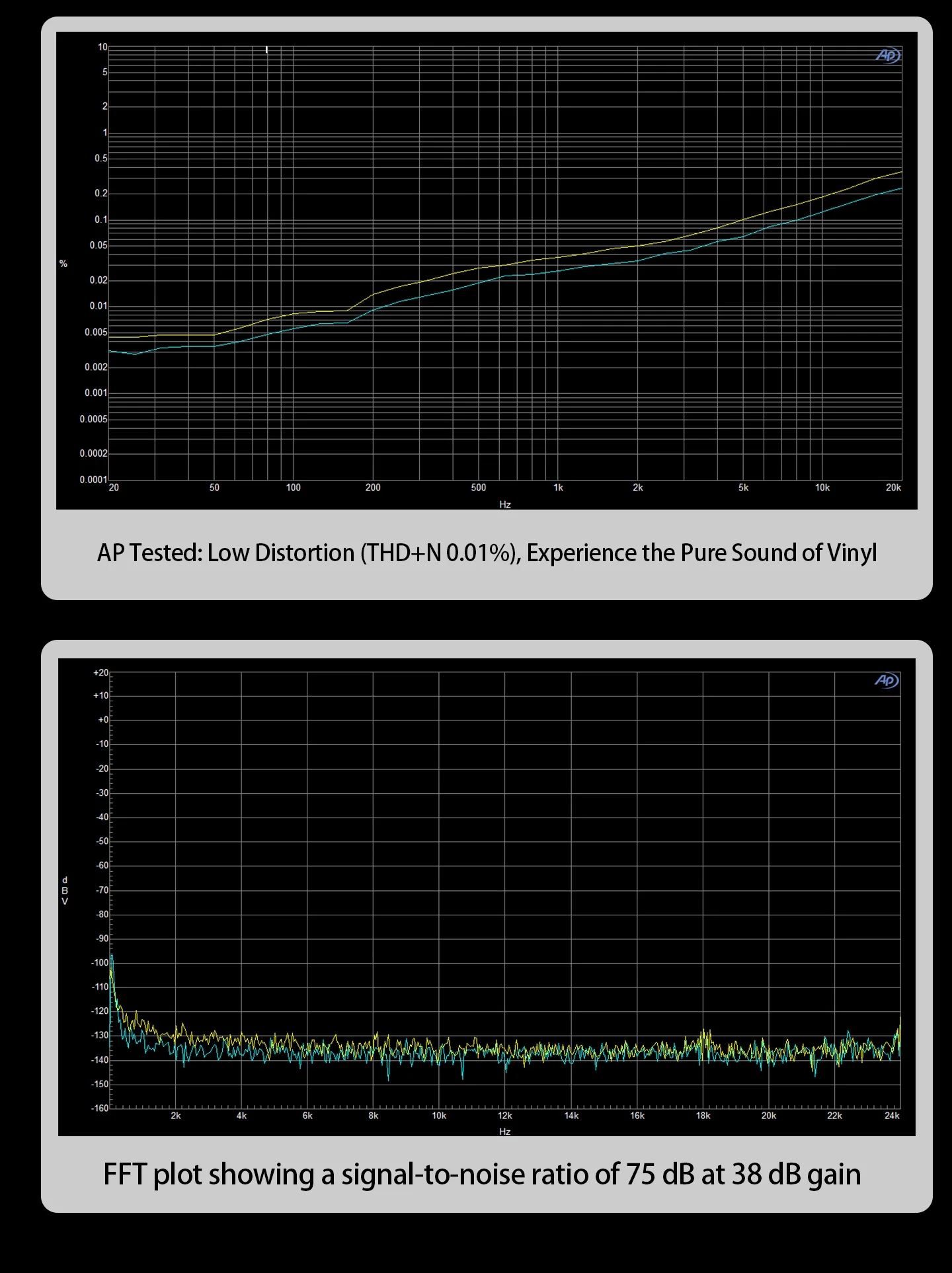

Total Harmonic Distortion: 0.01%
Signal-to-Noise Ratio: 75 dB
Output Level: 5 mV (MM mode)；0.5 mV (MC mode)
Maximum Output Amplitude: 450 mV

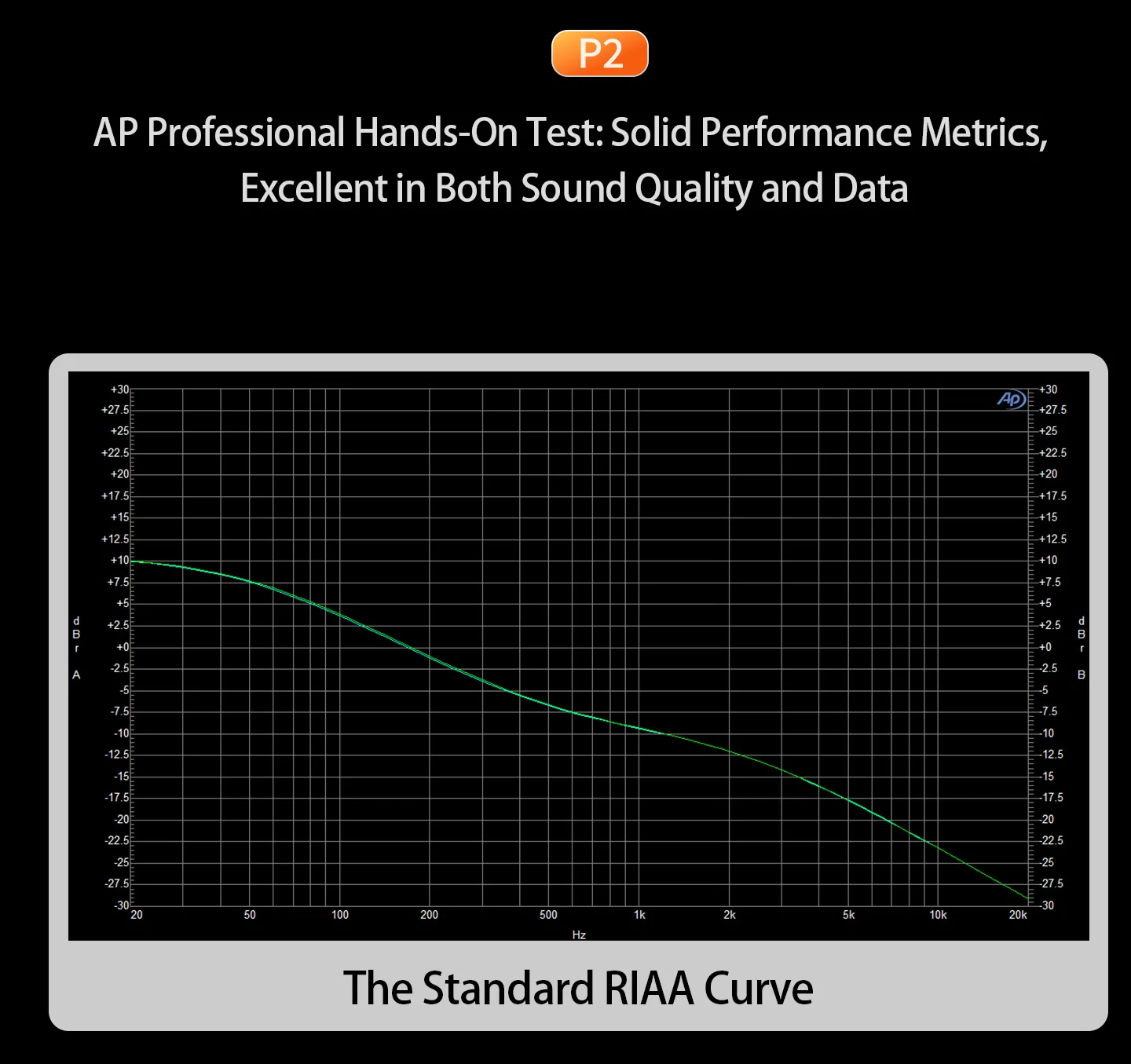

Input Mode: MM/MC Phono
Compatible Devices: MM/MC phono preamps
Gain: 38/48/58/68 dB
Output Impedance: 10 kΩ
Input Impedance: MM: 47 kΩ, MC: 100 kΩ
Output Modes: Active Speakers, Power Amplifier + Passive Speakers
Power Supply: AC 16 V, 1000 mA

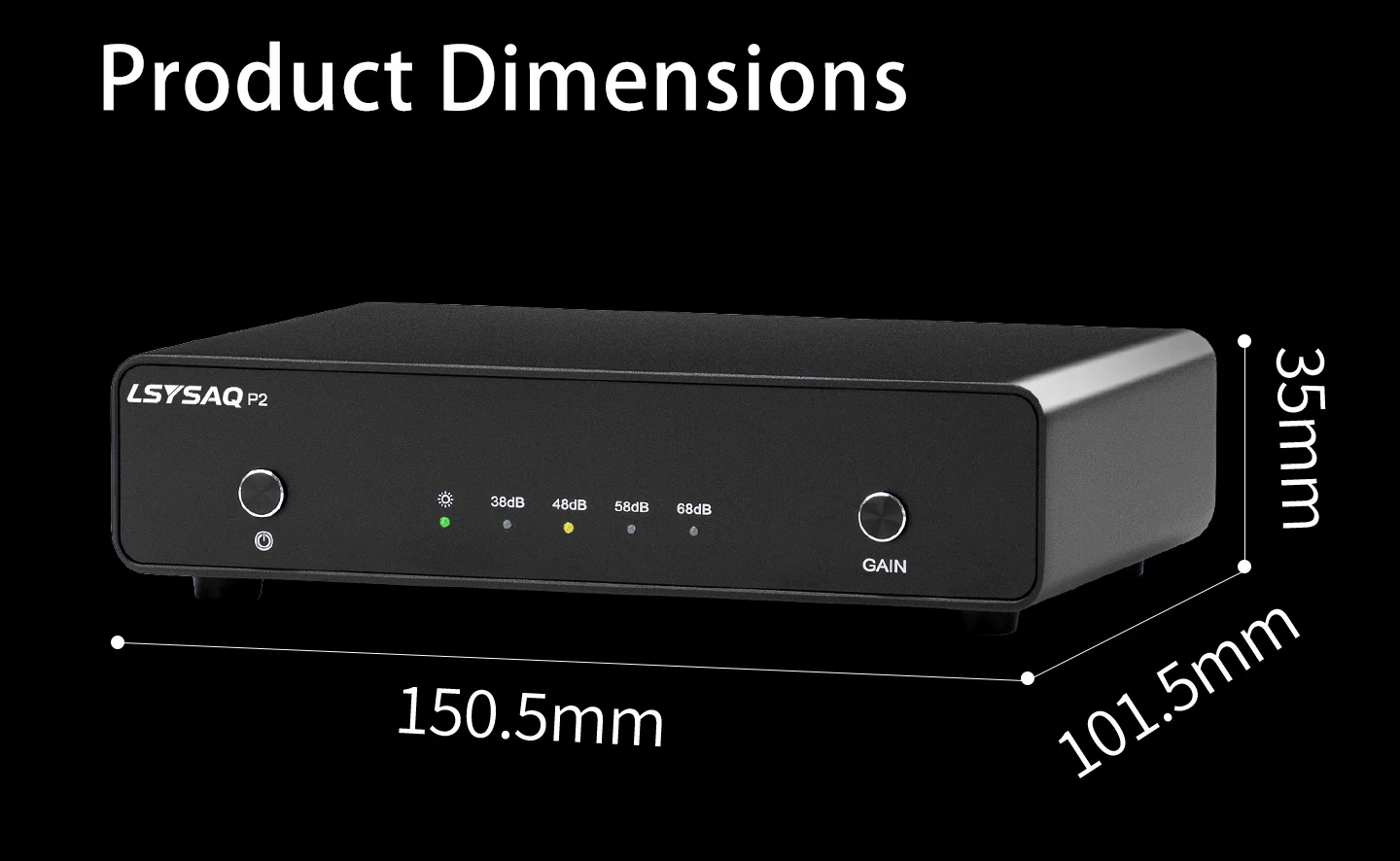

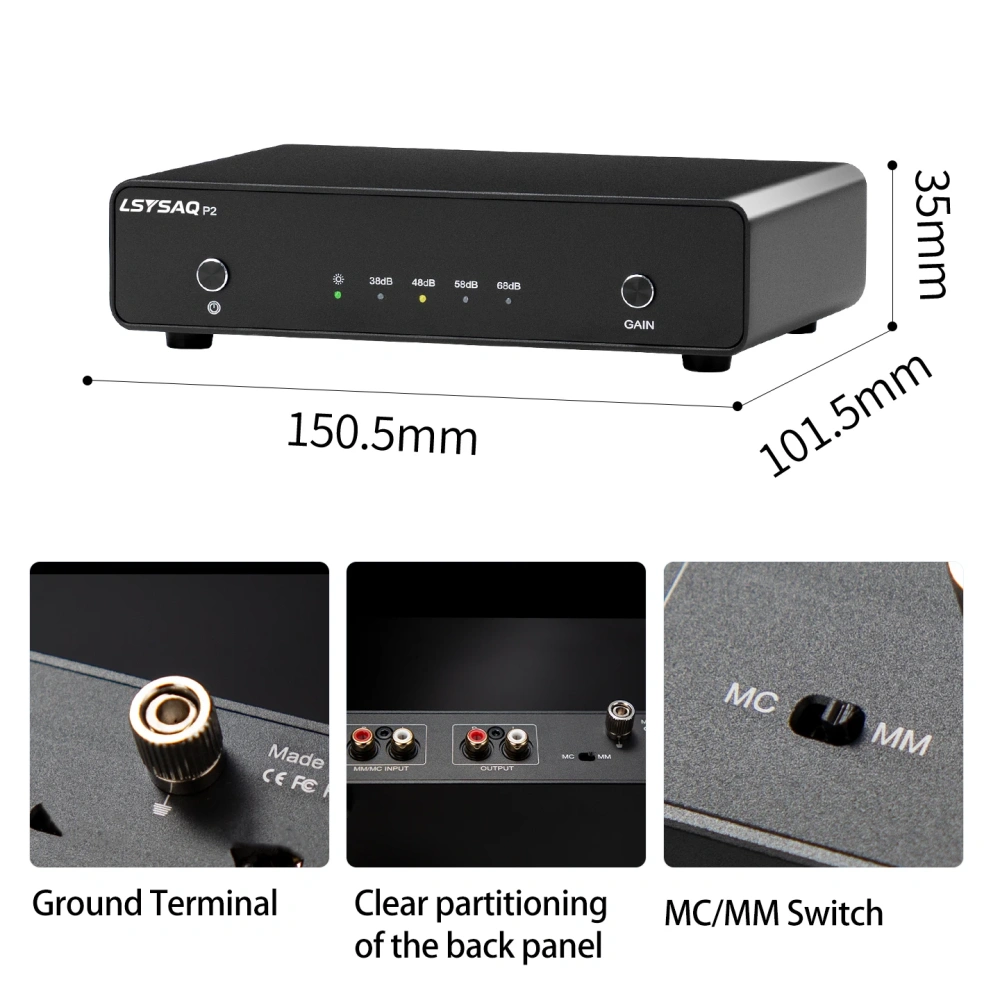

Dimensions: 150.5 × 101.5 × 35 mm
Net Weight: 415 g
AC Power Connector Specifications: 5.5 × 2.1
Tip: Please choose the appropriate power adapter.

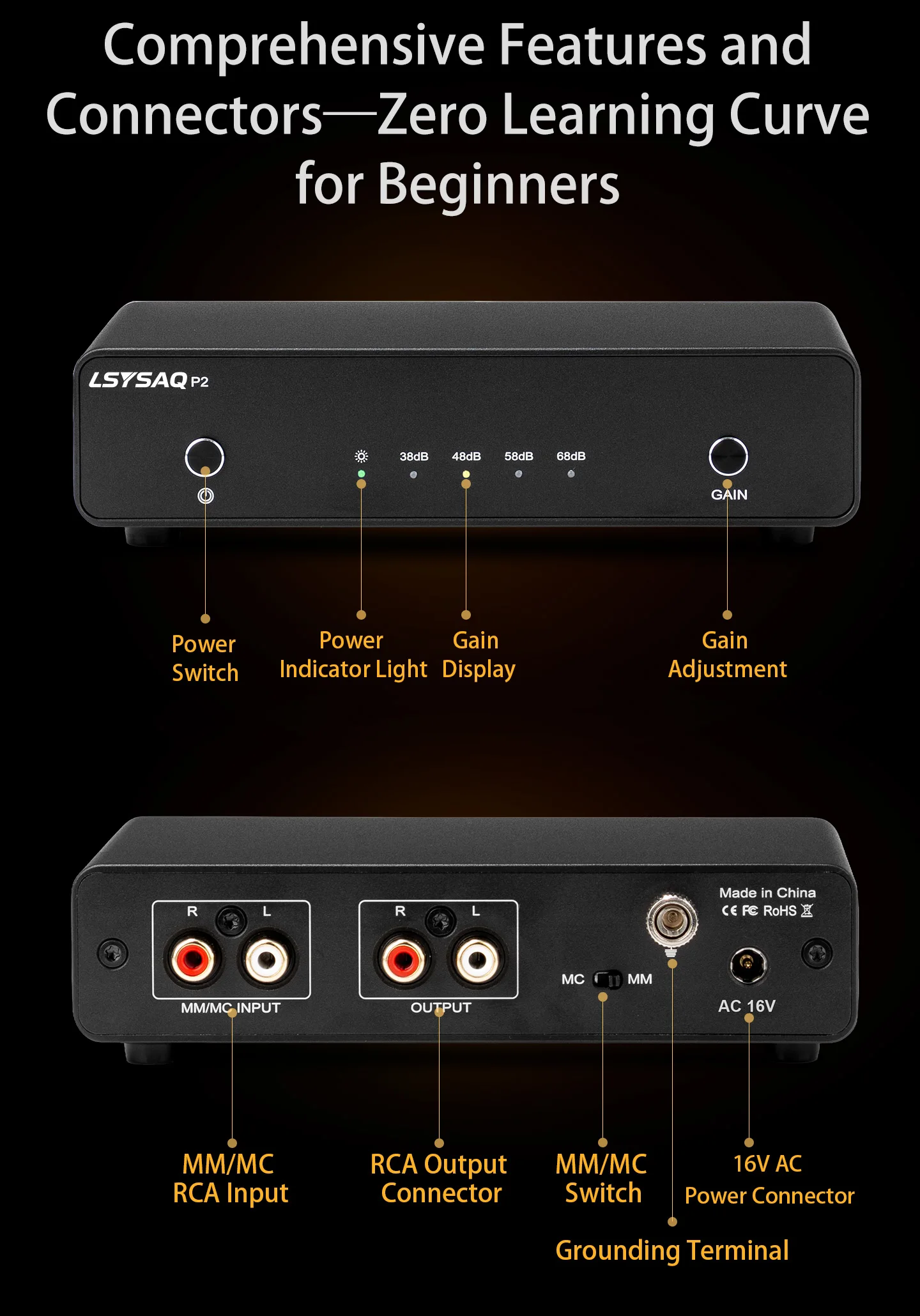

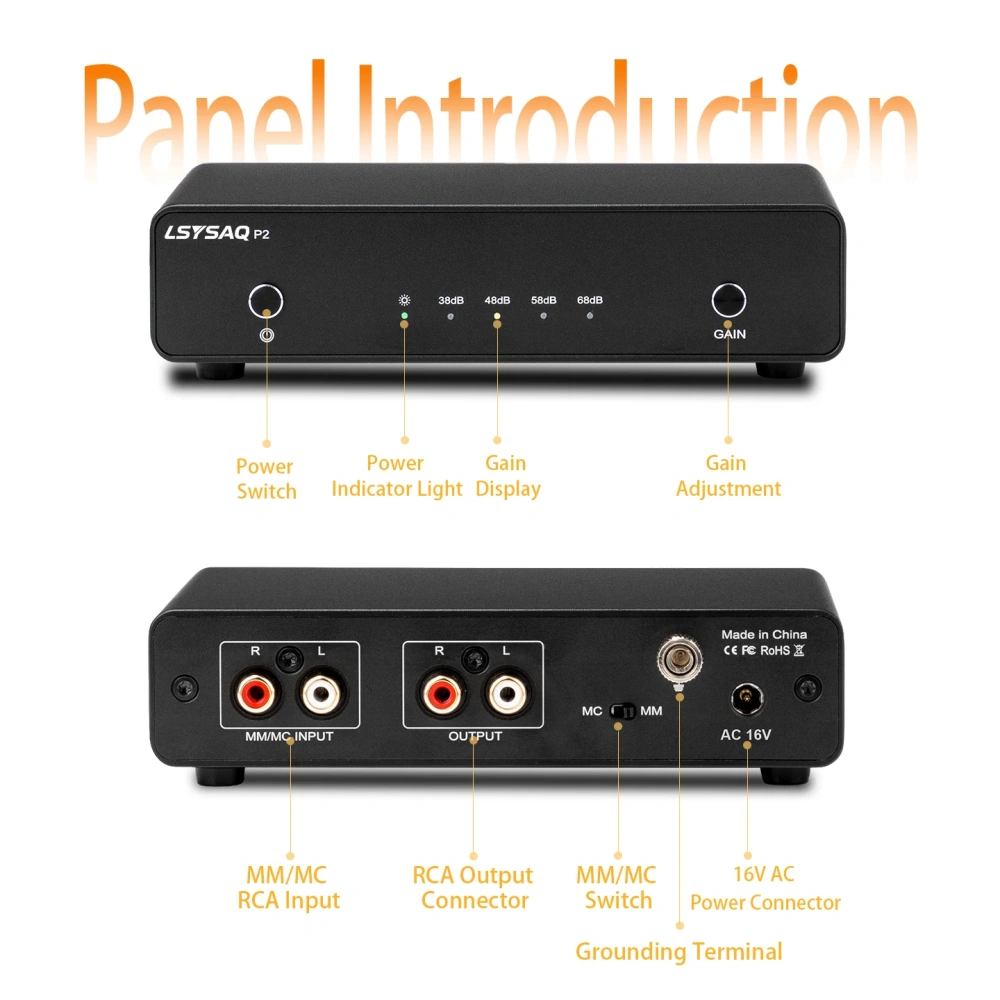

Instructions for Use:
1. When powered on for the first time, the unit will automatically turn on, and the power indicator and gain indicator lights will illuminate. Press and hold the power button to turn
off the unit; while powered off, press the power button once to turn it on.
2. Press the gain switch button briefly to adjust the gain. There are four gain settings: 38 dB, 48 dB, 58 dB, and 68 dB.

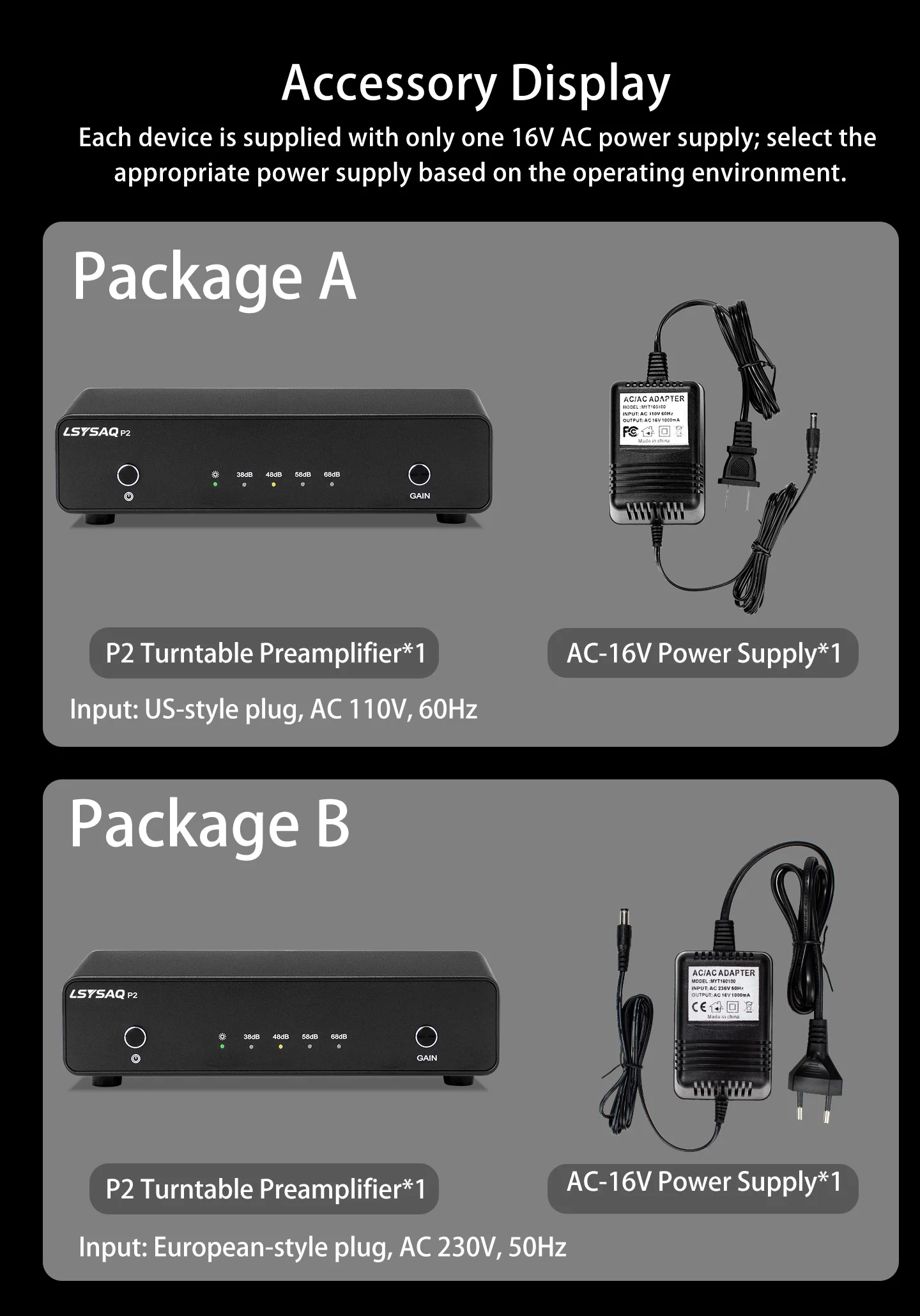

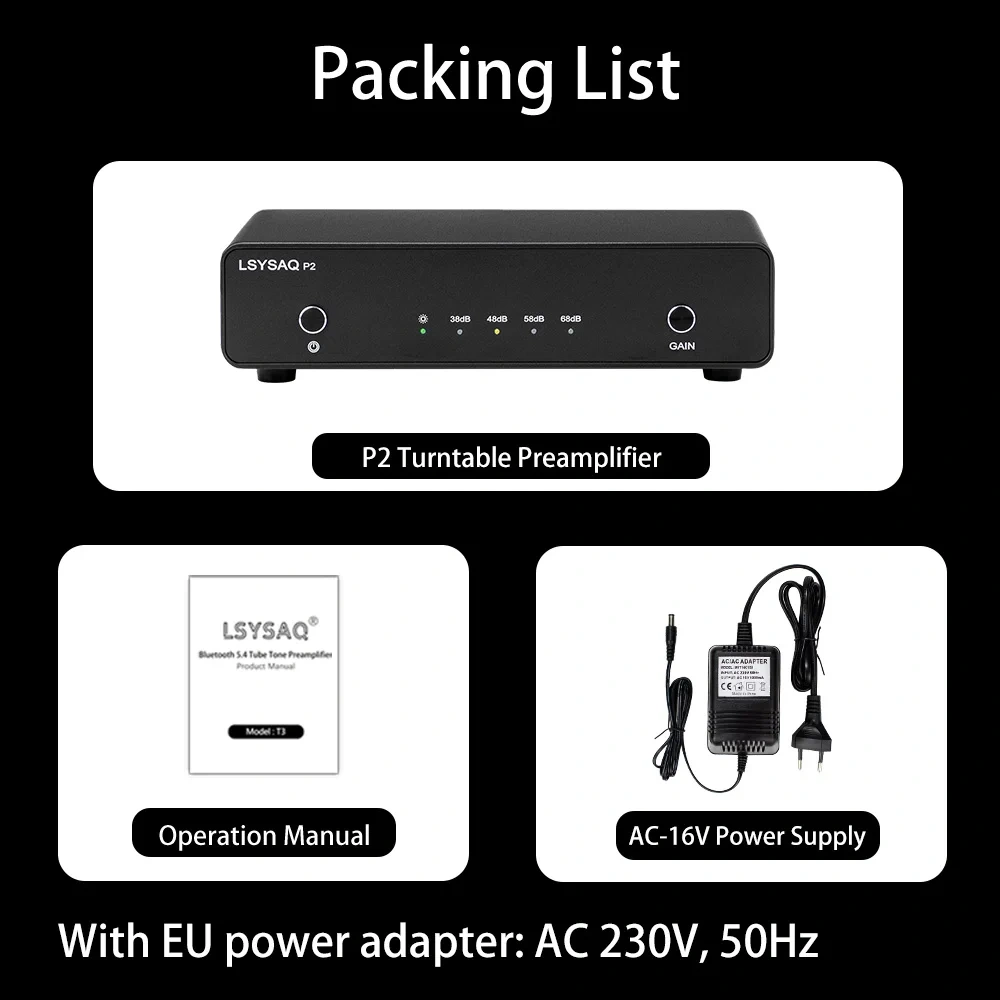

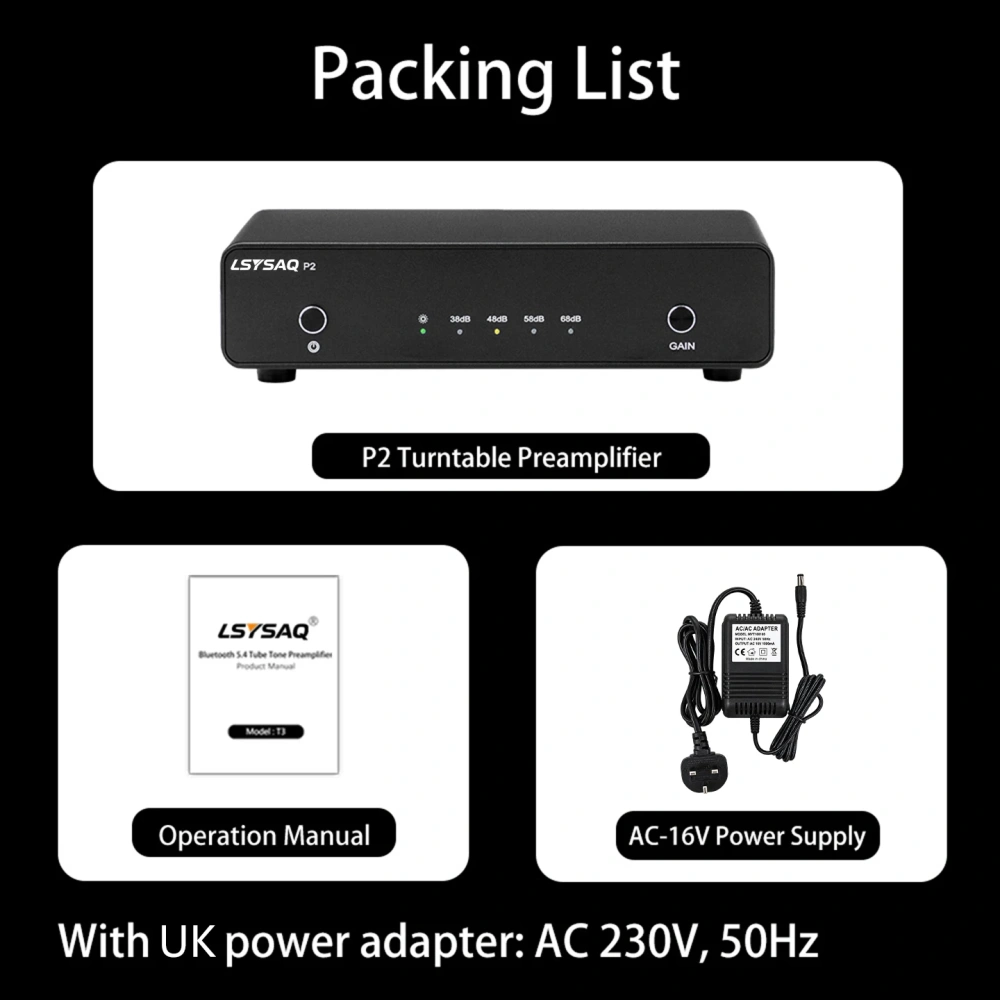

3. The P2 uses a 16V AC power supply. Please use the AC power adapter supplied with the unit; connecting a DC power source will cause the unit to malfunction.
