Package:
DAC Decoder*1
No Power Adapter Included
Instructions:

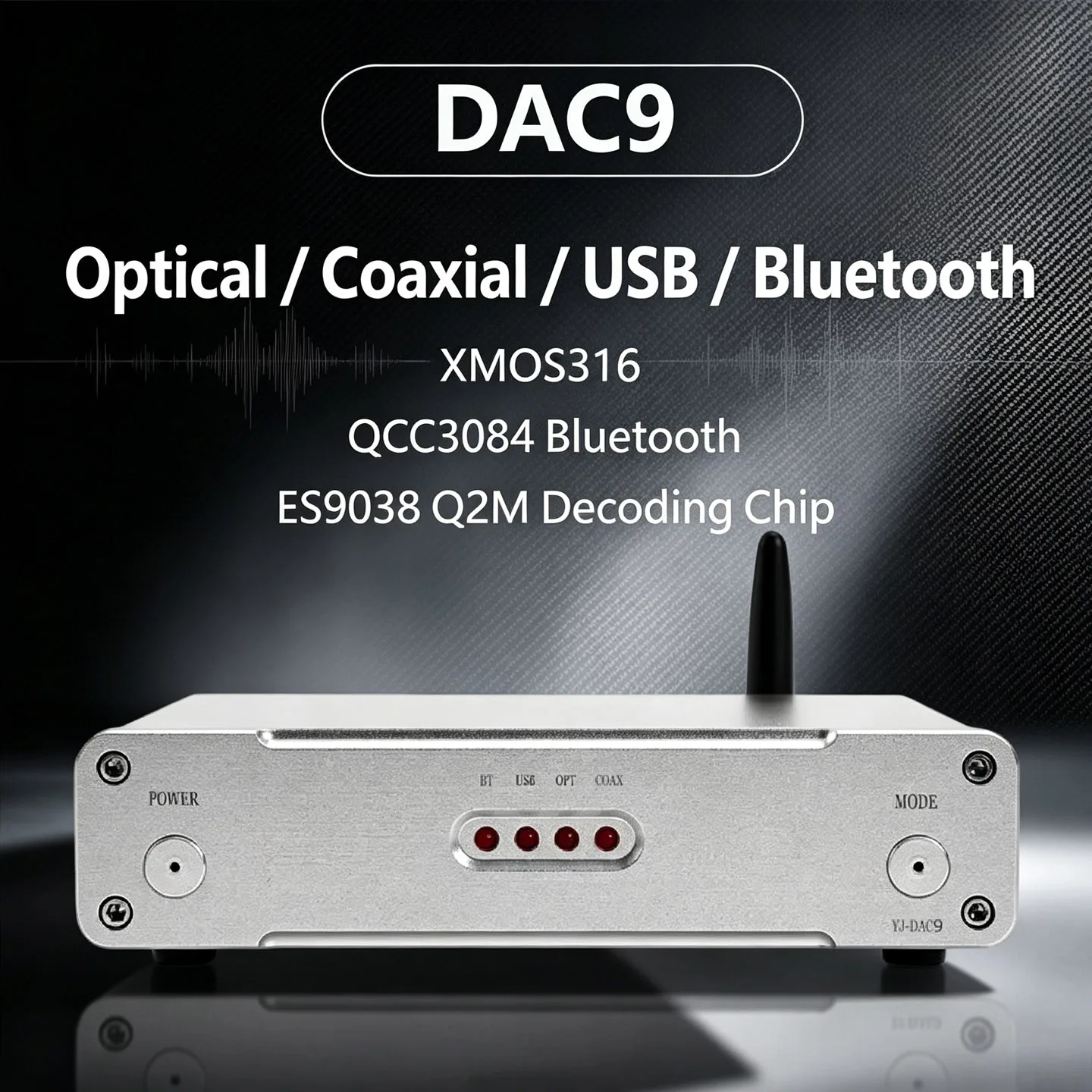

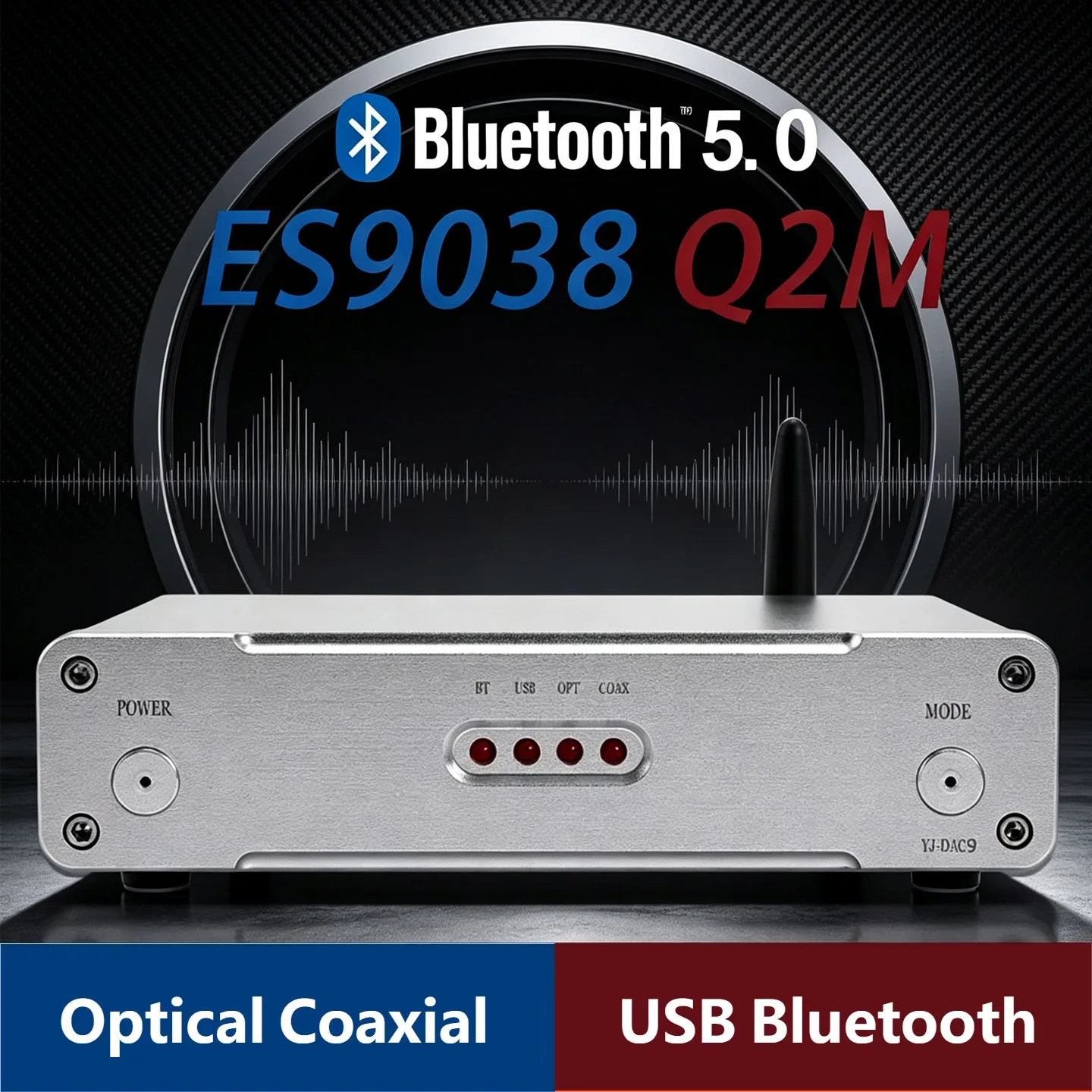

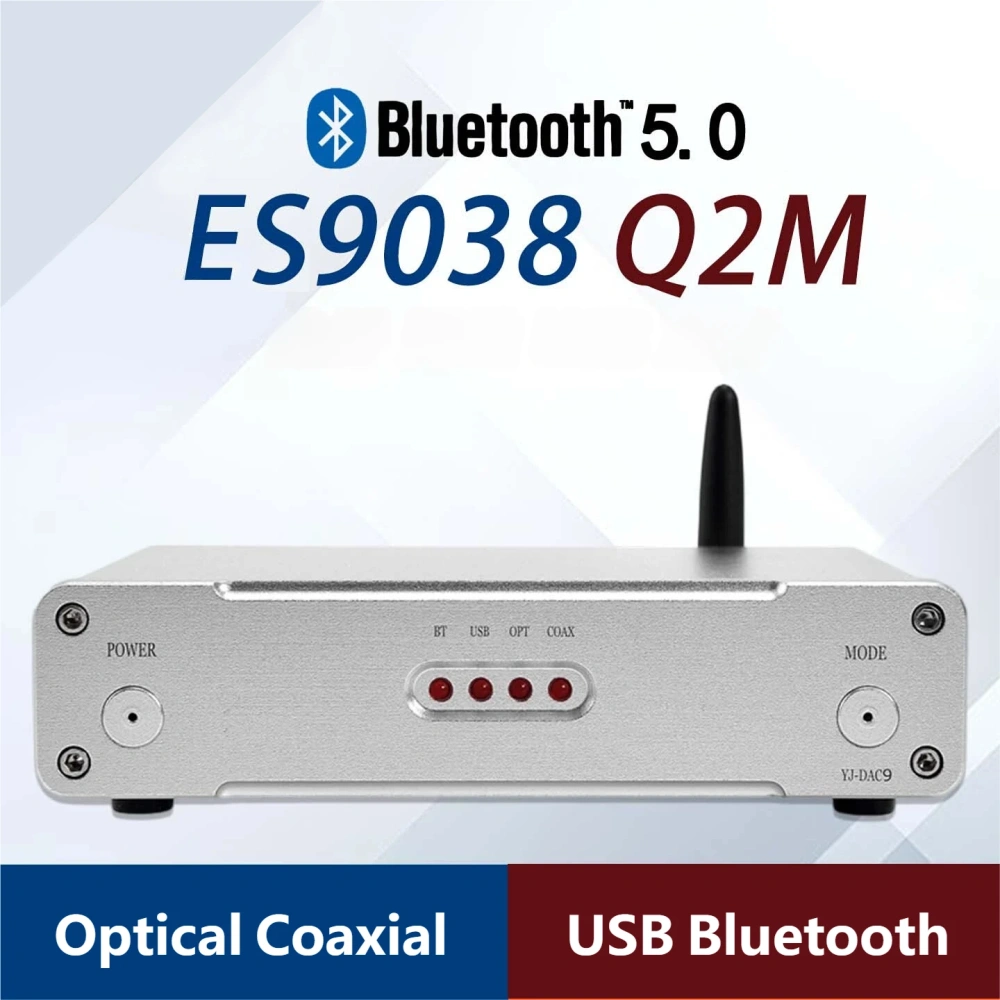

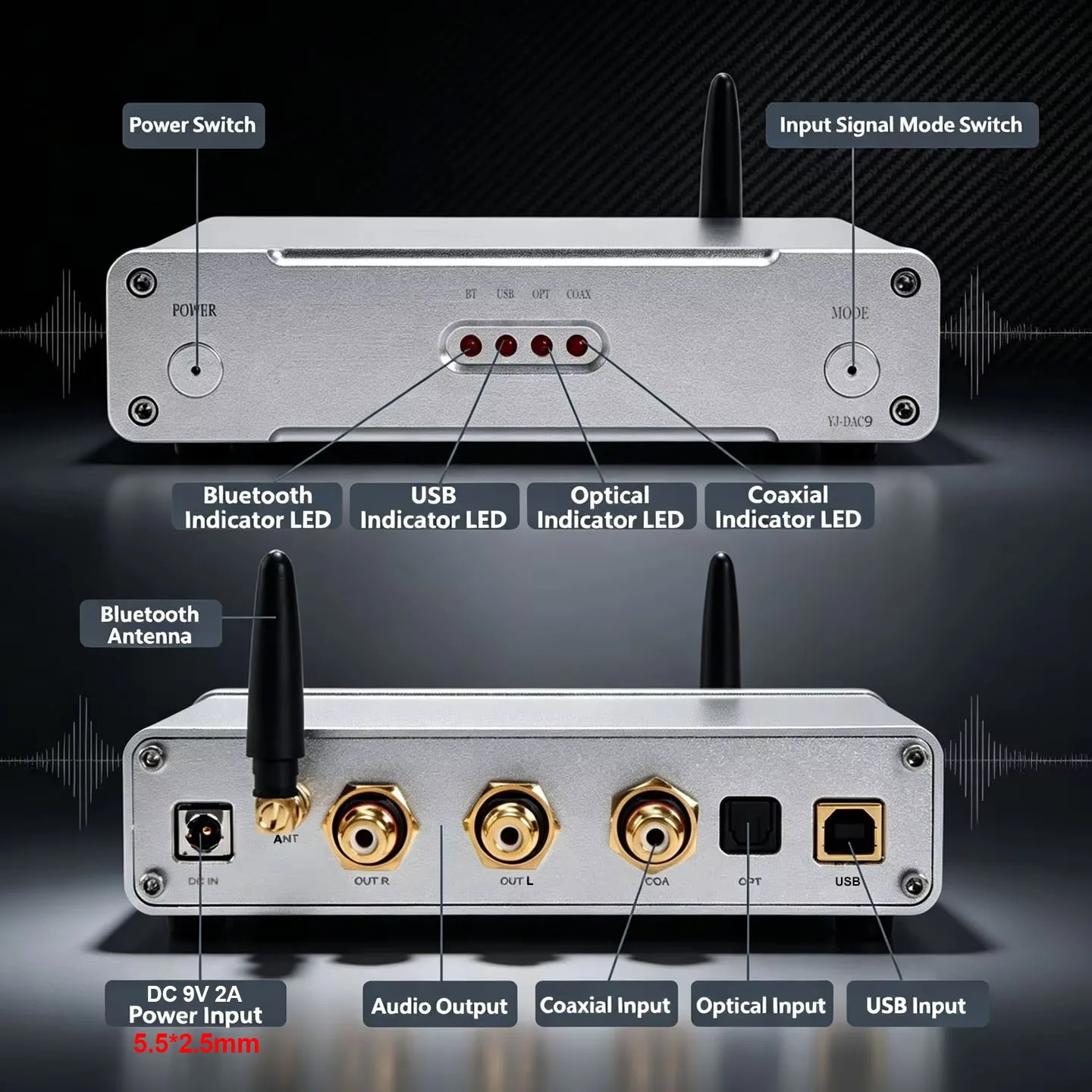

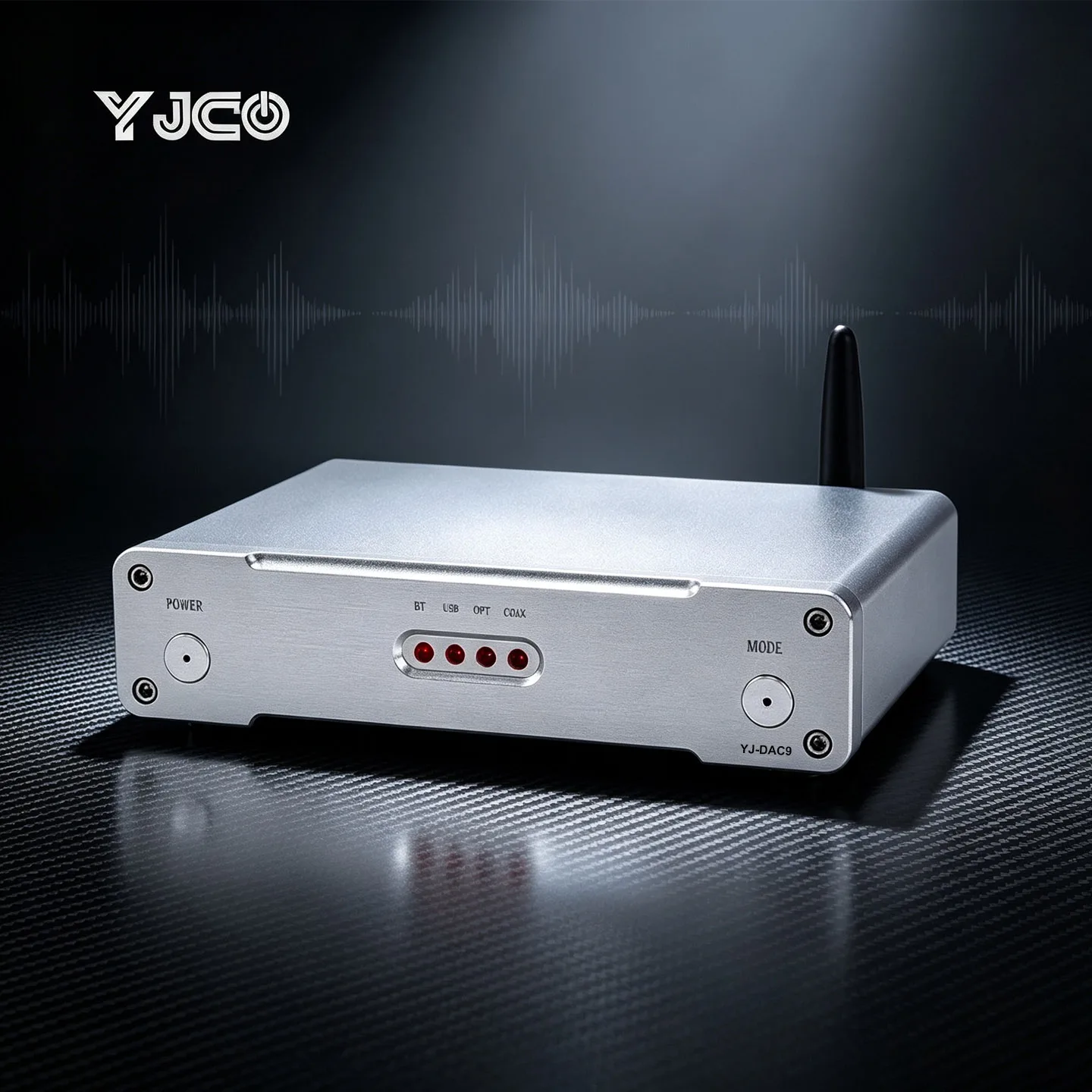

1.DAC9 Digital-to-Analog Converter (DAC) with Optical, Coaxial, USB & Bluetooth connectivity

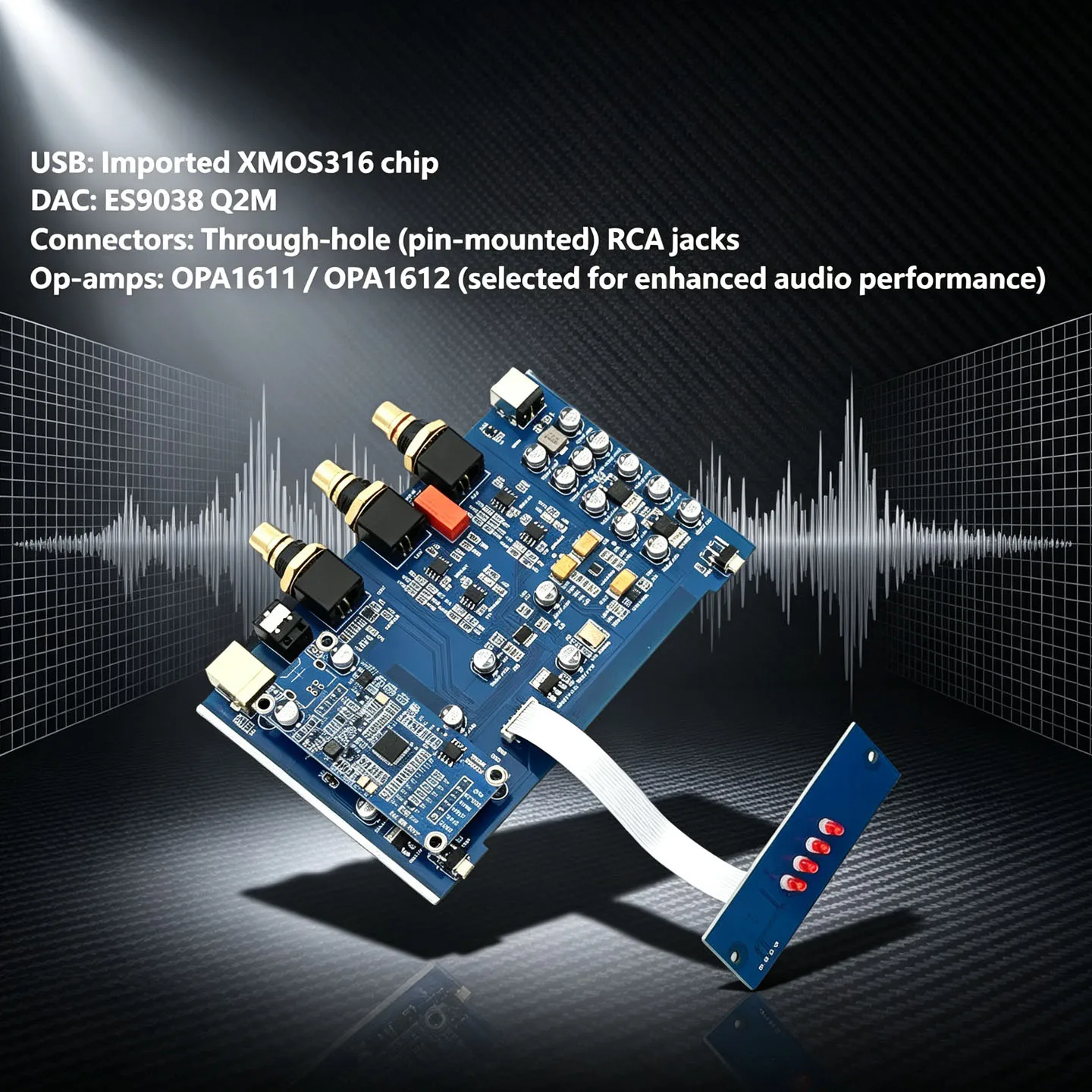

2.Core Hardware Specifications
•USB Interface: Imported XMOS316 chip
•Decoding Chip: ES9038 Q2M
•Audio Output: PCB-mounted RCA connectors, equipped with premium OPA1611 / OPA1612 op-amps for superior sound quality
3.Design & Build Quality
The DAC9 features a sleek, minimalist silver design with an elegant finish. Its chassis is precision-machined from aerospace-grade aluminum alloy for enhanced durability and refined aesthetics.
4.Bluetooth Module
Built-in Qualcomm QCC3034 Bluetooth module, supporting SBC, AAC, aptX, and aptX-HD codecs
Specificatons:
Model: DAC9
Power Supply: DC 9V 2A(AC 100V-240V to DC 9V)
Input Support - Coaxial: PCM 44.1kHz~192kHz 24bit / DOP DSD64
Input Support - Optical: PCM 44.1kHz~192kHz 24bit / DOP DSD64
Input Support - USBPCM 44.1kHz~384kHz 32bit / DSD64, DSD128, DSD256
Input Support - Bluetooth: PCM 48kHz 16bit

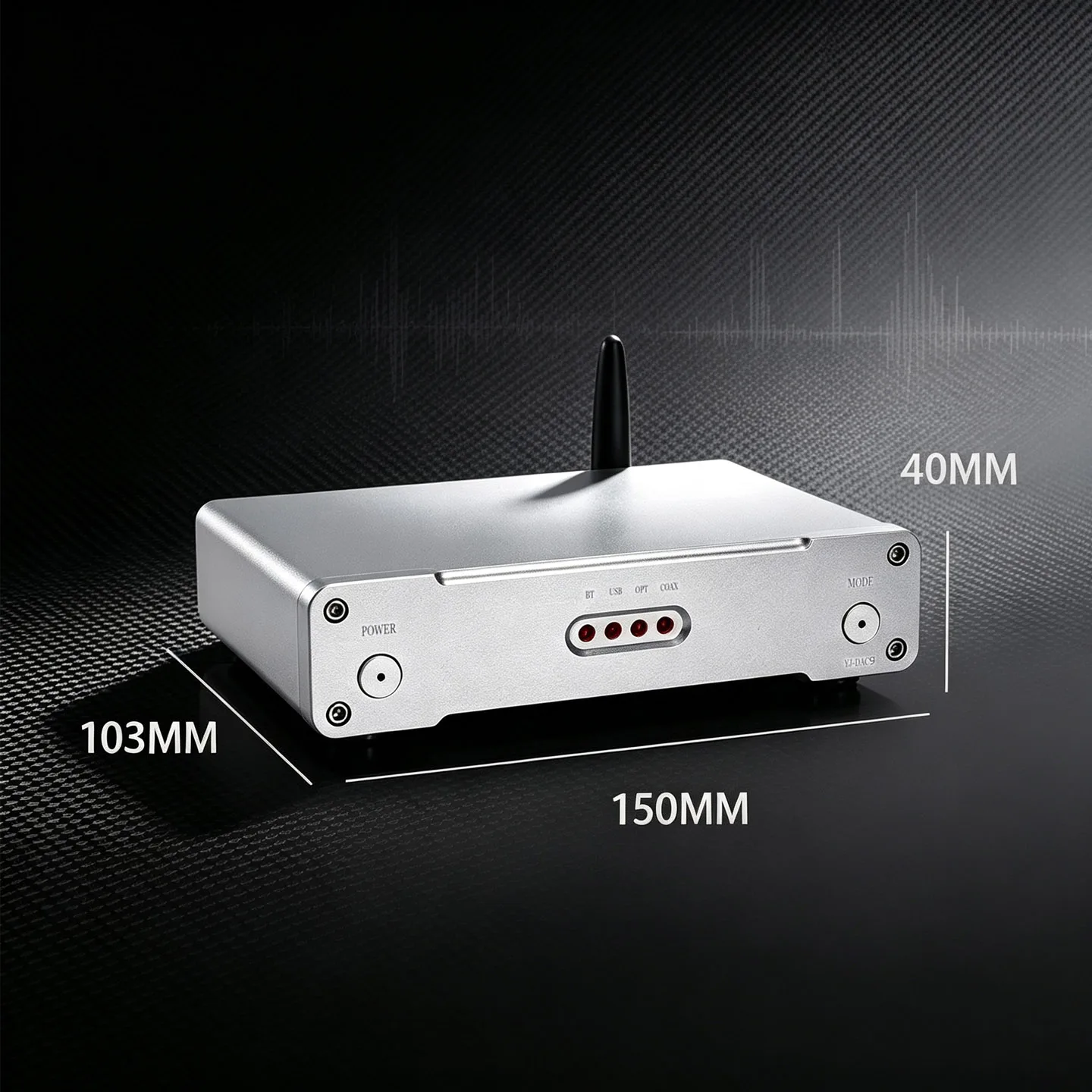

Dimensions: 103(L) × 150(W) × 40(H) mm
Weight: 0.6kg
