Product details:

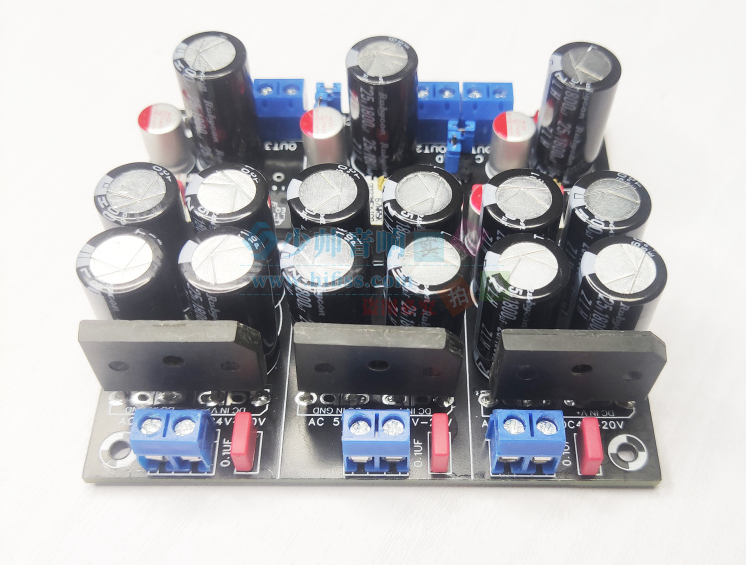

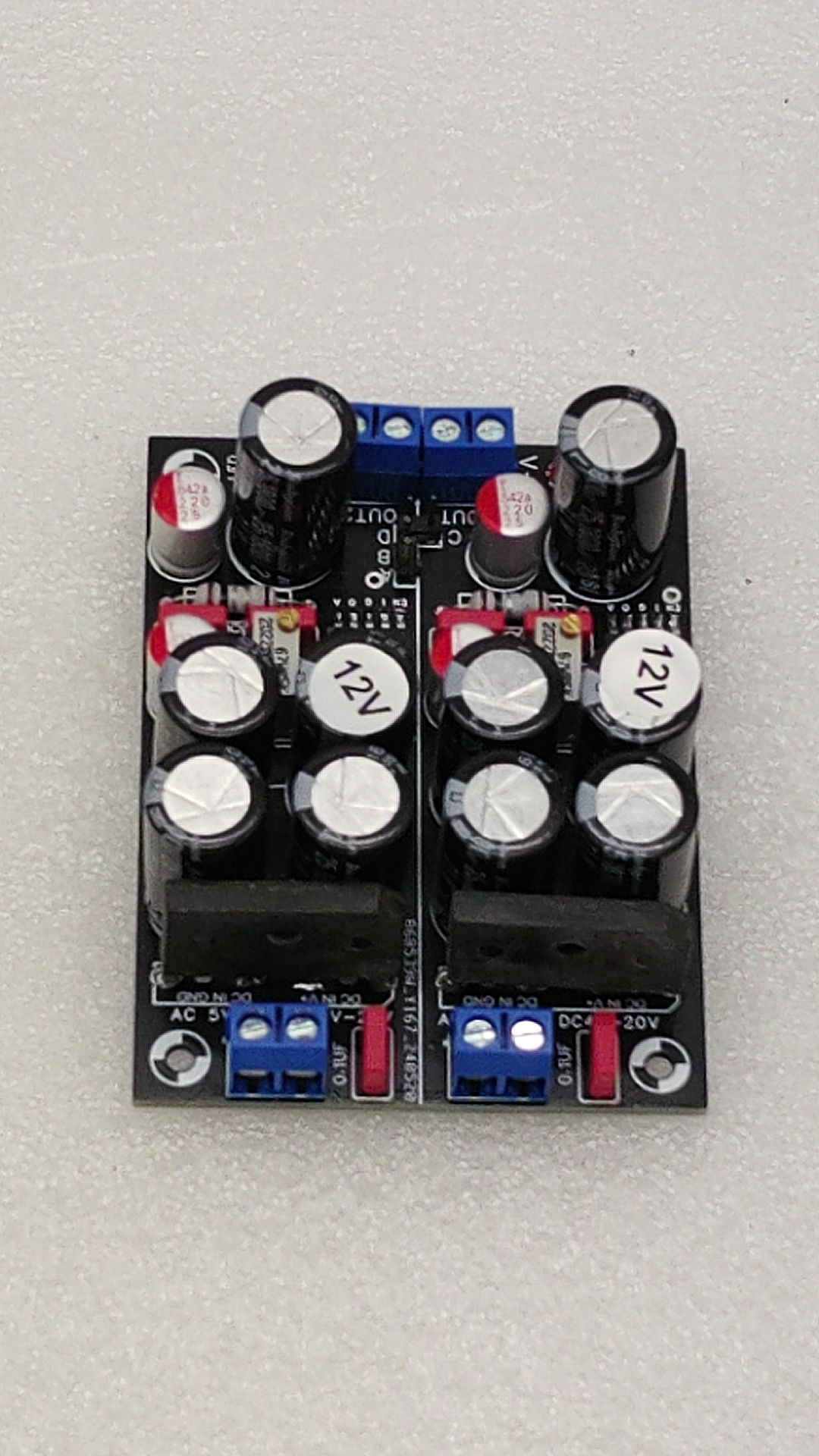

The voltage regulator board adopts a multi-channel fully independent LT1963A voltage regulator circuit design, which can be set as a positive power supply or a positive and negative voltage power supply.The maximum output current of a single circuit is 1.5A. The input can
be DC and AC, and each group can be connected in parallel or series. The output voltage range is 1.21V to 20V.LT1963 is a high-speed and low-noise integrated voltage regulator chip, with specifications far higher than ordinary voltage regulators such as LM317, LT317, and ASM1117. Commonly used on advanced DACs such as ES9018S.

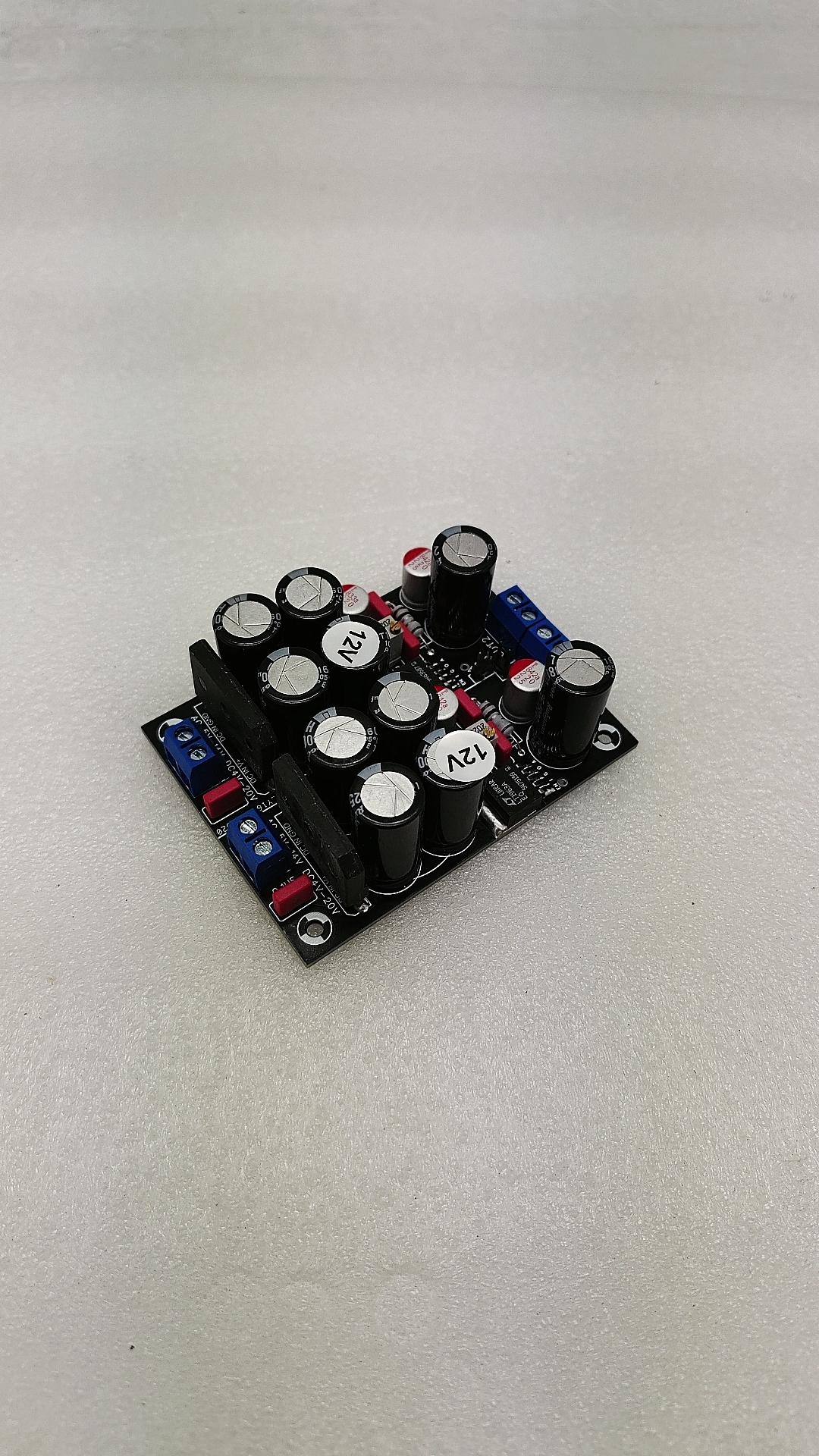

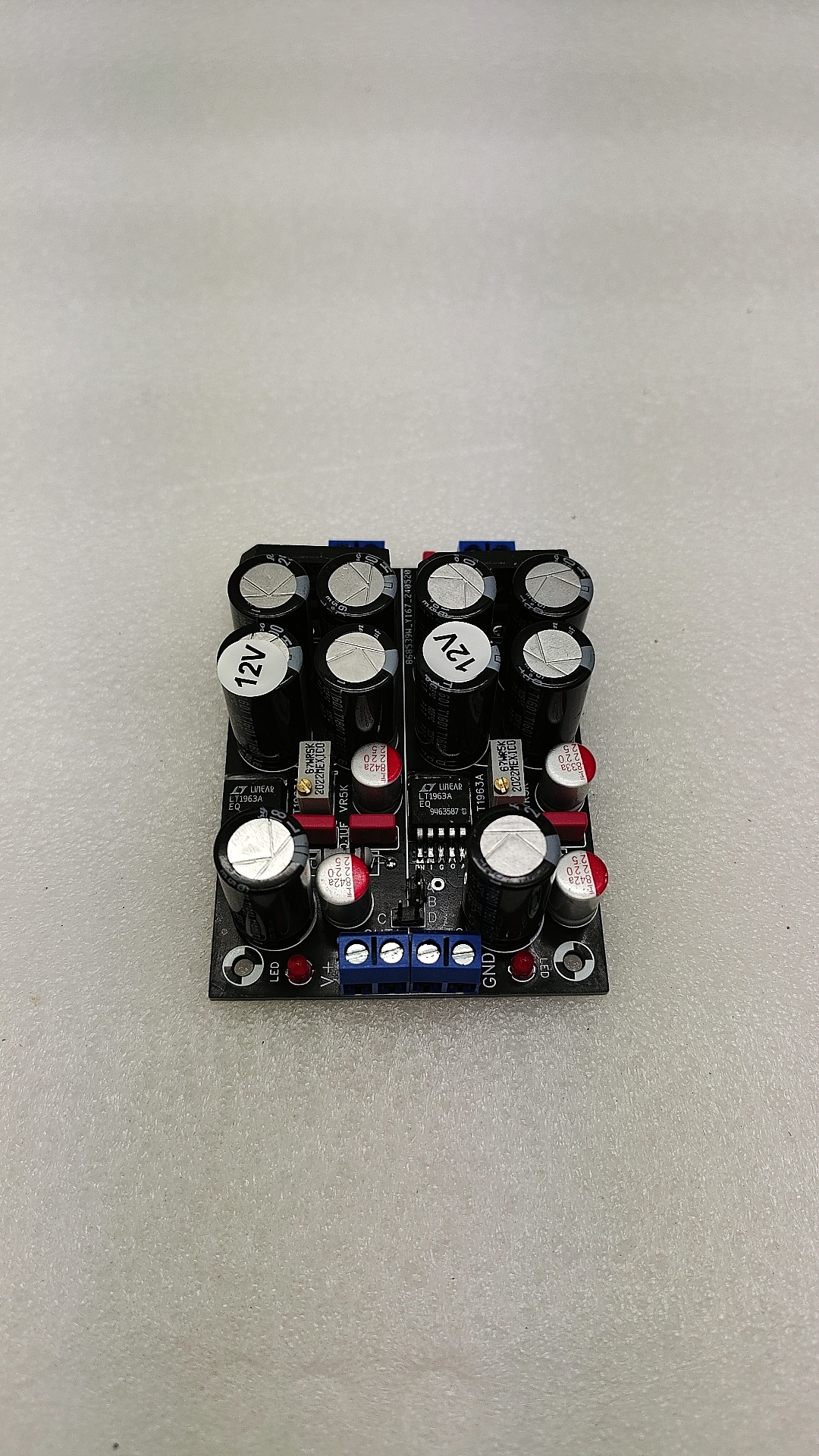

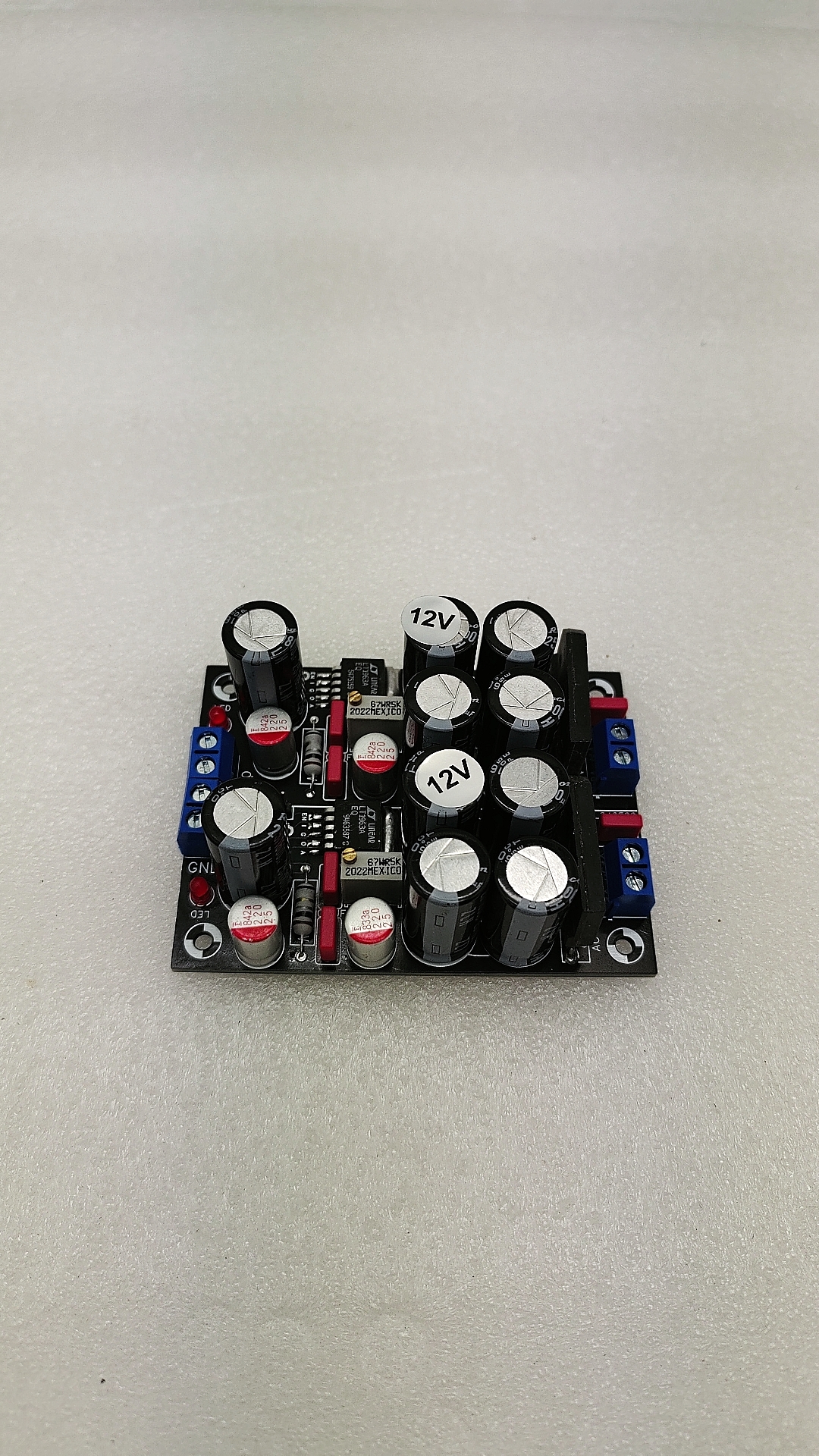

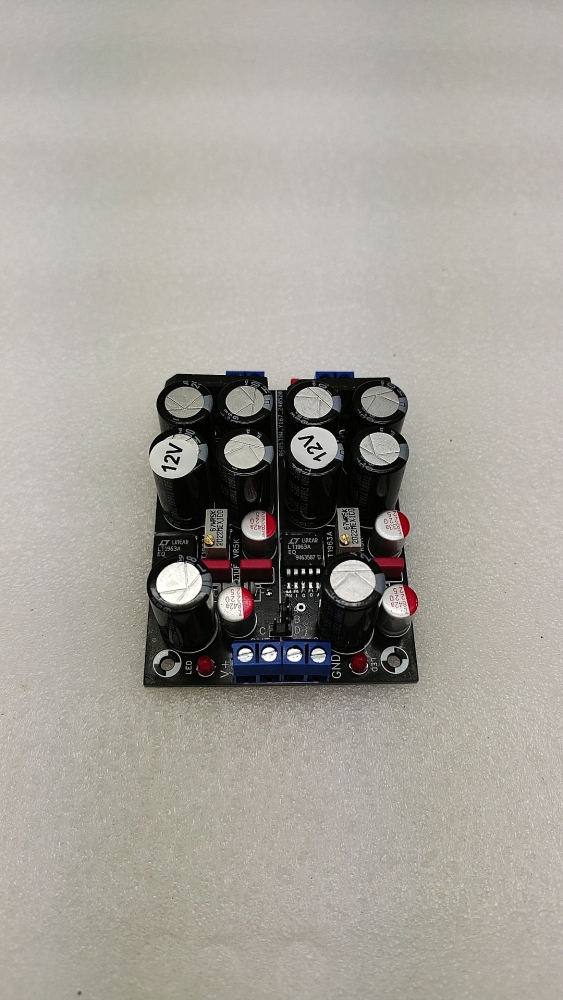

Two groups of PCB sizes: 60MM * 80MM

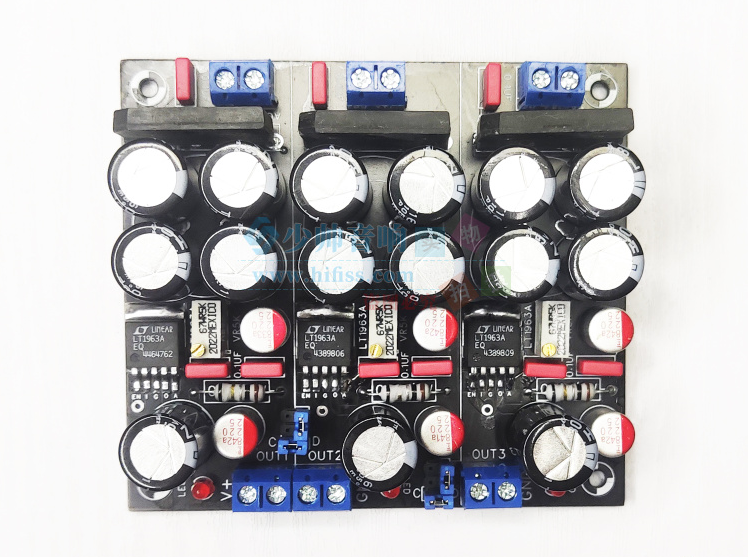

Three groups of PCB sizes: 80MM * 90MM
Rectifier transistor: original dismantled Schottky rectifier bridge D15XBS6（Do not purchase if you mind）
Input voltage: Two AC channels AC5V~15V, can also be directly input DC5~20V.
Output voltage: 1.2V-20V (adjustable), can be used as two positive power sources or one set of positive and negative voltage power sources.
Output current: 1.5A (max), up to 3A output can be achieved in parallel with two groups.
The LT1096A stabilized power supply board is designed with full bridge rectification. When set as a positive and negative power supply, the AC input terminals must be 4-wire two independent windings, and cannot be 3-wire center taps.
List:
LT1963A power supply finished board x 1
